Auto Double Length Fine Wire Stapler
Parts Reference Guide
Repair Kit
YK0802/YK0804

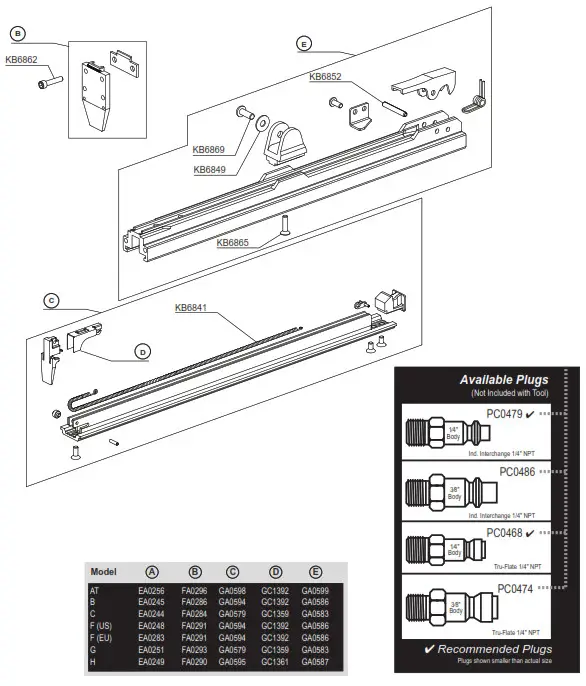

Schematic Drawings Inside

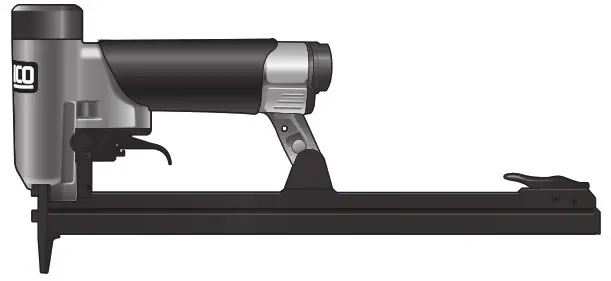

SFT10XP-A-DL Auto Double Length Fine Wire Stapler
Tool #
| 6S0311N B WIRE (US) 6S0321N C WIRE (US) 6S0341N F WIRE (US) 6S0351N G WIRE (US) 6S0361N H WIRE (US) | 6S2361N AT (EU) 6S2321N C (EU) 6S2341N F (EU) 6S2351N G (EU) |
REPLACEMENT PARTS LIST
| PART NO. | DESCRIPTION |
| AA0189 | CAP ASY |
| AA0192 | CAP ASY |
| AC0503 | MAINBODY |
| AC0506 | MUFFLER |
| AC0508 | RETAINER |
| BC0819 | CYLINDER SLEEVE |
| BC0820 | BUMPER |
| BC0864 | VALVE |
| CA0133 | VALVE ASY |
| CA0139 | VALVE ASY |
| CA0140 | VALVING ASY |
| EA0244 | PISTON DRIVER ASY (C) |
| EA0245 | PISTON DRIVER ASY (B) |
| EA0248 | PISTON DRIVER ASY (F)(US) |
| EA0249 | PISTON DRIVER ASY (H) |
| EA0251 | PISTON DRIVER ASY (G) |
| EA0256 | PISTON DRIVER ASY (AT) |
| EA0283 | PISTON DRIVER ASY (F)(EU) |
| FA0284 | FRONT PLATE ASY (C) |
| FA0286 | FRONT PLATE ASY (B) |
| FA0290 | FRONT PLATE ASY (H) |
| FA0291 | FRONT PLATE ASY (F) |
| FA0293 | FRONT PLATE ASY (G) |
| FA0296 | FRONT PLATE ASY (AT) |
| GA0579 | RAIL ASY (C,G) |
| GA0583 | MAGAZINE ASY (C,G) |
| GA0586 | MAGAZINE ASY (B,F) |
| GA0587 | MAGAZINE ASY (H) |
| GA0594 | RAIL ASY (B,F) |
| GA0595 | RAIL ASY (H) |
| GA0598 | RAIL ASY (AT) |
| GA0599 | MAGAZINE ASY (AT) |
| GC1359 | FEEDER SHOE (C,G) |
| GC1361 | FEEDER SHOE (H) |
| GC1392 | FEEDER SHOE (AT,B,F) |
| HA0258 | TRIGGERING ASY |
| HC0654 | TRIGGER |
| KB6841 | SPRING |
| KB6844 | SPRING |
| KB6847 | NUT |
| KB6849 | WASHER |
| KB6851 | PIN |
| KB6852 | PIN |
| KB6862 | SCREW |
| KB6869 | PIN |
| KB6865 | SCREW |
| KC0882 | PIN |
| LB1250 | O-RING |
| LB1253 | O-RING |
| LB1258 | O-RING |
| LB1261 | O-RING |
| LB1262 | O-RING |
| LB1291 | O-RING |
| LB5147 | O-RING |
Questions? Comments? call SENCO’s toll-free Action-line: 1-800-543-4596 (North & South America only) or e-mail: [email protected]
NFG06S-A-DL January 30, 2023 (Replaces 1/26/19)
Questions? Comments? call SENCO’s toll-free Action-Line: 1-800-543-4596
(North and South America Only) or email: [email protected]
KYOCERA-SENCO Industrial Tools, Inc.
8450 Broadwell Road
Cincinnati, OH 45244
1-800-543-4596
www.senco.com
© 2023 by KYOCERA-SENCO Industrial Tools, Inc.
