20 Ga. 1/2″ Crown Clinching Stapler
Parts Reference Guide

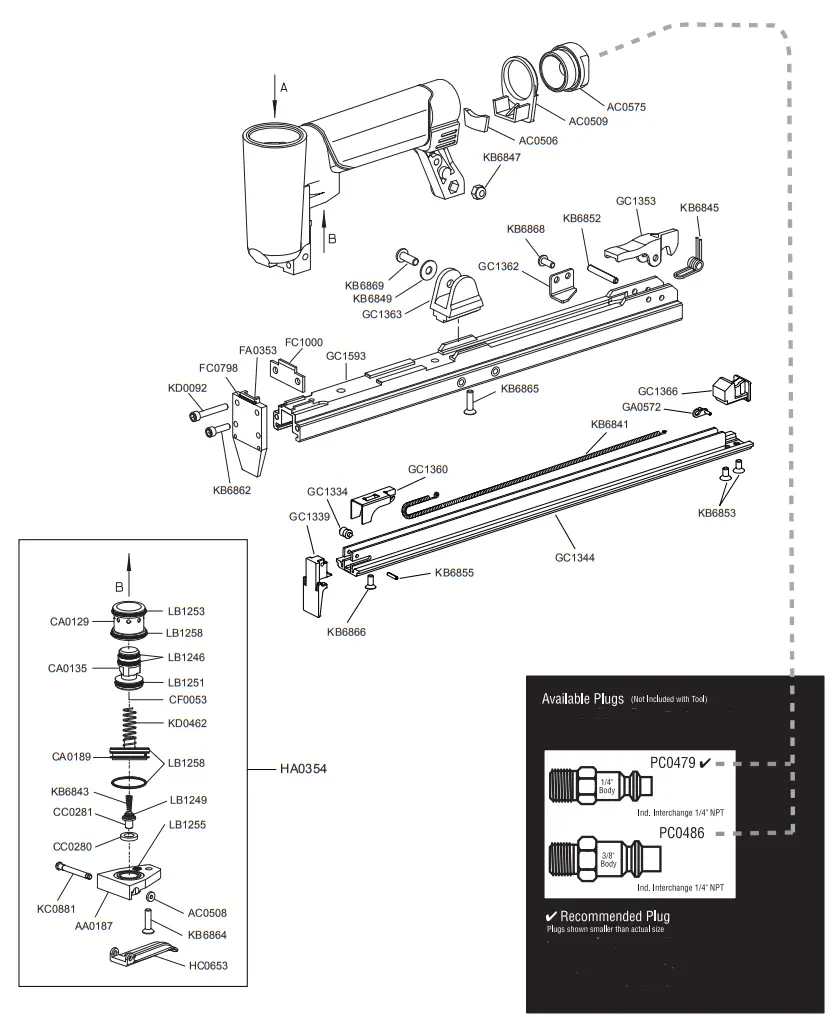

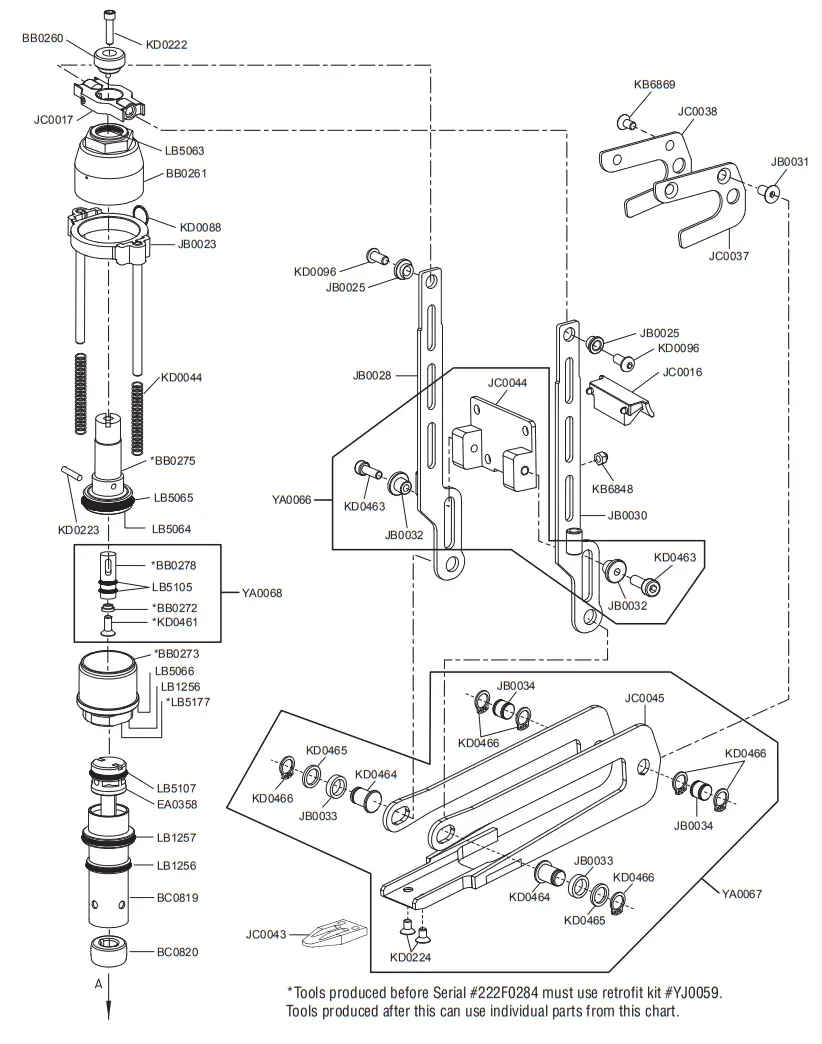

Schematic Drawings Inside

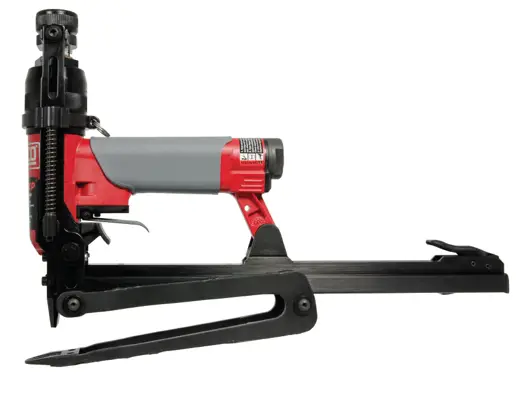

DFPXP 20 Ga. 1-2 Inch Crown Clinching Stapler
NFG08H • Revised July 26, 2022 (Replaces 5/18/2022)
Questions? Comments? call SENCO’s toll-free Action-Line: 1-800-543-4596
(North and South America Only) or email: [email protected]
REPLACEMENT PARTS LIST
| PART NO. | DESCRIPTION |
| AA0187 | TRIGGER PLATE CPL. |
| AC0506 | SILENCER |
| AC0508 | RETAINER |
| AC0509 | SILENCER CAP |
| AC0575 | END CAP |
| BB0260 | ADJUSTER |
| BB0261 | CAP |
| BB0272 | BUSHING |
| BB0273 | BODY |
| BB0278 | PISTON |
| BB0275 | JAW PISTON |
| BC0819 | CYLINDER |
| BC0820 | BUMPER |
| CA0129 | BUSHING |
| CA0135 | VALVE PISTON CPL. |
| CA0189 | TRIGGER |
| CC0280 | SEAL |
| CC0281 | REMOTE STEM |
| CF0053 | BUFFER |
| EA0358 | DRIVER PISTON |
| FA0354 | DRIVER PLATE |
| FC0798 | SEAL |
| FC1000 | PLATE |
| GA0572 | HOOK |
| GC1334 | ROLLER |
| GC1339 | PLATE |
| GC1344 | RAIL |
| GC1353 | LATCH |
| GC1360 | FEEDER |
| GC1362 | STOP |
| GC1363 | BRACKET |
| GC1366 | LATCH |
| GC1594 | LOADER |
| HA0354 | TRIGGERING ASY |
| HC0653 | TRIGGER |
| JB0023 | JAW RING |
| JB0025 | BUSHING |
| JB0028 | RIGHT PLATE |
| JB0030 | LEFT PLATE |
| JB0032 | BUSHING |
| JB0033 | BUSHING |
| JB0034 | BUSHING |
| JC0016 | GUARD |
| JC0017 | YOKE |
| JC0037 | YOKE |
| JC0038 | YOKE |
| JC0043 | ANVIL NOSE |
| JC0044 | YOKE |
| JC0045 | ANVIL (JAW) BODY |
| KB6841 | SPRING |
| KB6843 | SPRING |
| KB6845 | SPRING |
| KB6847 | NUT |
| KB6849 | WASHER |
| KB6852 | PIN |
| KB6853 | SCREW |
| KB6855 | PIN |
| KB6862 | SCREW |
| KB6864 | SCREW |
| KB6865 | SCREW |
| KB6866 | SCREW |
| KB6868 | SCREW |
| KB6869 | SCREW |
| KC0881 | PIN |
| KD0044 | SPRING |
| KD0088 | RING |
| KD0091 | PIN |
| KD0092 | SEAL |
| KD0093 | SCREW |
| KD0096 | SCREW |
| KD0222 | SCREW |
| KD0223 | PIN |
| KD0224 | SCREW |
| KD0461 | SCREW |
| KD0462 | SPRING |
| KD0463 | SCREW |
| KD0464 | BUSHING |
| KD0465 | WASHER |
| KD0466 | RETAINING RING |
| LB1246 | SEAL |
| LB1249 | SEAL |
| LB1251 | SEAL |
| LB1253 | SEAL |
| LB1255 | SEAL |
| LB1256 | SEAL |
| LB1257 | SEAL |
| LB1258 | SEAL |
| LB5063 | SEAL |
| LB5064 | SEAL |
| LB5065 | SEAL |
| LB5066 | SEAL |
| LB5105 | SEAL |
| LB5107 | SEAL |
| LB5177 | SEAL |
| YA0066 | SUPPORT KIT |
| YA0067 | ANVIL JAW KIT |
| YA0068 | PISTON KIT |
