SFT10XP-DL
Double Length Fine Wire Stapler
Parts Reference Guide
Repair Kit
YK0802
YK0803

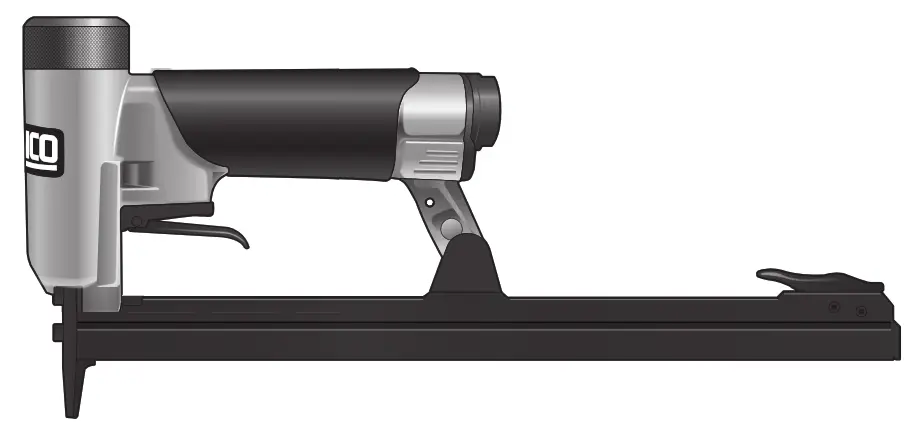

SFT10XP-DL Double Length Fine Wire Stapler

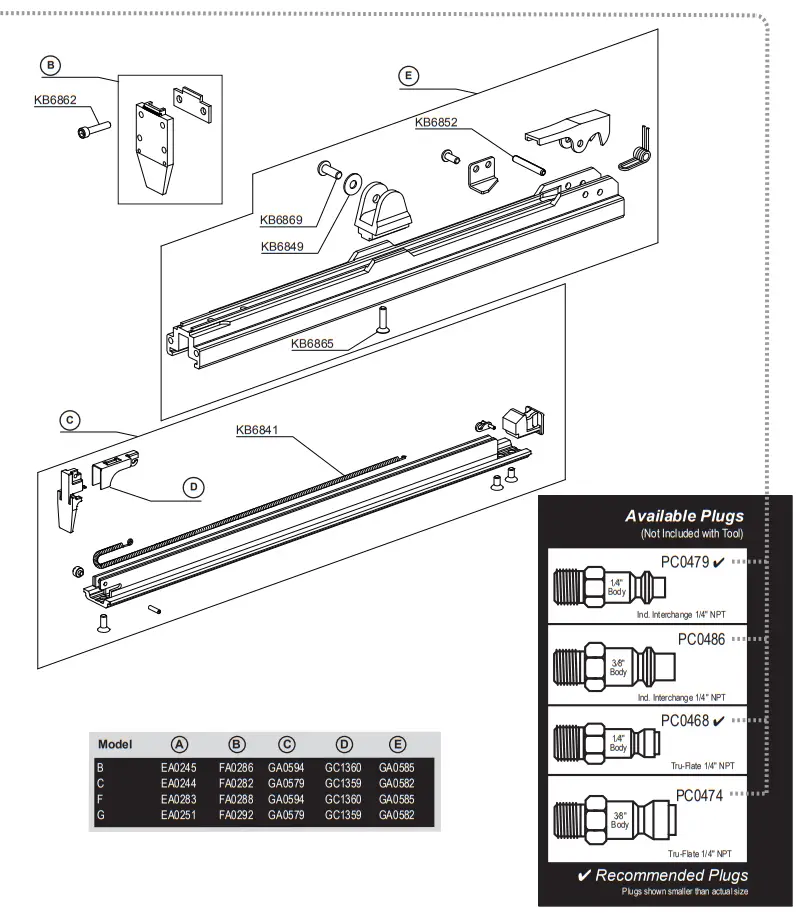

Schematic Drawings Inside
* Does Not Include O-rings
| PART NO. | DESCRIPTION |
| AA0187 | TRIGGER PLATE ASY |
| AA0189 | CAP ASY |
| AA0192 | CAP ASY |
| AC0502 | MAINBODY |
| AC0506 | MUFFLER |
| AC0508 | RETAINER |
| BC0819 | CYLINDER SLEEVE |
| BC0820 | BUMPER |
| BC0864 | VALVE |
| CA0129 | BUSHING |
| CA0135 | VALVE PISTON CPL. |
| CA0189 | TRIGGER |
| CC0280 | SEAL |
| EA0244 | PISTON DRIVER ASY (C) |
| EA0245 | PISTON DRIVER ASY (B) |
| EA0251 | PISTON DRIVER ASY (G) |
| EA0283 | PISTON DRIVER ASY (F) |
| FA0282 | FRONT PLATE ASY (C) |
| FA0286 | FRONT PLATE ASY (B) |
| FA0288 | FRONT PLATE ASY (F) |
| FA0292 | FRONT PLATE ASY (G) |
| GA0579 | RAIL ASY (C,G) |
| GA0582 | MAGAZINE ASY (C,G) |
| GA0585 | MAGAZINE ASY (B,F) |
| GA0594 | RAIL ASY (B,F) |
| GC1359 | FEEDER SHOE (C,G) |
| GC1360 | FEEDER SHOE (B,F) |
| HA0354 | TRIGGERING ASY |
| HC0653 | TRIGGER |
| HC0736 | TRIGGER |
| KB6841 | SPRING |
| KB6843 | SCREW |
| KB6847 | NUT |
| KB6849 | WASHER |
| KB6852 | PIN |
| KB6862 | SCREW |
| KB6864 | SCREW |
| KB6865 | SCREW |
| KB6869 | PIN |
| KC0881 | PIN |
| KD0462 | SPRING |
| LB1246 | SEAL |
| LB1249 | SEAL |
| LB1251 | SEAL |
| LB1253 | SEAL |
| LB1255 | SEAL |
| LB1258 | SEAL |
| LB1258 | SEAL |
| LB1291 | O-RING |
| LB5147 | O-RING |
Questions? Comments? call SENCO’s toll-free Action-line: 1-800-543-4596
(North & South America only) or e-mail: [email protected]

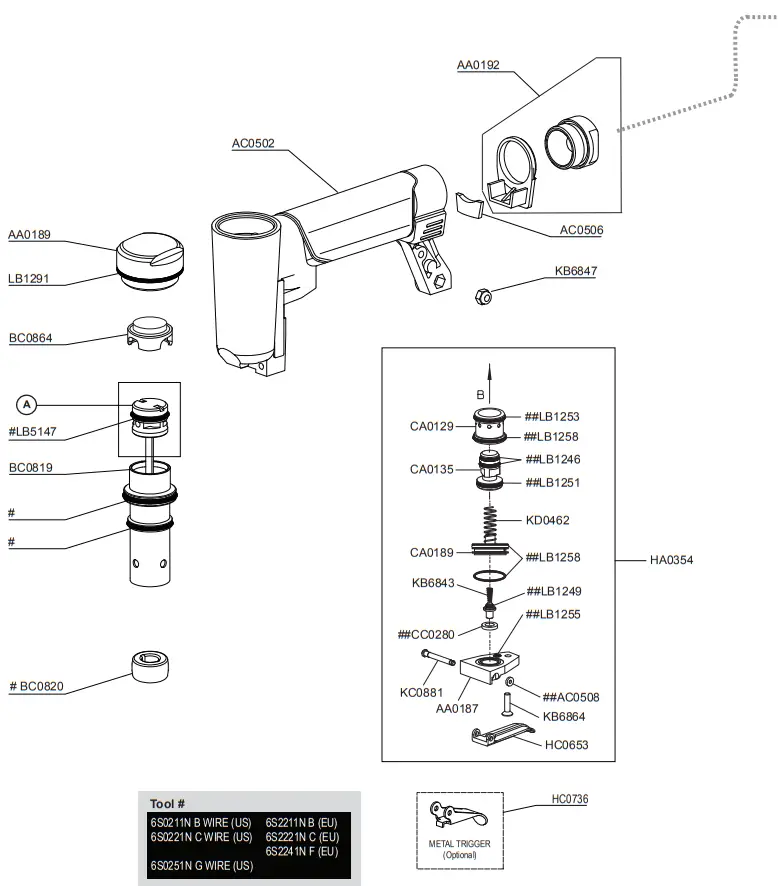

Schematic Drawings Inside
NFG06S-DL • July 26, 2022 (Replaces 1/26/19)
KYOCERA-SENCO Industrial Tools, Inc.
8450 Broadwell Road
Cincinnati, OH 45244
1-800-543-4596
www.senco.com
© 2022 by KYOCERA-SENCO Industrial Tools, Inc.
