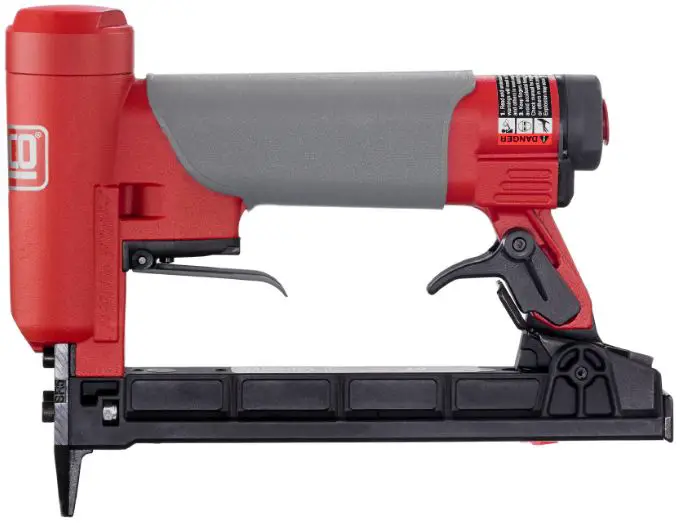

SENCO YK0802 Fine Wire Stapler
Installation Instruction
Tools
- 6S0001N A/D WIRE (US)
- 6S2001N A/D (EU)
- 6S2061N AT (EU)
- 6S0011N B WIRE (US) 6S2011N B (EU)
- 6S0021N C WIRE (US) 6S2021N C (EU)
- 6S0031N E WIRE (US) 6S2031N E (EU)
- 6S0041N F WIRE (US) 6S2041N F (EU)
- 6S0051N G WIRE (US) 6S2051N G (EU)
Model
| HC0653 | |||||
| Model | A | B | C | D | E |
| A/D WIRE | GC1521 | GA0581 | FA0283 | GA0697 | EA0247 |
| AT WIRE | GC1368 | GA0584 | FA0294 | GA0596 | EA0256 |
| B WIRE | GC1368 | GA0584 | FA0286 | GA0596 | EA0245 |
| C WIRE | GC1368 | GA0580 | FA0282 | GA0589 | EA0244 |
| E WIRE | GC1521 | GA0581 | FA0289 | GA0697 | EA0250 |
| F WIRE (US) GC1504 F WIRE (EU) GC1504 G WIRE GC1368 | GA0584 GA0584 GA0580 | FA0288 FA0288 FA0292 | GA0694 GA0694 GA0589 | EA0248 EA0283 EA0251 | |

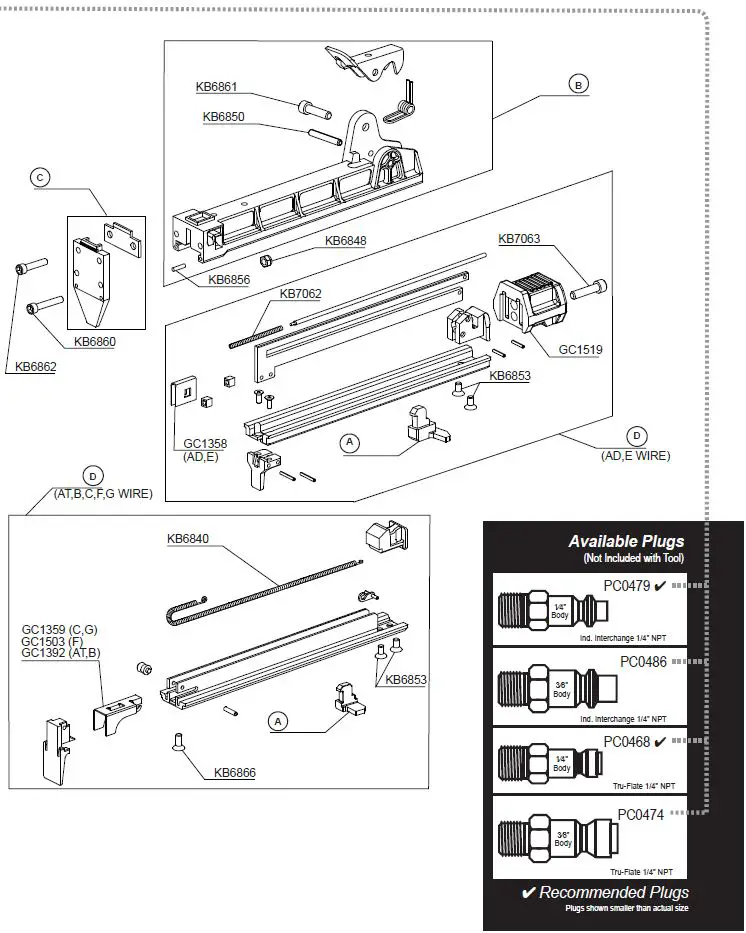

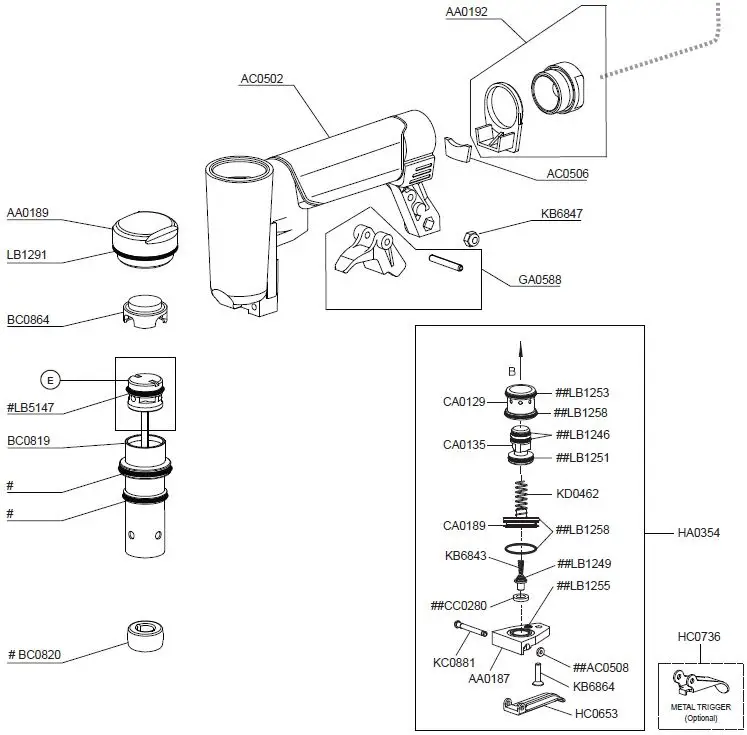

REPLACEMENT PARTS LIST
| PART NO. | DESCRIPTION |
| AA0187 | TRIGGER PLATE ASY |
| AA0189 | CAP ASY |
| AA0192 | CAP ASY |
| AC0502 | MAINBODY |
| AC0506 | MUFFLER |
| AC0508 | RETAINER |
| BC0819 | CYLINDER SLEEVE |
| BC0820 | BUMPER |
| BC0864 | VALVE |
| CA0129 | BUSHING |
| CA0135 | VALVE PISTON CPL. |
| CA0189 | TRIGGER |
| CC0280 | SEAL |
| EA0244 | PISTON DRIVER ASY (C) |
| EA0245 | PISTON DRIVER ASY (B) |
| EA0247 | PISTON DRIVER ASY (AD) |
| EA0248 | PISTON DRIVER ASY (F-US) |
| EA0250 | PISTON DRIVER ASY (E) |
| EA0251 | PISTON DRIVER ASY (G) |
| EA0256 | PISTON DRIVER ASY (AT) |
| EA0283 | PISTON DRIVER ASY (F-EU) |
| FA0282 | FRONT PLATE ASY (C) |
| FA0283 | FRONT PLATE ASY (AD) |
| FA0286 | FRONT PLATE ASY (B) |
| FA0288 | FRONT PLATE ASY (F) |
| FA0289 | FRONT PLATE ASY (E) |
| FA0292 | FRONT PLATE ASY (G) |
| FA0294 | FRONT PLATE ASY (AT) |
| GA0580 | MAGAZINE ASY (C,G) |
| GA0581 | MAGAZINE ASY (AD,E) |
| GA0584 | MAGAZINE ASY (B,F,AT) |
| GA0588 | LATCH ASY |
| GA0589 | RAIL ASY (C,G) |
| GA0596 | RAIL ASY (AT,B) |
| GA0694 | LATCH (F) |
| GA0697 | RAIL ASY (AD,E) |
| GC1358 | FEEDER SHOE (AD,E) |
| GC1359 | FEEDER SHOE (C,G) |
| GC1368 | LATCH (B,C,G,AT) |
| GC1392 | FEEDER SHOE (AT,B) |
| GC1503 | FEEDER SHOE(F) |
| GC1504 | LATCH (F) |
| GC1519 | END CAP (AD,E) |
| GC1521 | LATCH (AD,E) |
| HA0354 | TRIGGERING ASY |
| HC0653 | TRIGGER |
| KB6840 | SPRING |
| KB6843 | SPRING |
| KB6847 | NUT |
| KB6848 | NUT |
| KB6850 | PIN |
| KB6853 | SCREW |
| KB6856 | PIN |
| KB6860 | SCREW |
| KB6861 | SCREW |
| KB6862 | SCREW |
| KB6864 | SCREW |
| KB6866 | SCREW |
| KB7062 | SPRING |
| KB7063 | SCREW |
| KC0881 | PIN |
| KD0462 | SPRING |
| LB1246 | SEAL |
| LB1249 | SEAL |
| LB1251 | SEAL |
| LB1253 | SEAL |
| LB1255 | SEAL |
| LB1258 | SEAL |
| LB1258 | SEAL |
| LB1291 | O-RING |
| LB5147 | O-RING |
Questions? Comments?
call SENCO’s toll-free
Action-line:
1-800-543-4596 (North & South America only) or e-mail: [email protected].
