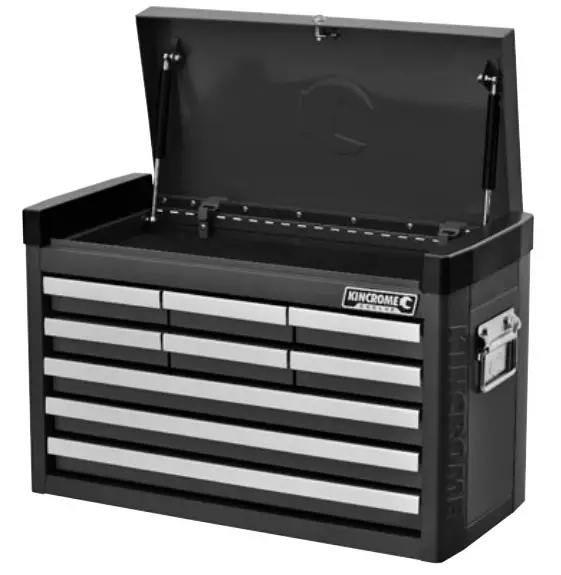

Kincrome Evolve K7619 Tool Chest 9 Drawer User Manual (+ PDF)

TOOL CHEST 9 DRAWER
Part No. K7619
User Manual

IMPORTANT: THIS OPERATING MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. READ CAREFULLY AND UNDERSTAND ALL INFORMATION BEFORE OPERATING THE TOOL. SAVE THIS MANUAL FOR FUTURE USE.

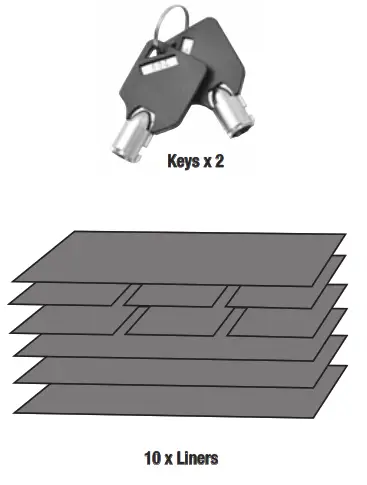

PARTS LIST

NOTE
READ CAREFULLY BEFORE USE:
Pt1. Using the manual drawer retention system requires users to close all drawers until it clicks into the closed position.
Pt2. To open drawers ensure the lid is fully raised. Drawers will not open when the lid is closed.
Pt3. Locking: ensure all drawers are in the closed position and the lid is down. Drawers will not lock if they are not closed correctly.
Pt4. For any issues regarding locking/closing this toolbox please call Kincrome on 1300 657 528.

Ensure drawers are fully closed prior to closing the lid and locking the chest

TOOLS & ASSISTANCE NEEDED

Contents hide

1 REPLACEMENT PARTS

2 Documents / Resources

2.1 References

3 Related Posts

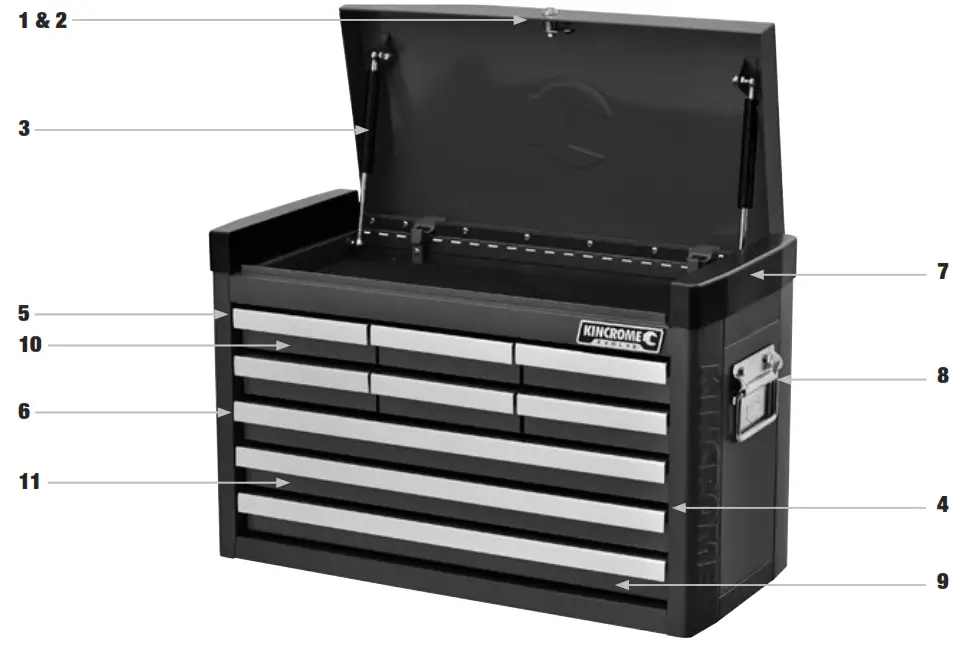

REPLACEMENT PARTS

ITEM	PART NO.	DESCRIPTION	QUANTITY
1	K7777	Lock & Key	1
2	K7779	Key Only (Specify Key Number)	1
3	K7619-3	Gas Struts (Pair)	2
4	K7619-4	Ball Bearing Slide (Pair)	2
5	K7619-5	Alum Drawer Grip (Small)	1
6	K7619-6	Alum Drawer Grip (Large)	1
7	K7619-7	Plastic Top Bumper (Pair)	2
8	K7619-8	Side Carry Handle x 1	1
9	K7619-9	Eva Mat Pack 10 Pce	10
10	K7619-10	Small Drawer	1
11	K7619-11	Large Drawer (Shallow)	1

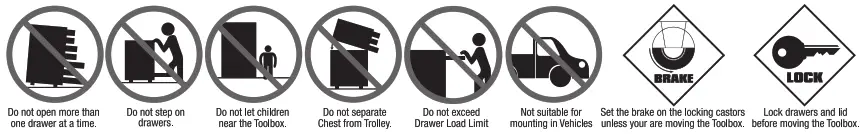

Caution: Take Safety Precautions When Using Your Toolbox

National Head Office
National Distribution and Showroom
3 Lakeview Dve, Caribbean Business Park
Scoresby Victoria 3179 Australia (03) 9730 7199
Administration
T (03) 9730 7100 F (03) 9730 7199
E [email protected]
W kincrome.com.au
Customer Service Centre
T 1300 657 528 F 1300 556 005
Made to Kincrome Tools & Equipment Pty Ltd Global
specifications and quality standards in China
Kincrome UK Ltd PO Box 468 Southampton SO30 9EP
