Kobalt Ss22145 6 Drawer Chest User Manual

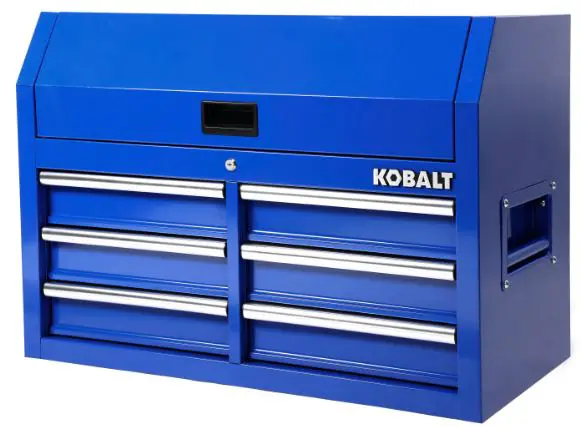

KOBALT SS22145 6 Drawer Chest

ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 888-3KOBALT (888-356-2258), 8 a.m – 8 p.m., EST,Monday – Sunday. You could also contact us at [email protected].

PRODUCT SPECIFICATIONS

Note: Specify the item number when ordering the product due to the different colors:

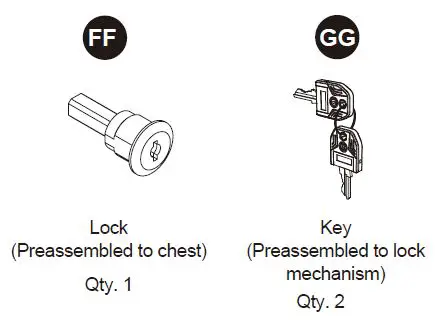

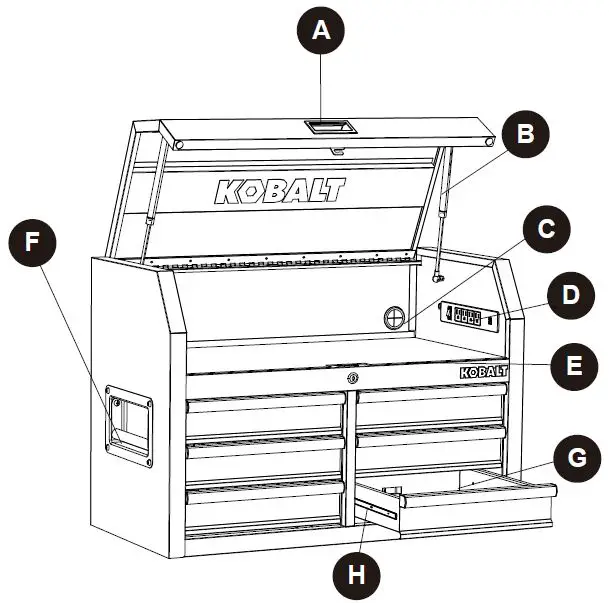

PACKAGE CONTENTS

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble or operate this product. Failure to follow may result in serious injury. Save all warnings and instructions for future reference.

WARNING

• Do not stand or step on this product. You may fall which may cause personal injury or product damage.
• When locking the product, close the drawers completely in order for the lock bars to work properly.
• Secure this product properly before moving it with a forklift.
• Do not attach or mount this product to a vehicle. This may cause personal injury or product damage.

CAUTION

• Do not exceed the maximum drawer weight, including contents. Always balance the chest load to avoid tipping. Place the heavier weights on the bottom drawers when possible.
• Be careful when opening more than one drawer. The product may become unstable and tip, which may also cause personal injury or product damage.
• Be careful when closing the chest lid. Remove hands before closing the top lid.
• Keep the product on level surfaces. The product may become unstable and tip if stored or moved on an unlevel surface, which may cause personal injury or product damage.
• Two people are needed to safely move this unit.
• Do not store liquids in the unit unless they are secured in an approved container.
• Keep children and bystanders away while loading and/or unloading.
• Always use common sense and be cautious when using this product. Do not modify this product in any way.
• Follow all below information for extension cord:
  Do NOT insert extension cord through hole without grommet in place.
  Only use a three-wire extension cord with all three prongs intact. Never remove the round grounding prong.
  Extension cord must be connected to a 125Volt GFCI protected outlet with proper ground. If GFCI
  outlet is not available, use an extension cord with GFCI protection built in.
  Check the insulation and plugs of extension cord before using. Do NOT use cord if it is worn or damaged.
  Do NOT overload extension cord.
  Remove extension cord from the hole before moving or transporting the product.
  Do NOT connect extension cord to outlet that also supplies critical safety equipment with power.
  Make sure the power supply cord is unplugged before any servicing or cleaning.
• Follow all below information to avoid electrical shock hazard:
  Do not plug cord into outlet with wet hands.
  Do not use this product near a bathtub, a shower, or a swimming pool.

Product plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earth (grounded) product power strips.
Unmodified plugs and matching outlets will reduce the risk of electric shock.
Avoid body contact with earthed or grounded surfaces. There is an increased risk of electric shock if your body is earthed or grounded.

• Refer all below information for FCC rules:
  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
  CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

ASSEMBLY INSTRUCTIONS

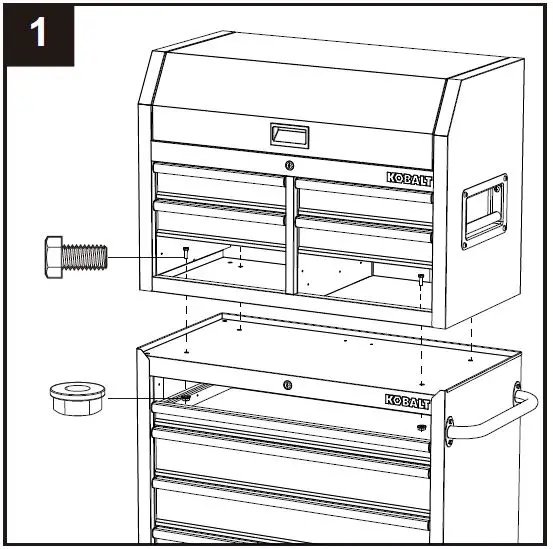

1. If you plan to stack the chest onto the cabinet (Sold separately, the item numbers of the cabinets in different colors are listed below), please follow the below step. Otherwise, forget this step. Remove the cabinet mat, unload the two bottom drawers from the chest and the top drawer from the cabinet using the method on Operating Instructions (Page 7). Insert M8 x 25 mm bolts (packed in the cabinet) from the bottom of the chest into the top of the cabinet and tight with M8 nuts (packed in the cabinet). Install the 3 unloaded drawers back using the method on Operation Instructions (Page 7).

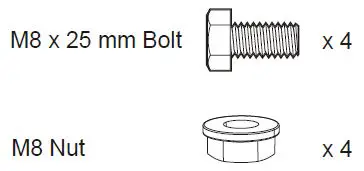

Hardware Used

Note: Specify the item number when ordering the cabinet due to the different colors:

OPERATING INSTRUCTIONS

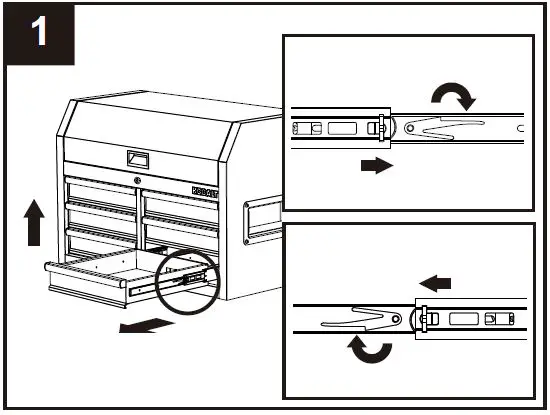

1. Removing the drawers:
   Fully empty and extend the drawer.
   Push up the release lever on the one side of drawer slide while pulling down on the other release lever. Pull the drawer outward until it is released from the slides.

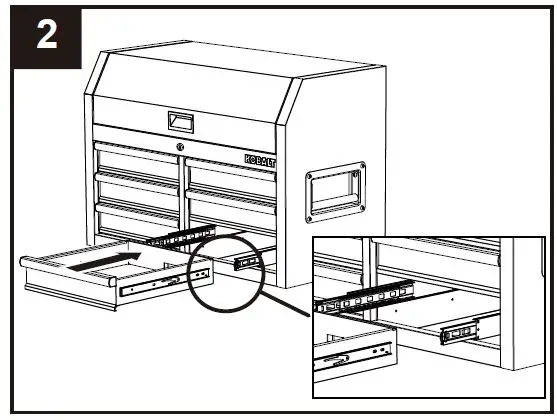

2. Re-inserting the drawers:
   Pull the slides and slide carrier out until fully extended. Hold the slide on the drawer while aligning it with the slide on the chest. Slightly insert one side and repeat for the other side.
   Slowly push the drawer until it is fully closed to engage the slide. Open and close the drawer to verify proper operation.

CARE AND MAINTENANCE

• Keep the product in good repair by adopting a regular maintenance program.
• The use of drawer liners (included) is recommended to protect the finish inside the drawers and make the drawers easier to clean.
• Lubricate the slides semi-annually with general purpose grease or equivalent.
• Periodically clean the drawer fronts, drawer trim, and other surfaces with a mild detergent and water.
• Remove grease and oil with a standard nonflammable cleaning fluid.

3-YEAR HASSLE-FREE WARRANTY

For 3 years from the date of purchase, this product is warranted for the original purchaser to be free from defects in material and workmanship. This guarantee does not cover damage due to abuse, normal wear, improper maintenance, neglect, unauthorized repair/alteration, or expendable parts and accessories expected to become unusable after a reasonable period of use.
If you think your product meets the above guarantee criteria, please call our customer service department at 888-3KOBALT (888-356-2258), 8 a.m. – 8 p.m., EST, Monday – Sunday. You could also contact us at [email protected], or return the item to the place of purchase with a copy of the original sales receipt. The distributor will, at its option, repair or replace the product. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

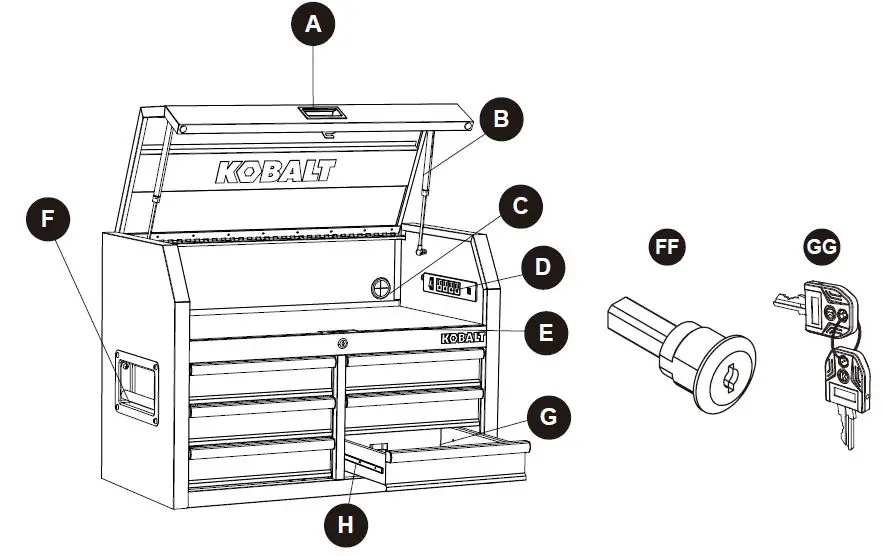

REPLACEMENT PARTS LIST

Note: Some parts are not interchangeable because of different colors. Specify part number when ordering:
