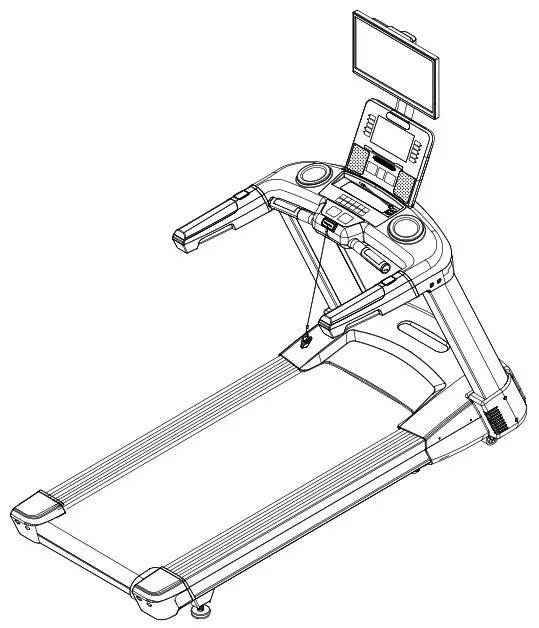

TV Rack Assembly
Manual
19” / 23”
Designed specifically for bve™ brand TV’s and the Bodycraft Connect-22
COMPLETE PARTS LIST
NOTE: Some Parts
listed below are pre-installed.
| PART NO. | Name | Qty |
| 1 | TV RACK | 1 |
| 2 | Snap Bushing | 3 |
| 3 | End Cap | 1 |
| 4 | TV RACK COVER | 1 |
| 5 | Screw M8*35 | 4 |
| 6 | Spring Washer M8 | 4 |
| 7 | Flat Washer M8*16*1.2 | 4 |
| 8 | Screw M5*16 | 2 |
| 9 | Support plate for 23″ TV | 1 |
| 10 | Screw M5*12 | 4 |
| 11 | Screw M4*10 | 8 |
| 12 | Spring Washer M4 | 8 |
| 13 | Flat Washer M4*12*1.0 | 8 |
| 14 | Screw M4*16 | 2 |
| 15 | Support plate for 19″ TV | 1 |
| 16 | Screw M3*50 | 2 |
| 17 | Flat Washer M3*10*0.8 | 2 |
| 18 | Self Adhesive Tie Mount | 5 |
| 19 | SUPPORT PLATE for 19” TV | 1 |
| 20 | Zip Tie | 5 |
Contact Bodycraft Sales for information on broadcastvision entertainment TV’s (bve™) and additional entertainment hardware designed for this mount. 1-800-990-5556.

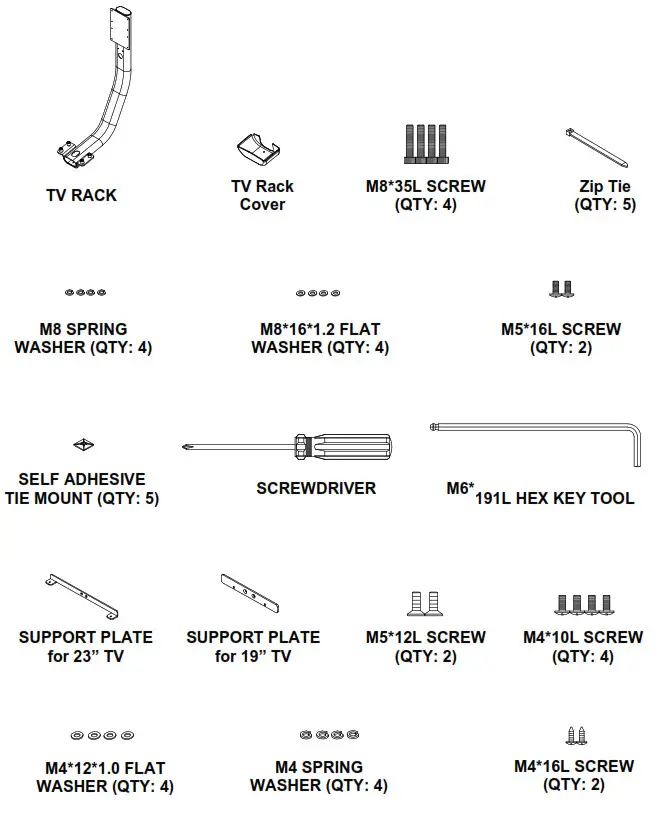

ASSEMBLY PARTS LIST

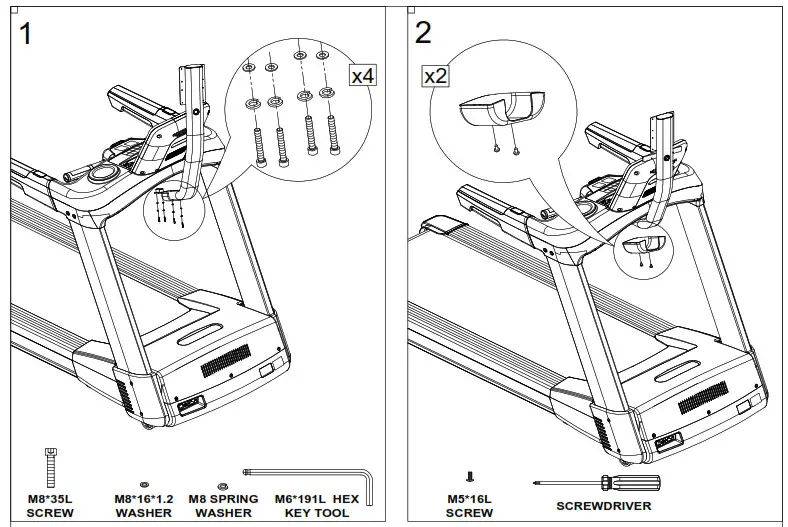

INSTALL TV RACK STEPS 1-2
IMPORTANT!
For 23” bve™ TV installation follow the instructions on Page 4 For 19” bve™ TV installation & Bodycraft Connect-22 follow the instructions on Page 5

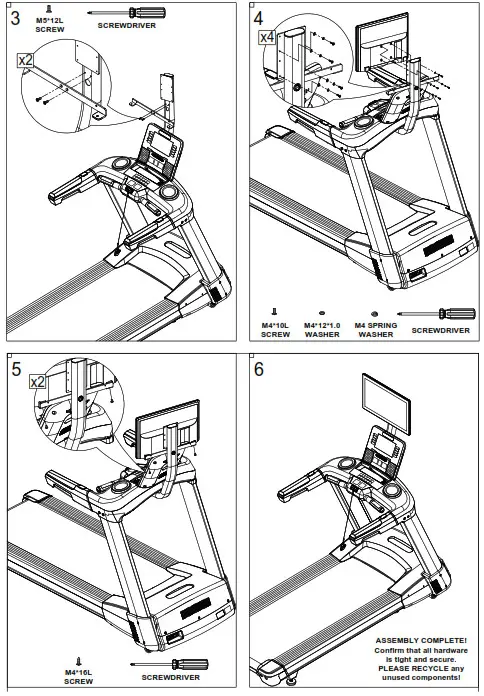

STEPS FOR 23” TV MOUNT

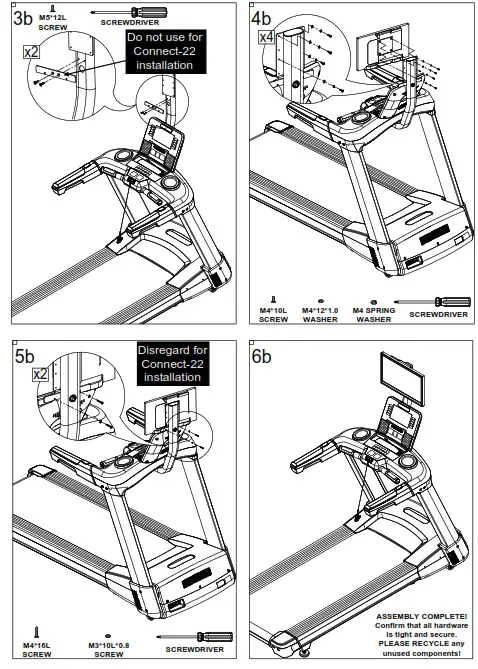

STEPS FOR 19” TV or Connect-22

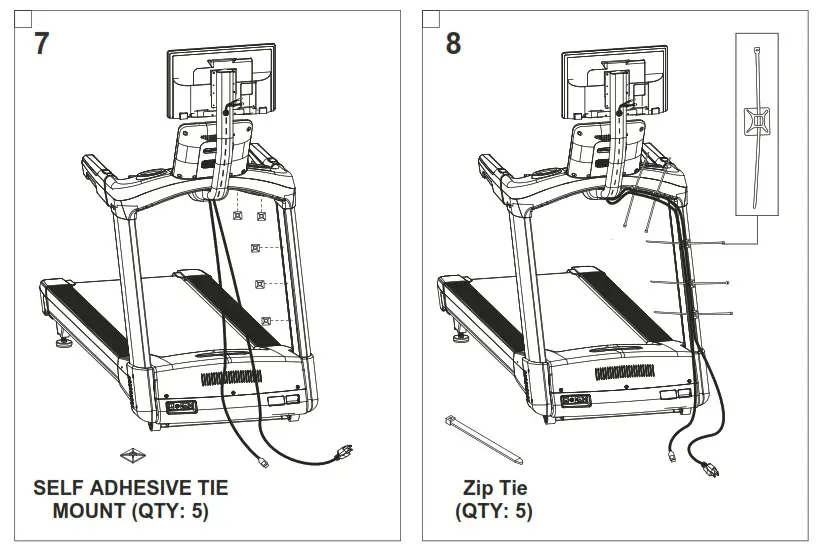

STEPS FOR 19” 23” TV MOUNT
