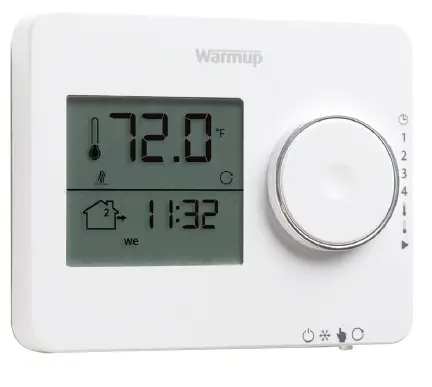

Warmup Tempo WSC-1102 Thermostat
The world’s best-selling electric floor heating brand
PRODUCT CODE
TEMPO-CW-01
PRODUCT DESCRIPTION
Suitable with all Warmup underfloor heating systems, the Tempo thermostat allows you to control the temperature of your underfloor heating system, to bring comfort, warmth, and luxury to your home. The Tempo was designed with simple features and an accessible interface. Not unlike the original iPods, you dial and click to select the periods and temperature. The Tempo provides all the efficient programming features you require, at a very competitive price.
ADVANTAGES
- Easy control with dial and sliders
- Compatibility: suitable with all Warmup electric underfloor heating systems.
- Clear screen displaying program details: Tempo’s Proportional Adaptive Function learns the time it takes to warm the room and activates the heating early so it is up to the right temperature when needed.
- Simplicity: Tempo enables you to choose the time as easily as you would with a watch or clock and quickly set heating programs.
- Stylish and contemporary design
- Proportional Adaptive Learning
- Available in White
- 3-Years Warranty
LIMITATIONS
The Tempo is not a transformer. It must be powered accordingly to the load it will switch and operate.
SPECIFICATIONS
| INPUT VOLTAGE | 120V / 240V |
| MAX LOAD | 15A |
| DIMENSIONS (H/W/D) | 90 x 113 x 23mm (from wall) |
| BATTERY BACKUP | 3 months (CR2032 battery provided) |
| SENSORS | Floor/ Air |
| SENSOR TYPE | NTC10K 3m long (can be extended to 50m) |
| IP RATING | IP20 |
| INSTALLATION DEPTH | 35mm back box |
| DISPLAY SIZE | 45 X 50mm |
| COMPATIBILITY | Ideal for electric underfloor heating systems |
The world’s best-selling electric floor heating brand™
TECHNICAL DATA
APPLICATIONS
|
Floor Heating | NADWM Floor Heating Mats |
| NADWS Floor Heating Cables | |
| WODH In-slab Heating Cables | |
| FOIL heating systems | |
| NADCM-PRO Cable for uncoupling membranes |

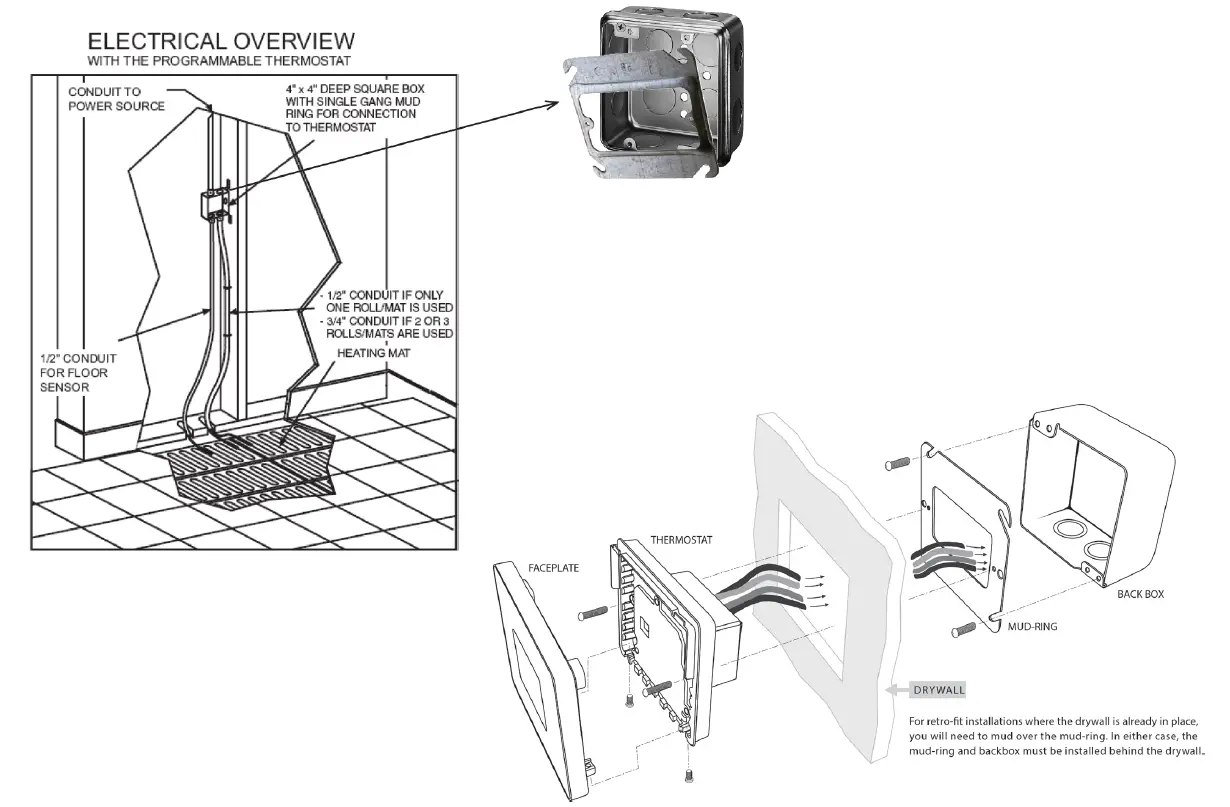

INSTALLATION
SENSOR PROBE
- Length: 3 meters or 10 feet
- Cable thickness: 3mm or 1/8″
- Probe dimensions: L x W = 20mm x 6mm or 5/8” x 1/4″
- Cable gauge: 24Ga 2-signal low voltage wire (extendable to 90ft)
The world’s best-selling electric floor heating brand™
PRODUCT LISTING
| Code | Description | Amp (A) |
| TEMPO-CW-01 | Digital Programmable Thermostat | 15A |
WARRANTY & MAINTENANCE
When installed according to the installation manual, the Tempo thermostats are covered with Warmup’s 3-Year manufacturer warranty. The system requires no maintenance. All Warmup thermostats are protected by Warmup’s SafetyNET Guarantee.
TECHNICAL SUPPORT
The warmup is available 24/7/365 at (888) 927-6333.
For quotes, layouts, and specific technical information, contact us at Warmup USA
+1 (888) 927-6333
[email protected]
Warmup CANADA
+1 (888) 592-7687
[email protected]
RELATED PRODUCTS
- NADCM-PRO – see WSC-0816
- NADWM – see WSC-0720
- NADWS – see WSC-0721
- FOIL – see WSC-0723
- WODH – see WSC-0724
