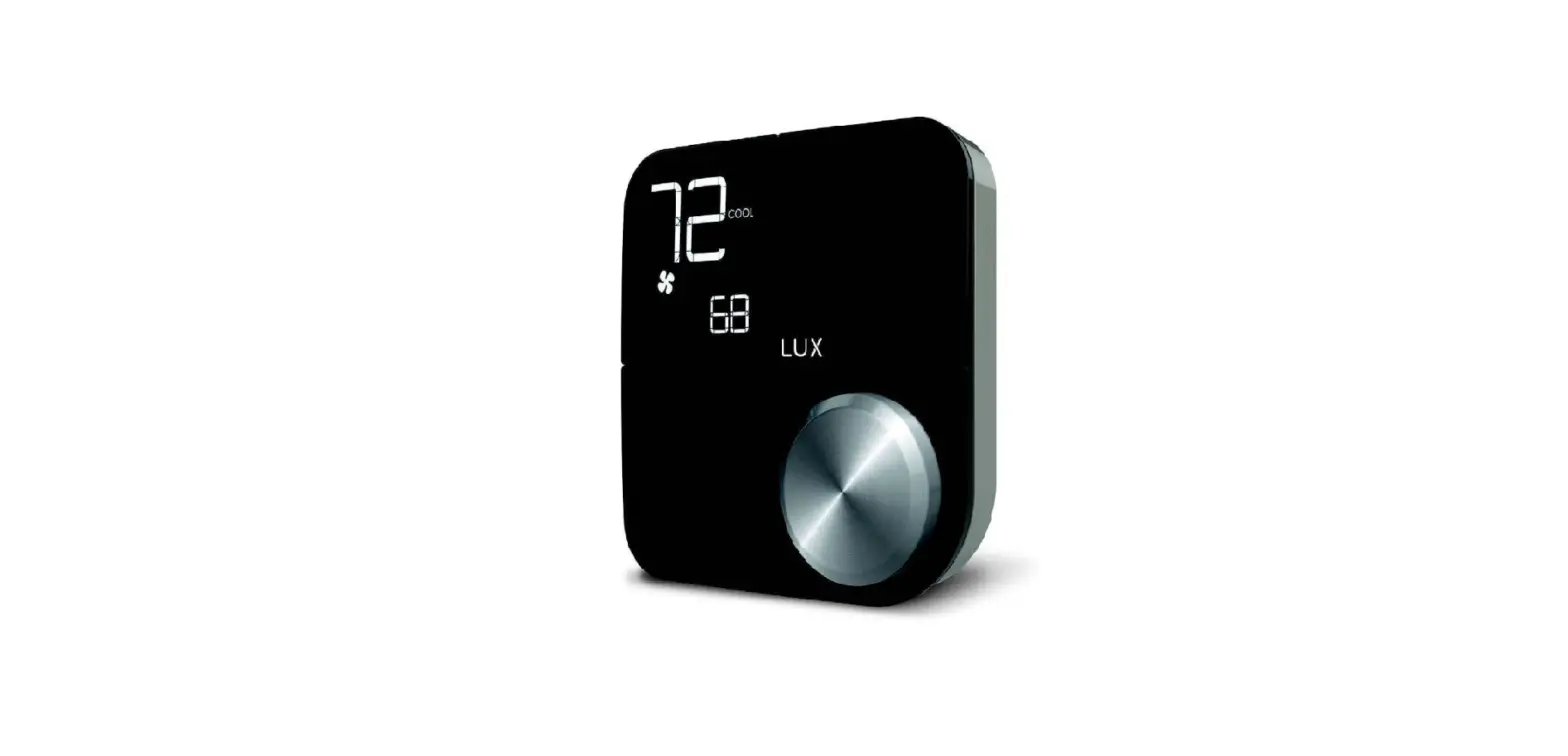

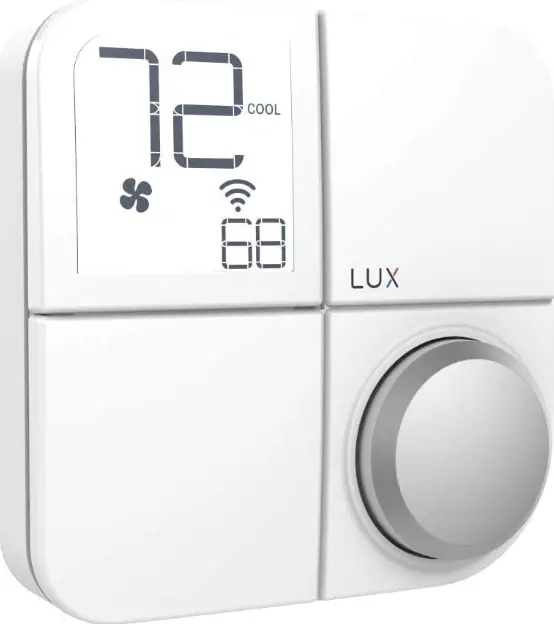

LUXPRO KN-Z-WH1-B04 Smart Thermostat
View all LUXPRO thermostat manual
Description

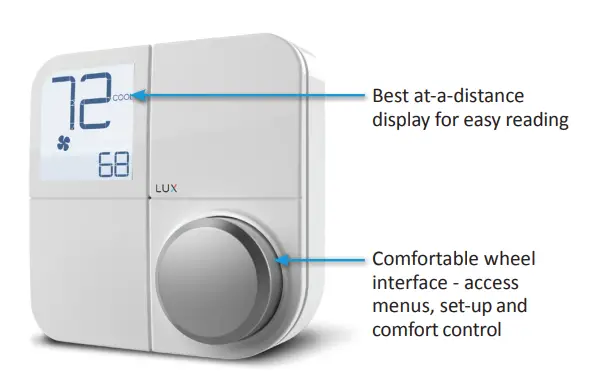

KONOz is the smart thermostat made with you in mind. It seamlessly connects to many smart hubs and blends in or stands out with its interchangeable Décor-snap covers™. KONOz makes it easier than ever to personalize your comfort, décor, and savings.
System
- Modes: Heat (only), Cool (only), Heat & Cool
- Conventional: Forced air, gas, oil & electric furnaces (up to 2H/1C)
- Heat Pumps: With or without Aux/Emergency heat
- Power: C-wire, 4 AA alkaline batteries (included & provides up to 2 year battery life) or LUX Power Bridge (sold separately)
- Works with IRIS hub, Hubitat hub
Zigbee Profile
- Product Type: End Product
- Technical Category: Thermostat
- OTA Upgrade: Supported
- Supporting Documents:
For additional documentation, manufacturer-specific commands or gateway support, please contact [email protected]
Accessories
- Décor-snapTM Covers Available Separately
- Latest available covers can be found at Luxproducts.com/shopcovers
SPECIFICATIONS
(subject to change) MODEL# KN-Z-WH1-BO4
| Dimensions | Height: 4.5″ (114.3 mm), Width: 4.5″ (114.3 mm),Depth: 1.0″ (25.4 mm) |
| Heat/Cool Terminals | Heat: 2 total (W, Y, G, W2/O/B, C, RH, RC, LPB)Cool: 1 total (Y1) |
| Electrical Ratings | Voltage Range: 20-30V ACMax Avg. Current Draw: 120mA at 24V AC Output Rating: 1.5A resistive load per terminal, 4.2A resistive load combined load |
| Temperature Control Range | Control Range: 50F to 90F (10C to 32C) Display Range: 32F to 99F (0C to 37C) |
| Environmental Limits | Operating Limits: 14F to 122F (-10C to 50C) Storage Limits: -4F to 140F (-20C to 60C) Operating Humidity: 20% to 80% non-condensing Moisture and Dust: Up to IP20 |
| Zigbee Specifications | Zigbee 3.0 Frequency: 2.4GHzMax Transmission Power = +20dBm |
| Compatible With | Universal compatibility with forced air, gas, oil,electric furnaces up to 2H/1C, heat pump systems with or without aux/emergency heat and hydronic (hotwater) zone valves (2-wire). |
| Not Compatible With | 120V/240V line voltage systems |
| Packaging | Master Carton: 4 Units UPC: 0 21079 17023 4 |
| Other Technical | Disconnection Means: Type 1B Pollution Degree: 2Impulse Voltage: 330V Automatic Action: 100,000 cycles |
