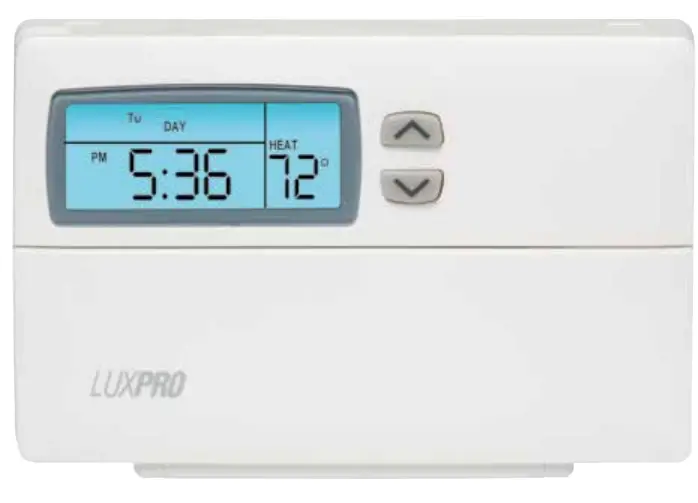

LuxPRO PSP511LC Thermostat
View all LUXPRO thermostat manual
Product Highlights
- Programmable
- Dual powered: system or battery
- Pre-programed adjustable settings
- 5 year warranty
Product Features
- Easy installation
- Programmable 5/2-day
- Easy-view back light
- Optional wall plate model# WP511C
- Keypad lockout
- Dual powered (2AA) Alkaline Batteries (included)
- Temporary temperature override & manual hold
- 5-minute A/C compressor delay
- Display option: fahrenheit or celsius temperature
- Separate heating & cooling programs
- Easy reprogram with Lux speed dial®
- Programmable air filter timer with change indicator
- Battery free memory storage
- Low battery indicator
- AM/PM clock or military time option
- Adjustable temperature differential
Installation
Compatible With
- For most 24V heating and A/C systems
- 1-heat/1-cool: gas, oil, electric or single stage heat pump systems
- 2-wire hydronic systems & hydronic air handling systems
- Millivolt systems (wall heaters/furnaces & gas fireplaces)
Not Compatible With
- Multi-stage heat pumps
- Multi-stage gas or oil furnaces
- 3-wire hydronic systems
- 120V/240V line voltage systems (without transformer)
SPECIFICATIONS

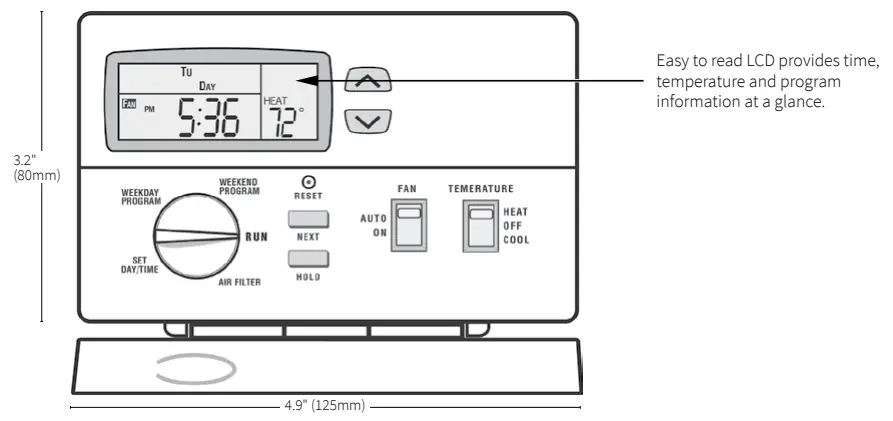

| Dimensions | 4.9″ (125mm) wide x 3.2″ (80mm) tall x 1.3″ (33mm) deep |
| Heat/Cool Terminals | RH, RC, Y, W, G, C, O, B (solid pins) |
| Electrical Ratings | 1.5 AMPS at 24 VAC |
| Temperature Control Range | ■ Temp control 45° F to 90° F (7° to 32° C)■ Display range: 23° F to 99° (-5° C to 37° C) ■ Temp differential: adjustable from .25° F to 2.25° F accuracy +- 1° over a range of 45° F to 90° F. |
| Environmental Limits | ■ Moisture and Dust: meets IP20■ Operating Humidity: 20% to 90% (non-condensing) ■ Operating temperature: 14°F to 122°F (-10°C to 50°C) ■ Storage temperature: -4°F to 140°F (-20°C to 60°C) ■ Electrical Immunity: meets relevant EMI/EMC specifications |
| Compatibile With | ■ For most 24V heating and A/C systems■ 1-heat/1-cool: gas, oil, electric or single stage heat pump systems ■ 2-wire hydronic systems & hydronic air handling systems ■ Millivolt systems (wall heaters/furnaces & gas fireplaces) |
| Not Compatibile With | ■ Multi-stage heat pumps■ Multi-stage gas or oil furnaces ■ 3-wire hydronic systems ■ 120V/240V line voltage systems (without transformer) |
| Packaging | ■ Master Carton: Master Carton: 10 units■ UPC: 0 21079 05511 1 |
