Simplified Rm44c 4x4 Hdmi 2.0 18gbps Matrix Switch With Scaling Outputs User Manual

RM44C
4×4 HDMI 2.0 18Gbps Matrix Switch
with scaling outputs

RM44C 4×4 HDMI 2.0 18Gbps Matrix Switch with Scaling Outputs

User Manual

Thank you for purchasing this product
The Simplified MFG RM44C is designed to provide years of reliable service. At Simplified MFG, we want the experience with this device to be the best possible and are committed to helping achieve that experience.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. The use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.

Introduction

The RM44C is an 18G HDMI video matrix switch with 4 HDMI inputs and 4 scaling HDMI outputs. Each input and output supports up to 4K60 444 HDMI 18G video. The outputs can be individually scaled for 1080p or 10.2Gbps compatibility (labeled as HDBaseT in the menu). De-embedded audio as analog L+R and optical SPDIF (TosLink) is available for both outputs. The RM44C Matrix can also automatically control the display device using RS232, CEC, or IR when the last input signal is lost, or when the first video input is detected. The RM42C can be controlled from the front panel, RS232, IR, or IP commands.

Features

• HDMI 2.0b (18Gbps), HDCP 2.2 / HDCP 1.4, and DVI 1.0 compliant
• Four 18G HDMI 2.0b inputs supporting up to 4K60 444 resolution
• Four 18G HDMI 2.0b outputs supporting up to 4K60 444 resolution
• Outputs can be individually scaled for 4K→1080p or 10.2 Gbps (HDBaseT mode)
• Four sets of audio breakouts analog (3.5mm) and SPDIF (Coax) outputs, for each HDMI output
• ARC decoding to the SPDIF (Coax) audio outputs only
• Built-in Web GUI for LAN control
• Four methods of control: Front panel, RS232, IR, and IP

Package Contents

Specifications

Operation Controls and Functions

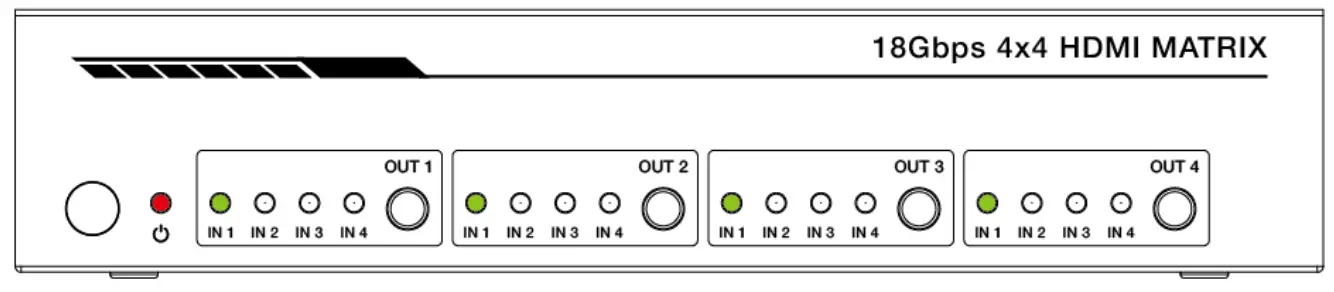

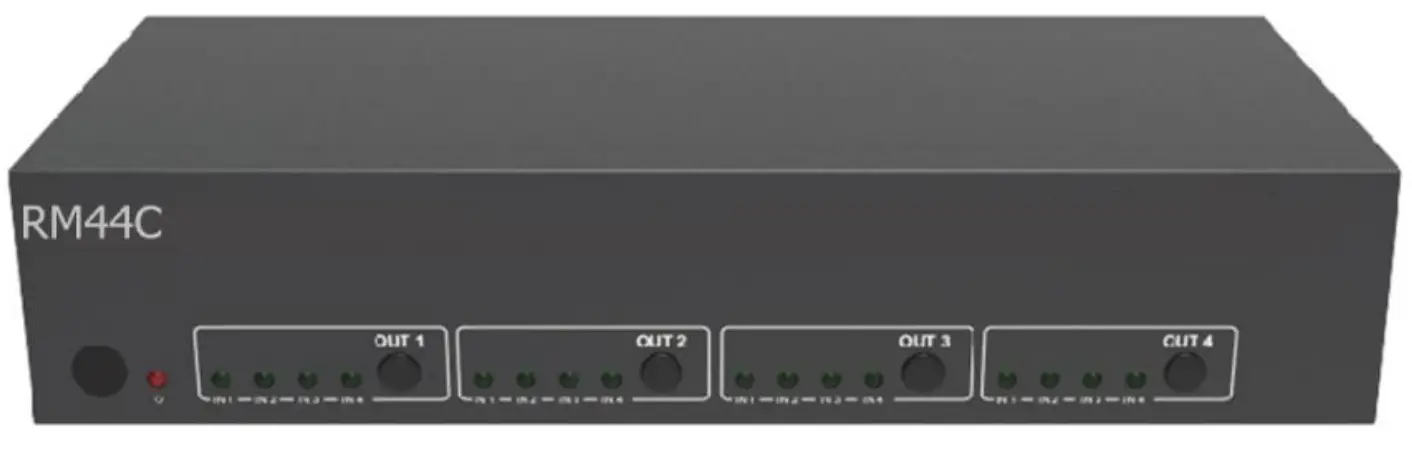

5.1 Front Panel

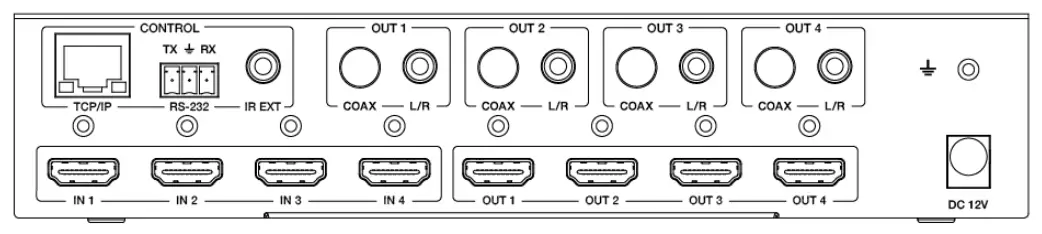

5.2 Rear Panel

5.3 Connecting to the Matrix Switch

1. Connect the desired HDMI input sources.
2. Connect the desired HDMI display devices.
3. Connect any CONTROL inputs that may be required: TCP/IP, RS-232 or IR IN.
4. Connect any audio devices to either the Coaxial or L/R outputs.
5. Connect the 12V DC PSU.

5.4 Operating the Matrix Switch
5.4.1 Power LED and Standby Mode
The Power LED provides the following indications:

5.4.2 Selecting Inputs
Manual Selection of the inputs is done by briefly pressing the OUT 1 / OUT 2 / OUT 3 / OUT 4 button repeatedly for that channel until the desired input is selected.

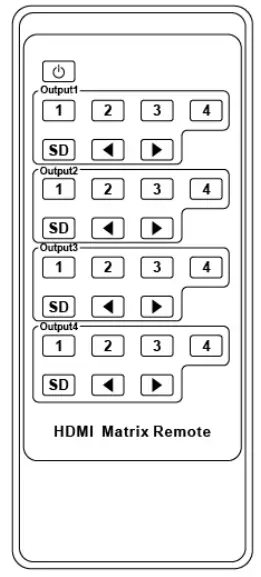

IR Remote

Using the Web GUI Interface

The Switcher has a built-in Web interface to provide a means of controlling or configuring various settings. There are six pages available, each of which will be outlined in detail in the following sections:

The six pages are:

1. Status – Display information about the firmware and IP settings.
2. Video – Switch the desired input source to output and set the preset.
3. Input – Display information about the input signal and EDID setting.
4. Output – Display information about the output signal and scaler option.
5. Network – Allow basic network setting management and login options.
6. System – Panel lock, beep, serial baud rate setting, and firmware update.

Note these six pages are only accessible in Admin mode, when User mode is used only the Status and Video pages are available.
To access the Web interface, enter the IP address of the switcher into the address bar of any web browser. The default IP address is set to DHCP. Please see the following operation method.
Note that if the IP address of the switcher is not known, use the RS-232 command given in the Network Setting section “r ip address!” to discover the current IP address or use a network scan tool such as Fing.|
Enter the Switcher’s IP address into your browser on the PC to enter the Web GUI page.

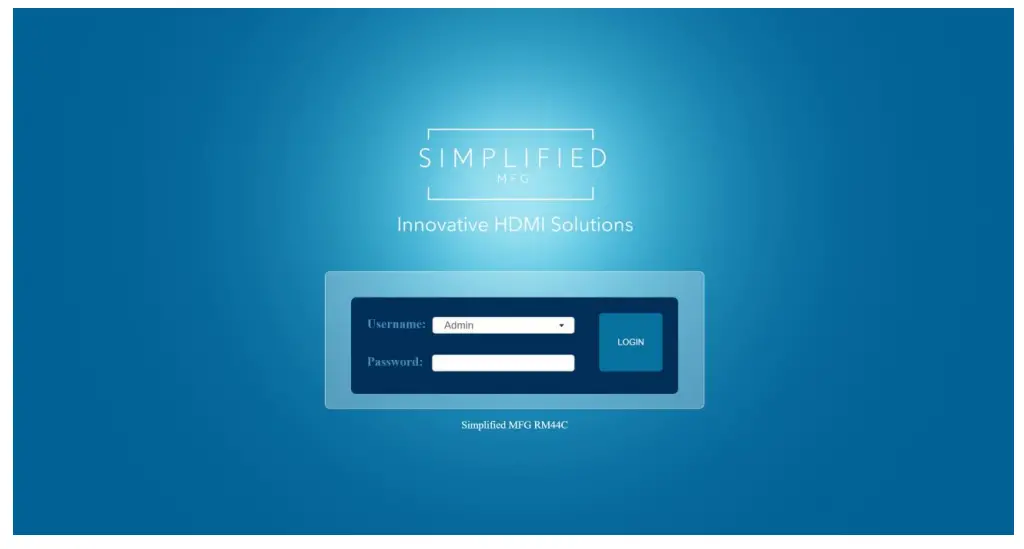

After entering the IP address the following log in screen will appear:

Select the Username from the list and enter the password. The default passwords are:

After entering the log in details, click the LOGIN button and the following Status page will appear.

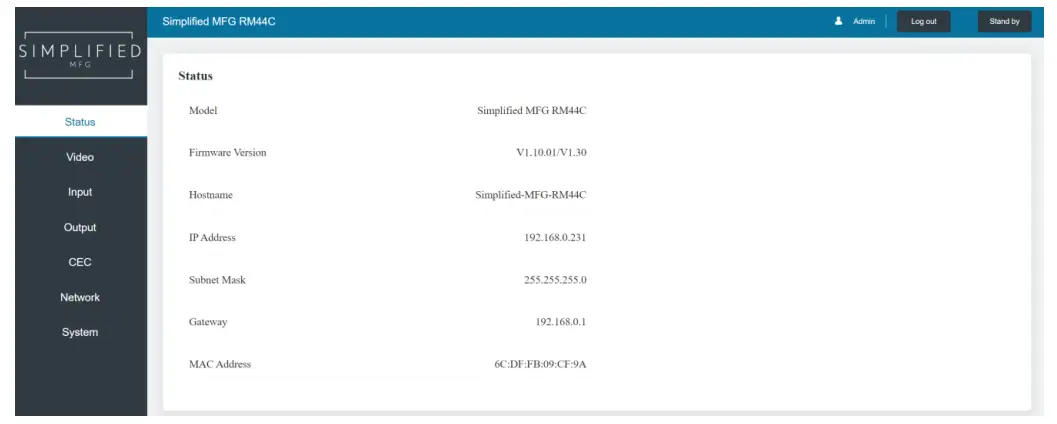

• Status page
  The Status page provides basic information about the product Model name, the installed firmware version and the network setting. This page is visible in both User and Admin modes.

The buttons at the top right of the web interface are always available and provide the following function:

• The Log out button will disconnect the current user from display the login screen.
  The Power on the button changes the power status of the matrix between On and Stand-by mode.

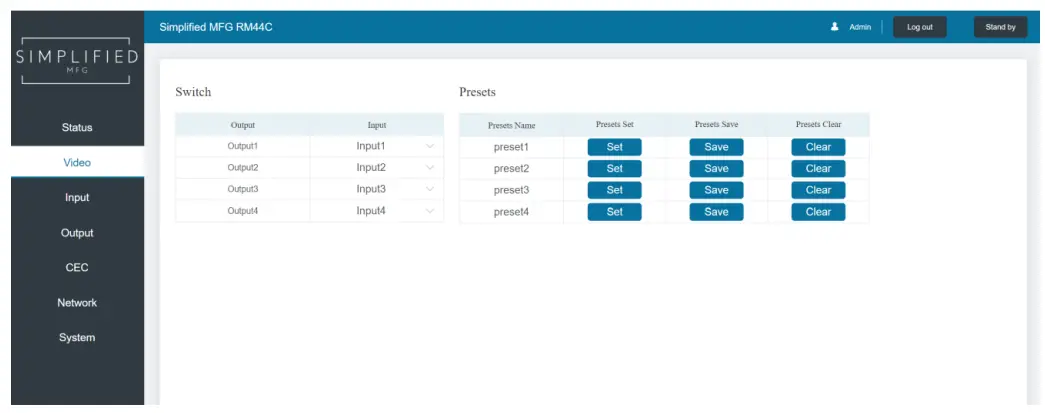

• Video page
  The Video page allows selection of the inputs source and set the presets.


To this preset setting, first, you need to select the desired input source to four output ports. Then click the Save button to save the setting. When you click the line Set button, this preset you have saved will be used. The Clear button will clear the preset. There are four presets setting available.

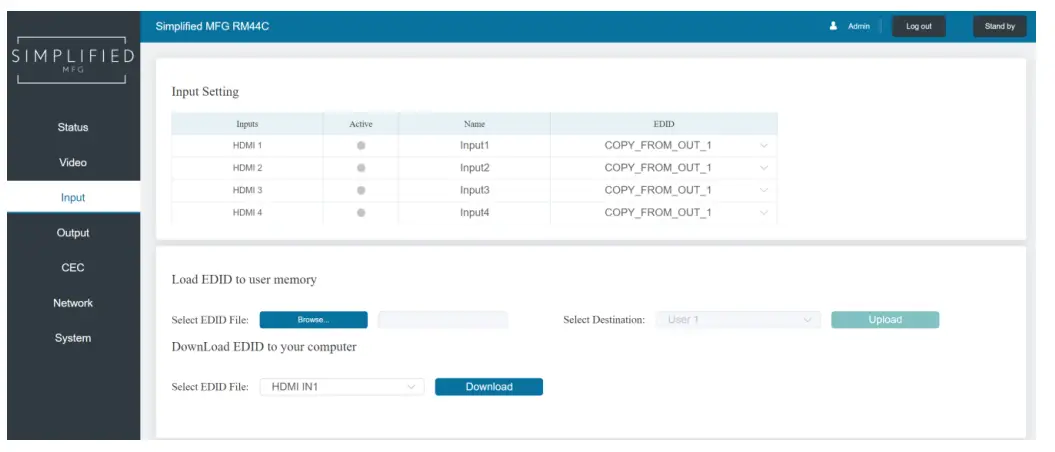

• Input page
  The Input page provides information about which inputs are connected and have a signal present. The inputs can be given more meaningful names if desired. The EDID column provides a list of EDID options for each individual input.

The following EDID options are available in any of the EDID drop-down lists:
1080P, Stereo Audio 2.0
1080P, Dolby/DTS 5.1
1080P, HD Audio 7.1
1080I, Stereo Audio 2.0
1080I, Dolby/DTS 5.1
1080I, HD Audio 7.1
3D, Stereo Audio 2.0
3D, Dolby/DTS 5.1
3D, HD Audio 7.1
4K2K30Hz_444 Stereo Audio 2.0
4K2K30Hz_444 Dolby/DTS 5.1
4K2K30Hz_444 HD Audio 7.1
4K2K60Hz_420 Stereo Audio 2.0
4K2K60Hz_420 Dolby/DTS 5.1
4K2K60Hz_420 HD Audio 7.1
4K2K60Hz_444 Stereo Audio 2.0
4K2K60Hz_444 Dolby/DTS 5.1
4K2K60Hz_444 HD Audio 7.1
4K2K60Hz_444 Stereo Audio 2.0 HDR
4K2K60Hz_444 Dolby/DTS 5.1 HDR
4K2K60Hz_444 HD Audio 7.1 HDR
USER_1
USER_2
COPY_FROM_TX_1
COPY_FROM_TX_2
COPY_FROM_TX_3
COPY_FROM_TX_4
This page also provides a means of sending a binary EDID file to either
User 1 or User 2 EDID memories:

1. Select the binary EDID file on your PC by clicking on the Browse button.
2. Select either User 1 or User 2 from the drop-down list.
3. Click the Upload button.

The EDID data from any input or from the User 1 and User 2 locations can be read and stored on your PC.

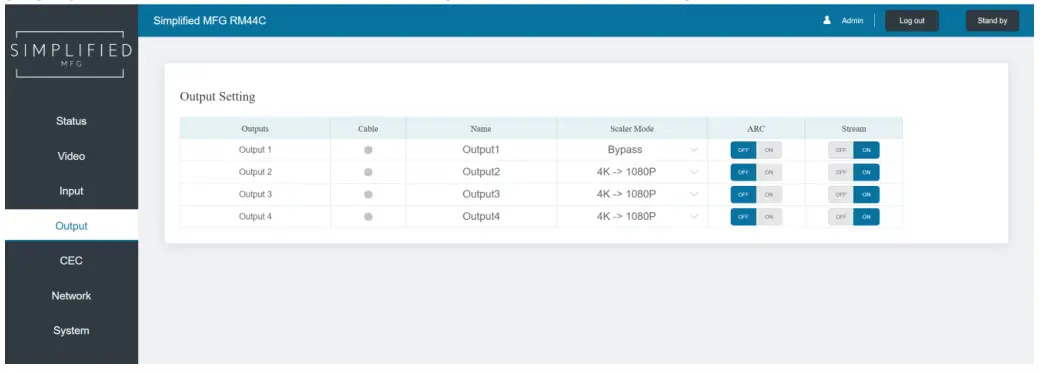

• Output page
  The outputs can also be assigned meaningful names, if desired. The Output page provides information about the signal status of the outputs.

The Scaler mode menu provides the following options:

The ARC buttons enable or disable the display device audio to the coaxial audio outputs. If the ARC function enables, the L/R audio port will have no voice output simultaneously. The Stream buttons enable or disable the output signal for the respective output.

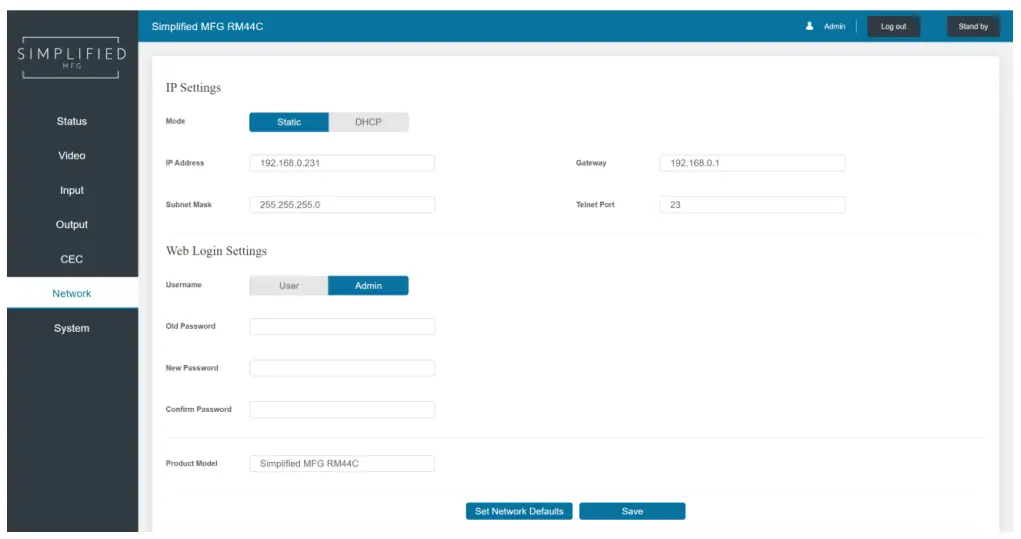

• Network page
  The Network page allows the configuration of the network settings. Note that the IP address boxes are only accessible when the Mode button is set to Static.

The login passwords can be changed on this page.
Note that any changes to this page will require new details in the web browser and/or the login screen.

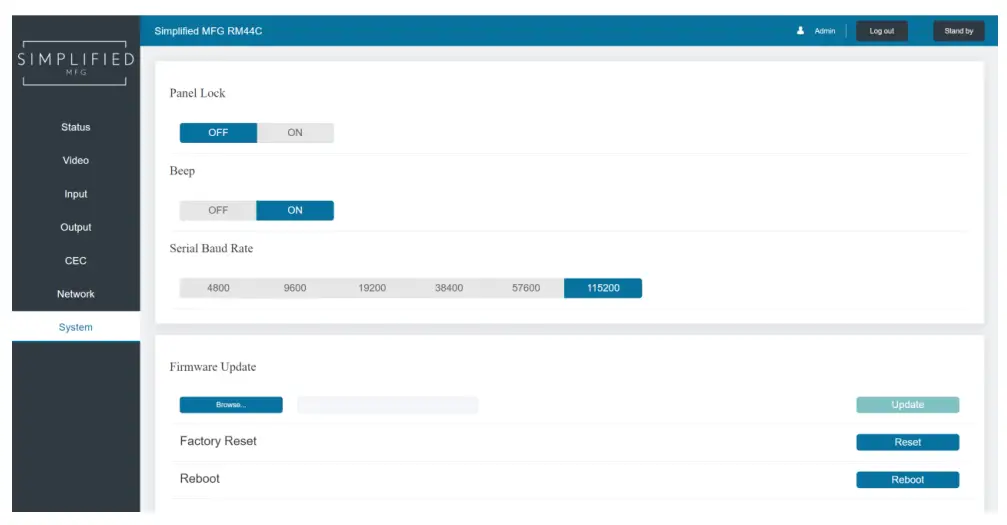

• System page
  The system page allows the setting of the panel to lock and beeps on/off, controlling the RS-232 port baud rate.
  This page is also used to install the new firmware updates, restore the factory default settings and reboot the Matrix.

API control command

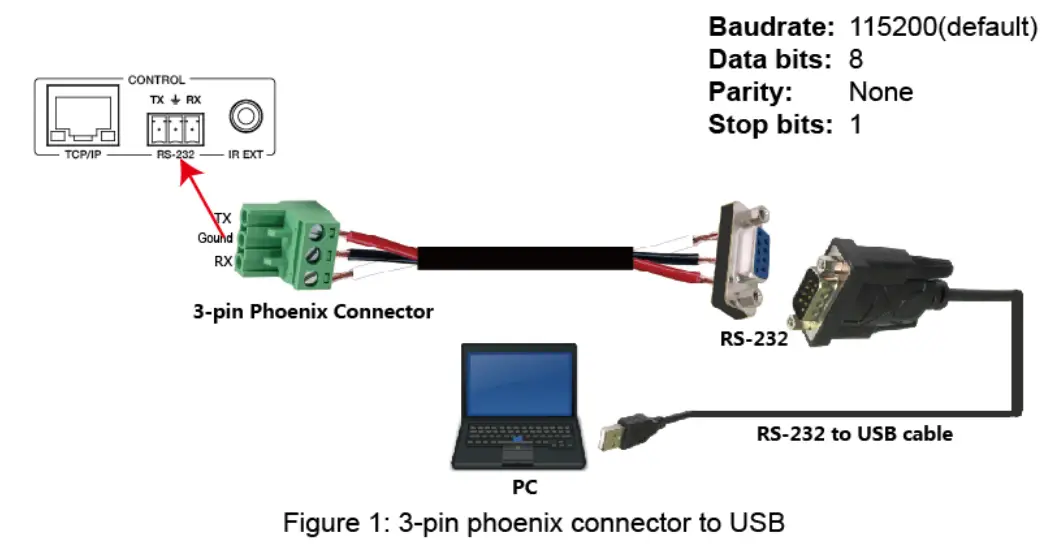

The MTRIX can also be controlled by RS-232. Connect a PC by using a serial cable and open any of the Serial Command tools on the PC such as Comm Operator, Docklight, or hercules, etc to send commands for controlling the Switcher. Please see the following connection diagram.

Important:

1. All messages sent to the Matrix must be terminated with an exclamation mark (!). Any carriage return that is present after the end of the command will be ignored.
2. All spaces shown in the commands are required.
3. All response messages are terminated by a CR/LF sequence.
4. When all four inputs are requested by the same command, the response will report each input on a separate line.
5. When four outputs are requested by the same command, the response will report each output on a separate line.

The ASCII list about the device is shown as below.

Note that you can send the ‘RS232 command’ to control the Matrixr via the Serial Command tool. The ‘Function description’ explains the function of the command. The “Feedback” displays whether the command sends success or not and feedback on the information you need.

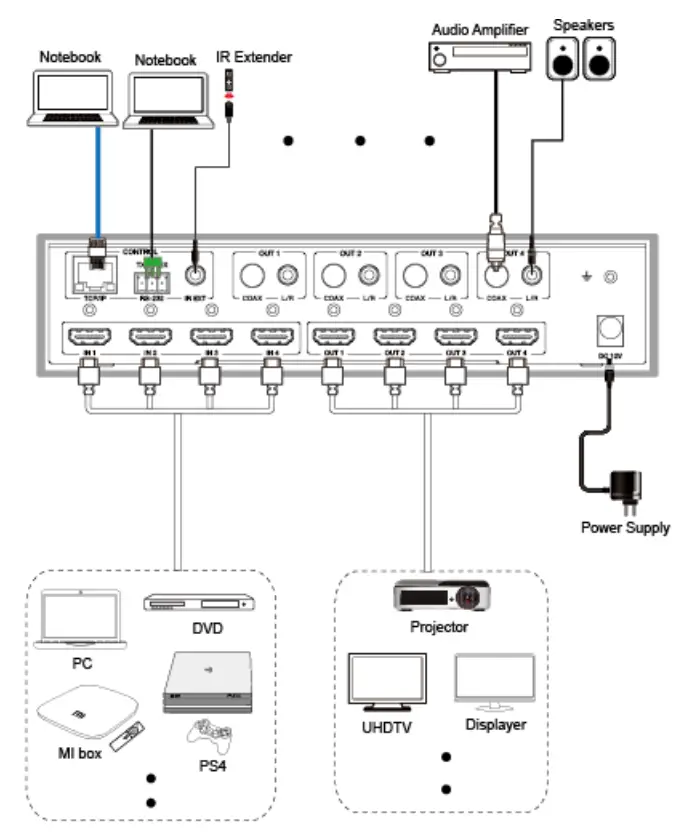

Application Example

Warranty Information

Should you feel that this product does not function adequately due to defects in materials or workmanship, we (referred to as “the warrantor”) will, for the length of the period indicated below (starting from the original date of the purchase) either a) repair the product with new or refurbished parts. Or b) Replace the product with a new or refurbished product. All Simplified MFG products are covered by a 3-year PARTS and LABOR warranty. During this period there will be no charge for unit repair, eplacement of unit components or replacement of the product if deemed necessary. The decision to repair or replace is made by the warrantor. The purchaser must mail in the product during the warranty period. This limited warranty only covers the product purchased as new and is extended to the original purchaser only. It is nontransferrable to subsequent owners, even during the warranty period. A purchase receipt or other proof of purchase date is required for the limited warranty service.

Contact Information
Sales and Tech Support
P. 833-HDMI-411 (833-436-4411)
E. [email protected]

Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa AZ 85210

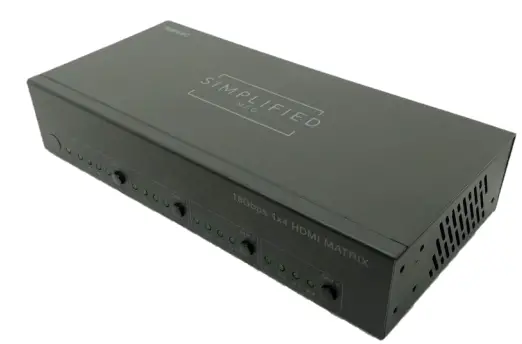

RM44C
HDMI 2.0b (18Gbps) 4×4 Matrix Switch
With Scaling Outputs

The RM44C is a compact, robust 4K2K (18Gbps) 4×4 matrix switch. This switch has 4 HDMI Inputs and 4 HDMI Outputs, it is a true matrix and can be controlled via RS232, IP, manually, or via the supplied IR remote. Each output has scaling capability making this matrix easier to install with, unlike displays. Other features include very fast switch times, ARC, audio breakouts, a metal mounting bracket to make this unit mount as a 1 RU device, and a CEC control circuit that can switch other devices on and off.

Features:

• HDMI 2.0b (18Gbps)
• HDR 8/10/10+ & Dolby Vision™ Support
• All outputs have scaling
• Compact size
• Supports all versions of MultiChannel  Audio with audio breakout  and
• Sophisticated Control of other devices in the system
• 3-Year Warranty

Specifications:

833-HDMI–411 (436-4411) • www.simplifiedmfg.com • 550 W Baseline Rd., Ste #102-121 • Mesa, AZ 85210

VER 1.0
