Aircars XKT 17
BLUETOOTH WIRELESS HEADPHONES
INSTRUCTIONS MANUAL
Product parameters
- Bluetooth version ———————–V5.3
- Transmission distance——————-10m
- Driver diameter ————————- Φ13mm
- Driver impedance -———————- 320415%
- Sensitivity ———————————108+3dB
- Frequency response range————– 20Hz-20kHz
- Battery capacity (charging case)——– 300mAh3.7V
- Battery capacity (Headphone)———–30mAh3.7V
- Charging time (charging case)———–≈1.5hours
- Music playtime (headphone) ————≈4hours
- Music playtime with charging case—— ≈16hours
Packing list

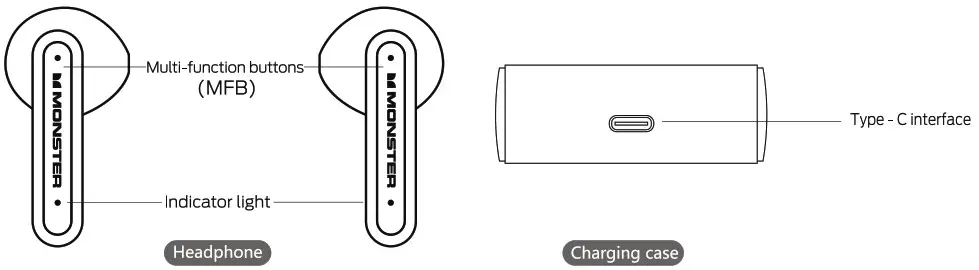

Product Schematic Description

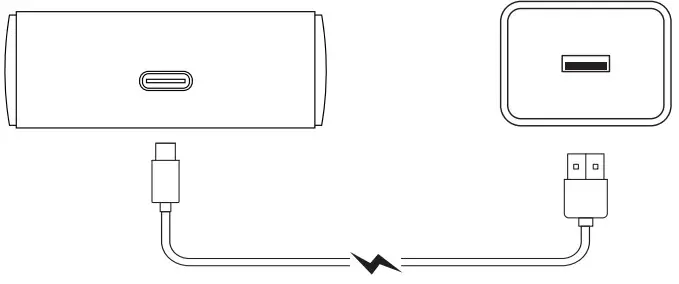

( Charge the charging case )
Connect the charging case to the 5V power adapter with Type-C charging cable.
Rated input: 5V
30mA(Headphone) Rated input: 5V 300mA (charging case)
Tips: When the ice blue indicator flashes while closing the cover, please charge in time.
( Indicator guide )
| Mode | Describe | Sound prompt |
| Power On | Earphone blue Indicator Is on for one second | ‘Tower on |
| Power Off | — | Tower oft |
| Pairing | The earphone blue Indicator blinks | ‘Pairing’ |
| Connected | Headphone Indicator off | “Connected” |
| Disconnected | The earphone blue indicator blinks | ‘Disconnected” |
| Low Battery | — | ‘Battery Low” |
| Headphones placed in di carging | The blue light stays on for 4 seconds and then goes off | — |
| Charging case power | The Hi le light flashes 4 times in a row | — |
| Charging Charging case charged | The led light flashing | — |
| Charging case \fully charged | Normally on a red light | — r |
Product operation instructions
- Power on
Method 1: Open the charging case, the headphones will turn on automatically.
Method 2:The left/right ear captain presses the function button for 3 seconds to start the machine - Power off
Method 1: put the headphone/s into the charging case and close the cover.
Method 2: after disconnected from the Bluetooth device for 3 minutes. - Pairing
Method 1: open the charging case, the headphones will start pairing automatically.

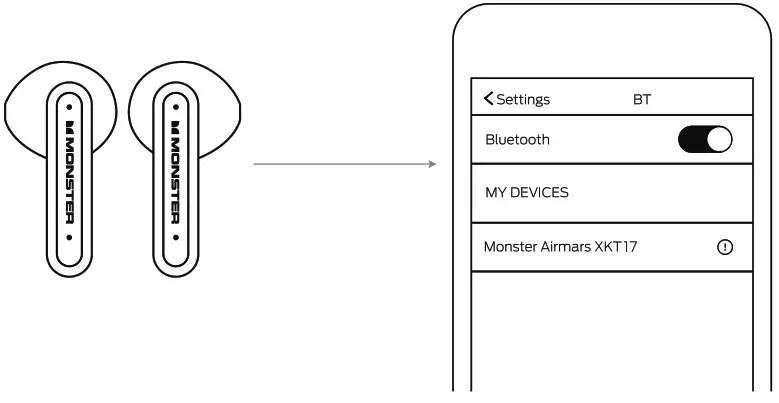

Method 2: search and click for “Monster Aircars XKT 17 “on the Bluetooth list of the smart device, and when connection is successful, “Connected” will be heard.
* Headphones will try reconnecting to the device within 3 minutes when connection is lost.
Note:
* Fully charge the headphones and power off before an intended not-in-use period.
* Unplug the charging cable after charging.

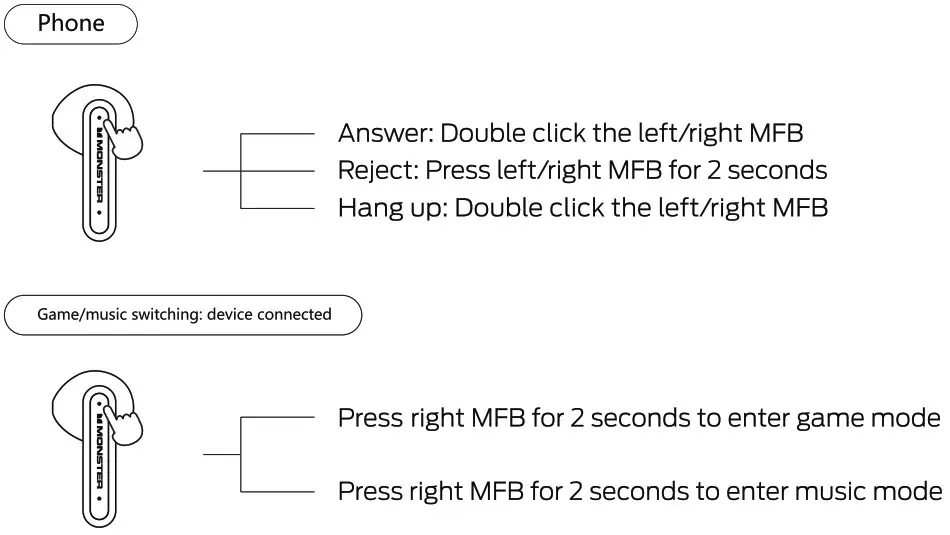

Operation
Clear Bluetooth device Settings
When the headset is not connected to the Bluetooth device after startup, press the left/right headset MFB button three times on any headset to disconnect the headset from the Bluetooth device and shut it down
Precautions
- Headphones will turn on automatically (needless to press any button) pair and connect the device when the charging case is opened. After placing the headphones in the charging case, they will turn off and automatic charging will start when the cover is closed.
- Charging every 15 days will extend battery life when not in use often. Cleaning off dirt on the charging contacts by cotton swabs with alcohol will maintain a good contact for charging.
- Keep battery (battery pack) away from inflammables or excessive heat such as direct sunlight.
- Intermittent is normal during playback for wireless products due to environmental factors, device brand, users’ behavior, etc.
Warnings
- Do not use headphones at high volume for an extended period of time.
- Keep the headphones away from dust and water.
- Do not disassemble the headphones and accessories, otherwise warranty will be voided.
- Keep headphones away from any impact or vibration.
- Do not use any chemical solvents or cleaning agent on the headphones.
| Name of the Parts | Hazardous Substances | |||||
| Pb | Hg | Cd | Cr(VI) | PBB | PBDE | |
| Housing | O | O | O | O | O | O |
| Loudspeakers | O | O | O | O | O | O |
| PCBA | X | O | O | O | O | O |
| Accessories | X | O | O | O | O | O |
This table is compiled according to SJ/T 11364.
O: Indicates that this hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in GB/T 26572.
X: Indicates that this hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement in GB/T 26572.
Environment Friendly Use Period (EFUP)
This logo refers to the period (10 years) during which the hazardous substances in electronic and electrical products will not leak or mutate so that the use of these [substances] will not result in any severe environmental pollution, any bodily injury or damage to any assets.
Warranty Service
Dear user, this warranty card is the proof of your future warranty application, please cooperate with the seller to fill it out and keep it for future use!
User info
| User name | ||||
| Contact number | Postal code | |||
| Mailing address | ||||
Product information
| Product name | Product number | |||
| Product barcode / Serial number / Batch number | ||||
Vendor information
| Name | |||
| Address | |||
| Contact number | Postal code | ||
| Sales date | Invoice number | ||
| Remark | |||
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC ID ：2A8PV-QSMXKT17
