Monster Airmars Xkt06 Bluetooth Wireless Headphones Instruction Manual

MONSTER Airmars XKT06 Bluetooth Wireless Headphones

Product parameters

• Transmission distance ——————– 10
• Driver diameter —————————  Φ13mm
• Driver impedance ———————— 32Ω±15%
• Sensitivity ———————————- 106±3.0dB
• Frequency response ——————— 20Hz-20kH
• Battery capacity(Charging case)——- 3.7V 300mAh
• Battery capacity(Headphone)———- 3.7V 35mAh
• Charging time(Charging case) ———- ≈1.5 hours
• Music playtime(Headphone) ———- ≈5 hour
• Music playtime with charging case — ≈22 hours

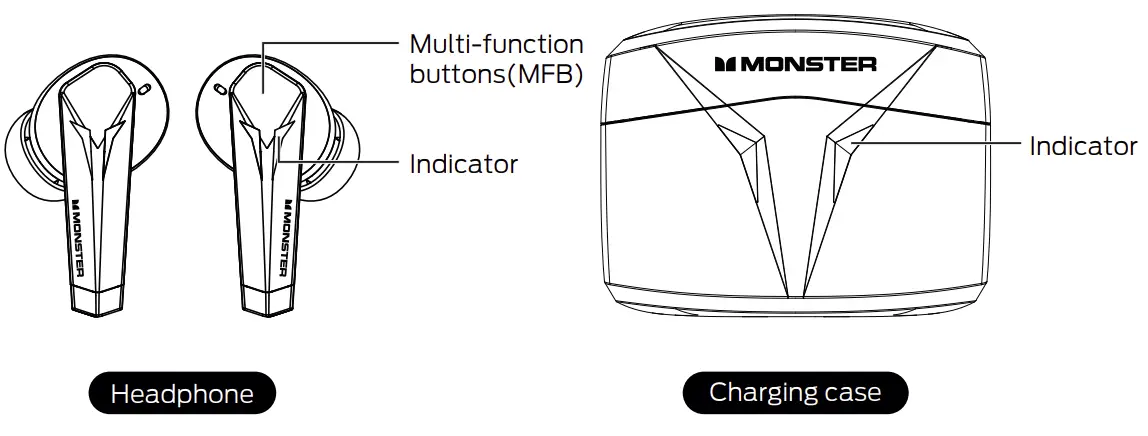

Product Schematic Description

	Headphone*2
	Instructions Manual*1
	Silicone Eartips S *2 Silicone Eartips L *2
	Charging case*1
	Type-C Charging Cable*1

Product Schematic Description

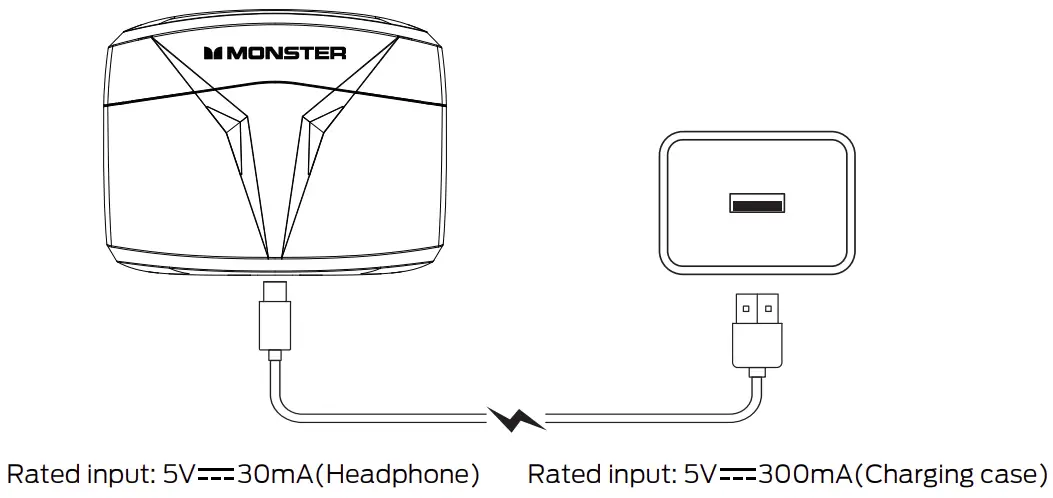

Charge the charging case

Connect the charging case to the 5V power adapter with Type-C charging cable.

TIPS: When charging case closed and the LED flash red 5 times, pls charging the charging case.

Indicator guide

Product operating instructions

1. Power on
   Method 1: Restore factory settings Open the charging case, the headphones will turn on automatically.
   Method 2: Long touch the MF button of the headphones for 3s to turn on the headphones.
2. Power off
   Method 1：Put the headphones into the charging case and close the cover.
   Method 2：When the headphones is not connected to the Bluetooth device long touch the MF button of the headphones for 6s to turn off the headphones.
   Method 3：After disconnected from the Bluetooth device for 3 minutes.

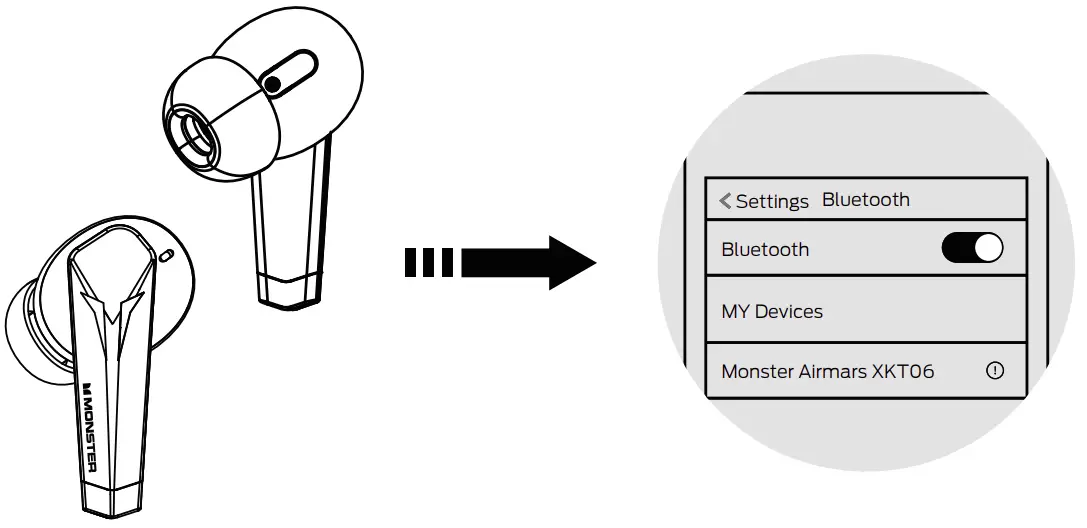

3. Pairing
   Step one: Open the charging case, the headphones will start pairing automatically.
   Step two: Search and click for” Monster Aircars XKT06”on the Bluetooth list of the smart device, and when connection is successful,” Connected” will be heard.

* Headphones will try reconnecting to the device within 3 minutes when connection is lost

NOTE:
* Fully charge the headphones and power off before an intended not-in-use period.
* Unplug the charging cable after charging

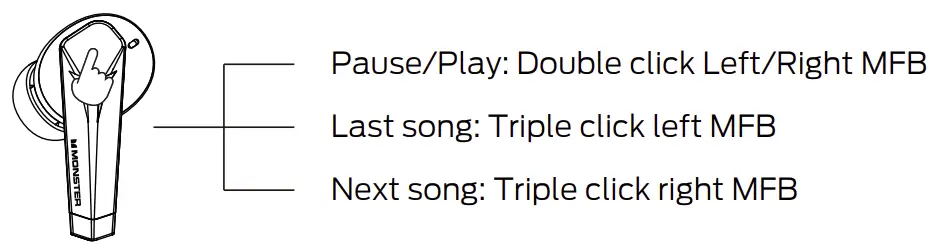

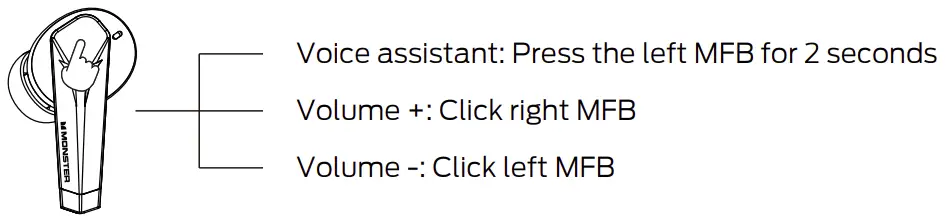

Operation

Normal

Music playback

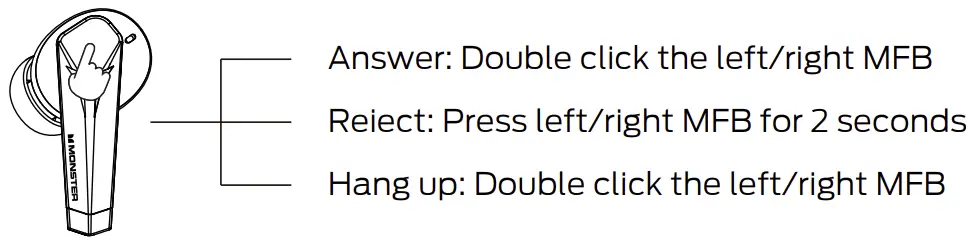

Phone

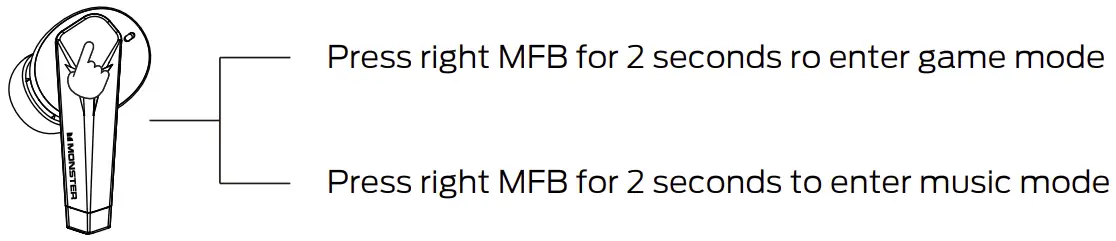

Game/music switching : device connected

Restore factory settings

Headphones are not connected to the Bluetooth version device when turned on, click the MFB 5 times to clear the previous pairing information and repaired again.

Precautions

1. Headphones will turn on automatically(needless to press any button) pair and connect the device when the charging case is opened. After placing the headphones in the charging case, they will turn off and automatic charging will start when the cover is closed.
2. Charging every 15 days will extend battery life when not in use often. Cleaning off dirt on the charging contacts by cotton swabs with alcohol will maintain a good contact for charging.
3. Keep battery(battery pack)away from inflammables or excessive heat such as direct sunlight.
4. Intermittent is normal during playback for wireless products due to environmental factors, device brand, users’ behavior, etc.

Warnings

1. Do not use headphones at high volume for an extended period of time.
2. Keep the headphones away from dust and water.
3. Do not disassemble the headphones and accessories, otherwise warranty will be voided.
4. Keep headphones away from any impact or vibration.
5. Do not use any chemical solvents or cleaning agent on the headphones

This table is compliled according to SJ/T 11364

O : Indicates that this hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in GB/T 26572.
X : Indicates that this hazardous subatance contained in at least one of the homogeneous materials used for this part is above the limit requirement in GB/T 26572.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one o  more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules

Operation is subject to the following twoconditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

Environment Friendly Use Period(EFUP)

This logo refers to the period (10 years) during which the hazardous substances in electronic and electrical products will not leak or mutate so that the use of these [substances] will not result in any severe environmental pollution, any bodily injury or damage to any assets.

Warranty Service

Dear user, this warranty card is the proof of your future warranty application, please cooperate with the seller to fill it out and keep it for future use!

Certificate of Approval
Product No:
Production Time:
QC:
