Samsara Ag26 Dry Trailer Installation Guide

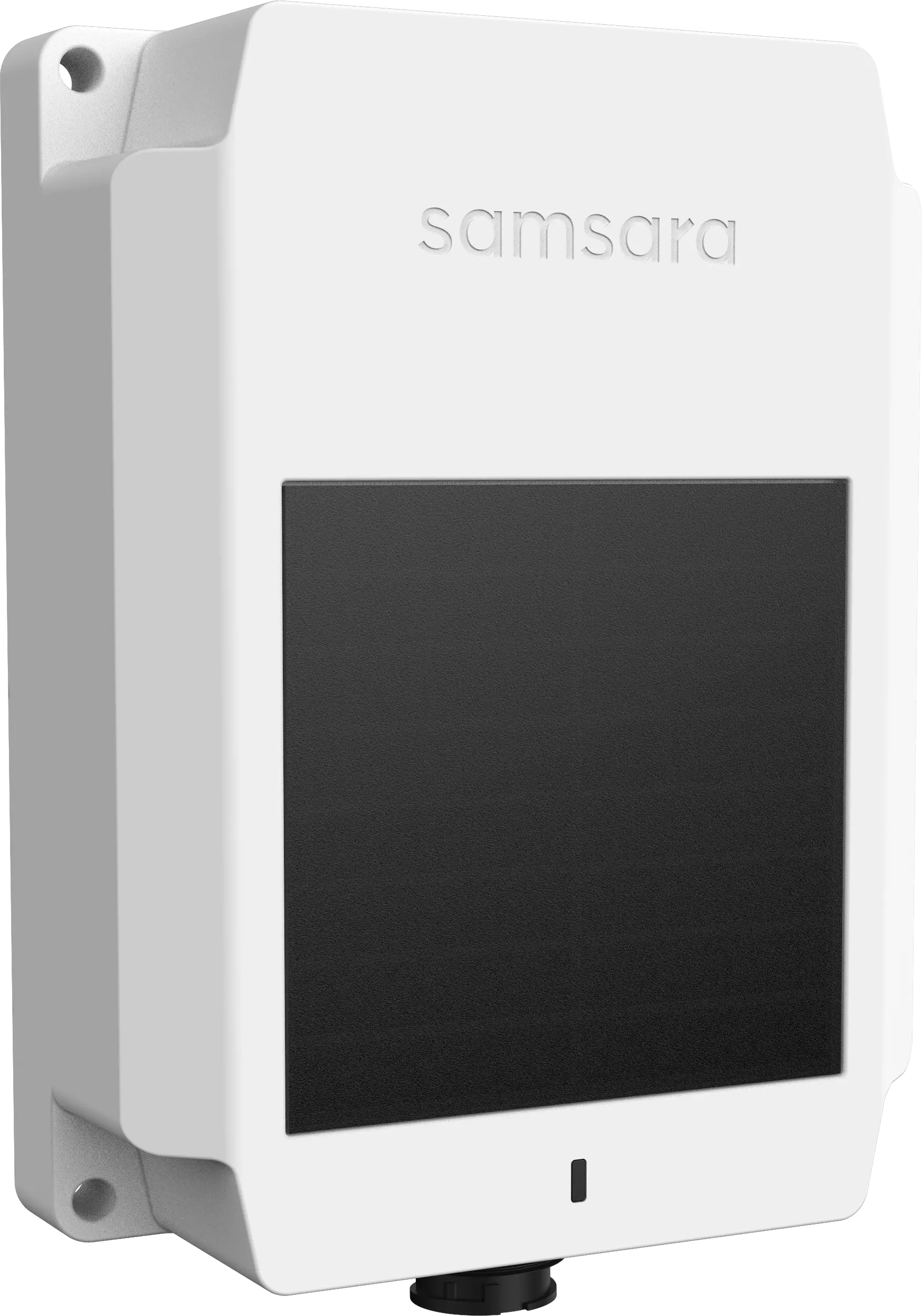

samsara AG26 Dry Trailer

DRY TRAILER

1. Select mounting location, clean thoroughly with cleaning wipe. Attach mounting plate with adhesive and 4 self-tapping screws.

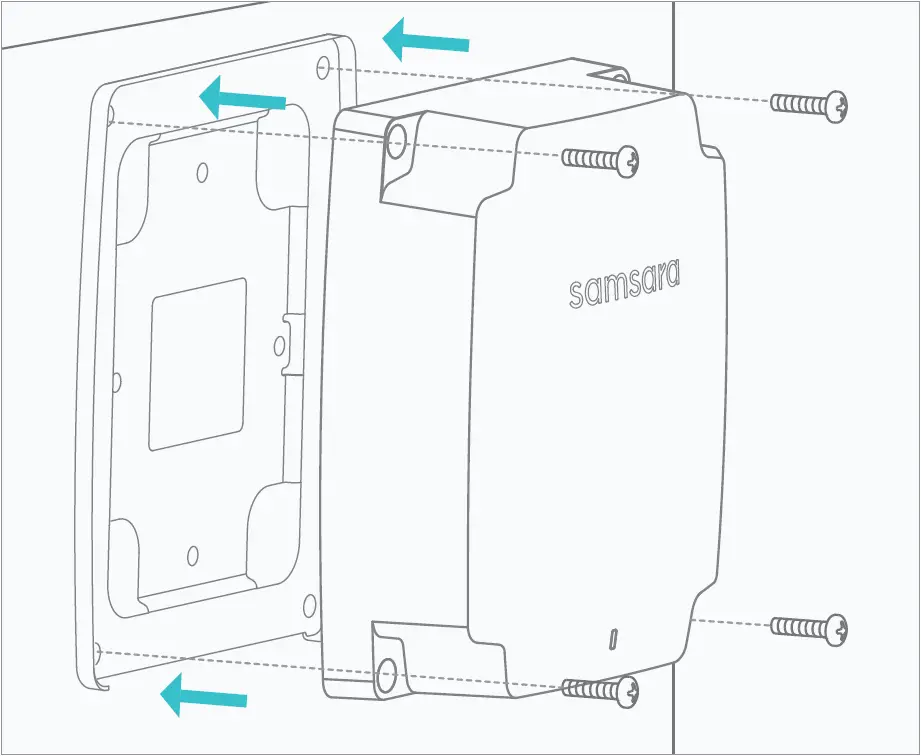

2. Mount AG onto mounting plate with 4 flat-end screws (bag 2).

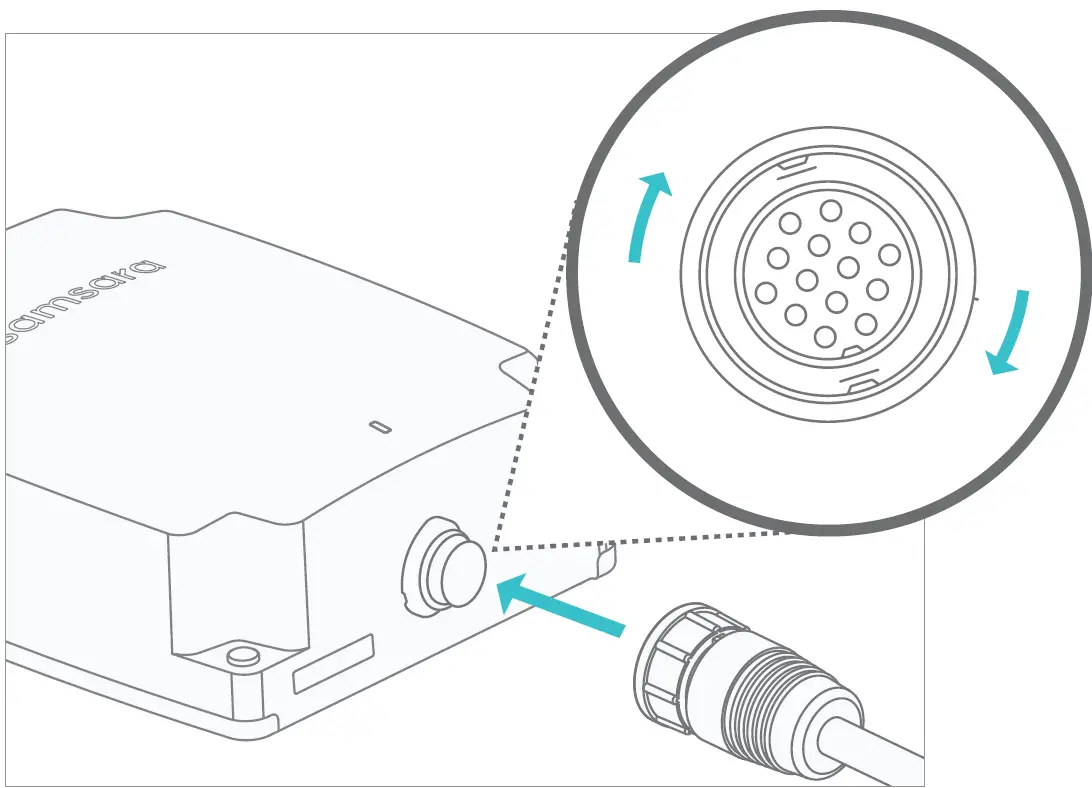

3. Plug cable into AG, twist to lock.

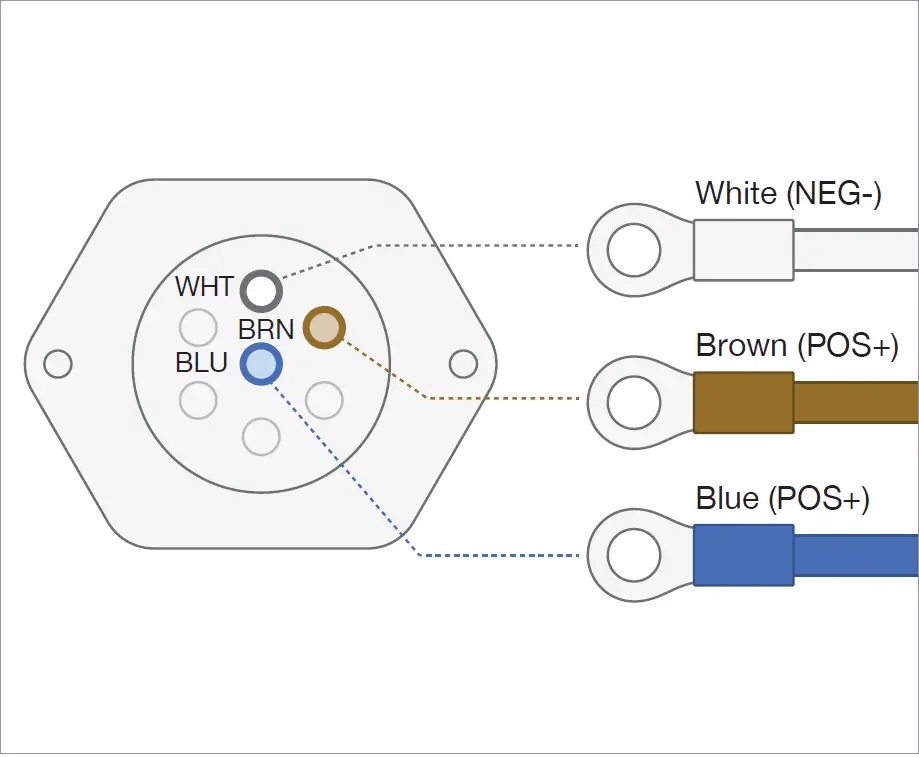

4. Connect cable to 7-way. AG light turns on for 30 seconds if correct.


samsara.com/support
