HIGH-PERFORMANCE DRIVELINE PARTS
Instructions

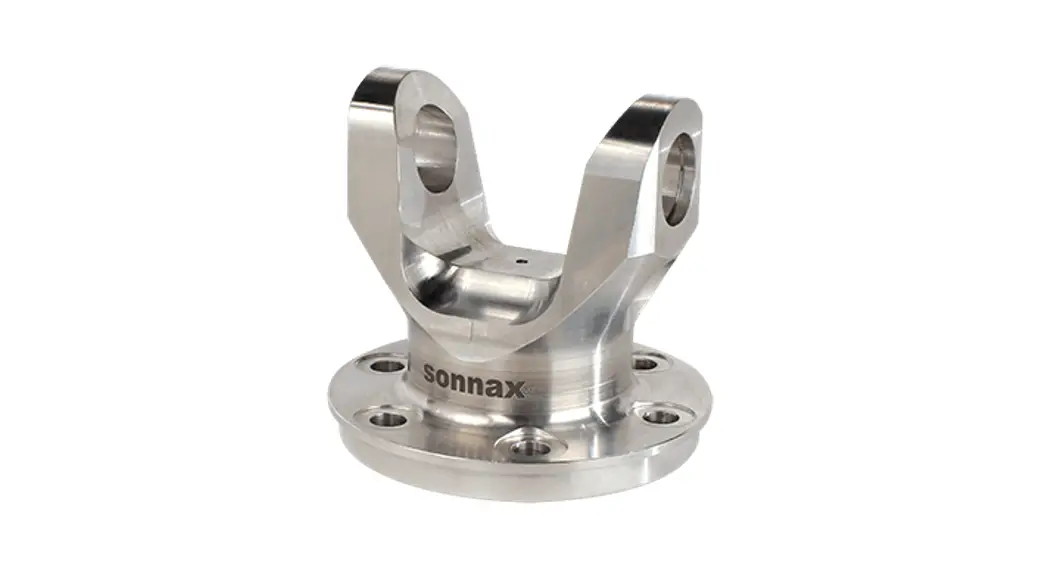

Pinion Yoke
Part No.
T9-28-1330FD
- Yoke
- Spacer
NOTE: Fits all 9″ Ford 28-spline differentials. Uses a 1330 U-joint. For 1350 U-joint, use T9-28-1350FD.
Carrier Bearing Identification & Spacer Use
NOTE: The included Sonnax spacer is used only in standard (small) bearing carriers.

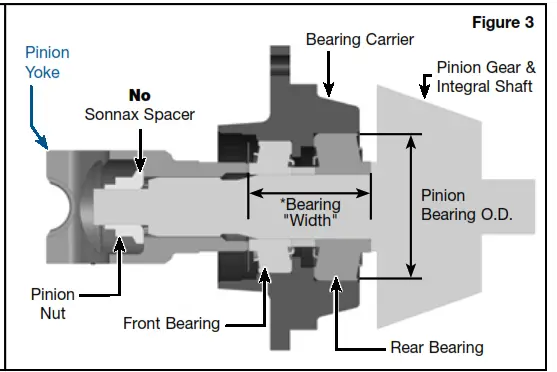

If you have a big bearing OE or a Daytona carrier, do not use a Sonnax spacer (Figures 1–3).

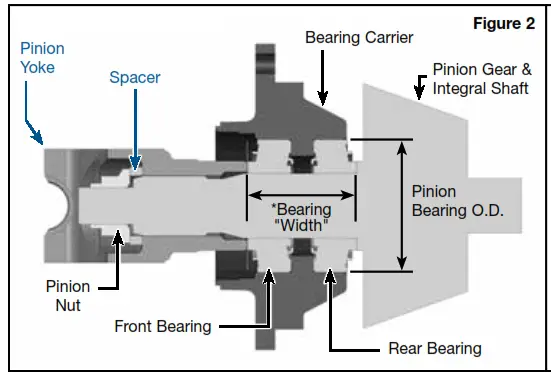

NOTE: When using the Sonnax spacer, always install it behind the pinion nut (like a washer) (Figure 2).
This spacer is NOT intended to be installed between the yoke and bearing.
| Standard Carrier | Bearing Width* | Pinion Bearing O.D. | Use Sonnax Spacer |
| 2.2″ | 2.675″ | Yes | |
| Big Bearing Carrier/Daytona | 2.5″ | 3″ | No |
*Bearing width is the width between outer bearing faces when installed in the carrier.
Standard Bearing Carrier
Big Bearing Carrier
©2021 Sonnax Transmission Company, Inc.
A Marmon
Berkshire Hathaway Company
800-843-2600 • 802-463-9722
F: 802-463-4059
www.sonnax.com
T9-28-1330FD-IN 11-11-21
