ARROW EU-02051-ML Midline Kit Instructions
- Midline Catheter, Trimmable: 5 Fr. (1.75 mm OD) x 20 cm, T-Port Connector, Contamination Guard and Placement Wire
- 1: GlideThru™ Peel-Away Sheath: 5 Fr. x 2-3/4″ (7 cm) Radiopaque over 5 Fr. Dilator
- 1: Spring-Wire Guide, Nitinol, Marked: .018″ (0.46 mm) dia. x 17-3/4″ (45 cm) (Straight Soft Tip on One End – Straight Stiff Tip on Other) with Arrow Advancer
- 1: Introducer Needle: Echogenic 21 Ga. x 2-3/4″ (7 cm) TW
- 1: Syringe: 10 mL Luer-Lock
- 1: SharpsAway® II Locking Disposal Cup
- 1: Catheter Trimmer
- 1: Safety Scalpel: #11
- 1: Paper Tape Measure
- 1: Tourniquet
- 1: Dressing: GRIP-LOK®1 Catheter Fixation Device
- 1: Valve: MicroCLAVE™2 Neutral Displacement Connector
1A registered trademark of TIDI.
2A trademark of ICU Medical, Inc.
All components are CE 2797 unless otherwise noted.
Warning: Read all package insert warnings, precautions, and instructions prior to use. Failure to do so may result in severe patient injury or death. www.teleflex.com/IFU Not made with natural rubber latex. Fluid path components are non-pyrogenic.

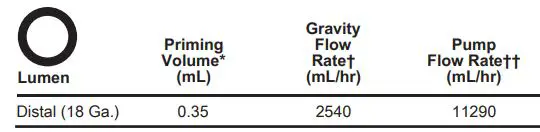

* Priming volumes are approximate and are done without accessories. † Flow rate values are approximate and are determined using deionized water at 100 cm head height.
†† Pump flow rates are determined at maximum pump pressure of 10 pSi and represent approximate flow capabilities.
