Removal

WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.

•  Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.

NOTE:
Removal steps in this procedure may contain installation details.

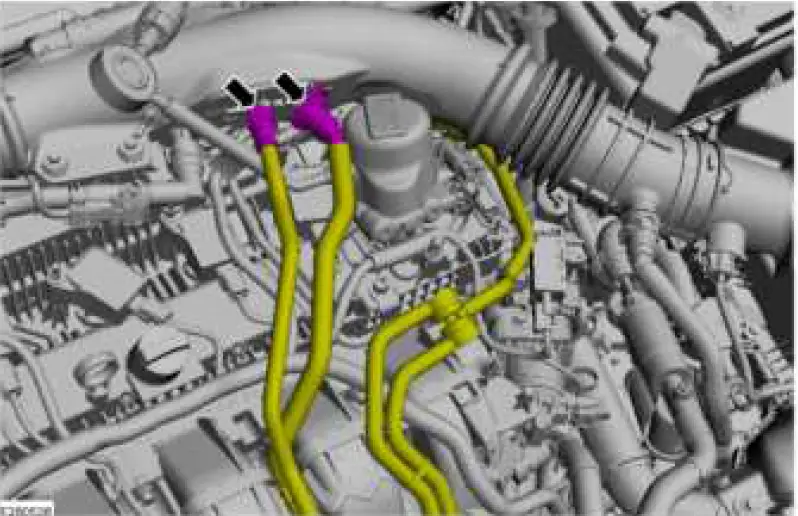

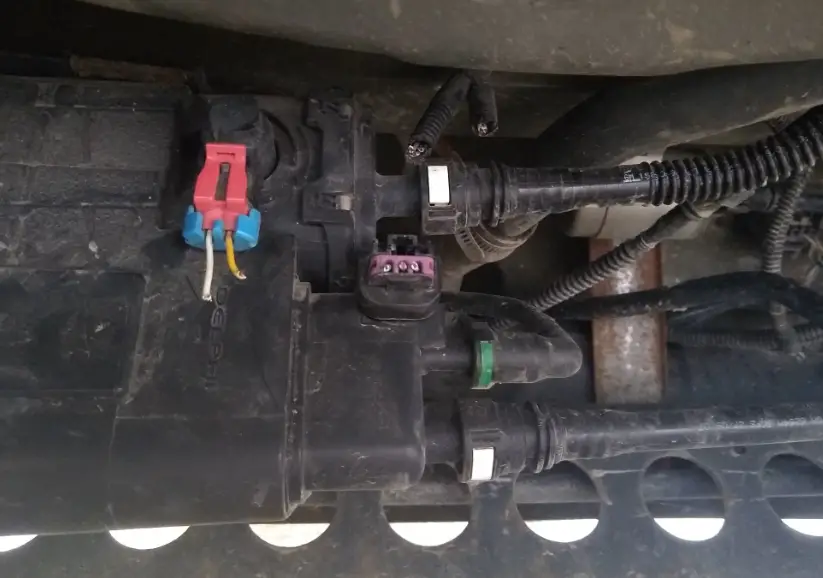

1. Disconnect the quick release couplings.
   Refer to: Quick Release Coupling (310-00A) .

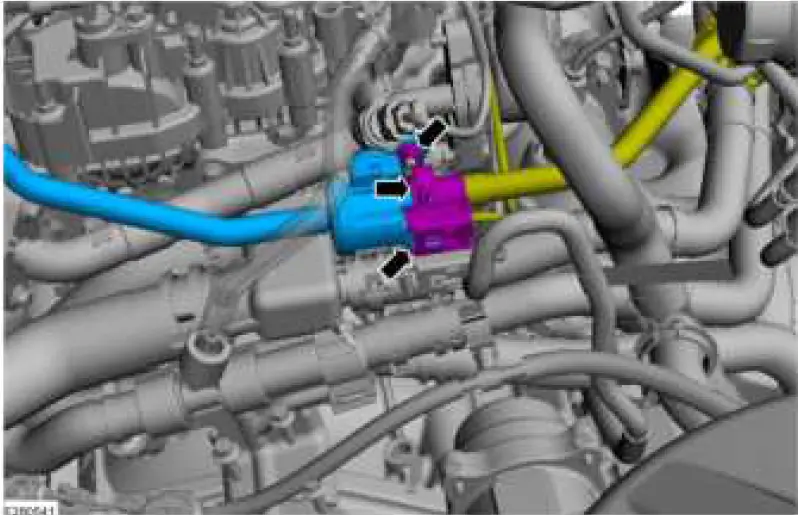

2. Disconnect the quick release couplings.
   Refer to: Quick Release Coupling (310-00A) .

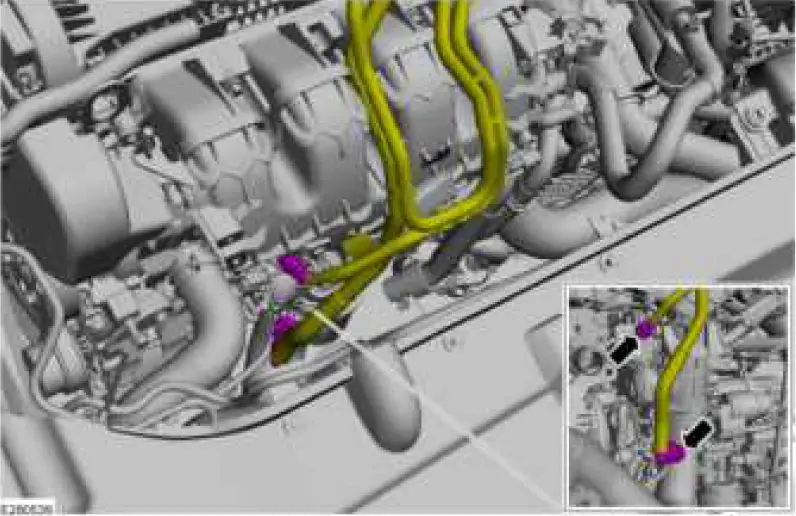

3. Disconnect the quick release coupling.
   Refer to: Quick Release Coupling (310-00A) .

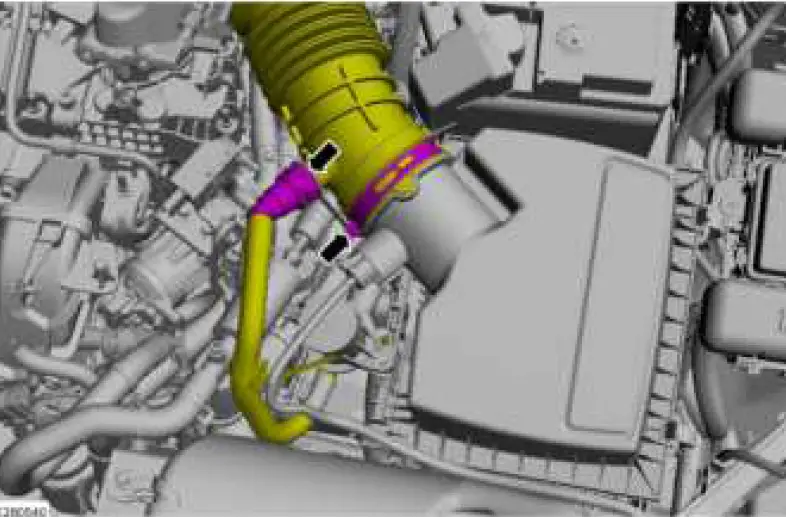

   • Loosen the clamp and position aside the air cleaner outlet pipe.
     Torque: 42 lb.in (4.8 Nm)
4.  Disconnect the electrical connector.

• Disconnect the quick release coupling. Refer to: Quick Release Coupling (310-00A) .
• Remove the fastener and purge valve.
  Torque: 97 lb.in (11 Nm)

Installation

1.  To install, reverse the removal procedure.
