MANUAL INSTRUCTIONS
RL-XE0B2DS-PB409D CCTV Camera 2MP Wired Outdoor Security Camera
Please read the instruction manual carefully before use and keep it for future reference.
Warnings
- Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.
- In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region. Please refer to technical specifications for detailed information.
- Input voltage should meet both the SELV ( Safety Extra Low Voltage) and the Limited Power Source with 100-240 VAC or 12V DC according to the IEC60950-1 standard. Please refer to technical specifications for detailed information.
- Do not connect several devices to one power adapter as adapter overload may cause over heating or a fire hazard.
- Please make sure that the plug is firmly connected to power socket.
- If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cable, and then please contact the service center.

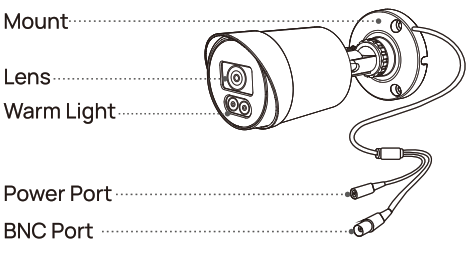

Introduce the Cameras
Technical Parameters
| Resolution | 1080P/4MP/5MP/8MP |
| Signal System | PAL/NTSC |
| Effective Pixels | |
| White Light Range | 15-20 m |
| Video Output Mode | AHD/CVI/TVI/CVBS Optional |
| Day/Night | Color |
| Video Frame Rate | |
| Led on of Min Illumination | Color: 3 Lux @ (F1.0/F1.6/F2.1, AGC ON) with warm light |
| S/N Ratio | >520dB |
| Resolution | 1080P/4MP/5MP/8MP |
| Signal System | PAL/NTSC |
| Effective Pixels | 2MP:1920(H)x1080(V) 4MP:2560(H) x1440(V) 5MP:2560(H)x1944(V) 8MP:3840(H)x2160(V) |
| White Light Range | 15-20 m |
| Video Output Mode | AHD/CVI/TVI/CVBS Optional |
| Day/Night | Color |
| Video Frame Rate | 1080P:25fps(50Hz),30fps(60Hz) 4MP:25fps(50Hz),30fps(60Hz) 5MP:12.5fps,20fps 8MP:12.5fps,15fps |
| Led on of Min Illumination | Color: 3 Lux @ (F1.0/F1.6/F2.1, AGC ON) with warm light |
| S/N Ratio | >520dB |
| Shutter Time | 1/25s(1/30s) ~1/100,000s |
| White Balance | Auto/Manual |
| AGC | Yes |
| Operating Conditions | -20C-+50C,Humidity 90% or less (non-condensing) |
| Power Supply | DC12V(±10%) |
| Weather Proof | IP66 |
Note: The 1080P analog camera should work with 1080P DVR together.
The 5MP analog camera should work with 5MP DVR together.
This device is only camera without power supply, BNC cable and DVR
The analog camera should work together with 1080P/5MP DVR through BNC cable.
Ceiling Mounting for Camera
Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.
Steps:
- Drill the screw holes in the ceiling according to the bracket.
- Connect the corresponding power cable and video cable.

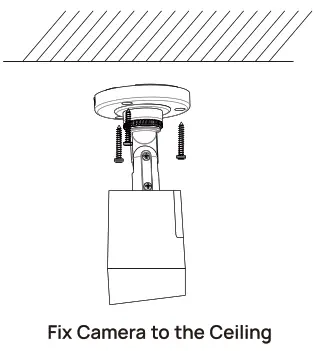

- Fix the camera to the ceiling with the supplied screws.
- Adjust the surveillance angle

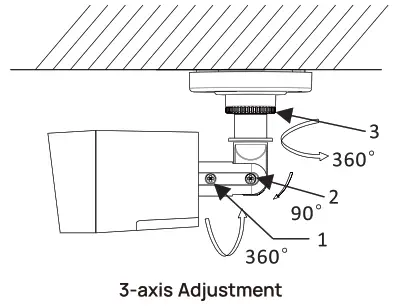

- Loosen No.3 adjusting screw to adjust the panning position (0° ~ 360°)
- Tighten No.3 adjusting screw.
- Loosen the No.2 adjusting screw to adjust the tilting position (0° ~ 90°)
- Tighten No. 2 adjusting screw
- Loosen No.l adjusting screw to adjust the azimuth angle of the image (0° ~ 360°)
- Tighten No.1 adjusting screw.
