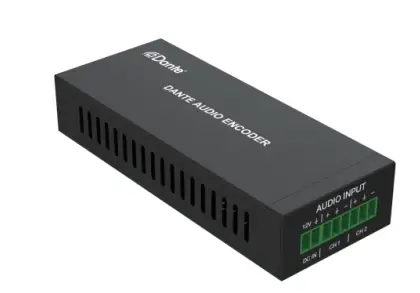

Dante HDP-AUD2ENC 2CH Analog Audio Encoder with POE
Introduction
This Dante 2CH Analog Audio Encoder is an audio transmitter based on the Dante Ultimo solution. It supports balanced/unbalanced audio input and 3-level gain adjustment. It encodes audio signals and then transmits the audio to the receiving end through the network (Dante). It supports the POE function.
Features
- Analog audio input supports balanced/unbalanced audio input (unbalanced access to “+” and “GND”)
- Audio sampling rate supports 44.1kHz, 48kHz, and 96kHz (24bit)
- Dante solution supports AES67 RTP audio transmission
- Audio input supports 3-level gain adjustment：
- 18dBu, 0dBu (default) and -10dBV
- Support DC 12V power supply and POE function (IEEE802.3af Class 0)
Package Contents
- 1× Dante 2CH Analog Audio Encoder
- 1× 6pin-3.81mm Phoenix Connector (male)
- 1× 2pin-3.81mm Phoenix Connector (male)
- 1× User Manual.
Specifications
| Technical | |
| Video Network Bandwidth | 100M |
| Audio Formats | PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit |
| Transmission Distance | 100m (CAT6/6A) |
| Control Method | Dante Controller |
| Connection | |
| Inputs | 1x PWR [2-pin phoenix, 3.81mm] 1x AUD [6-pin phoenix, 3.81mm] |
| Output | 1x DANTE [RJ45 connector, POE] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 120mm[W] x 47mm[D] x 26mm[H] |
| Weight | 186g |
| Power Supply | DC input: 12V POE input: IEEE802.3af Class 0 |
| Power Consumption | 1.2W |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Storage temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |
Operation Controls and Functions

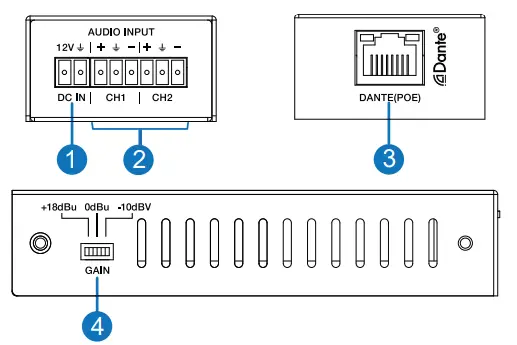

| No. | Name | Function Description |
| 1 | DC IN | DC 12V power input port. |
| 2 | AUDIO INPUT (CH1/CH2) | 2 channel analog audio input ports, supporting balanced and unbalanced audio. |
|
3 |
DANTE (POE) | Dante digital audio output port. Connect to the Network Switch through the RJ45 line, supporting the PD power supply. The green LINK LED is always on after a normal connection. The yellow DATA LED is flashing when there is data transmission. |
| 4 | GAIN switch | Used for audio input gain adjustment, respectively +18dBu, 0dBu (default), -10dBV. |
Application Example
Trademarks Dante® is a registered trademark of Audinate Pty Ltd. All other trademarks are the property of their respective owners.
