VLDT-UA2-TR
Dante 2CH USB Audio Encoder/Decoder with PoE
User Manual
VER 1.02

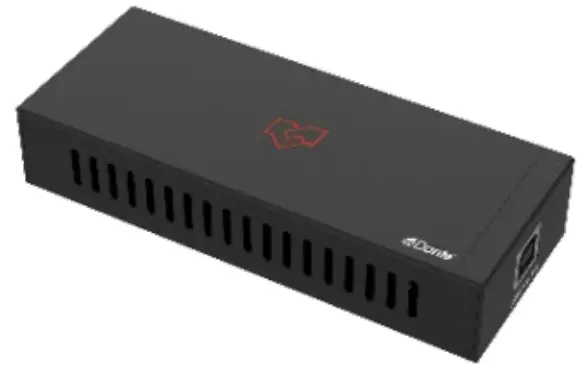

VLDT-UA2-TR Dante 2CH USB Audio Encoder-Decoder with PoE
Thank you for purchasing this product
Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that electrical spikes may damage, surges, electric shock, lightning strikes, etc. The use of surge protection systems is highly recommended to protect and extend the life of your equipment.
Introduction
This Dante 2CH USB Audio Encoder/Decoder is a Dante sound card adapter based on the Dante Ultimo solution. It supports USB audio transmission. A built-in USB sound card chip transmits an audio signal through the network (Dante). It also supports a USB power supply and PoE function. The product is compact, easy to carry, plug, and play, and suitable for recording studios, art festivals, concerts, and other scenes.
Features
☆ Compliant with USB 2.0 Full Speed Operation
☆ Compliant with USB Audio Device Class Specification V1.0
☆ Analog sound card, supporting MIC input and SPK output
☆ Audio sampling rate supports 44.1kHz, 48kHz, and 96kHz (24bit)
☆ Dante solution supports AES67 RTP audio transmission
☆ Supports USB 5V power supply and PoE function (IEEE802.3af Class 0)
Package Contents
① 1× Dante 2CH USB Audio Encoder/Decoder
② 1× USB Cable (6FT USB A to USB B)
③ 1× User Manual
Specifications
| Technical | |
| Video Network Bandwidth | 100M |
| Audio Formats | PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit |
| Transmission Distance | 100m (Cat 6/6A) |
| Frequency Response | 20Hz to 20kHz |
| Control Method | Dante Controller |
| Connection | |
| Input & Output | 1x USB-B lx DANTE [RJ45 connector, PoE] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 120mm[W] x 47mm[D] x 26mm[H] |
| Weight | 188g |
| Power Supply | USB input: 5V-500MA PoE input: IEEE802.3af Class 0 |
| Power Consumption | 1W |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Storage temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (Non-Condensation) |
Operation Controls and Functions

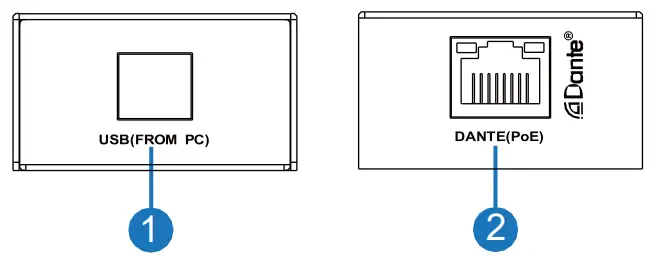

| No. | Name | Function Description |
| 1 | USB (FROM PC) | (1) 2-channel USB digital audio signal port: L/R mixed input and L/R stereo output. (2) USB 5V power input port. |
| 2 | DANTE (PoE) | Dante digital audio input and output port. Connect to the Network Switch through the RJ45 line, supporting the PD power supply. The green LINK LED is always on after a standard connection. The yellow DATA LED flashes when there is data transmission. |

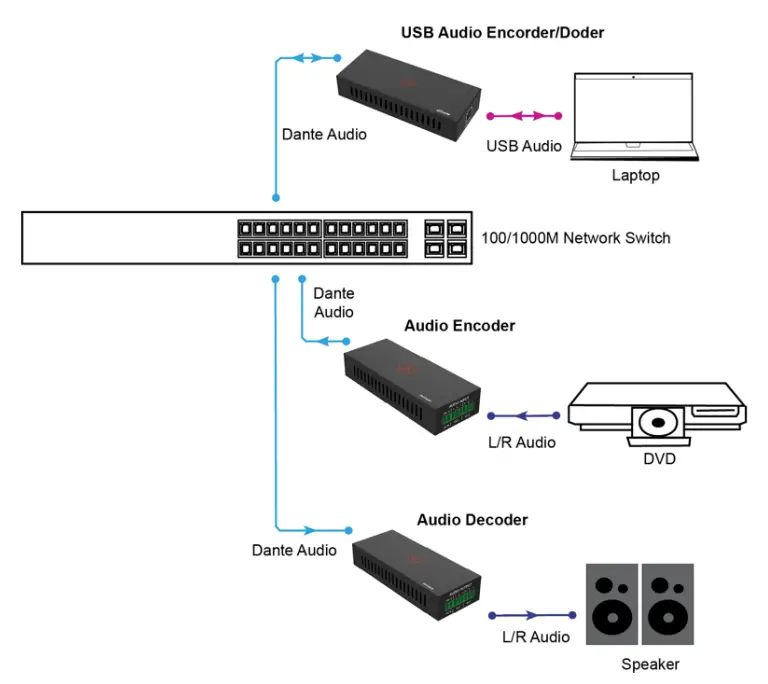

Application Example
Trademarks
Dante® is a registered trademark of Audinate Pty Ltd. All other trademarks are the property of their respective owners.
