Siig 2ch Dante Analog Audio Input Adapter User Guide

2CH Dante Analog
Audio Input Adapter
Quick Start Guide

2CH Dante Analog Audio Input Adapter

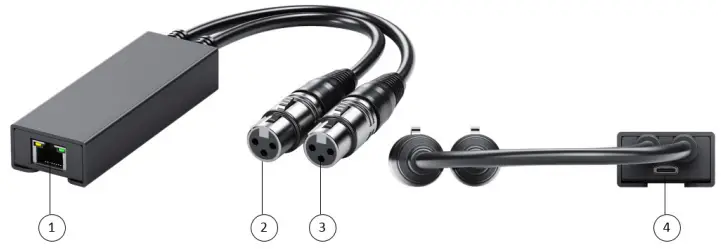

Layout

1. RJ-45: Connect to Ethernet switch
2. XLR Input-L
3. XLR Input-R
4. USB-C power in: +5V DC
   (Not support USB-C PD, please use USB-A to C cable )

Features

• Supports two XLR connectors, 2ch input for analog audio
• Supports sample rates up to 96kHz
• Supports PoE (Power over Ethernet)
• Dante audio over IP and AES67 RTP transport formats
• Synchronous sample rate conversion
• Excellent dynamic range, SNR and RHD performance

Package contents

• 2CH Dante Analog Audio Input Adapter
• Quick Start Guide

DANTE CONTROLLER

• Download the software
  https://www.audinate.com/products/software/dante-controller
• User Guide
  https://dev.audinate.com/GA/dante-controller/userguide/pdf/latest/AUD-MAN-DanteController-4.4.x-v1.0.pdf
• Videos
  https://www.audinate.com/learning/training-certification/video-tutorials/video-series-dante-controller-101

Support
For more info or tech support
http://www.siig.com/support
Jan, 2022 Copyright © 2022 by SIIG, Inc. All rights reserved.
04-1371A
 P/N: CE-AU0611-S1
