INTERSTATE AUDIO NewHank DI 22 2 CH Dante IO Adapter

Newark DI 22

Thanks for buying NewHank DI 22, this guide will take you to know how to use this product.

Product Introduction

This product is applied to the audio system field to realize the analog audio signal and Dante network audio signal conversion function. Power supply for this product must be provided by Ethernet (PoE) switch or router.

Product Feature

1. Function Introduction: Convert the received analog audio signal to Dante network audio signal output
2. Input & Output: Support two analog audio signal input, two Dante network audio signal output

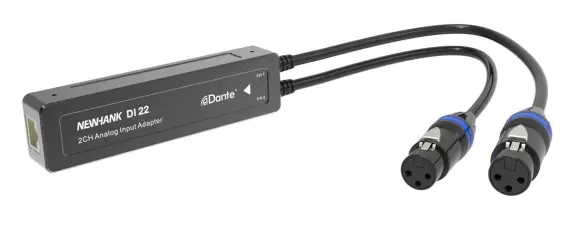

3. Hardware interface type: Two XLR are used to input analog audio signals, One RJ45 port connection switch is used to output Dante network audio signal

Technical Parameters

Product Overview

Product Connect

Follow the below steps to set up a Dante network for controlling.

1. Download and install the Dante Controller from Audinate website (www.audinate.com).
2. Connect the device to the switch using Dante network audio system with network cable
3. The analog audio transmission device is connected through the XLR interface
4. Search for devices in Dante Controller software, Select and open the devices to be configured，On the Routing page, match the input row with the output column with a custom check.
5. Once set up and configured the audio routing between audio device, the audio device will remember and save the settings.

Packing List

Notes
In order to ensure the reliable use of equipment and the safety of personnel, please follow below details when installing, using and maintaining:

1. Keep the working environment well ventilated, so that the heat generated by the equipment can be discharged in time, so as not to damage the equipment due to high temperature.
2. Non-professionals without permission, do not dismantle the equipment without authorization, so as to avoid the risk of electric shock. Do not repair, so as not to increase the damage of the equipment.
3. Do not spill any corrosive chemicals or liquids on or near the equipment.

Warranty Card

References

• Audinate - Maker of Dante, Pro AV's Leading Networking Technology
