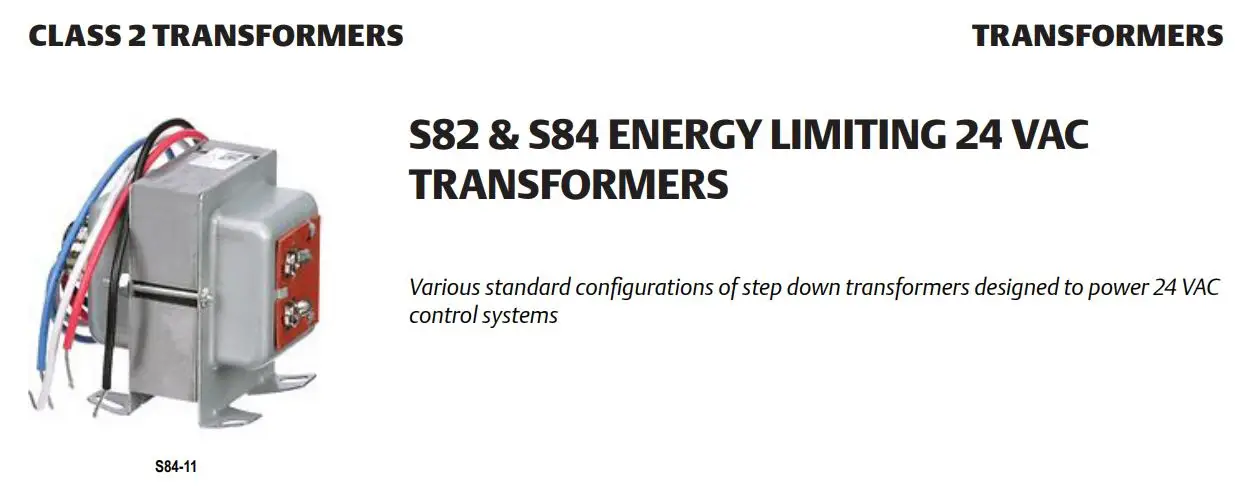

White Rodgers S82 Energy Limiting 24 Vac Transformers Instructions
FEATURES
- Energy limiting design, unaffected by momentary short circuit
- Continued short circuit of secondary will cause primary winding to open in 1 to 2 minutes without creating a fire hazard
- Maximum ambient temperature is 150°F
SPECIFICATIONS
UR/CUR File Number …………………………………………………………………………………. E507466 ………………………………………………………………… CE Approved (S84-11, S84Z-90, S84A-410)

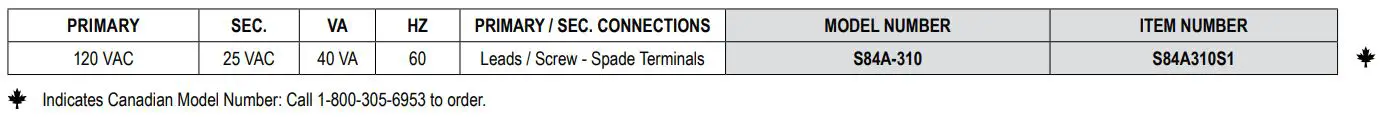

S84 SERIES INHERENTLY LIMITED 24 VAC TRANSFORMERS – UNIVERSAL MOUNTING MODELS – Plate, Foot or Hub Mount

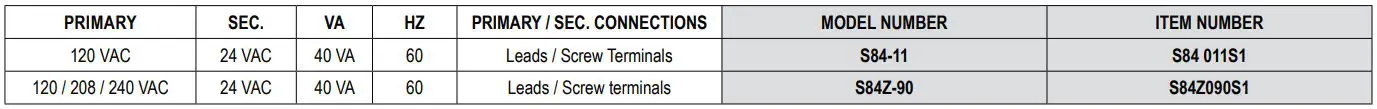

S84 SERIES INHERENTLY LIMITED 24 VAC TRANSFORMERS – plate mounted
S82 SERIES INHERENTLY LIMITED 24 VAC TRANSFORMERS – HUB MOUNT – Class 2 Not Wet / Class 3 Wet (C.S.A. Certified and U.L. Listed E11592)
S84 SERIES INHERENTLY LIMITED 24 VAC TRANSFORMERS – UNIVERSAL MOUNTED TYPE – Plate, Foot Or Hub Mount, Class 2 Not Wet / Class 3 Wet (C.S.A. Certified and U.L. Listed)
