Perflex Series
»»» Above-Ground D.E. Filters
Perflex Series Clearer Water Filtration
CLEANER, CLEARER WATER FILTRATION— NO BACKWASHING REQUIRED

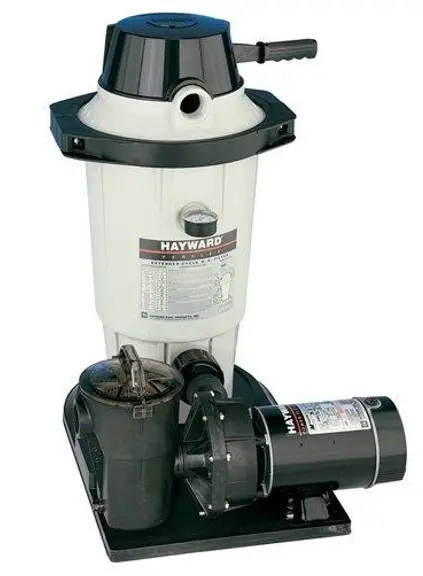

PERFLEX® ABOVE-GROUND D.E. FILTER SYSTEM FEATURES
- Diatomaceous earth (D.E.) filter captures all dirt on the first, pass, even removing dust, pollen, and algae as small as one micron (100 times smaller than a grain of salt), lowering daily run times to reduce energy costs
- D.E. filter powder lasts for four weeks, requiring fewer charges per season
- Patented Flex-Tubes™ and unique Bump feature trap more dirt and impurities without backwashing, saving hundreds of gallons of treated pool water every season
- Corrosion-proof construction offers years of dependable performance
- Modular platform base provides safe, stable support
- Quick-connect unions facilitate easy installation

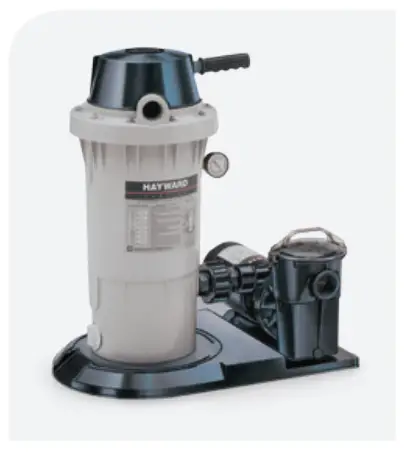

EC30 SERIES
ADDITIONAL FEATURES
- Basic system designed for smaller above-ground pools
- PowerFlo ®
LX series 40 GPM pump

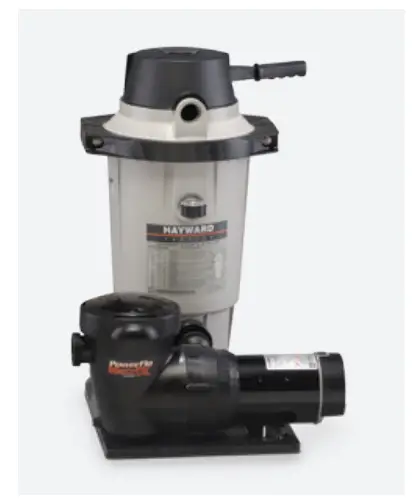

EC40AC SERIES
ADDITIONAL FEATURES
- Robust system designed for large above-ground pools
- PowerFlo LX or PowerFlo Matrix® series 1 HP pump
- Requires only two nuts and bolts for easy maintenance access
EC50AC SERIES
ADDITIONAL FEATURES
- Exceptional system designed for the largest above-ground pools
- PowerFlo LX or PowerFlo Matrix series 1 or 1.5 HP pump
- Stainless clamp design for easy access to filter components
FILTER PERFORMANCE DATA
| SERIES MODEL NUMBER | EFFECTIVE FILTRATION AREA | DESIGN FLOW RATE | TURNOVER | |
| 8 HOURS | 12 HOURS | |||
| EC30 | 15 ft.2 | 30 GPM | 14,400 gal | 21,600 gal |
| EC40AC | 20 ft.2 | 40 GPM | 19,200 gal | 28,800 gal |
| EC50AC | 25 ft.2 | 50 GPM | 24,000 gal | 36,000 gal |
