Quick Setup GuideSUNELL SN-IPV8xxxEF Vandal Dome Network CameraNO:101-100-0520-03
Issue:1.3

Precautions

Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip “You have entered the area of electronic surveillance” in an eye-catching place. Failure to correctly use electrical products may cause fire and severe injuries.

warning - 1WARNINGIt alerts you to moderate dangers which, if not avoided, may cause minor or moderate injuries.
Warning iconCAUTIONIt alerts you about risks. Neglect of these risks may cause device damage, data loss, device performance deterioration, or unpredictable results.
SUNELL SN-NVR E4 Series Network Video Recorder - icon 2NOTEIt provides additional information.

warning - 1 WARNING

  • Strictly observe installation requirements when installing the device. The manufacturer shall not be held responsible for device damage caused by users’ non-conformance to these requirements.
  • Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged.
  • Use accessories delivered with this device. The voltage must meet input voltage requirements for this device.
  • If this device is installed in places with unsteady voltage, ground this device to discharge high energy such as electrical surges in order to prevent the power supply from burning out.
  • When this device is in use, ensure that no water or any liquid flows into the device. If water or liquid unexpectedly flows into the device, immediately power off the device and disconnect all cables (such as power cables and network cables) from this device.
  • Do not focus strong light (such as lighted bulbs or sunlight) on this device. Otherwise, the service life of the image sensor may be shortened.
  • If this device is installed in places where thunder and lightning frequently occur, ground the device nearby to discharge high energy such as thunder strikes in order to prevent device damage.

Warning icon CAUTION

  • Avoid heavy loads, intensive shakes, and soaking to prevent damages during transportation and storage. The warranty does not cover any device damage that is caused during secondary packaging and transportation after the original packaging is taken apart.
  • Protect this device from fall-down and intensive strikes, keep the device away from magnetic field interference, and do not install the device in places with shaking surfaces or under shocks.
  • Clean the device with a soft dry cloth. For stubborn dirt, dip the cloth into slight neutral cleanser, gently wipe the dirt with the cloth, and then dry the device.
  • Do not jam the ventilation opening. Follow the installation instructions provided in this document when installing the device.
  • Keep the device away from heat sources such as radiators, electric heaters, or other heat equipment.
  • Keep the device away from moist, dusty, extremely hot or cold places, or places with strong electric radiation.
  • If the device is installed outdoors, take insect- and moistureproof measures to avoid circuit board corrosion that can affect monitoring.
  • Remove the power plug if the device is idle for a long time.

Special Announcement

  • All complete products sold by the manufacturer are delivered along with nameplates, quick setup guide and accessories after strict inspection. The manufacturer shall not be held responsible for counterfeit products.
  • The manufacturer will update this manual according to product function enhancement or changes and regularly update the software and hardware described in this manual. Update information will be added to new versions of this manual without prior notice.
  • This manual may contain misprints, technology information that is not accurate enough, or product function and operation description that is slightly inconsistent with the actual product, the final interpretation of company is as a standard.
  • This manual is only for reference and does not ensure that the information is totally consistent with the actual product. For consistency, see the actual product.
    SUNELL SN-NVR E4 Series Network Video Recorder - icon 2 NOTE
    For more information, please refer to website.

Open Package Examination

Open the package, check the appearance of product for no obvious damage, and confirm the item list for table 1-1 is consistent.
Table 1-1 Packing list

ComponentQuantityRemark
Vandal Dome Network Camera1
Quick Setup Guide1
T15 Screw driver1Large Dome
T10 Screw driver1Mini Dome
Installation location sticker1
Stainless self-tapping screw3
Plastic anchor3
Network access port protective cover1
Terminal block1Optional

Device Structure

2.1 Device Ports
SUNELL SN-NVR E4 Series Network Video Recorder - icon 2 NOTE

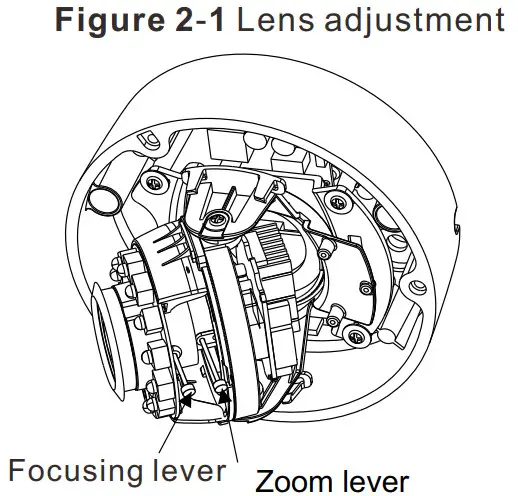

Len adjustment is only applied for large dome.SUNELL SN-IPV8xxxEF Vandal Dome Network Camera - Lens adjustmentTable 2-1 Lens adjustment description

Port NameDescription
Focusing leverAdjust the focus of lens, the default status is lock.
Zoom leverAdjust the lens focal length, the default status is lock.

SUNELL SN-NVR E4 Series Network Video Recorder - icon 2 NOTE
Different devices may have different multi-heads; Please refer to the actual product.SUNELL SN-IPV8xxxEF Vandal Dome Network Camera - Lens adjustment 1Warning icon CAUTION
Some models may only have port/power supply/reset button, the other function such as audio in/ 12 V out may not have. The figure is only for referring; Please refer to the actual product.

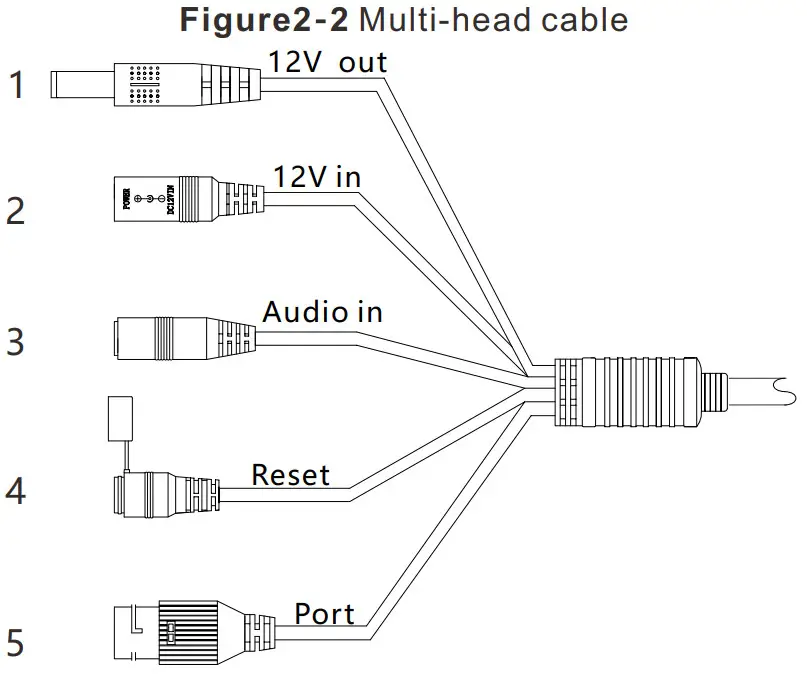

Table 2-2 Multi-head cable description

IDCoreDescriptionRemark
112V out portOutput the DC 12V to supply other device.
2Power supply (DC 12V)Connects to a 12V direct current (DC) power supply.
3Audio input portReceives an analog audio signal from devices such as a sound pickup device.Applied for camera with audio function
4Reset buttonLong press the reset button for 5 seconds to restore the original settings.
5Network access portConnects to a standard Ethernet cable or PoE . The green light is on, the network connection is normal; the yellow light flashes when the data is transmitted. Some models maybe not have the lights; Please refer to actual product.Support PoE supply.

2.2 Camera Dimensions
SUNELL SN-NVR E4 Series Network Video Recorder - icon 2 NOTE

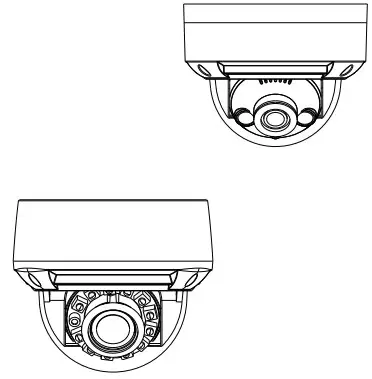

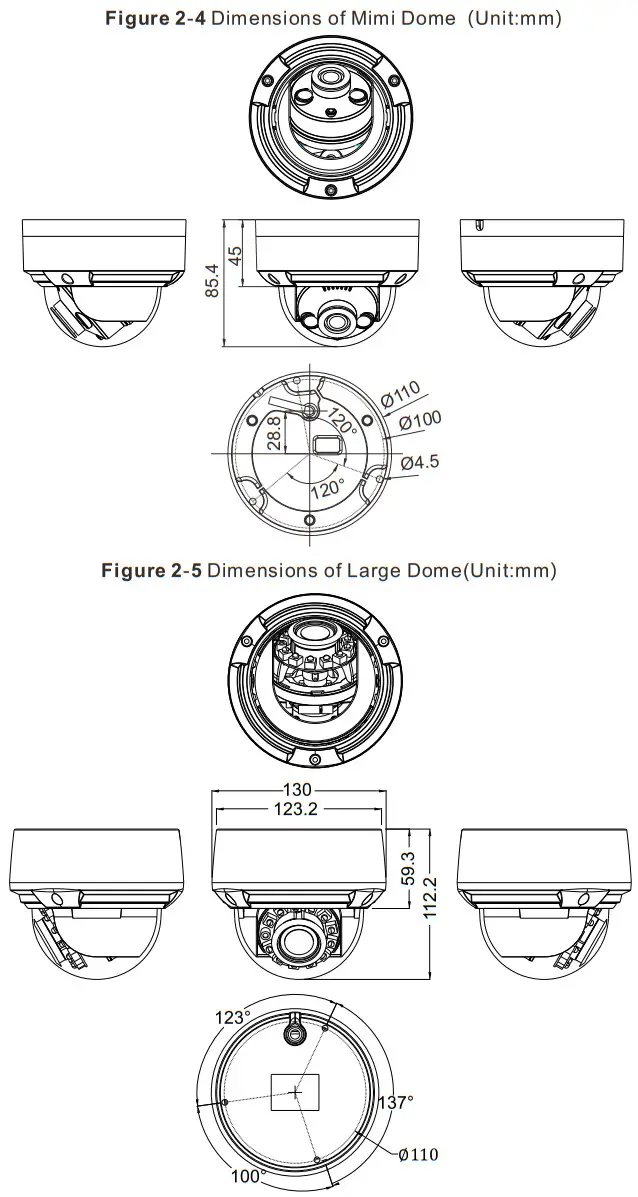

Different devices may have different dimensions; Please refer to the actual product.SUNELL SN-IPV8xxxEF Vandal Dome Network Camera - Lens adjustment 2

Device Installation

warning - 1 WARNING
To avoid moisture influence, install the dome cover at least half an hour after the camera is installed and powered on. The vandal dome camera can be installed in the ceiling , wall , wall bracket or ceiling bracket. This section describes how to install the camera in the ceiling.
Installation Steps:

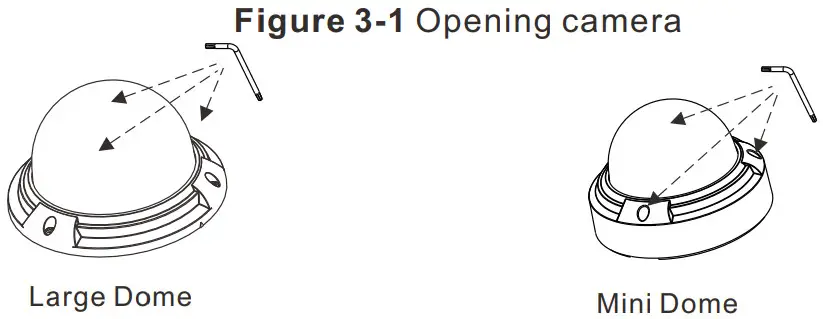

Step 1 Use the T15 screw driver in the accessory package to unscrew the three screws on the dome cover. The camera is opened, as shown in figure 3-1.SUNELL SN-IPV8xxxEF Vandal Dome Network Camera - Lens adjustment 3Step 2 Stick the Installation location sticker on the ceiling or wall. Drill three holes based on the marks on the sticker. Drive the plastic anchors into the holes.

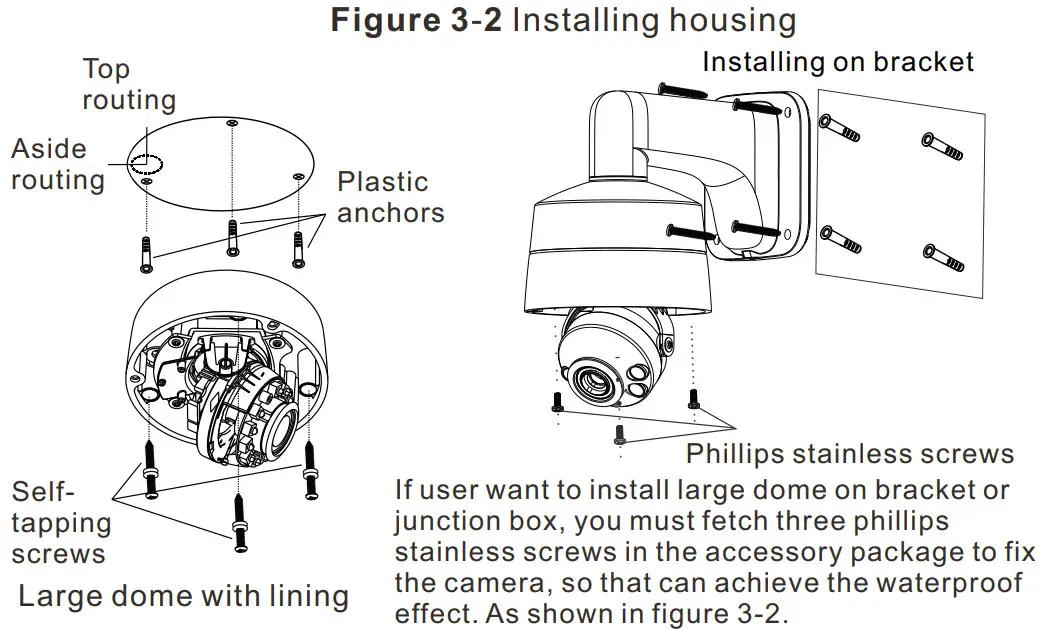

Step 3 Fetch three black self-tapping screws from the accessory package. Then fix the screws to fasten the camera on the ceiling as shown in figure 3-2.SUNELL SN-IPV8xxxEF Vandal Dome Network Camera - Lens adjustment 4Step 4 Connect the network access port and power supply of the multi-head cable.
Step 5 Adjust the lens focal length and video angle range.

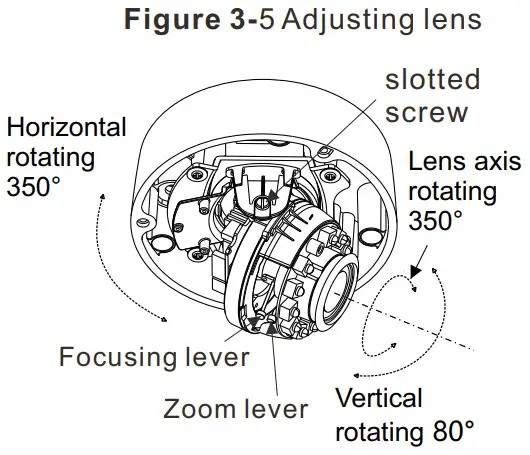

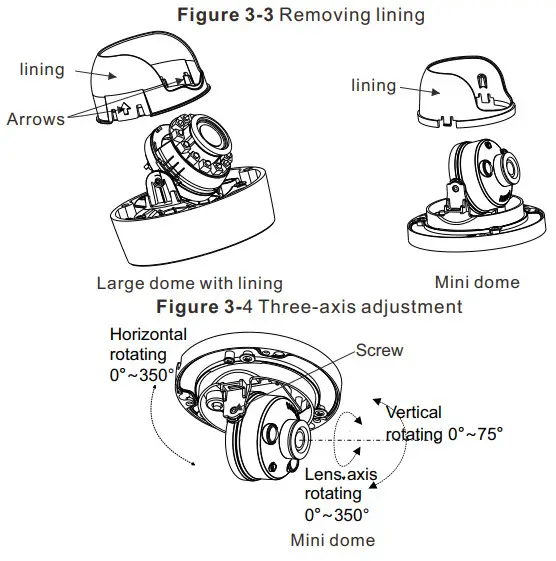

1. Press the arrows marked on the lining to remove the lining aside, as shown in figure 3-3.
2. View the video, loosen the slotted screw slightly as shown in figure 3-4 & figure 3-5, make camera’s triaxial adjustments, adjust the screen to the scene you want to monitor, and then tighten the screws. Three-aix adjustment direction and angle are shown in figure 3-4 & figure 3-5. SUNELL SN-IPV8xxxEF Vandal Dome Network Camera - Lens adjustment 5SUNELL SN-IPV8xxxEF Vandal Dome Network Camera - Lens adjustment 6Step 6 Loosen the focus lever, and gently move the zoom lever to adjust the lens focal length to the desired position. Move the focus lever slightly to focus the lens clearly. Tighten the focus lever after completing the focusing operation, as shown in figure 3-4(This step is only applied for large dome).
SUNELL SN-NVR E4 Series Network Video Recorder - icon 2 NOTE

  • Some models maybe not operate so much steps, please refer to actual product.
  • While focusing lever is in the process of focusing, an image might be blur, move the zoom lever to fine-tune the image, when image is clear, lock the zoom lever.
  • If the lens of camera is auto focus lens, set the focus value in Sensor > Lens control page in the web page.

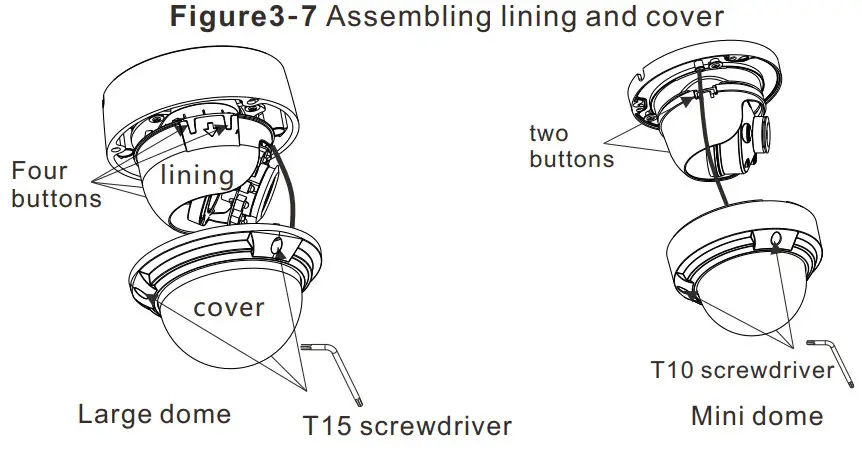

Step 7 Assemble the lining with the main body and buckle the four button placements with the main body bracket. Aim the two screws hole with boss at the groove on the main body. Then fasten the dome cover, as shown in figure 3-6. SUNELL SN-IPV8xxxEF Vandal Dome Network Camera - Lens adjustment 7

Quick Configuration(e.g IE)

4.1 Login

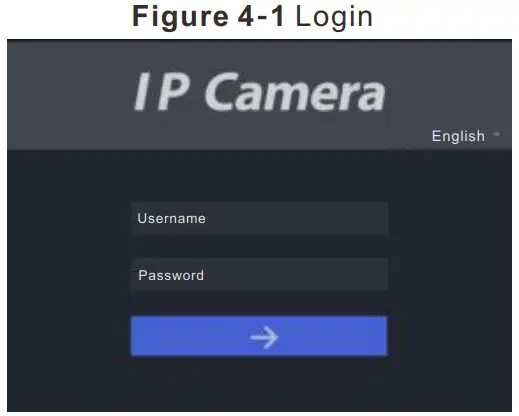

Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.0.123) in the address box, and press Enter. The login page is displayed as shown in figure 4-1.
Step 2 Input the user name and password.
SUNELL SN-NVR E4 Series Network Video Recorder - icon 2NOTE

  •  The default user name and password are both admin. Modify the password when user logs into the system for first time to ensure system security.
  • It is advised to restart camera three minutes later after modifying password to ensure modified successfully.
  • You can change the system display language on the login page.

SUNELL SN-IPV8xxxEF Vandal Dome Network Camera - Lens adjustment 8Step3 Click Login, the main page is displayed.
4.2 Modify IP address
Choose Configuration > Device > Local Network, the Local Network page is displayed.

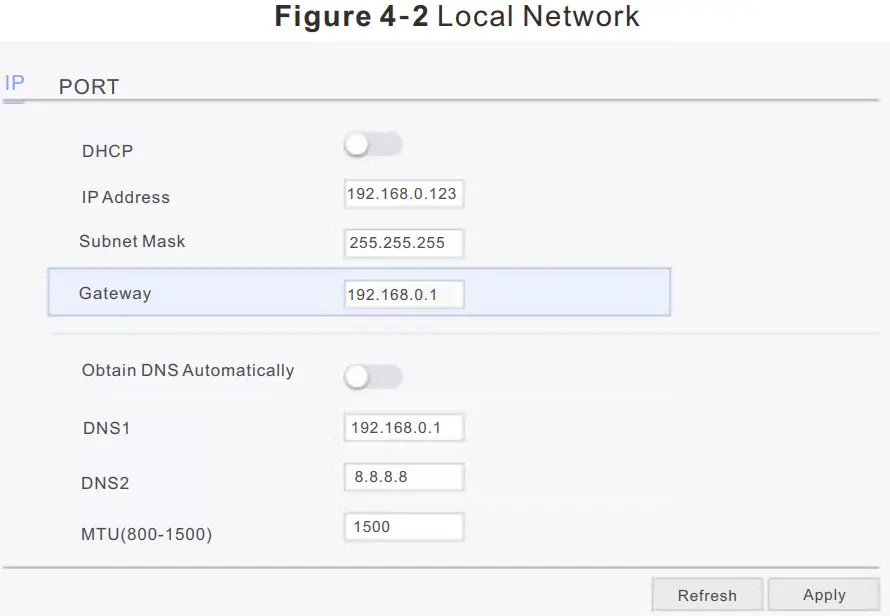

Enter the IP address in the IP Address box and click Apply as shown in figure 4-2.
After the IP address is set successfully, please use the new IP address to log in the Web interface.SUNELL SN-IPV8xxxEF Vandal Dome Network Camera - Lens adjustment 94.3 Browsing Video
To ensure the real-time video can be played properly, you must perform the following operation when you log in the web for the first time:

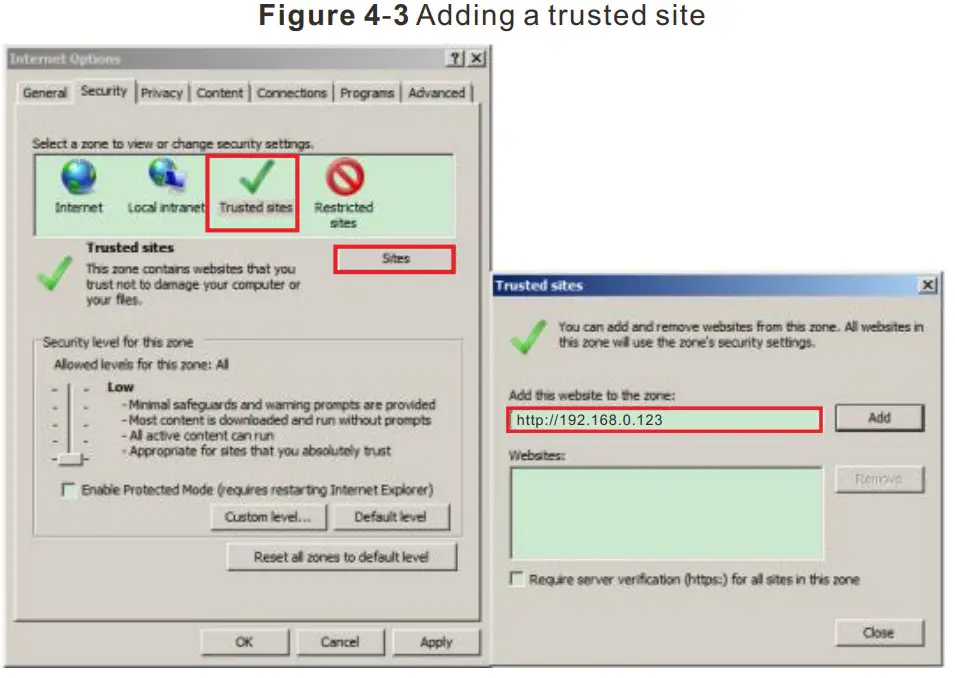

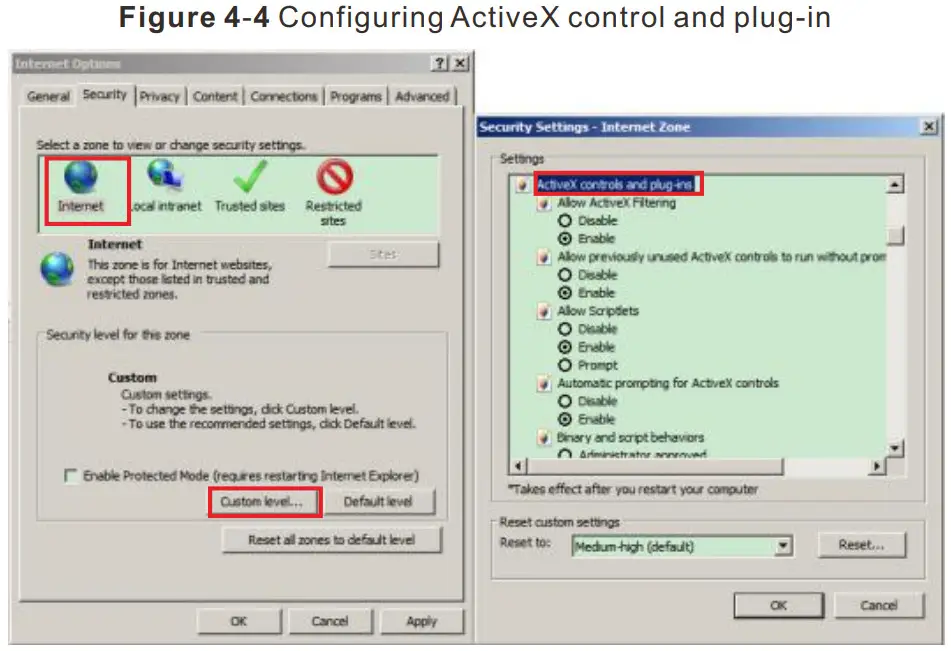

Step 1 the Internet Explorer. Choose Tools > Internet options > Security > Trusted sites > Sites, in the display dialog box, click Add, as shown in figure 4-3.SUNELL SN-IPV8xxxEF Vandal Dome Network Camera - Lens adjustment 10Step 2 In the Internet Explorer, choose Tool > Internet Options > Security > Customer level, and set Download unsigned ActiveX control and initialize and script ActiveX controls not marked as safe for scripting under ActiveX controls and plug-ins to Enable, as shown in figure 4-4.SUNELL SN-IPV8xxxEF Vandal Dome Network Camera - Lens adjustment 11Step 3 Download and install the player control as prompted.
SUNELL SN-NVR E4 Series Network Video Recorder - icon 2 NOTE
If the repair tips displayed when installing the control , please ignore the prompt, and continue the installation, the login page is displayed when the control is loaded.

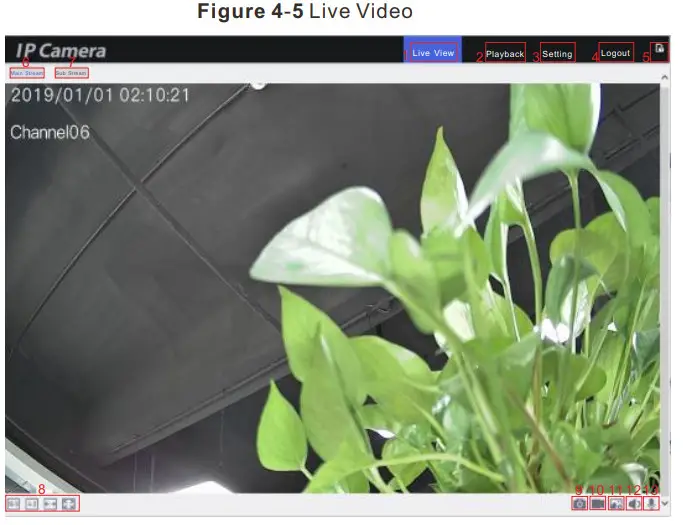

To browse a real-time video, click Live Video. The Live Video page is displayed, as shown in figure 4-5.SUNELL SN-IPV8xxxEF Vandal Dome Network Camera - Lens adjustment 12Description:

  1. User can view the live view.
  2. Playback, if the device install the SD card, user can view playback recording
  3. Click Setting into the setting interface, set the parameter of device.
  4. Click Logout to exit the live view interface, user need to input password to login again.
  5. The alarm, when the alarm action is happening, the icon will show.
  6. and 7 to switch the stream.
  7. Switch the aspect ratio. Double-click in the video area to enter the full-screen mode, and double-click again to exit.
  8. Snapshot, the picture will save to local folder(Setting > Local ).
  9. Record, click this and record the live view and save to local folder.
  10. Click the icon to open the Image Setting page. On the Image Setting page, user can set image, scene, WB, daynight, nosie reduction, enhance image.
  11. Audio, click open or close the audio.
  12. Interphone, click open or close the interphone.

4.4 Maintenance

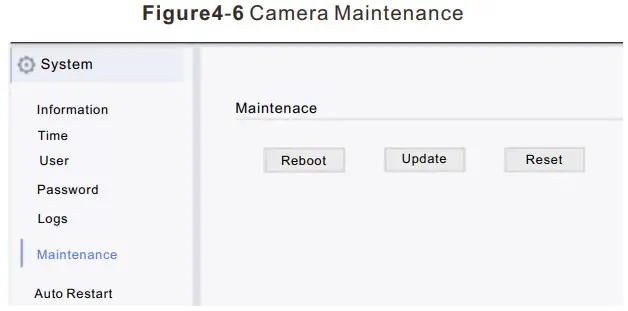

Choose “Setting > System >Maintenance” the “Camera Maintenance” is displayed, as shown in figure 4-6. User can reboot ,update and reset the camera in this page.SUNELL SN-IPV8xxxEF Vandal Dome Network Camera - Lens adjustment 13

  • Click Reboot, the message”Are you sure to restart?” is displayed, then click “OK”, the device is restarted successfully five minutes later.
  • Click Update to update software, choose software and confirm to update.
  • Click Reset, the message “Are you sure to reset?” is displayed, then click “OK”, the device is reset to the factory settings.

Warning icon CAUTION
Don’t close the browser when the camera is rebooting. All parameters will be restore to factory default, be careful of clicking Reset.
