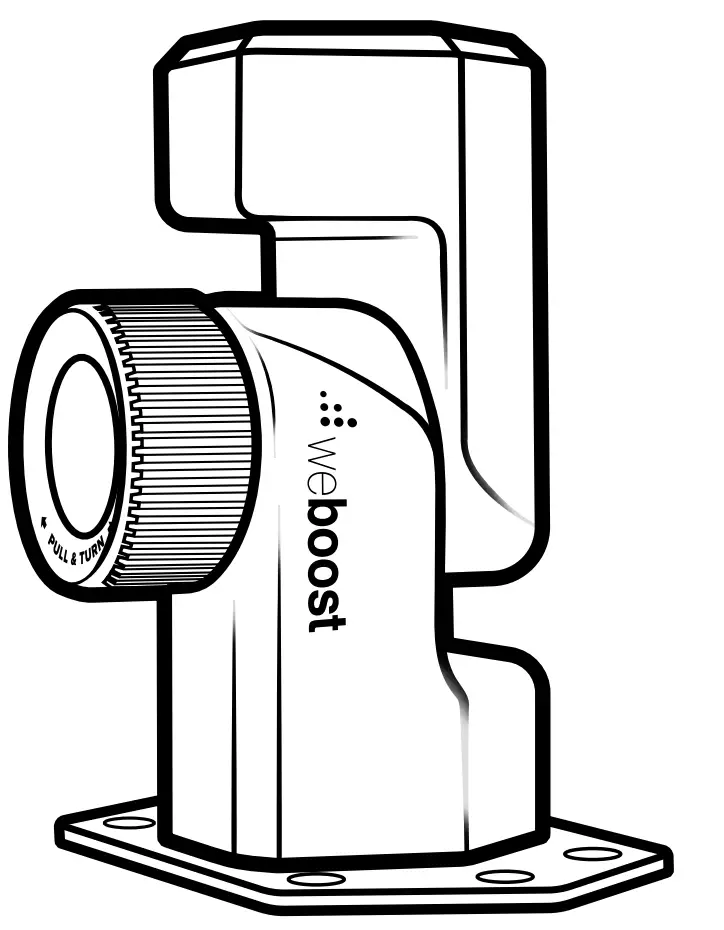

weboost Overland Antenna Mount

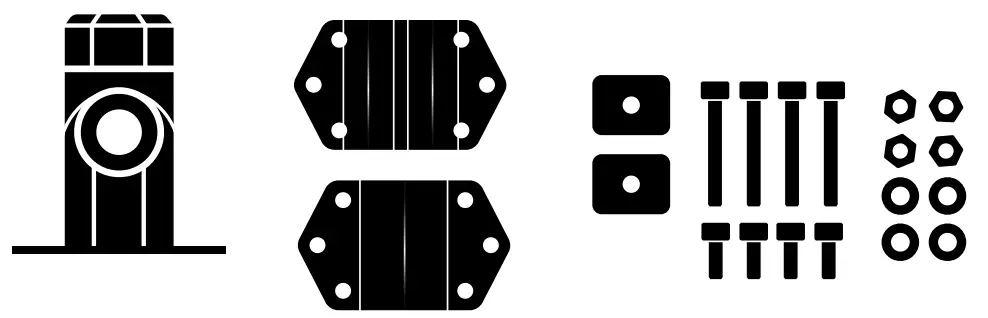

Package Contents

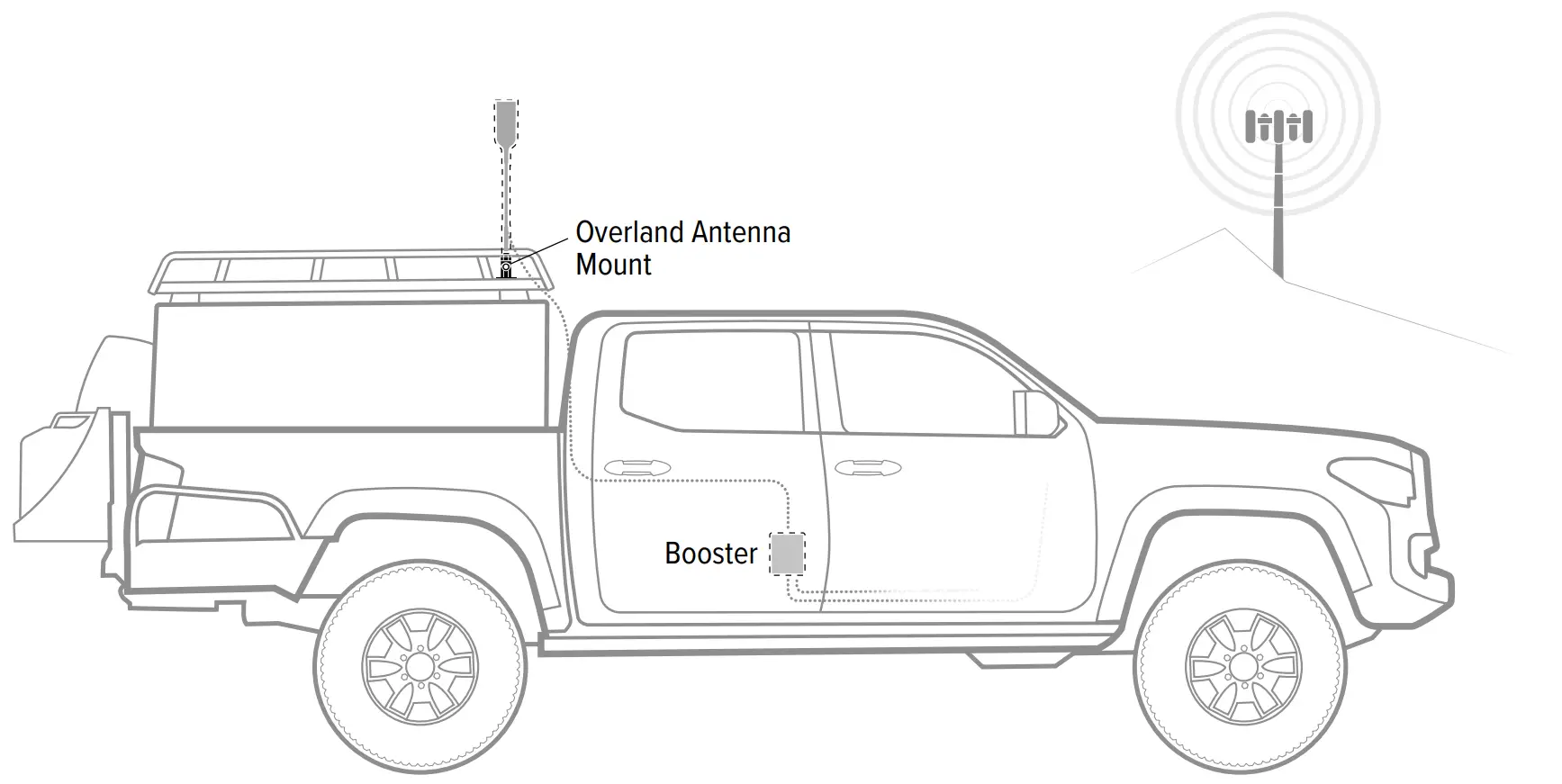

Installation Overview
Installing the Overland Antenna Mount

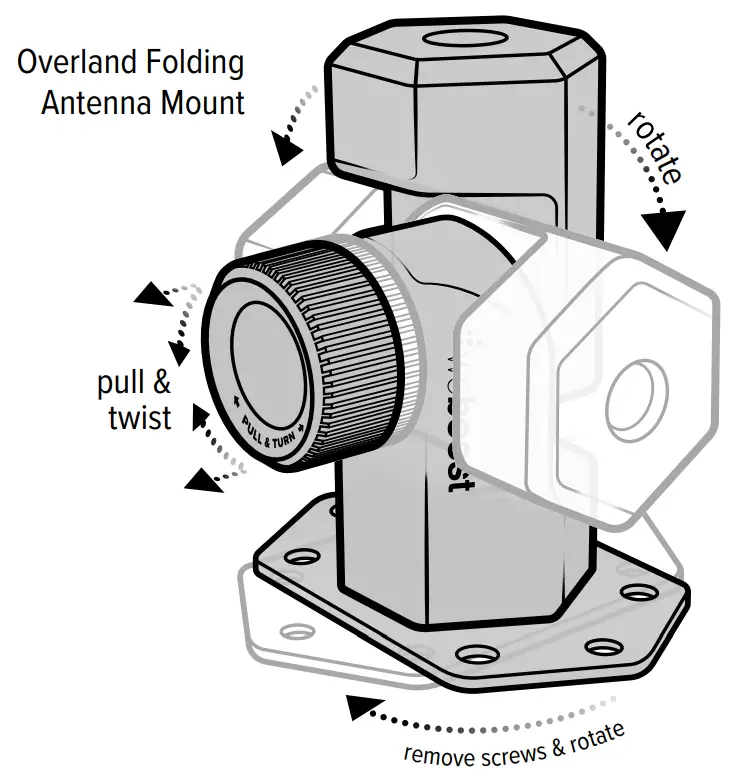

This mount makes it easier to install the outside antenna to different types of overland vehicles. The overland folding mounting bracket is very versatile with different mounting options shown below.

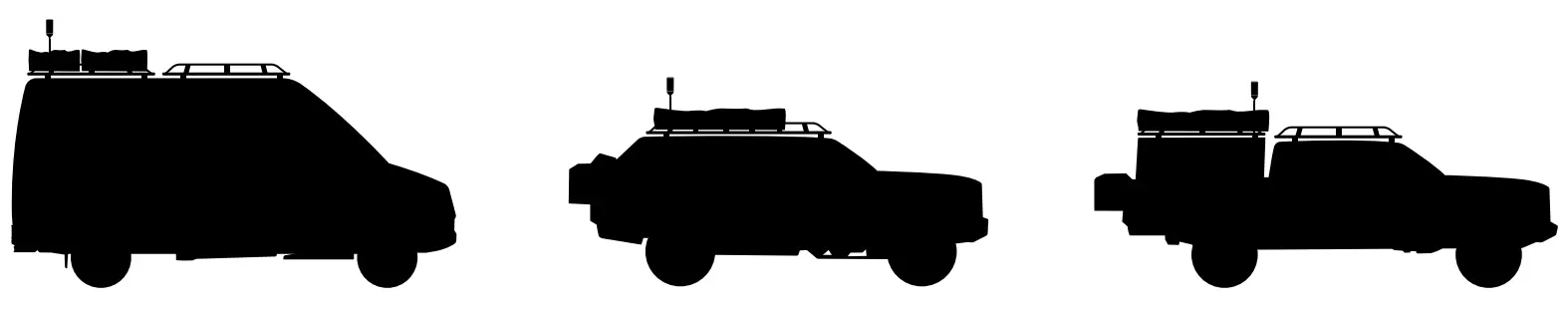

| Works with Different Overland Vehicle Types |
 |

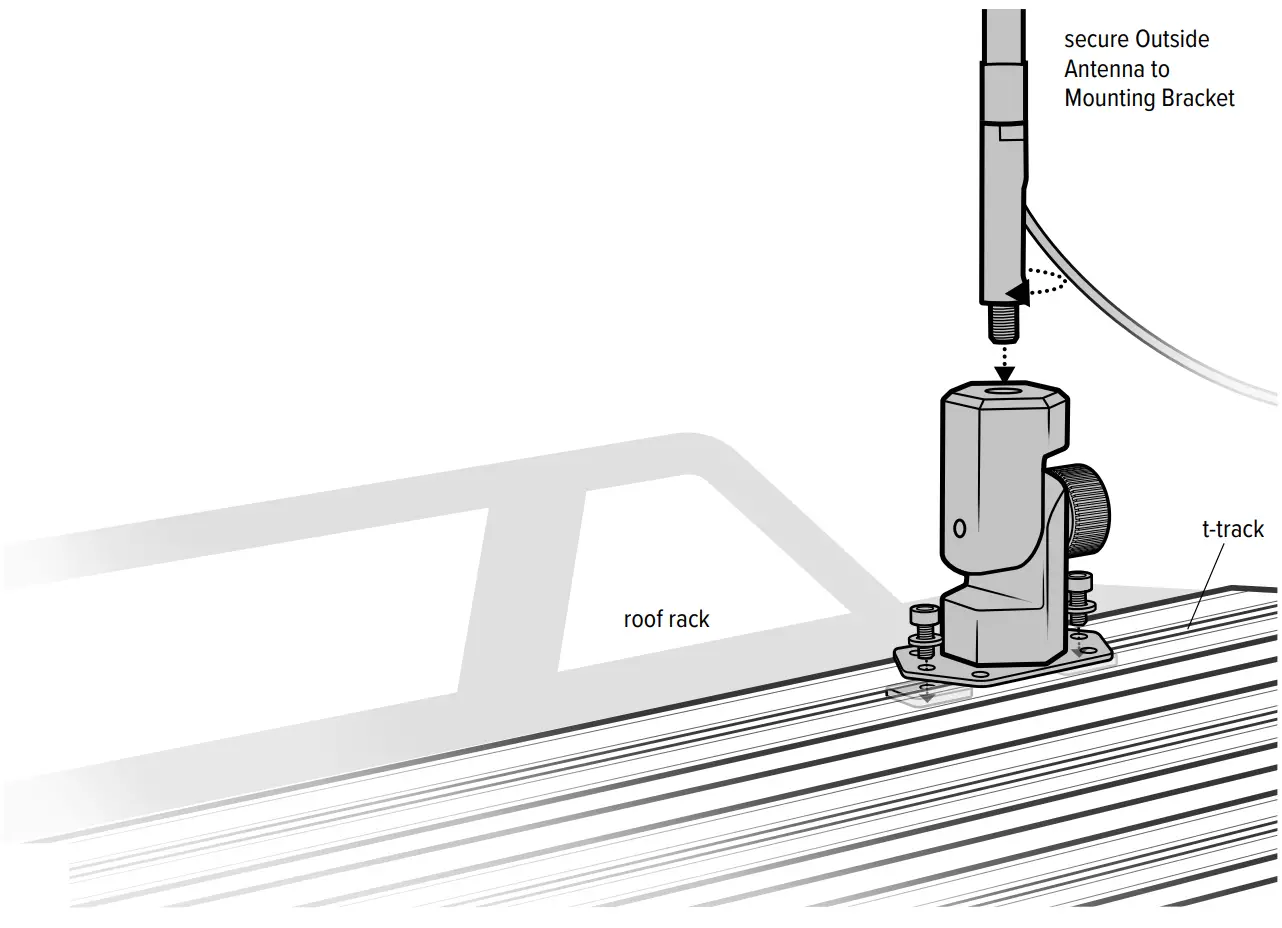

T-Track Mounting Option
For vehicles with t-track roof rack systems, the provided mounting bracket can be mounted to the roof rack. Use the t-track mounting hardware to secure the bracket to roof rack, then screw in assembled outside antenna.

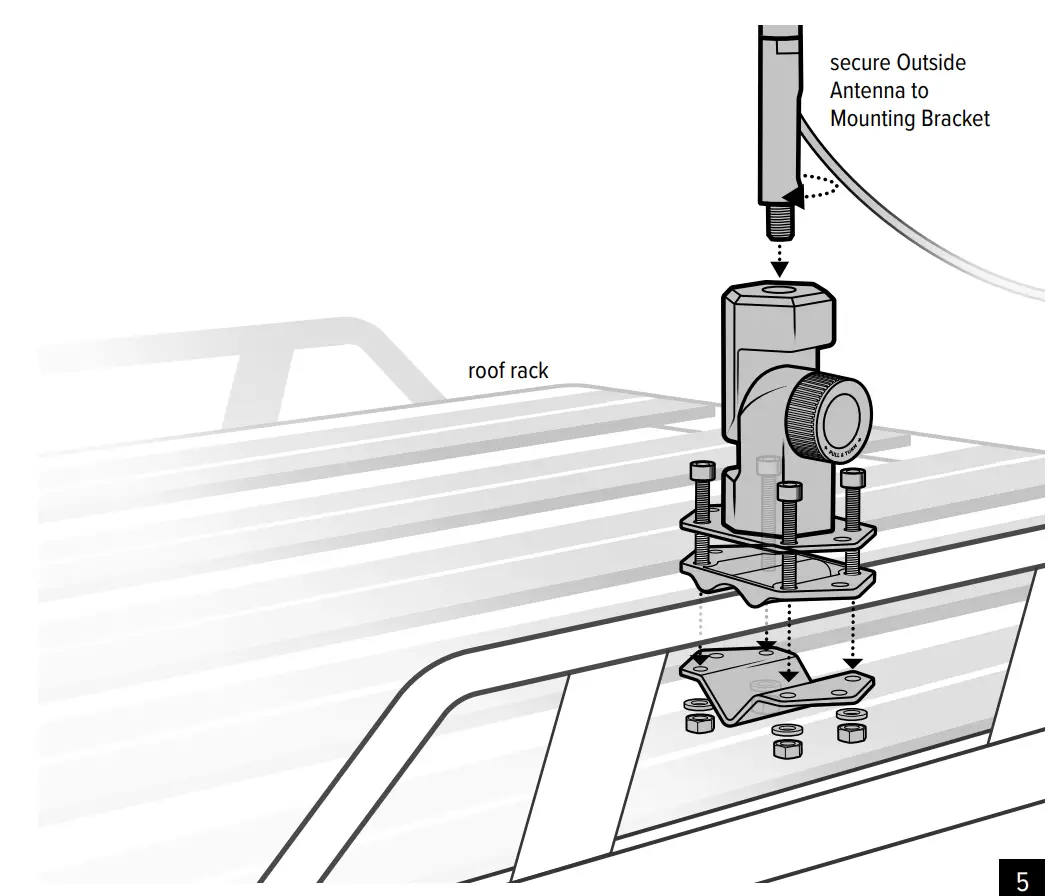

Pole Mounting Option
Brackets and hardware are also provided for securing the folding mounting bracket to 1.0-1.5 inch diameter pole-like roof rails or ladders, as shown.

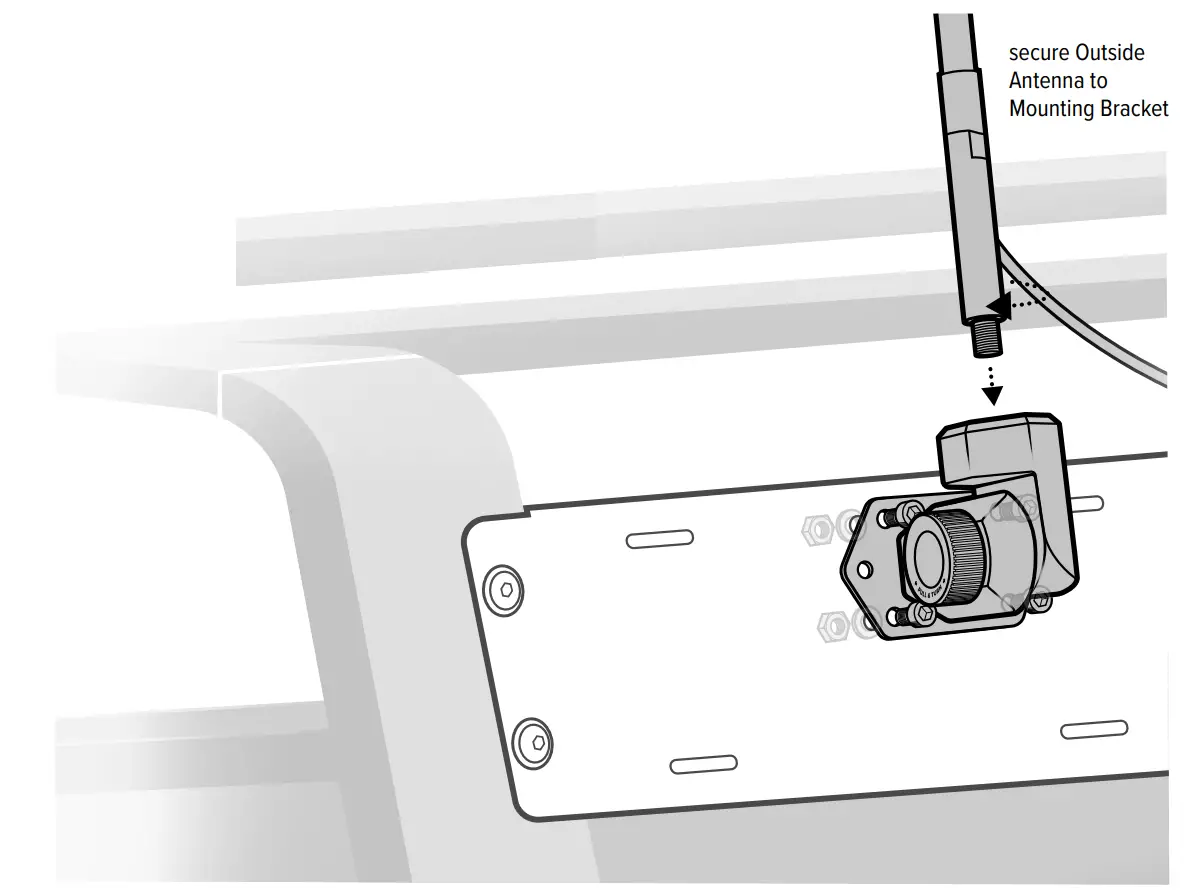

Fixed Mounting Option
The folding mounting bracket can also be secured to a flat surface using the provided hardware as shown here.
