B2 USB Rechargeable Bike Light 1300 Lumens
User Manual
User Manual V1.0
Product Warranty…………………………………………..
Name ………………………………………….
Telephone …………………………………….
Address ………………………………….
Model number……………………………………..
Product series number………………………………….
Name of store…………………………………………………..
Date of purchase ………………………………………………..
Get your e-warranty card and e-user manual by visiting the following URL or scanning the QR code. https://www.wubenlight.com/pages/product-registration

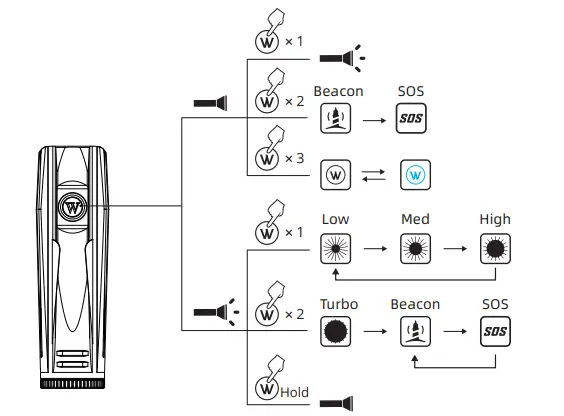

0peration
A. Main Light Operation:
ON/OFF: When the light is off, single click on the 0 switches to turn on the light, long-press the ()switch to turn it off. The bike light has a memory function, will memorize default output selections, but not flash modes.
- Default Output Selections: When the main light is on, single click on the ®switch to cycle through High.Med.Low.High.
- Quick Turbo: When the main light is on, double click the® switch to activate Turbo, single click to return to the previous output level.
- Flash Modes: When the main light is off or at Turbo mode, double click the ® switch to cycle through Beacon-SOS, single click to exit.
B. Breathing light
When the light is off, triple-click the switch to turn or off the blue breathing light. The breathing light has a power-off memory function.

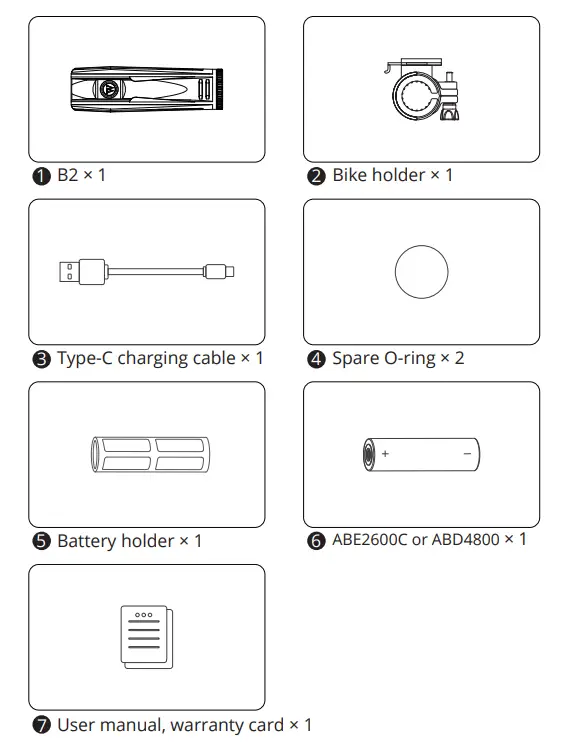

Package List
MIS product. please check whether the contents of age are complete.

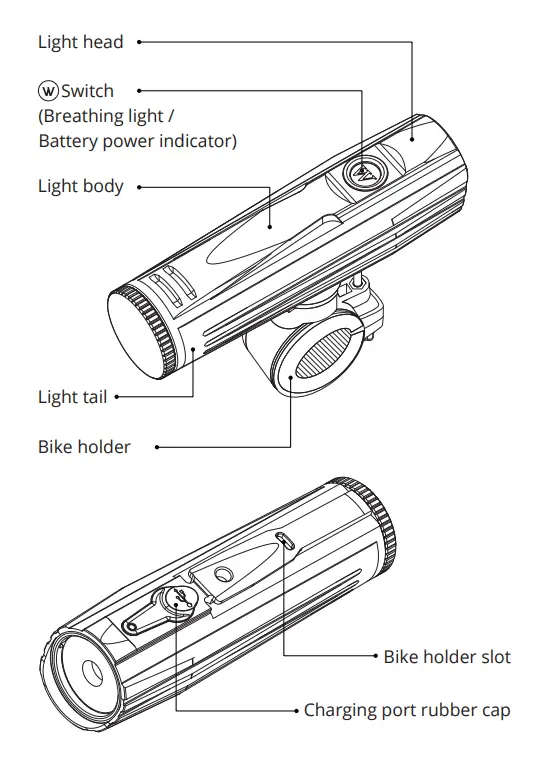

About Product

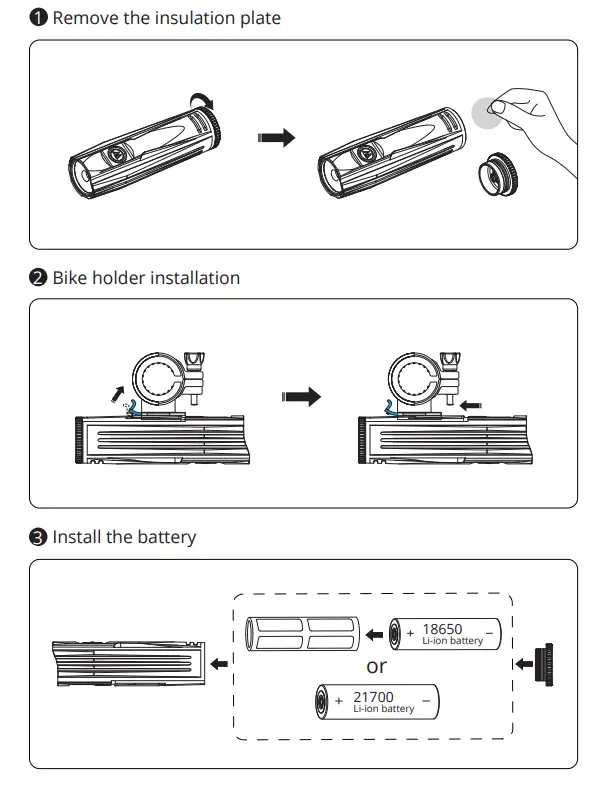

Installation
Remove the insulation plate
OPERATION

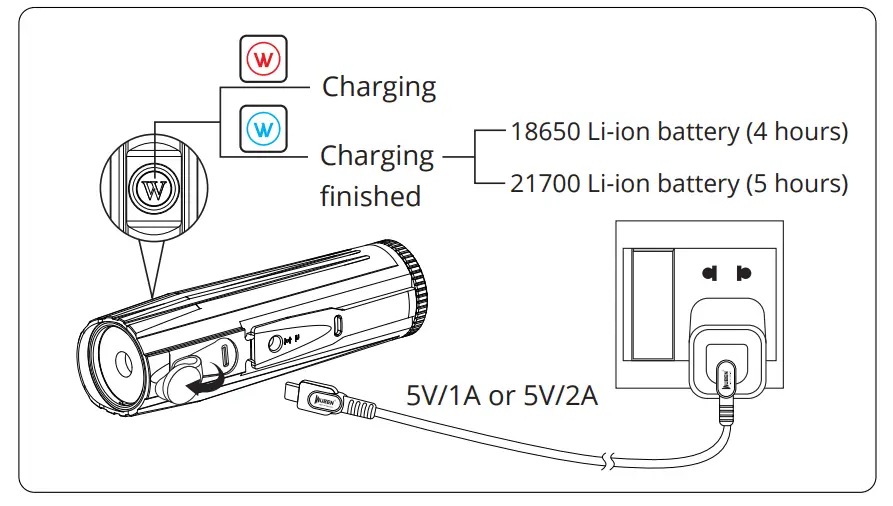

Charging
Battery Capacity (C) Status Indication
Parameters
| FL1 Standard | Turbo | High | Med | Low | Beacon | SOS | |
 | 1300t600Lumens | 1000t400 Lumens | 400 Lumens | 200 Lumens | 400 Lumens | 400 Lumens | |
 ABE2600C | 1 min + 2 Hours | 3 mins+3.5 Hours | 5 Hours | 7 Hours | / | / | |
| ABD4800 | 1 min + 5 Hours | 3 mins+ 7 Hours | 8 Hours | 13 Hours | / | / | |
 | 280 Meters |  | 1.5 Meters | ||||
 | 19650 Candela |  | IP68 | ||||
 | Bike light: 138 g/4.87 oz | ABE2600C: 48 g/1.69 oz | |||||
| ABD4800 : 73 g/2.57 oz | |||||||
| 121mm x 36mm | I 4.76in x 1.42in (L x D) | ||||||
All data from experiments of WUBEN lab according to ANSI/NEMA FL1 standard may vary because of different experiment equipment, experiment environment, or other factors. Experiments are based on WUBEN ABE2600C and ABD4800 Li-ion battery.
Maintenance
- The 0-Ring may be damaged for a long time use, please replace the 0-Ring in time to ensure the waterproofness of the product.
- Please use WUBEN battery or WUBEN recommended batteries.
- When the product indicates low power, please charge or replace the battery in time to avoid affecting the durability of the battery.
- Please use alcohol and rag to clean the conductive parts of the product in time.
- When not in use for a long time, please remove the battery to prevent the battery from leaking or exploding, store the product in a dry and ventilated place.
FAQs
| Problems | Causes | Solutions |
| Abnormal flash or failure to turn on | Check if the switch is turned on correctly | Turn on the switch |
| Check if it is assembled in place | Tighten the assembly parts | |
| Check if the battery is no power | Try the battery on other products | |
| Check if the battery is reversed | Remove the battery and reassemble it correctly | |
| Check if the conductive position is dirty | Clean the surface with alcohol | |
| Abnormal noise | Check if foreign matter falls in the tube | Pour out possible foreign matter |
| Part damage | Contact your seller |
If your problems still not solved yet, please contact WUBEN Headquarters for after-sales service.
Warranty Policy
1. Warranty Coverage
- 15 days replacement: Within 15 days from the date of purchase, if the product has quality problems, customers can request free replacement.
- 1 year warranty: Within 1 year from the date of purchase, if the product has quality problems, WUBEN will offer free repair.
- 5 years warranty: Within 5 years from the date of purchase, if the product (accessories excluded) has quality problems, WUBEN will offer free repair for WUBEN registered customers.
- Battery warranty: WUBEN offers a 1-year warranty for the rechargeable batteries but other included accessories are not covered by the warranty.
- Lifetime maintenance: From the date of purchase, if the product has problem after 5 years, WUBEN will offer paid repair for WUBEN registered customers. • If proof of purchase cannot be provided, it will be counted on the date of manufacture.
- If there is any dispute, the two parties will coordinate to solve.
2. Beyond Warranty
- Man-made damage.
- Damage caused by not following the instructions.
- Damage caused by improper use of the battery.
- Abnormal wear and tear.
- Damage caused by irresistible factors.
- Gifts.
The final interpretation right is reserved by WUBEN.
Warnings
- Please read user manual carefully before using the light.
- Product will generate heat while working, please becautious with that to avoid any possible harm.
- Please don’t shine into eyes directly to avoid harm to eyes.
- Please keep the light away from children.
- Please use WUBEN or WUBEN recommended batteries.
- Please don’t disassemble the product or it will not be covered by WUBEN warranty policy.
- Please don’t throw the product into fire.
- This is not a diving product, please don’t use it underwater for a long time.
SHENZHEN SHENGQI LIGHTING TECHNOLOGY CO., LTD.
E-mail: [email protected]
Web: www.wubenlight.com
Add: 202#, Building A, Jihe E-Business Park, No.
33 Yangmei Road, Bantian Street,
Longgang District,
Shenzhen, China
