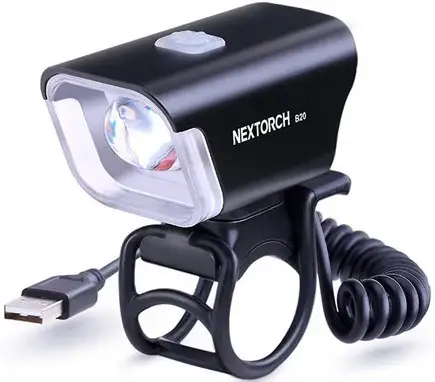

NEXTORCH B20 Lumen Bike Rechargeable Bike Light User Guide
SPECIFICATIONS
| ANSI / PLATO-FL1 | Low | Medium | High | Turbo | Flash |
 Light Output | 100 lm | 200 lm | 380 lm | 800 lm | 380 lm |
 Run Time | 40 h | 20 h | 12 h | 9 h | – |
 Beam Distance | 30 m | 45 m | 62 m | 100 m | – |
 Impact Resistance | 1 m | ||||
 Waterproof | IPX4 | ||||
| Weight and Dimensions | Weight: 117 g / 4.12 oz Size: 70 mm (Length) × 35 mm (Width) × 52 mm (Height) | ||||
| Body Material | Light Source: CREE® XM-L2 U3 LED | ||||
| Aerospace grade aluminum 6061-T6 with anodizing | |||||
Above tested specifications are strictly based on the standard of ANSI / PLATO-FL1. We tested B20 with 10000mAh Mi Power Bank in 22℃ ± 3℃. The specifications might be different when using a different power bank or testing in a different environment.
FEATURES
- Utilizes CREE® XM-L2 U3 LED, max output up to 800 lumens
- Rectangular spot lens technology, delivers a powerful wide beam and whole-road lighting for greater visibility.
- Aniti-glare design, illuminating the roat without disturbing pedestrians
- Flexstrap mounting bracket, quick attach to the bicycle handlebar
- Instant turbo and ON / OFF remote pressure switch brings convenient operation which no need to move your hand away the handlebar
QUICK START GUIDE
- Battery Installation
Powered by Power Bank
- Constant ON / OFF
Press and hold 1s
- Mode Selection
Press
- Flash
Press and hold 3s
REMOTE SWITCH INSTRUCTION
- Remote switch installation
Lock
- Instant turbo
Press and hold
- Constant ON / OFF
Press and hold 1s

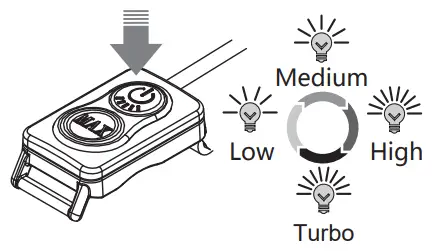

- Mode Selection
Press
MOUNTING INSTRUCTIONS
MAINTENANCE
- Being infected with seawater or any corrosive chemicals, please rinse immediately with clean water.
- Please use high quality batteries; Remove batteries when not working for a long time, and then store in a cool dry place.
- If the waterproof O-ring is damaged, replace it immediately.
WARRANTY
- NEXTORCH offers 5-year warranty.
- NEXTORCH warrants our products to be free from any defects in workmanship and material, we will replace or return faulty item. NEXTORCH reserves the right to replace similar products if original one is discontinued.
- The warranty excludes other accessories, but rechargeable batteries are warranted for 1 year from date of purchase.
- Any accessories or products are not covered in the warranty, NEXTORCH can repair for users with reasonable fee.
- Please scan the below QR code and access to NEXTORCH website (www.nextorch.com) to register your purchasing.
Email us [email protected]
Call us: 0086-662-6602777
Or contact local dealer
CONTACT WITH NEXTORCH DESIGNER
In order to improve NEXTORCH , we appreciate you could offer our designers your after-use feedback and creative suggestions by scanning the following QR code. Thank you!
