Wuben X2 Lumen Mini Flashlight User Manual

WUBEN X2 Lumen Mini Flashlight

Package List

Before using this product, please check whether the contents of the package are complete.

1.  X2 × 1

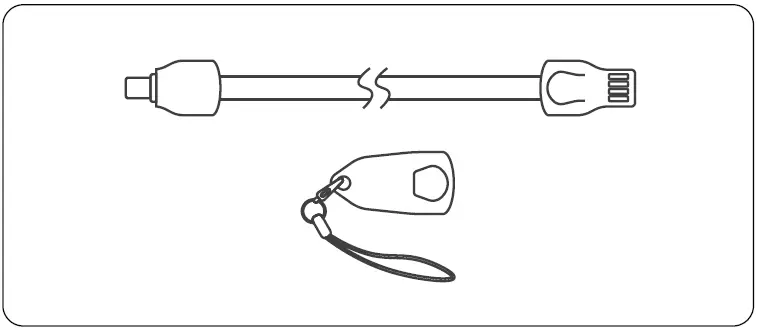

2.  Type-C charging cable Lanyard × 1

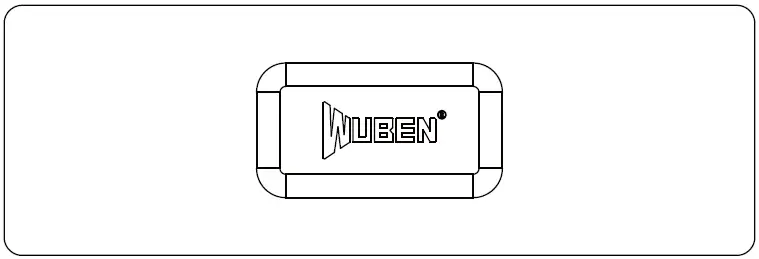

3. Diffuser × 1
4.  User manual, Warranty card × 1

Installation

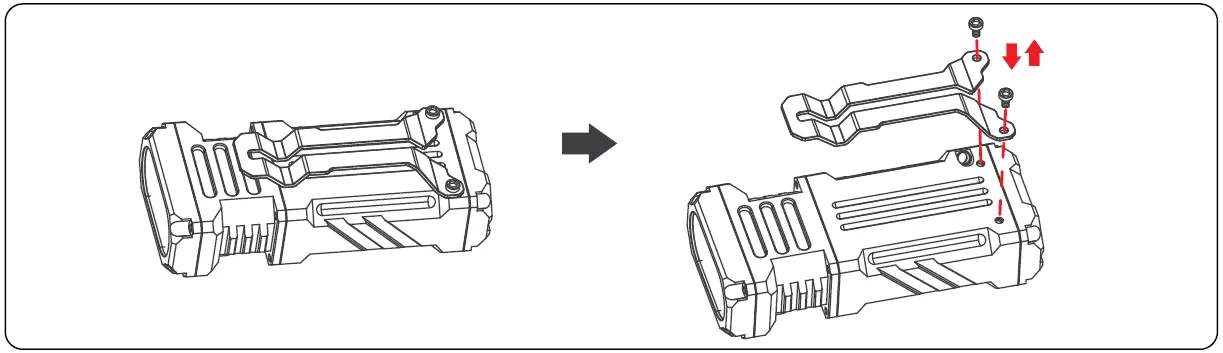

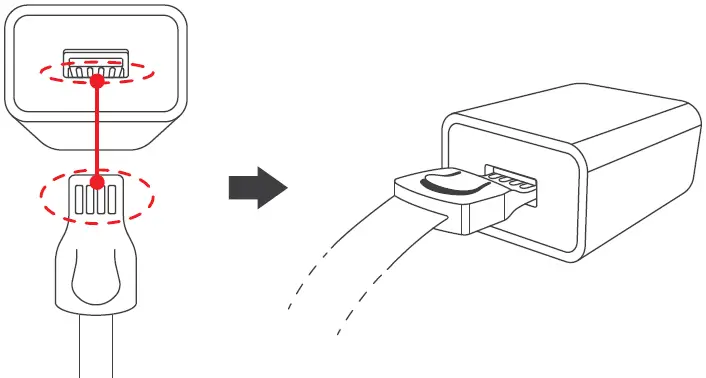

Installation and removal of flashlight mounting brackets.Accessories: Type-C charging cable lanyard charging precautionsA metal terminal is inserted into the  charging cable facing  the metal surface of  the parent base

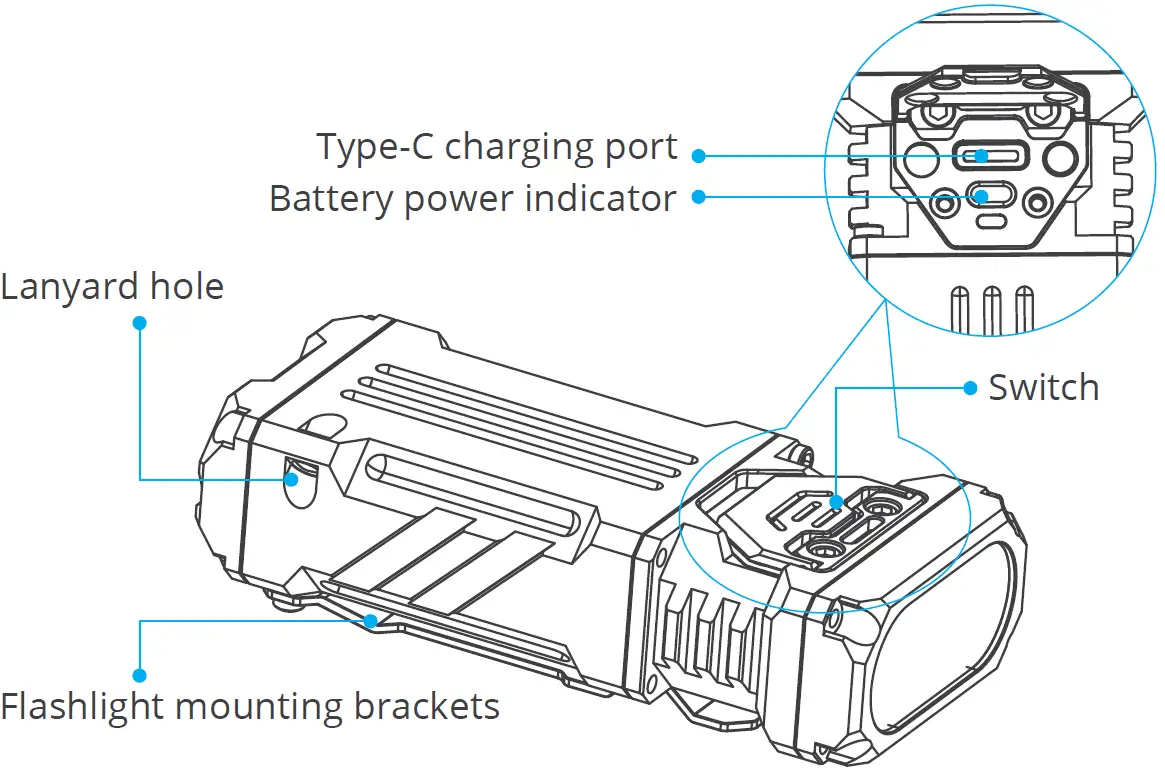

About Product

Operation

• The product is set to be locked by default when it leaves the factory. After receiving the product, please click four times to complete the first unlock!

Charging

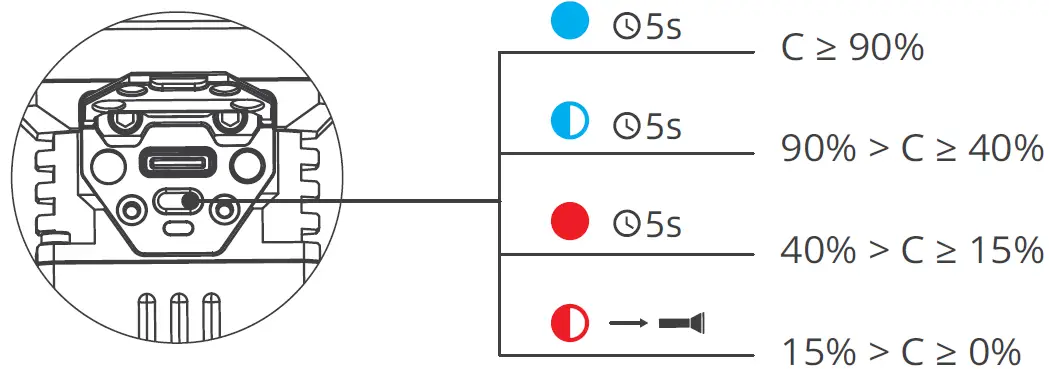

Battery Capacity (C) Status Indication

Parameters

FL1 Standard		Turbo	High	Med	Low	Strobe	SOS
	OSRAM P9	2500 800 Lumens	400 Lumens	100 Lumens	5 Lumens	1000 Lumens	200 Lumens
	SAMSUNS LH351D	1800 800 Lumens
		1min +1Hour	2.5 Hours	10 Hours	80 Hours	/	/
		146 Meters (OSRAM P9) | 128 Meters (SAMSUNS LH351D)
		5300 Candelas (OSRAM P9) | 4100 Candelas (SAMSUNS LH351D)
		1.0 Meter
		IP68 (2m underwater for 1h)
		115g|4.06oz (with battery)
		85mm x 39mm x 20mm|3.35 in x 1.54 in x 0.79 in (L × W × H)

• This data is obtained by Wuben laboratory according to ANSI/NEMA FL1 standard, Using the built-in 2000mAh battery pack test results, the data may be different due to different test environments and batteries.

Warnings

• Please read user manual carefully before using the product.
• Product will generate heat while working, please be cautious with that to avoid any possible harm.
• Please don’t shine into eyes directly to avoid harm to eyes.
• Please keep the product away from children.
• Please don’t disassemble the product or it will not be covered by WUBEN warranty policy.
• Please don’t throw the product into fire.
• This is not a diving product, please don’t use it underwater for a long time.

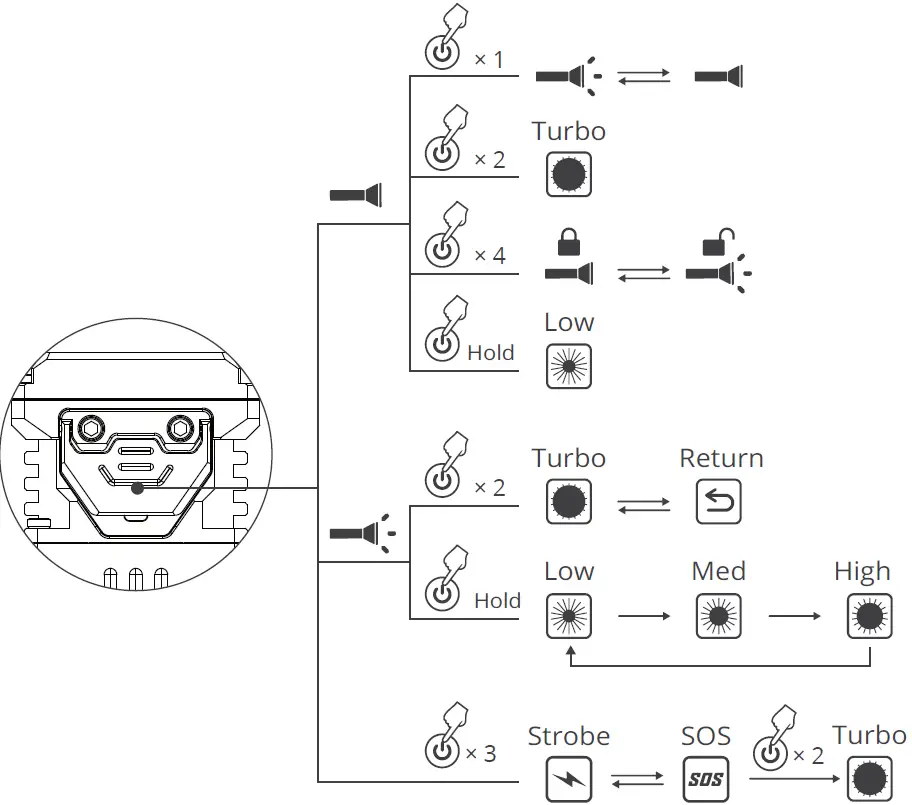

Operation

Reminder: The product is set to be locked by default when it leaves the factory. After receiving the product, please click four times to complete the first unlock!

1. ON/OFF: Click the switch to turn on the flashlight, click again to turn off the flashlight. The flashlight has a memory function of lighting brightness, and will not remember the flashing mode and extremely bright mode.
2. Default Output Selections: In the power-on state, long press the switch to switch the brightness of the flashlight cyclically: low – medium – high – low cyclically. Release the switch in any gear to lock the brightness.
3. Quick Turbo: In any state, double-click the switch to enter the ultra-bright mode, After entering the lighting gear, double-click to return, and double-click in other modes is invalid.
4. Quick Low: In shutdown state, long press the switch to enter the Low mode.
5. Flash Modes: In any state, triple-click the switch to enter the strobe mode, triple-click again to switch in flashing modes: SOS – strobe.
6. Lock/Unlock: In the power-off state, press the switch four times, the front light flashes three times, indicating that the lock is locked, press the switch, the indicator light will flash three times, and press the switch four times again, the energy-saving gear will light up, indicating that the lock is released.

Programming mode
Before entering the programming mode, firstly determine which of the brightness gears you want to customize, click to turn on the product, long press to adjust the product to the gear you want to customize, quickly double-click and press the switch for the second click without letting go.The brightness can be changed from small to large in the lumen range of the corresponding gear (when reaching the pole of the interval, the light flashes once and continues to cycle from large to small),when the set brightness is reached, release the switch to remember the current brightness. So far, the brightness of this gear is successfully set as the current brightness.

Restore Factory Settings

In the locked state, click the switch — with an interval of 0.5 seconds — double click the switch — with an interval of 0.5 seconds — triple click the switch, and the flashlight factory setting minimum light is on, indicating that the switch lock is released and the factory default brightness is restored.

Maintenance

• Please use WUBEN battery or WUBEN recommended batteries.
• When the product indicates low power, please charge or replace the battery in time to avoid affecting the durability of the battery.
• Please store the product in a dry and ventilated place.

FAQs

• If your problems are still not solved yet, please contact WUBEN Headquarters for after-sales service.

Warranty Policy

1.  Warranty Coverage
   • 15 days replacement: Within 15 days from the date of purchase, if the product has quality problems, customers can request free replacement.
   • 1 year warranty: Within 1 year from the date of purchase, if the product (accessories excluded) has quality problems, WUBEN will offer free repair for WUBEN registered customers.
   • Battery warranty: WUBEN offers a 1-year warranty for the rechargeable batteries but
   • other included accessories are not covered by the warranty.
     Lifetime maintenance: From the date of purchase, if the product has problem after 1 year, WUBEN will offer paid repair for WUBEN registered customers.
   • If proof of purchase cannot be provided, it will be counted on the date of manufacture.
   • If there is any dispute, the two parties will coordinate to solve.
2.  Beyond Warranty

• Man-made damage.
• Damage caused by not following the instructions.
• Damage caused by improper use of the battery.
• Abnormal wear and tear.
• Damage caused by irresistible factors.
• Gifts.

The final interpretation right is reserved by WUBEN.

• The product complies EMC 2014/30/EU and RoHS 2011/65/EU as amended 2015/863/EU directives. The product can be disposed of in electric waste only.

SHENZHEN SHENGQI LIGHTING TECHNOLOGY CO., LTD.
Add: Floor 5, Building A, Zhenhan Industrial Park, No. 1 Zhenhan Road, Jihua Street, Longgang District, Shenzhen, Guangdong, China
E-mail: [email protected]
Web: www.wubenlight.com

WUBEN websiteFacebook

Product Warranty

• Name
• Telephone
• Address
• Model number
• Product series number
• Name of store
• Date of purchase

Get your e-warranty card and e-user manual by visiting the following URL or scanning the QR code.
https://www.wubenlight.com/pages/product-registration
