NOMAD®50
SOLAR PANEL
USER GUIDE

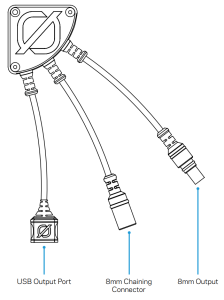

GET TO KNOW YOUR GEAR
HOW TO CONNECT
Connect a Nomad 50 Solar Panel to a Goal Zero Yeti Portable Power Station or Sherpa Power Bank by inserting the 8mm blue-ringed connector into the 8mm input on the units. You can also charge USB devices by plugging into the built-in USB port.
HOW IT WORKS
HOW TO CHAIN
To chain two or three Nomad 50 Solar Panels together, plug the blue-ringed connector from one panel into the input connector or input port of the next panel, using the charging cable from the final panel to connect to your Goal Zero Yeti or Sherpa 100AC.
If you’re chaining more than three Nomad 50 Solar Panels together, or any configuration over 150W, you will need to purchase a combiner cable from Goal Zero, call our solutions center at 888-794-6250 for more information.
NOTE: Do not plug more than two chained Nomad 50 Solar Panels into anything smaller than the Goal Zero Yeti 1000 as this will exceed their input ratings.
OPTIONAL CABLES
Goal Zero’s 8mm Extension Cables provide a greater distance between your solar panels and your power stations. Purchase these from GoalZero.com.
TECHNICAL SPECIFICATIONS
Nomad 50 Solar Panel
Charge Times | |
| Goal Zero Sherpa 100 AC | 4-8 hrs |
| Goal Zero Yeti 200X | 5-10 hrs |
| Goal Zero Yeti 500X | 12-24 hrs |
Solar Panel | |
| Rated Power | 50W |
| Open Circuit Voltage Voc | 18-22V |
| Cell Type | Monocrystalline |
Ports | |
| Solar Port (blue, 8mm, male) | 14-22V, up to 3.3A (50W max) |
| USB port | 5V, up to 2.4A (12W max) |
| General | |
| Weight | 6.85 lbs (3.1 kg) |
| Dimensions (unfolded) | 17 x 53 x 1.5 in (43.2 x 134.6 x 3.8 cm) |
| Dimensions (folded) | 17 x 11.25 x 2.5 in (43.2 x 28.6 x 6.4 cm) |
| Certs |  |
| Warranty | 12 months |
Be sure to activate your warranty at https://www.goalzero.com/product-registration/
GOAL ZERO HEADQUARTERS
675 West 14600 South Bluffdale,
UT 84065 1-888-794-6250
Designed in the U S A
Made in China
Nomad is a trademark of Goal Zero.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radically technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
