BOULDER™100BC
Solar Panel
User Guide

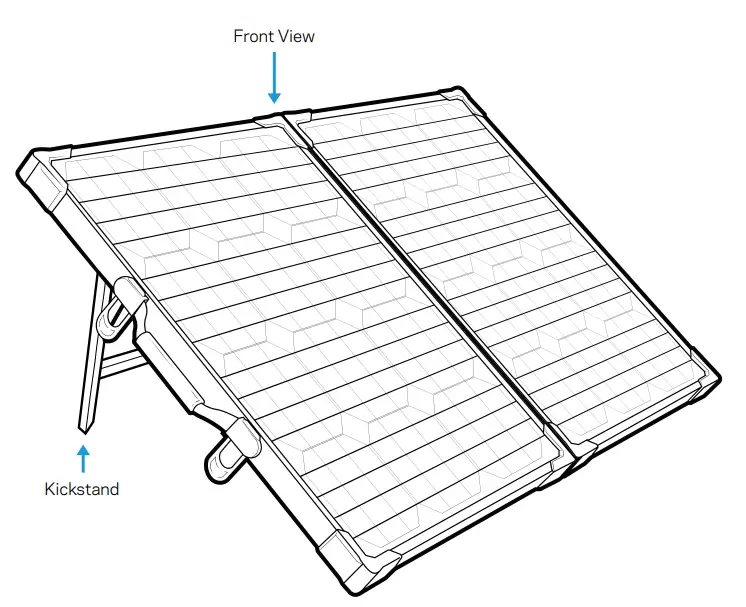

GET TO KNOW YOUR GEAR

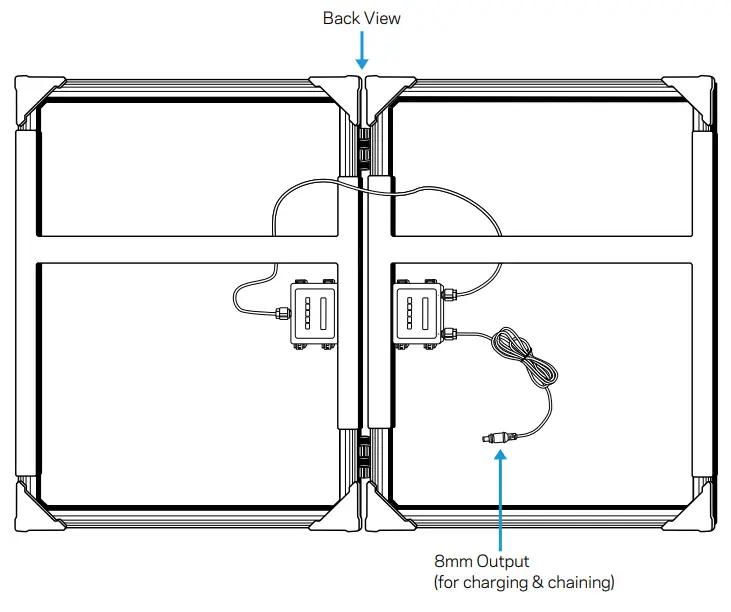

HOW IT WORKS
Plug the 8mm blue-ringed cable into the INPUT port on the Goal Zero Yeti or Sherpa and angle the Boulder 100 Briefcase toward the sun with the attached kickstand. You’ll get the best solar charging experience if you continue to reposition the solar panel throughout the day.
HOW TO CHAIN
To chain multiple Boulder 100 Briefcases together, and for Boulder configurations over 150W, you’ll need to purchase a combiner cable from Goal Zero. Give our customer solutions center a call for help picking the right cable for your setup.
Boulder 100 Briefcase Solar Panel
| Charges the following | Approx. Charge time |
| GOAL ZERO Sherpa 50 | 3 hrs |
| GOAL ZERO Sherpa 100 | 3-4 hrs |
| GOAL ZERO Yeti 150 | 3-6 hrs |
| GOAL ZERO Yeti 400 | 8-16 hrs |
| GOAL ZERO Yeti 1400 | 29-57 hrs |
| Solar Panel | |
| Rated Power | 100W |
| Open Circuit Voltage | 18-22V |
| Cell Type | Monocrystalline |
| Ports | |
| Solar port (blue, 8mm male/female) General | 14-22V, up to 7A (100W max) |
| General | |
| Weight | 25.9 lbs (11.7 kg) |
| Dimensions | 21.75 x 26.75 x 3.5 in (55.2 x 70.0 x 8.9 cm) |
| Certs |  |
| Warranty | 12 months |
FREQUENTLY ASKED QUESTIONS
Q: Are the Boulder Solar Panels waterproof?
A: Yes. The Boulders are designed to withstand the elements, so they’re great for permanent and semi-permanent installations. What you’re recharging from the Boulders is what needs your help to stay dry, so keep those power packs and power stations covered up and protected from the dust, rain, and snow.
Q: Can I chain a Boulder 100 Briefcase with other Boulders?
A: Depends on the panels. Yes, you can chain the Boulder 100 Briefcase with other Boulders that have an 8mm input or input connector, like the Boulder 50 or the older Boulder 30, by inserting the 8mm blue-ringed connector of the Boulder 100 Briefcase into the 8mm input of the other Boulder Solar Panel. When chaining Boulder Solar Panels in configurations over 150W, you’ll need to purchase a combiner cable from Goal Zero. Give our customer solutions center a call to determine the right cable for your setup.
Q: What can I charge directly from the Boulder Solar Panels?
A: All of our Boulder Solar Panels are designed to charge Sherpa Power Packs and Goal Zero Yeti Portable Power Stations. If you’re looking to recharge things like headlamps,
phones, and other USB devices, check out our foldable Nomad Solar Panels.
Q: How long will it take to charge my Goal Zero Yeti from a Boulder Solar Panel?
A: That depends on a few factors – how big the Yeti it is, how big the Boulder it is, how cloudy it is, how hot it is, just to name a few. We’ve created a handy calculator that takes
all of these factors into consideration. Also, great news, all the Yetis allow for something called “pass-through power”, this means you can be trickle charging your Yeti and using it to power your gear, all at the same time.
Q: Can I mount the Boulder Solar Panels to my roof?
A: The Boulder 100 Briefcase is not designed to be mounted permanently to a fixture; this briefcase fold-and-go style allows you to be more portable. For mountable panels,
take a look at the Boulder 50 and 100 Solar Panels.
GOAL ZERO HEADQUARTERS
675 West 14600 South
Bluffdale, UT 84065
1-888-794-6250
Designed in the U.S.A.
Made in China
Boulder is a trademark of Goal Zero.
GOALZERO.COM
CA041917
