Goal Zero Nomad 5 Solar Panel User Guide

Goal Zero Nomad 5 Solar Panel User Guide

GOAL ZERO Nomad 5 Solar Panel-LOGO

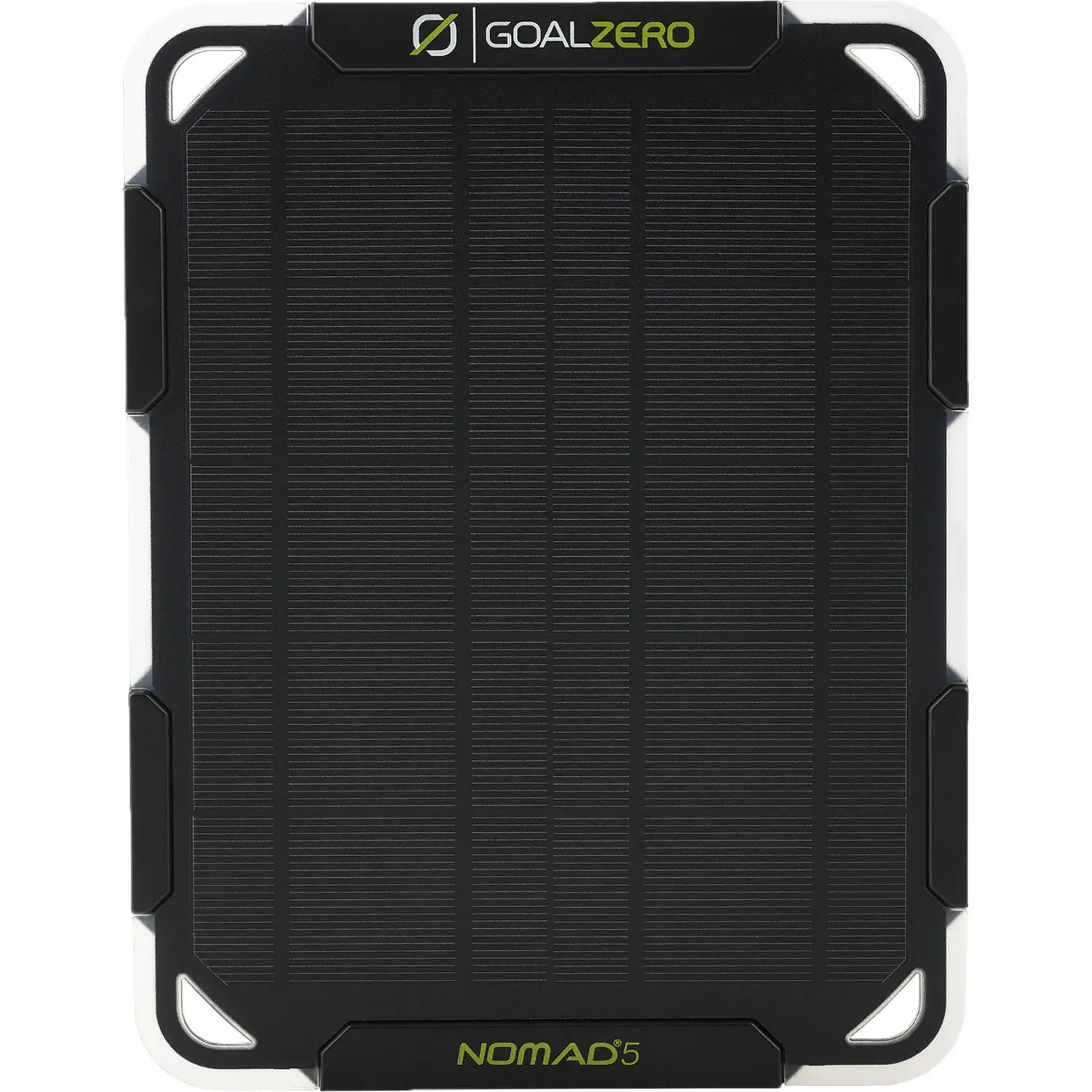

GOAL ZERO Nomad 5 Solar PanelGOAL ZERO Nomad 5 Solar Panel PEOD

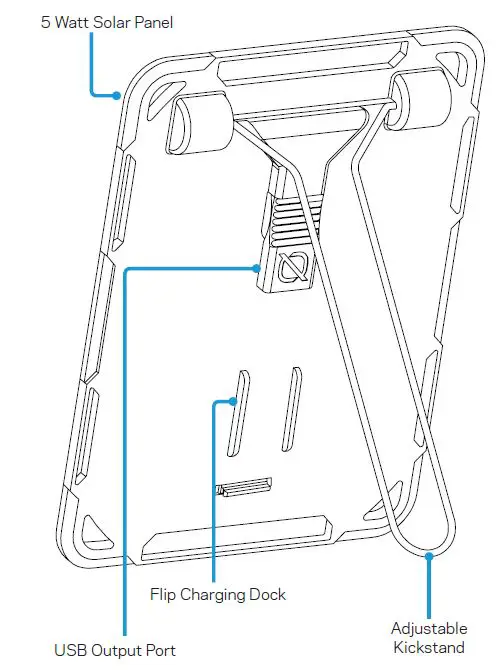

GET TO KNOW YOUR GEARGOAL ZERO Nomad 5 Solar Panel-FIG1

HOW IT WORKS

Charging phones, batteries, and other USB-powered devices from the Nomad 5 is as easy as plugging in.

  1. Use the built-in kickstand to position the panel toward the sun.
  2. Plug your phone or device into the USB port located on the backside of the panel and charge up.

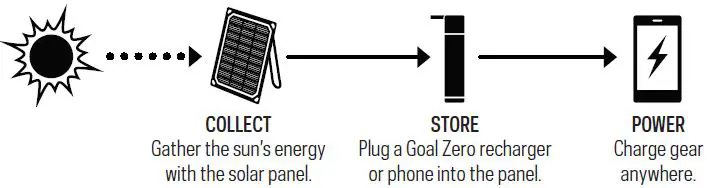

GOAL ZERO Nomad 5 Solar Panel-fig7

NOTE

A Goal Zero Flip power bank (sold separately) will fit securely into the Flip charging dock to collect and store power while on the move.

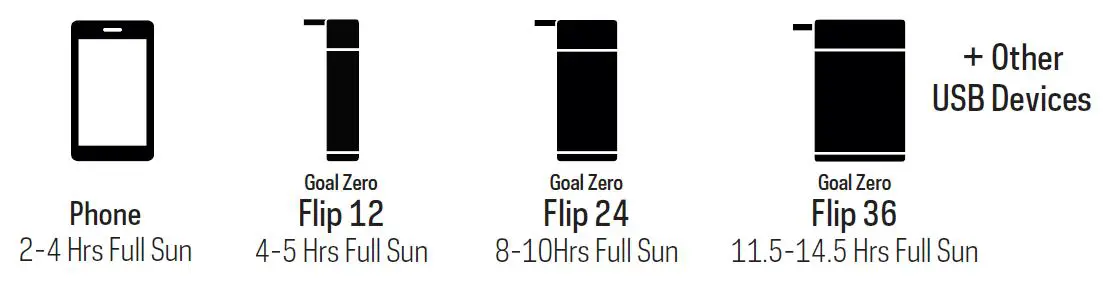

WHAT IT POWERSGOAL ZERO Nomad 5 Solar Panel-FIG3

AUTO-RESTART

In low light conditions (i.e. lack of sunlight, shadow, dusk, etc.), some devices, including smartphones, will automatically disconnect from a solar panel due to a low current input. The Nomad 5 features auto-restart technology that knows the difference between a device that has reached a fully charged state and one that disconnects due to environmental causes. When the latter is detected, the Nomad 5 will automatically reconnect to start charging the device again. No extra work on your part is needed.

PRO-TIP

When operating in low light conditions, we recommend pairing your solar panel with a portable power bank for the best charging experience possible. A Goal Zero Flip power bank (sold separately) will fit securely into the Nomad 5’s integrated Flip charging dock and allow you to collect and store a continuous stream of power to charge your device.

FREQUENTLY ASKED QUESTIONS

  • Q: Is the Nomad 5 waterproof?
    A: The best answer: it’s weatherproof. We’ve gone to great lengths to ruggedize the Nomad 5; including beefing up the manufacturing process with advanced lamination techniques so it’ll slough off rain and snow.
  • Q: Does the Nomad 5 have a built-in battery?
    A: No. In order to make the Nomad 5 as lightweight as possible, we chose to sell batteries as an optional accessory. You can either plug your phone or device into the Nomad 5 to charge up directly from the sun, or pair the panel with one of our power banks to collect and store power for later. The Nomad 5 works seamlessly with our line of ultra-portable Flip power banks.

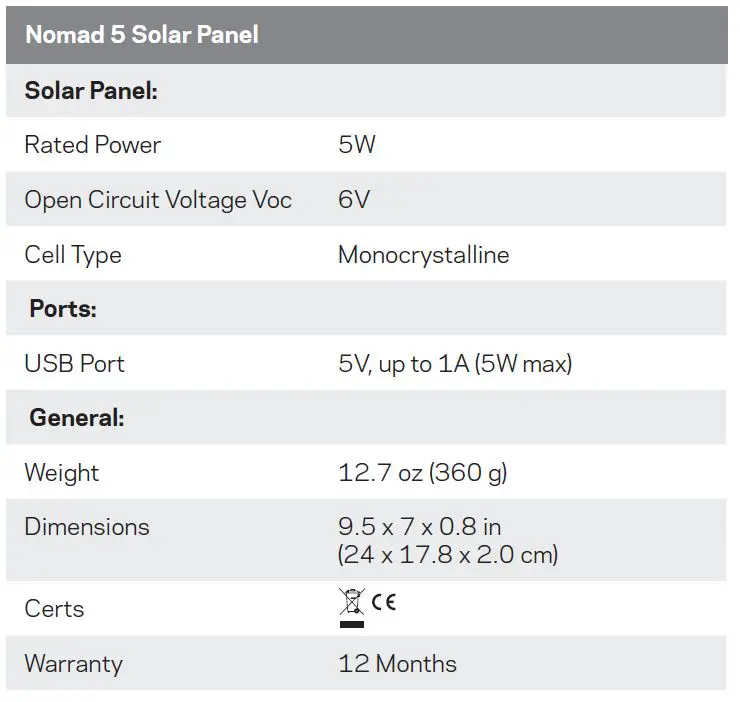

TECHNICAL SPECIFICATIONSGOAL ZERO Nomad 5 Solar Panel-FIG4

Be sure to activate your warranty at goalzero.com/warranty
