Flight control
Specification
| Specifications | parameter | Remarks |
| Voltage and Current Detection | Integrate | Only Voltage Detection |
| OSD | Integrate | |
| Flight control power supply | Integrate | BEC:5V/2A |
| Barometer | Integrate | |
| Black Box | Black Box | |
| working voltage | 2S-4S LIPO | |
| Blheli Suite Parameter adjustment | Support | |

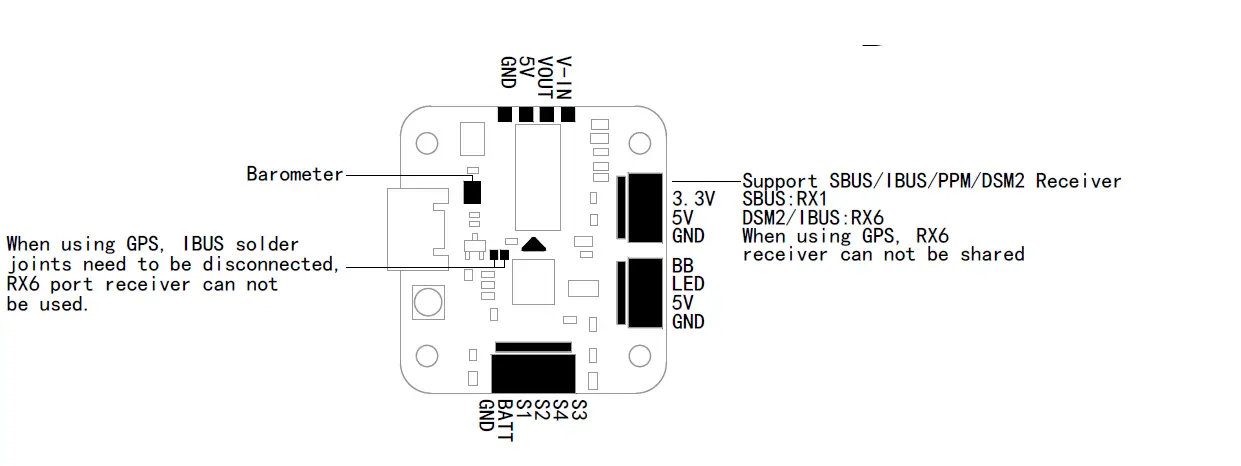

| Support Receiver | SBUS/IBUS/PPM/DSM2 | SBUS:Choice RX1 IBUS/DSM2:Choice RX6 (Need short IBUS solder joints) |
| Firmware version | BetaFlight 3.20 SD | |
| OSD Firmware version | BetaFlight OSD | |
| Camera and Video Voltage | 5V |
