Bluetooth Audio
Link 2in1 TxRx
Quick guide
450-12

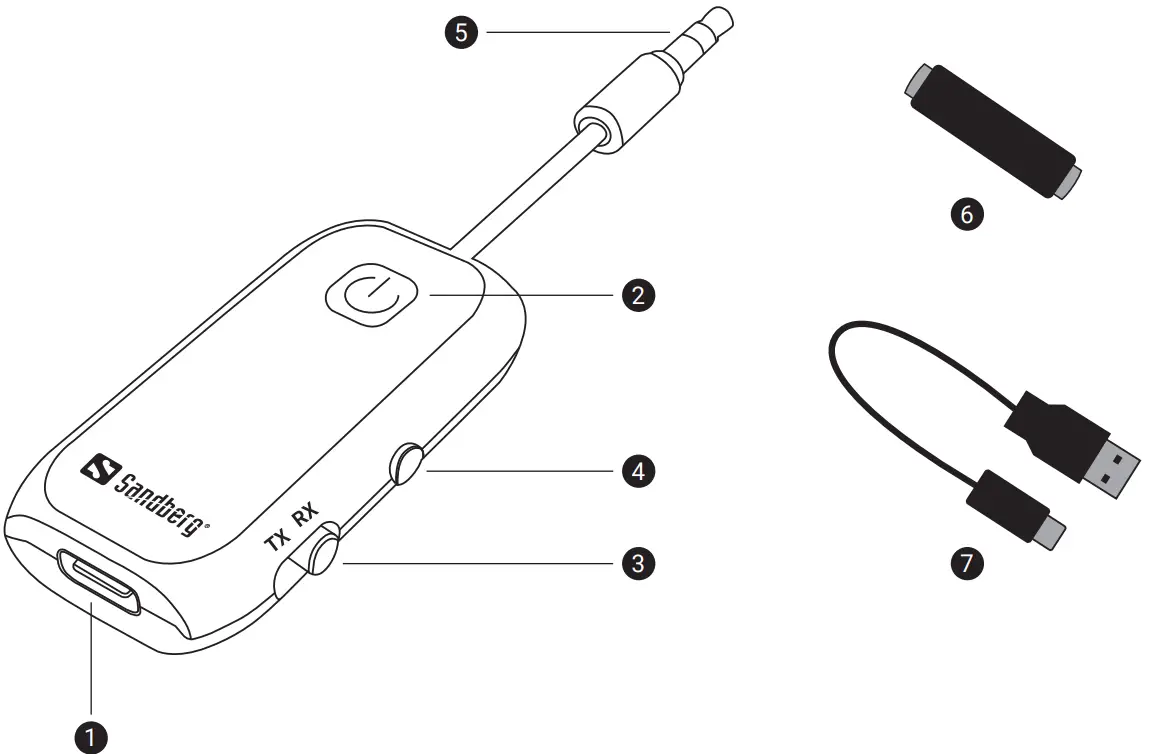

Product overview
- USB-C charging-port
- On/Off power button
- Tx/Rx button
- Reset button
- Minijack input/output
- Minijack Female to Minijack Female adapter
- Charging cable USB-C to USB-A
Power button LED overview
| Light | Color | Meaning |
| Blinking | White/orange | Pairing mode |
| Off after pairing | None | Connected |
| Blinking x3 /30 sec | Red | Battery low |
| Constant | Red | Charging |
| Off when charging | None | Fully charged |
Power button functions
| Press | Function |
| 3 sec | ON when OFF |
Reset button functions
| Press | Function |
| 5 sec | Reset pairing |
| Short | Disconnect |

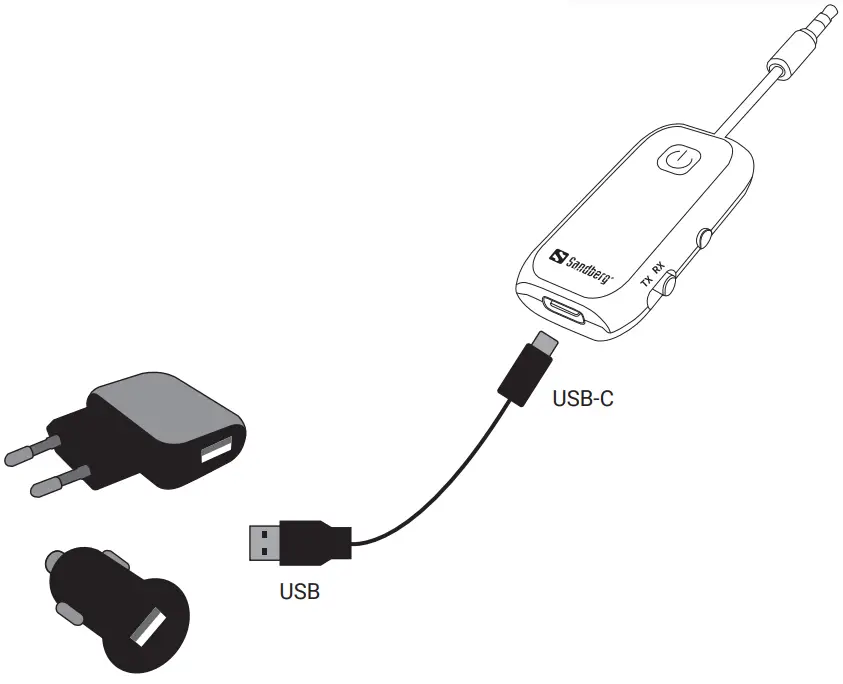

Charging
- Use the enclosed USB-A to USB-C cable
- Charge the built-in battery or keep it on the USB power
- Auto power off after 5 minutes with no activity

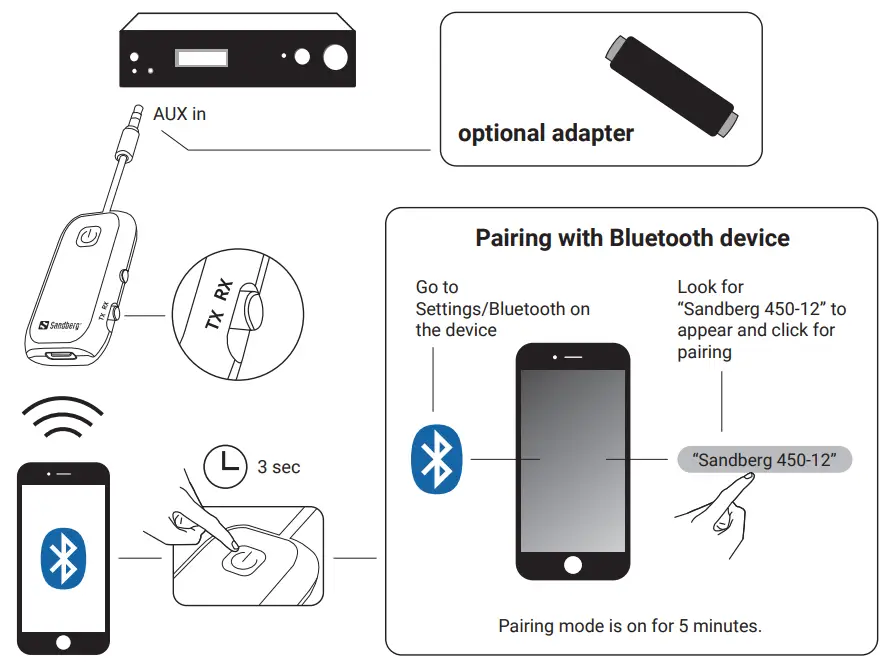

Set up as a Bluetooth receiver (Rx-mode)

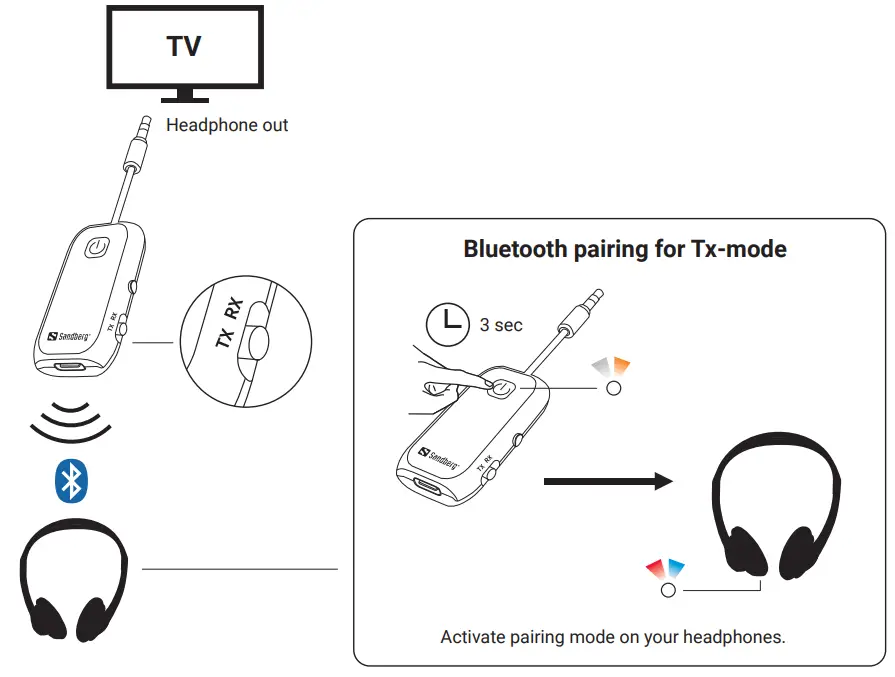

Set up as a Bluetooth transmitter (Tx-mode)
Declaration of Conformity
Manufacturer: Sandberg A/S
Address: Bregneroedvej 133D, 3460 Birkeroed, Denmark
Product description: Bluetooth Audio sender+receiver
Product name/Type no: Sandberg Bluetooth Audio Link 2inl TxRx 450-12
We declare under our sole responsibility that the products, to which this declaration relates, are in conformity with the Council Directives on the approximation of the laws of the EEC Member States relating to the following:
CE letter of conformity
(RED) 2014/53/EU
(RoHS 2.0) 2011/65/EU
Following standards were applied:
RED-EMC: EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
RED: RED-EMF: EN 62479;2021
RED-LVD: EN 62368-1.2014+A11;2017
RED-RF: EN 300 328 V2.2.2
RoHS: EN 62321 Ed1.0:2013 Date: 22″ October 2021
Location: Birkeroed, Denmark Name: Anders Petersen
Support
http://helpdesk.sandberg.world
Warranty
There is a five-year warranty on your Sandberg product.
Please read the warranty terms and register your new
Sandberg product at www.sandberg.world/warranty
For information on handling electronic waste, see www.Sandberg.world/weee
