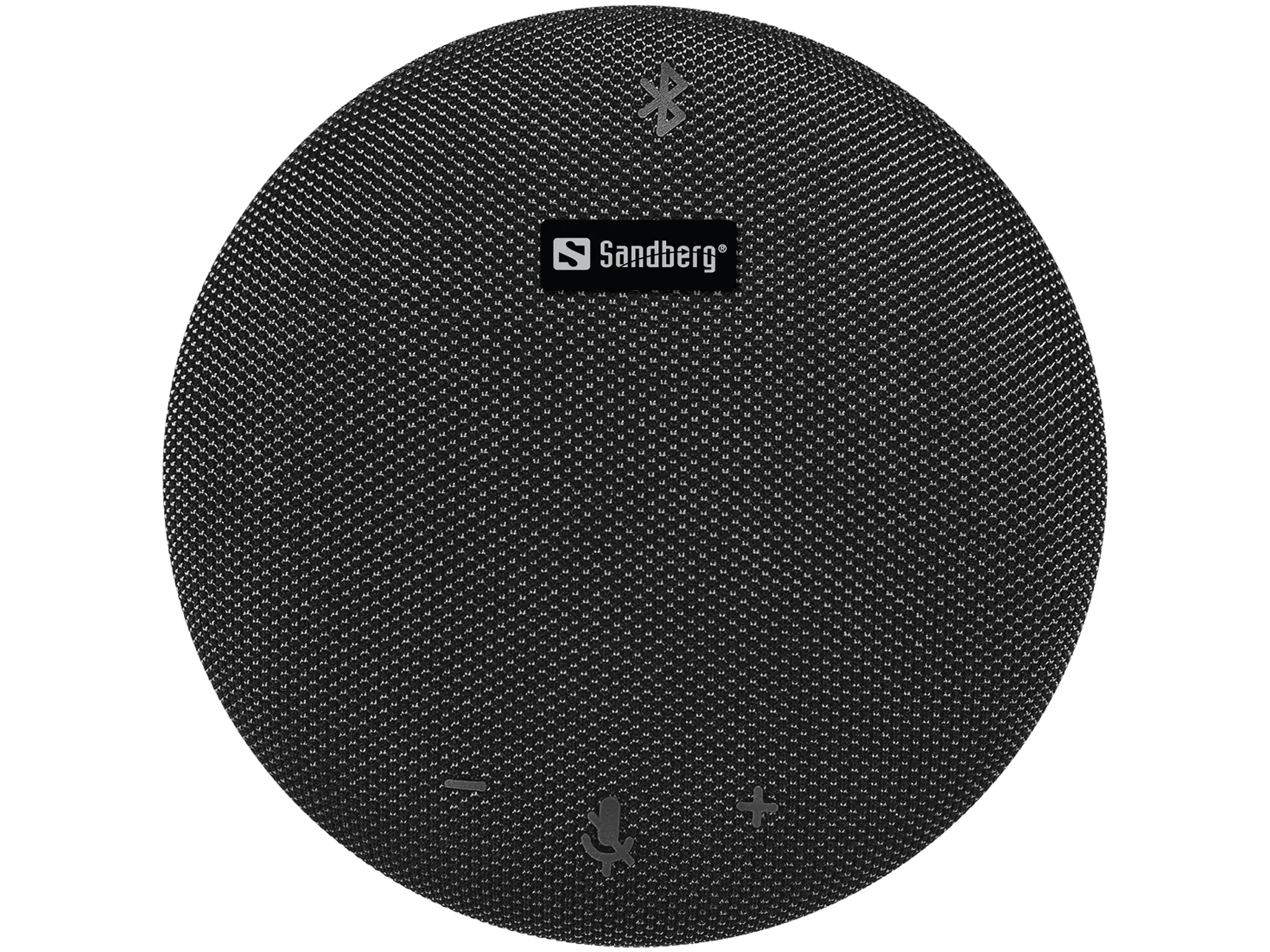

Sandberg 126-29 Bluetooth Speakerphone Pro Portable Audio Solution

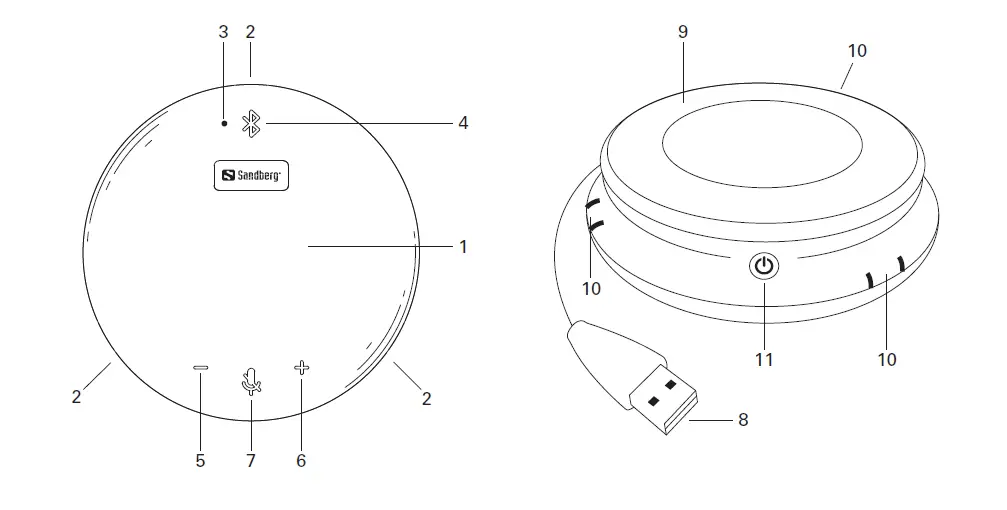

Product overview
- Speaker body
- Microphone
- Bluetooth indicator
- Bluetooth button
- Volume down button
- Volume up button
- Microphone mute
- USB cable for recharge and wired PC connection
- Anti-skid foot
- 3 sets of status indicators
- Power on/off button

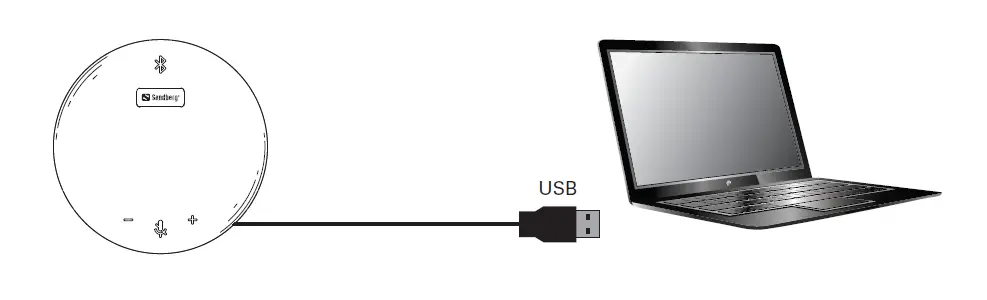

Connect to PC by cable

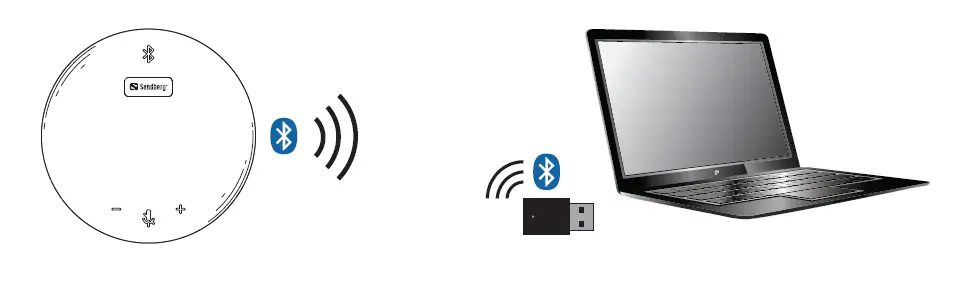

Connection to PC wirelessly by the included USB-dongle

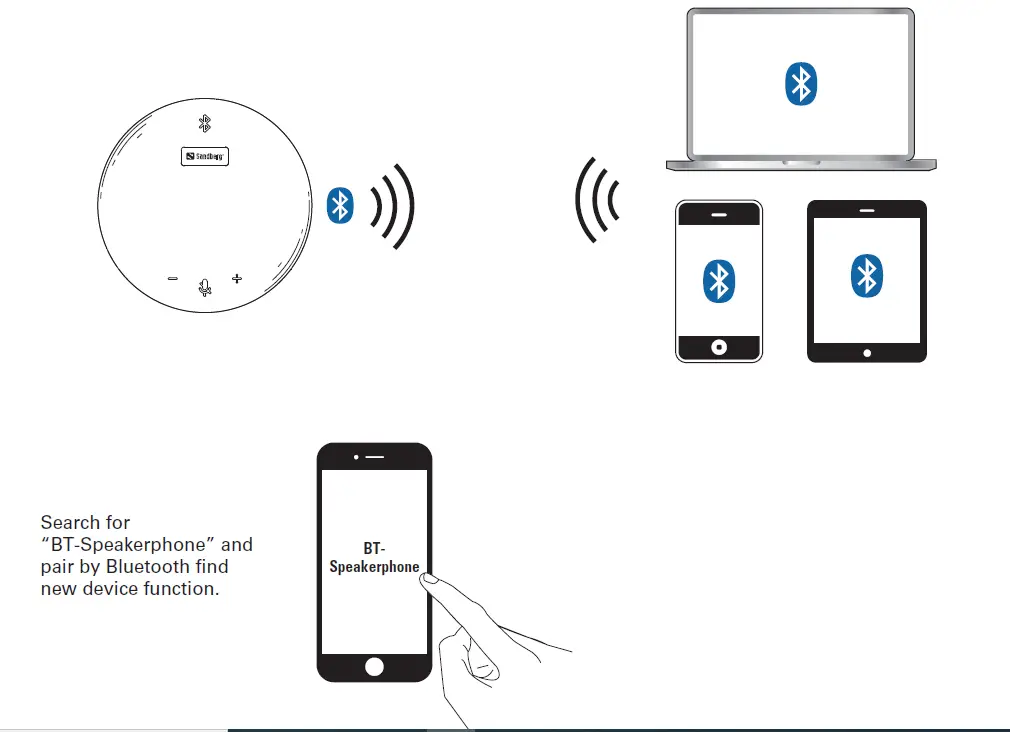

Connect wirelessly to any device with Bluetooth

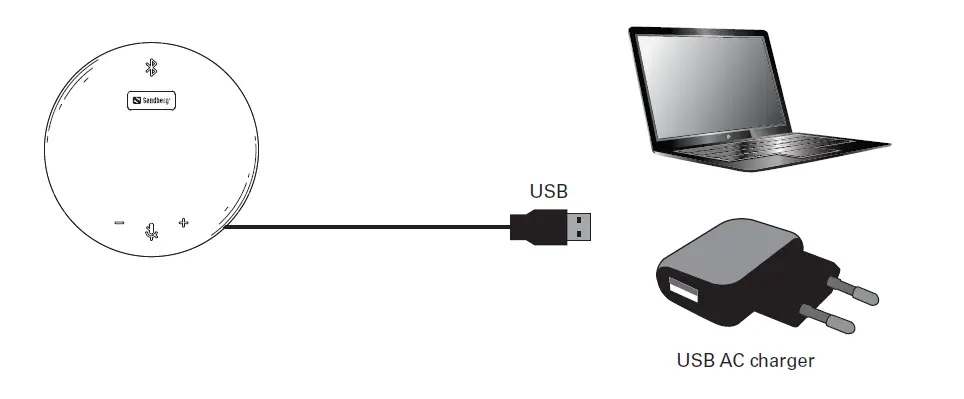

Recharging the built in battery from any USB power source
LED status indicator (10) overview
| LED color | Pattern | Meaning |
| RED | Short | Power up, initializing |
| RED | Constant | Mic muted |
| GREEN | Flash | Speaker muted |
| GREEN | Constant | Mic active |
| ORANGE | Flash | Battery power low |
| OFF | OFF | Speaker OFF |
| RED | Constant dimmed | Charging the battery (in OFF mode) |
LED Bluetooth indicator (3) overview
| LED color | Pattern | Meaning |
| BLUE | Flash fast | Waiting for pairing |
| BLUE | Flash slow | Connected |
| RED | Constant | Charging the battery (in OFF mode) |
| OFF | OFF | Bluetooth mode deactivated |
| Button | Press | Function | Function when in a call |
| Bluetooth (4) | Short | Activate Bluetooth | |
| Bluetooth (4) | Long | Clear pairing activate new pairing | |
| Volume down (5) | Short | Volume down (stepwise) | Volume down (stepwise) |
| Volume up (6) | Short | Volume up (stepwise) | Volume up (stepwise) |
| Mic (7) | Short | Mute/unmute | Mute/unmute |
| Power (11) | Short | Play/Pause music (if active) | Pick up/hang up call (mobile) |
| Power (11) | Double | Dialing last number (mobile) | |
| Power (11) | Long | OFF when ON | OFF when ON |

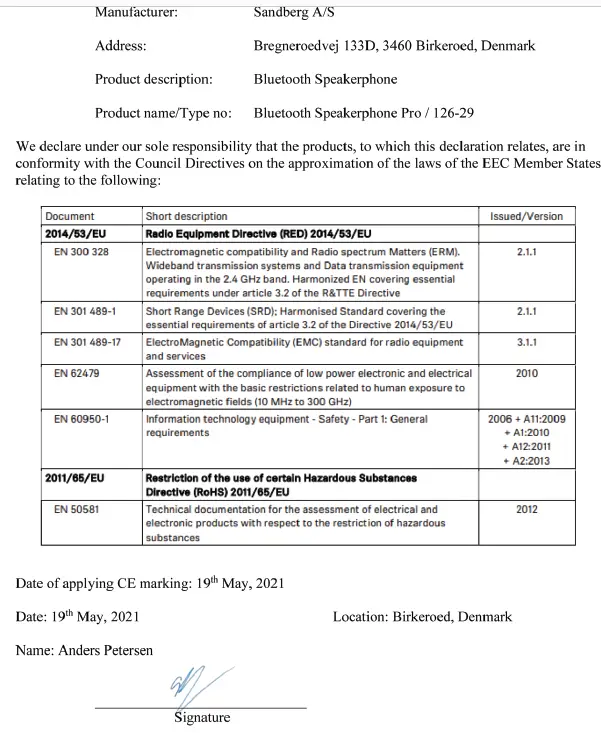

CE letter of conformity
