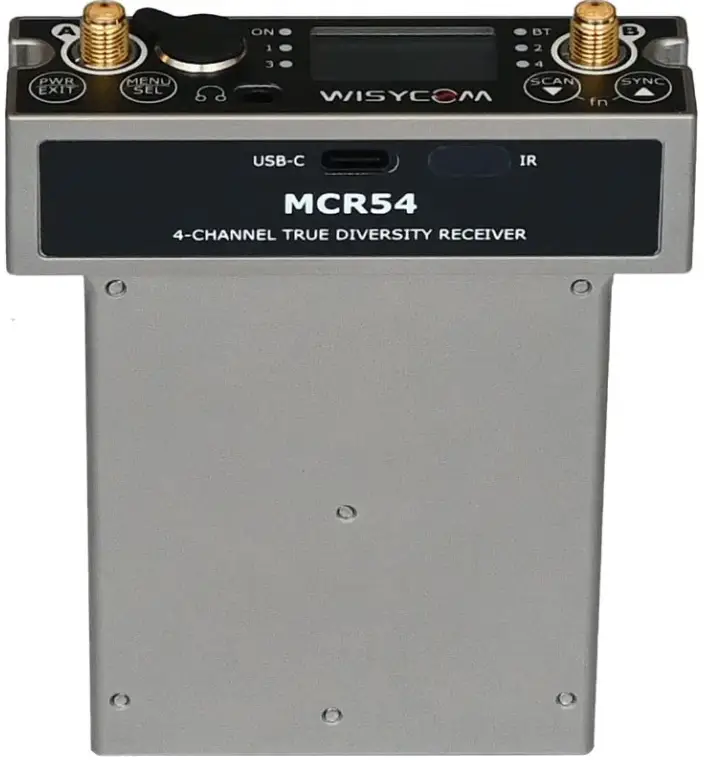

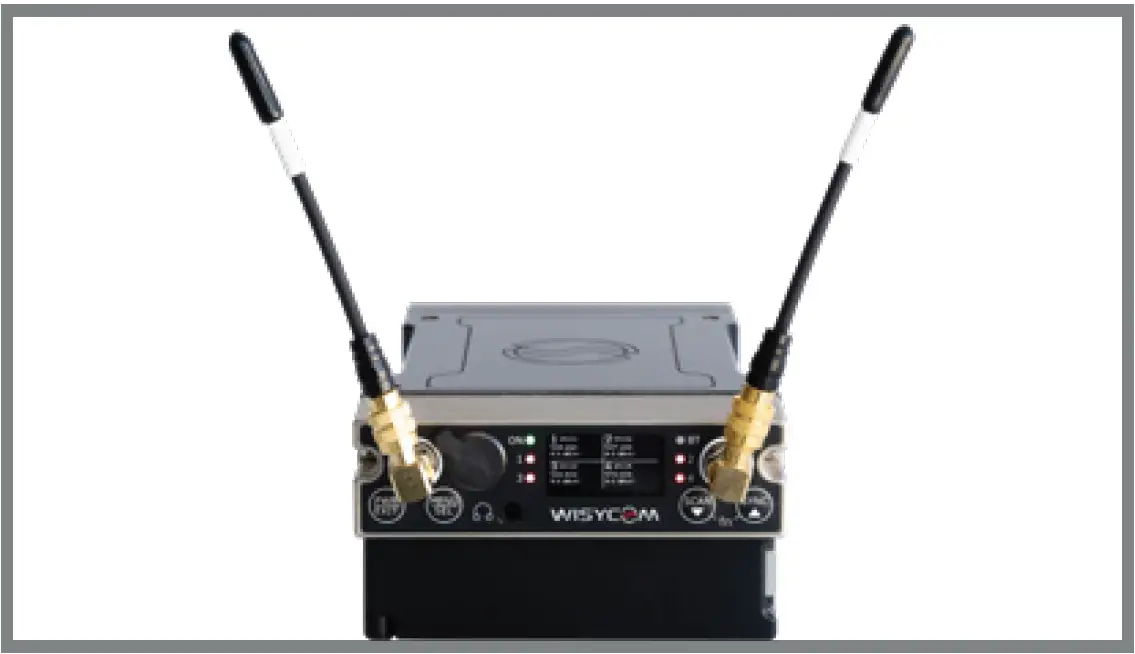

WISYCOM MCR54 Multi-Band Dual Channels True Diversity Receiver

Wideband just isn’t enough anymore! Upgrade to a Multi-Band system with up 790 MHz tuning range to find your frequency, anywhere in the World.
High Density with NB filters
The combination of Narrow-band and Linear transmitters allow you to tune every 200kHz and the reduced RX bandwidth gives 3dB uplift in sensitivity.

True Diversity Reliability

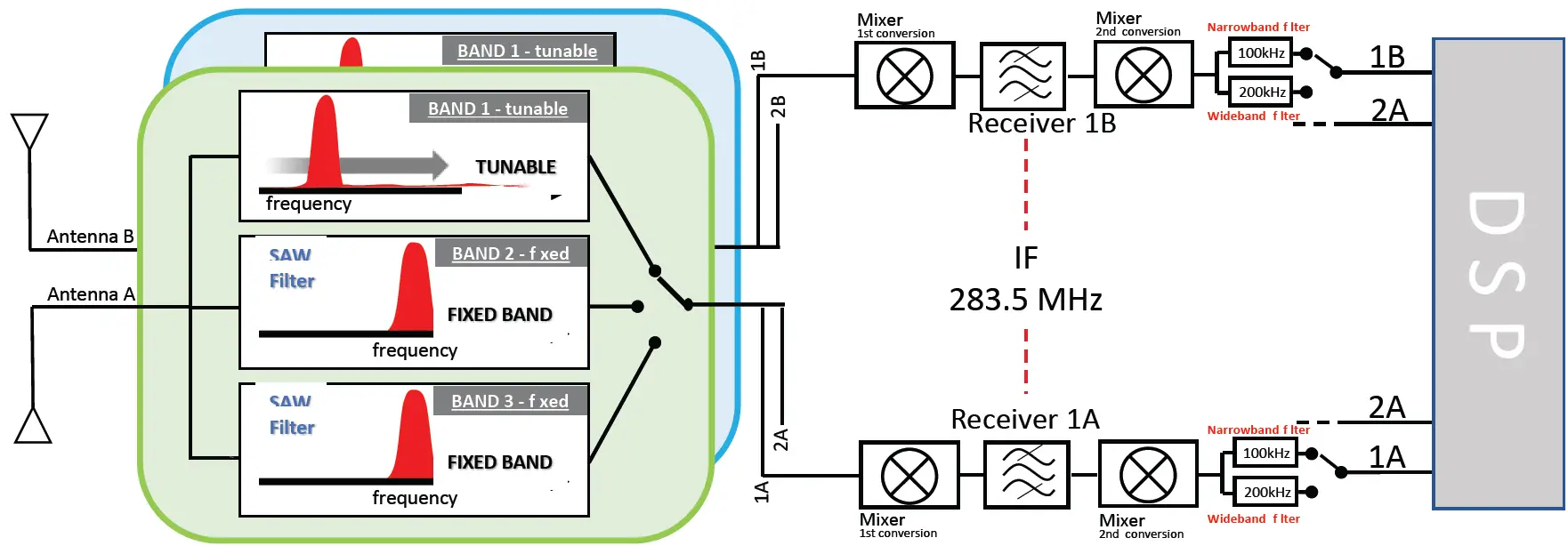

With eight internal receiver boards, the MCR54 boasts an unprecedented capacity for range and reliability.

Multi-Companding
DSP delivers ENC and ENR algorithms for perfect audio in any application with less than 1ms delay – with create and shape presets for the desired sound. It enables the use of third-party transmitters with Wisycom receivers
Bluetooth 5
Monitor & control through USB-C/Bluetooth (Wisycom Manager software)

OTHER FEATURES

• Modular configurations for stand-alone or slot-in formats
• Monitor & control through USB C or Bluetooth 5 on Wisycom Manager 3.2.1 (computer SW)
•  High contrast OLED display and 4 buttons enable quick manual setup
•  DSP Analogue & Digital Audio Output (AES3)
• Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
•  Wisycom exclusive digital sub-carrier telemetry technology enables:
  •  remote TX battery monitoring
  •  advanced tone-squelch operating
  •  Push-to-talk function (via optional back-panel module)
•  Rear antenna connectors and micro audio and power adapter


CONFIGURATIONS

FREQUENCY RANGE

• B1B1 470÷800 MHz (tunable) + 960÷1000 MHz + 1045÷1071 MHz (UK DME)
• B2B2 470÷800 MHz (tunable) + 823÷832 MHz + 941÷960 MHz (USA/EU)
• B3B3 470÷800 MHz (tunable) + 806÷810 MHz + 1240÷1260 MHz (JP)
• B5B5 470÷800 MHz (tunable) + 459÷466 MHz + 806÷810 MHz (JP)


ACCESSORIES & RELAACCESSORIES & RELATEDTED

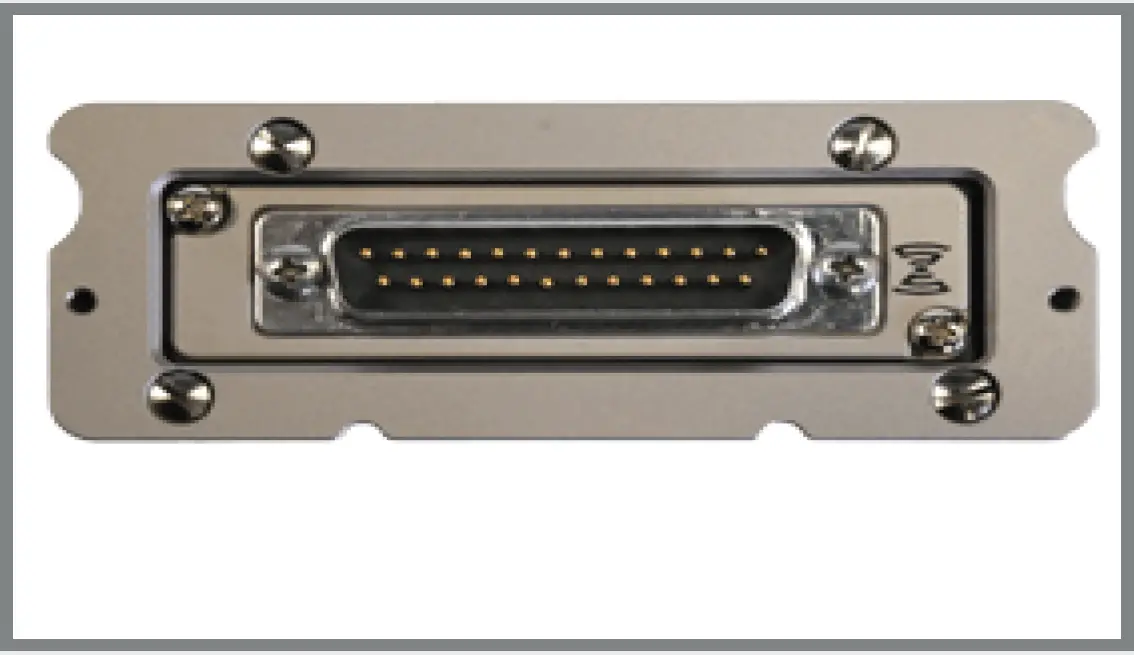

Item: SL54-IK
“Slot-in” compatible with:-

• Sound Device Super Slot (4 audio outs in capable devices, i.e. Soundevices™ SL-2)
• MRK16 Multi Slot rack (4 audio out)
•  Unislot (Ikegami, Panasonic cameras1)

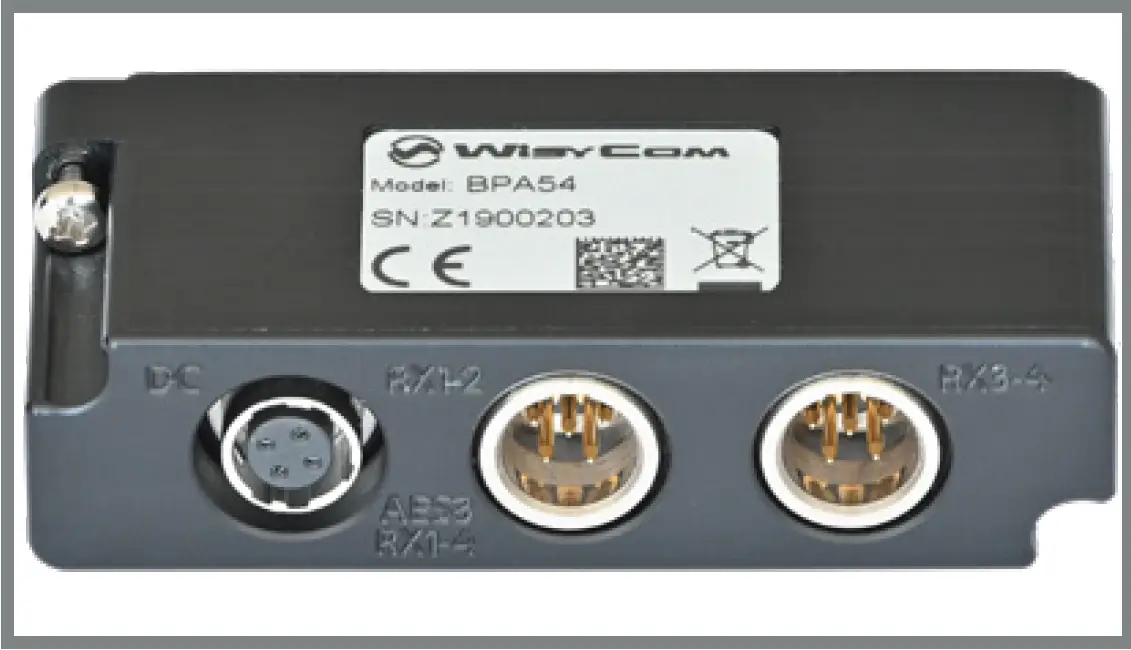

Item: BPA54
“Stand alone” rear panel

• 2 mini XLR-5pin male outputs (for 4 analogue channels or 4 digital AES channels), only 2 ch for MCR54-DUAL
•  1 Hirose connector for external power


Item: CAM50-3

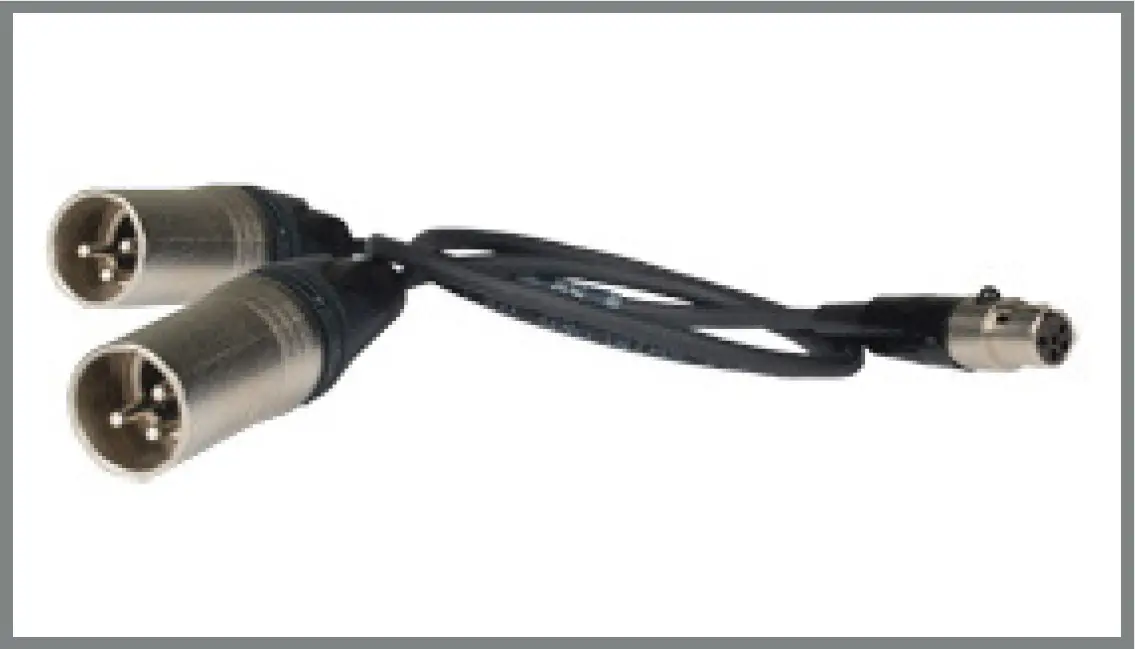

AF cable (50 cm),
mini XLR-5F / 2 XLR-3M connectors

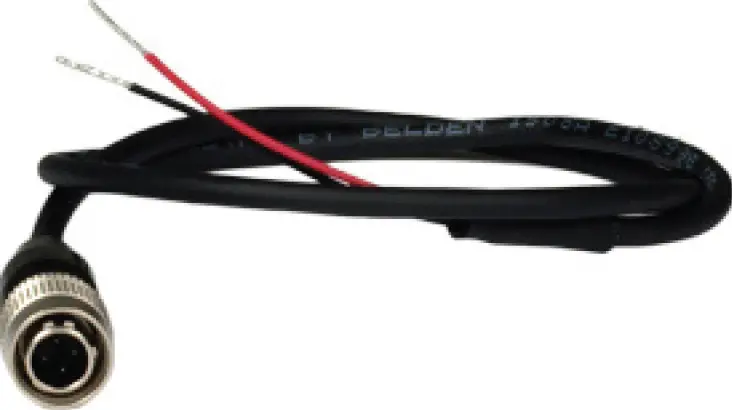

Item: CDC34
External power feeding cable
CDC34: hirose 4pin Male/raw wires (50 cm) CDC34HM: hirose 4pin Male/ hirose 4pin Male (50 cm)

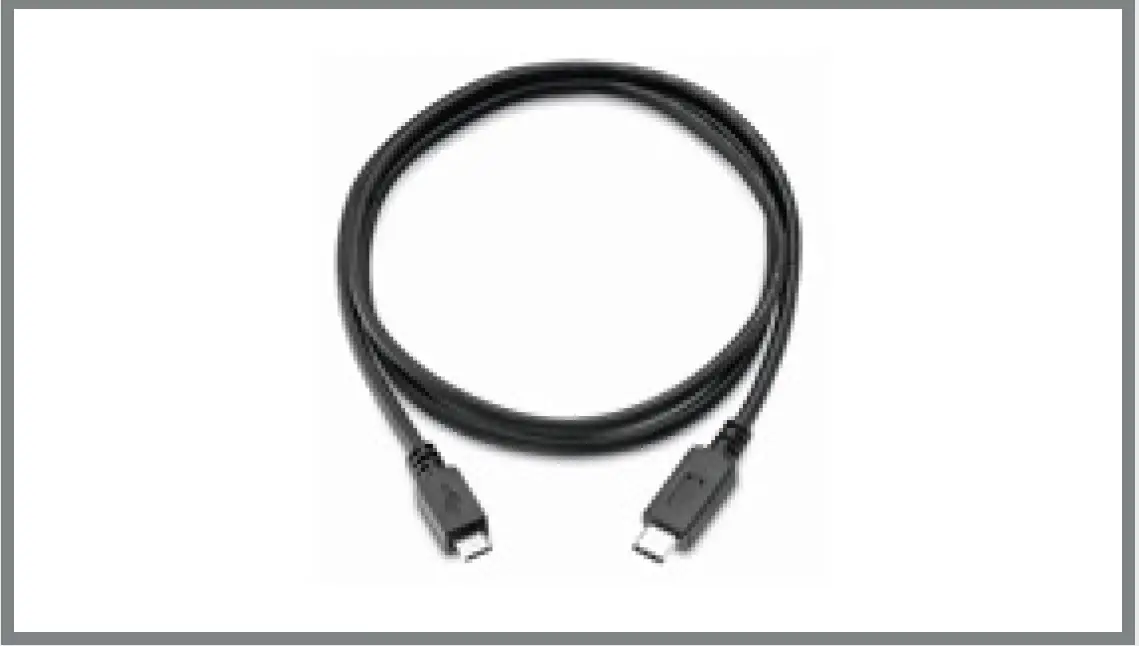

–Item: CAUSBC1

• USB Cable 1m
• USB B – USB C Male Black
• To monitor/control/power on MCR54 receiver

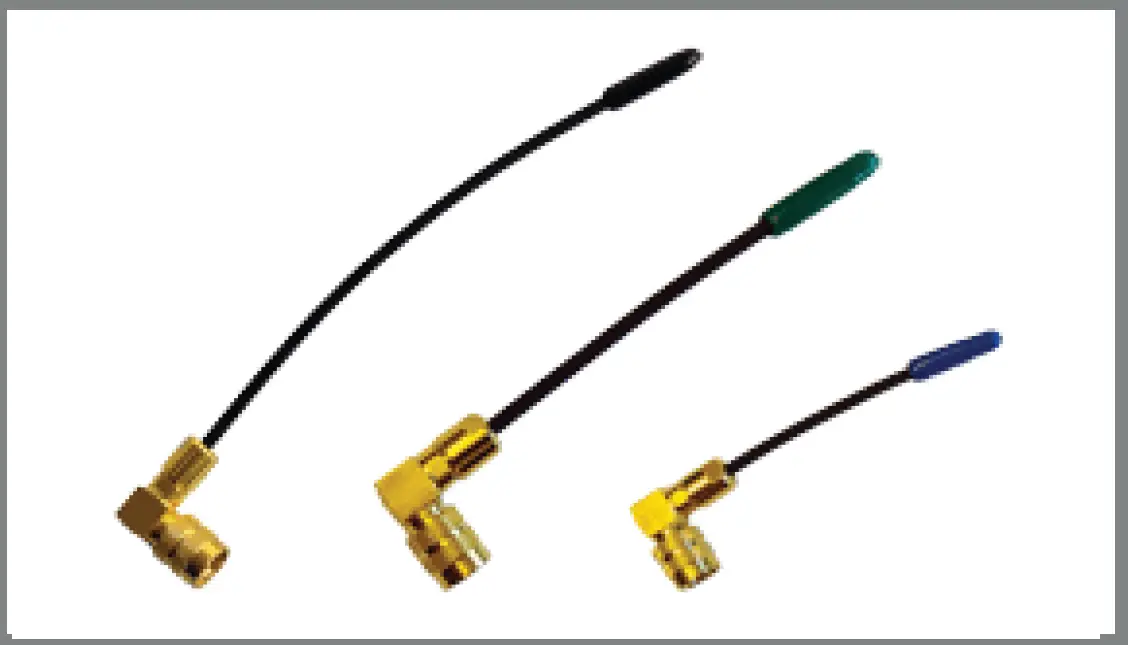

Item: AWS-xx-RA

• Whip antenna, SMA connector, Right angle
• AWS-BK-RA: 470-700 MHz, black cap
• AWS-GN-RA: 670-870 MHz, green cap
• AWS-BL-RA: 820-1160 MHz, blue cap


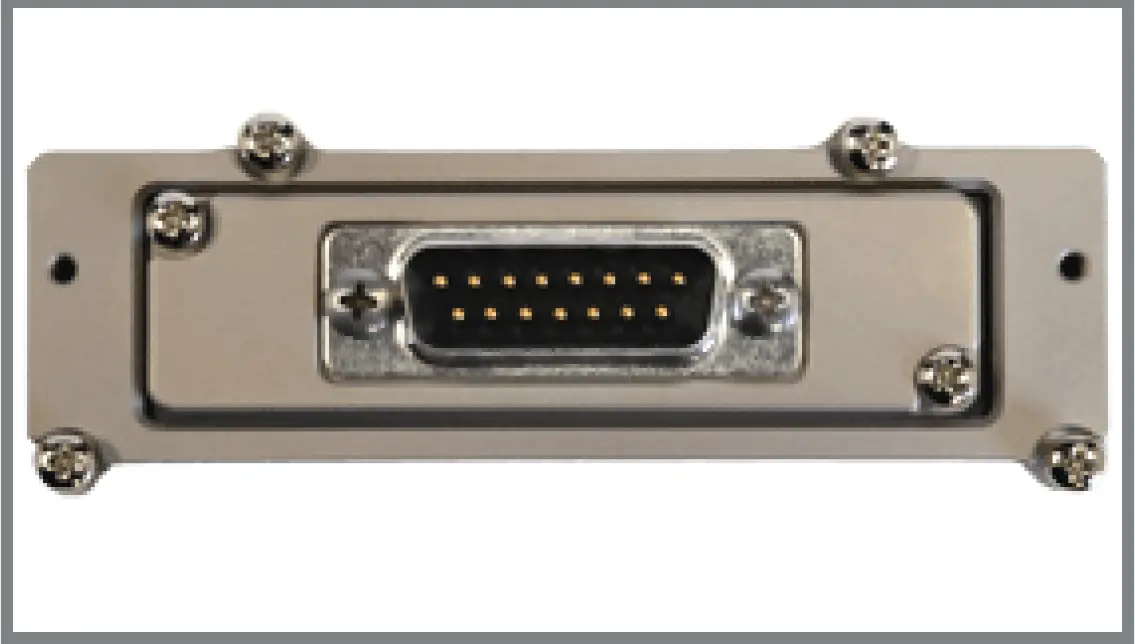

Item:SL54-SX2
“Slot-in” kit for Sony camera.
NOTE:
not all Sony cameras has the inter-nal double pin enable. CHECK IF YOUR CAMERA SUPPORT 2 CH. ON SLOT-IN

Item: BCA54
Slot Wireless Module with lithim battery pack – 2 mini XLR-5pin male audio outputs

• 1 Hirose connector for external power
•  battery pack for RRC2040 33.2Whr

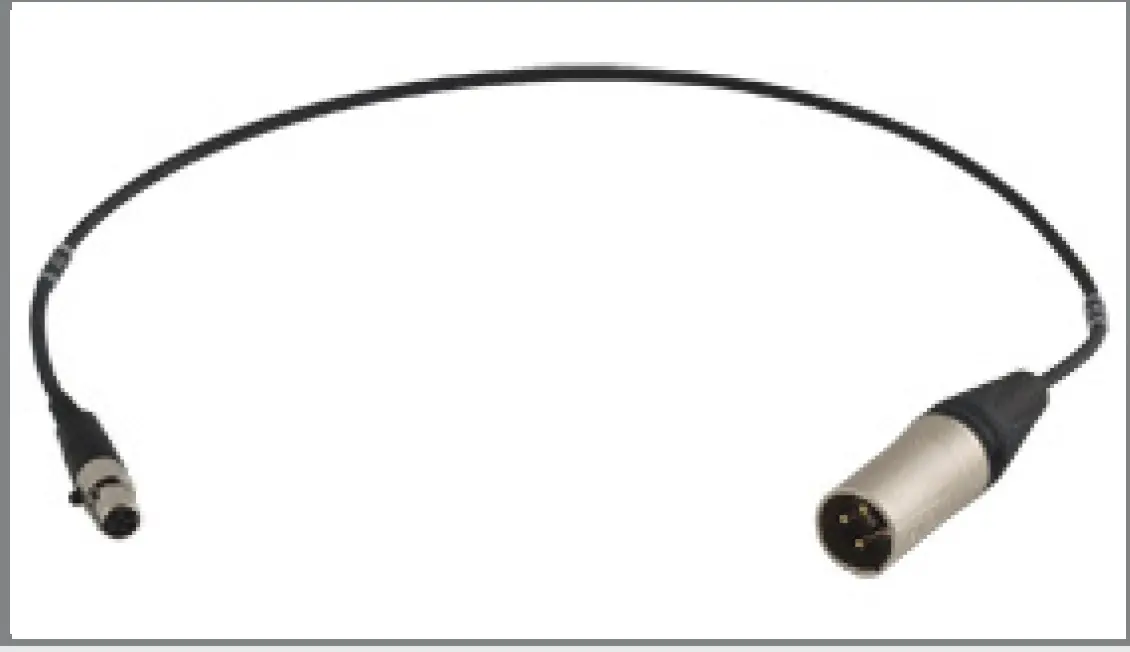

Item: CAM50-41
AF cable (50 cm),
mini XLR-5F / 1 XLR-3M connector Line 1 feed XL3-M

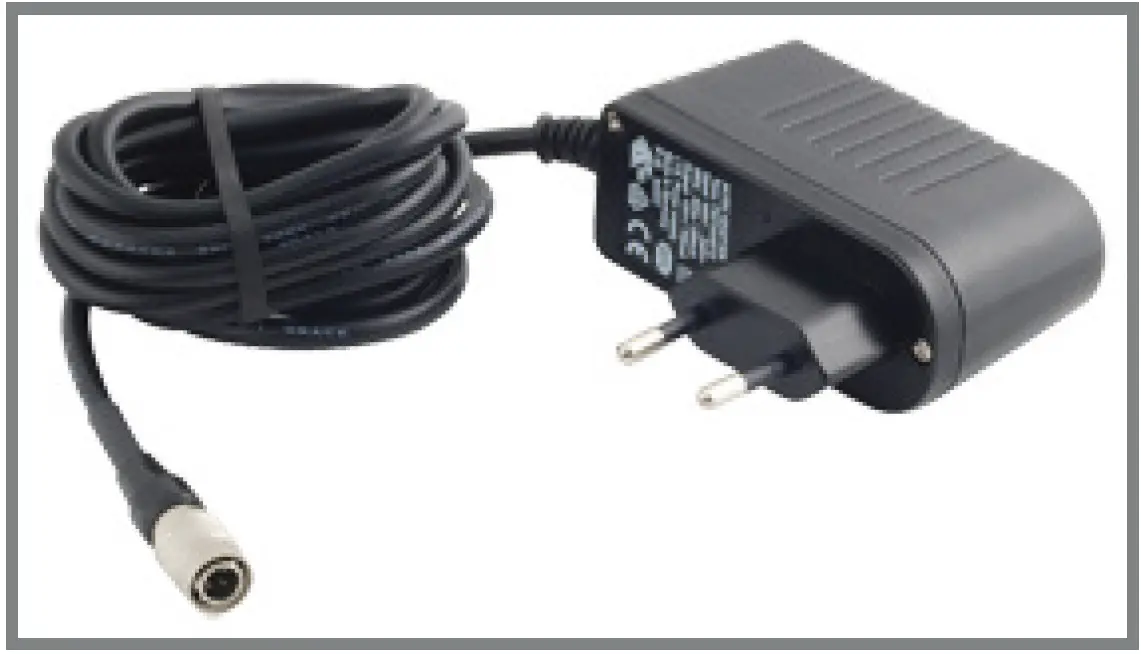

Item: PSP910-H
AC/DC Power Supply with Hirose 4 pin connector
PSP910-H: Europa plug type PSP910-H-US: USA plug type

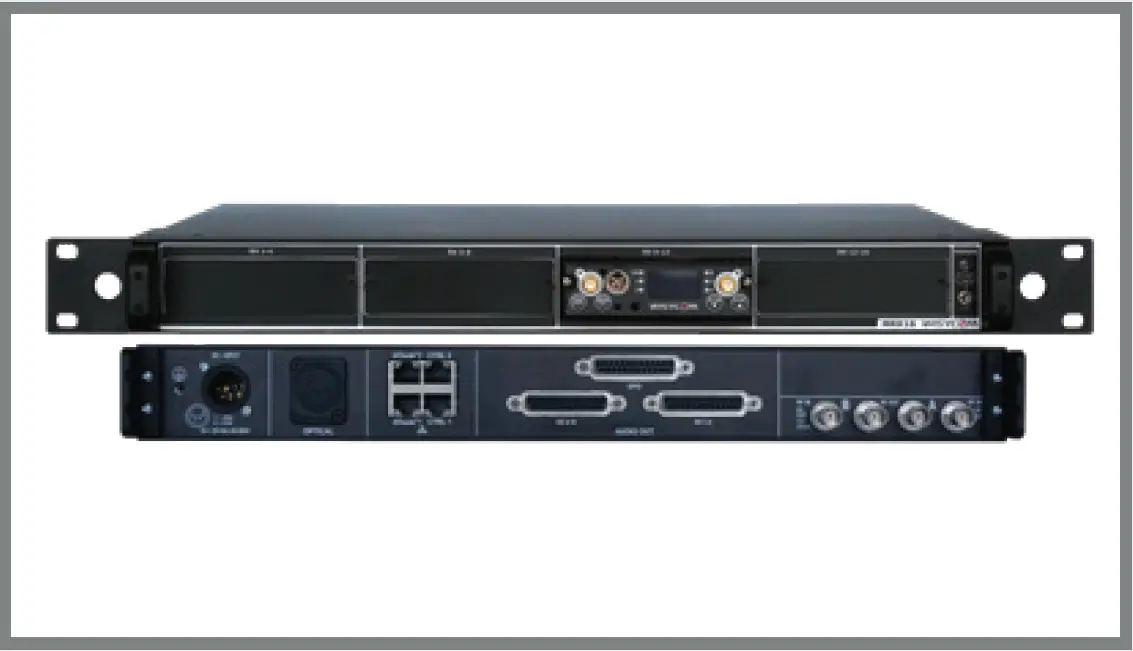

Item: MRK16
19” 1U rack with 4 slots for MCR54 16 true div. wireless (4 x MCR54)Ana-log & digital output (Dante/AES3) Ethernet & bluetooth controls
RF over fiber input (optional)

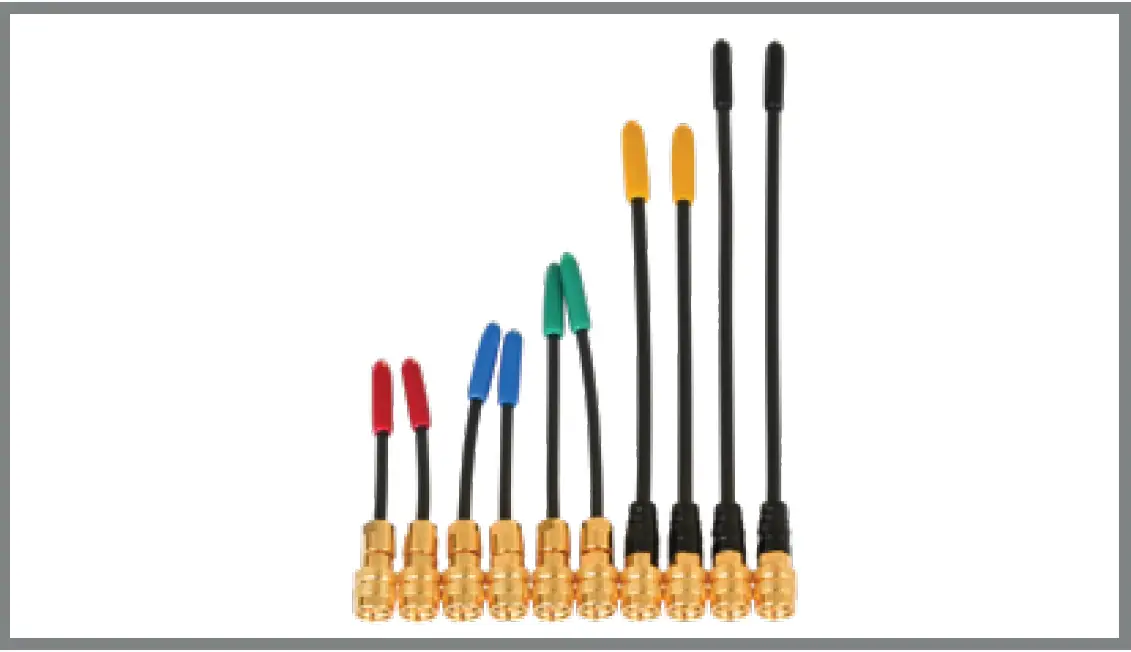

Item: AWx
Whip antenna, SMA connector
AWN42: 470-700 MHz, black cap AWS-GN: 670-870 MHz, green cap AWS-BL: 820-1160 MHz, blue cap AWS-RD: 1060-1300 MHz, red cap
