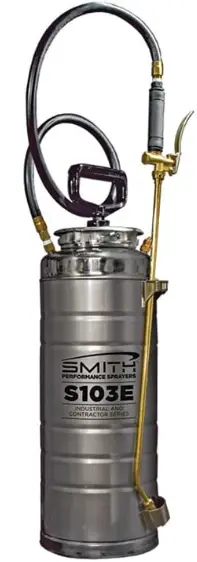

SMITH S103E Industrial Concrete Sprayer
Smith Sprayer Spare Parts Manual
Description

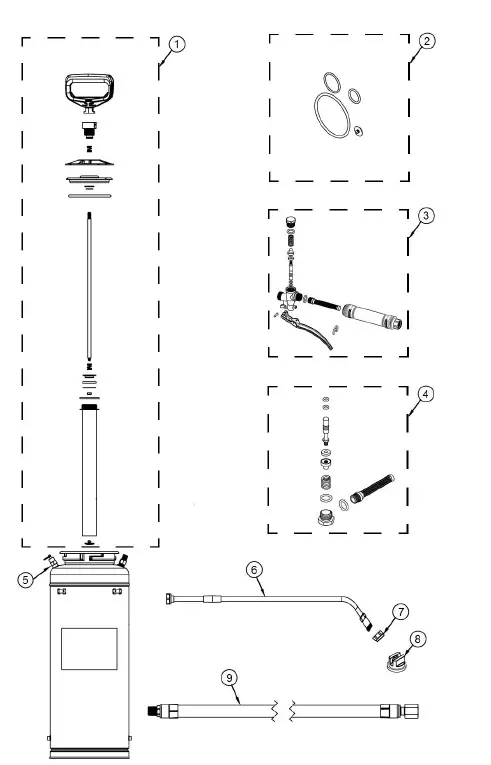

| Item No. | Product Code | Description | Qty | Remarks |
| 1 | NPS00223-UNIT | SPS PUMP HANDLE ASSY (182522) | 1 | |
| 2 | NPS00224-UNIT | SPS PUMP HANDLE SERVICE KIT (182644) | 1 | |
| 3 | NPS00225-UNIT | SPS SHUT OFF TRIGGER ASSY (183300) | 1 | |
| 4 | NPS00226-UNIT | SPS SHUT OFF TRIGGER SERVICE KIT(183525) | 1 | |
| 5 | NPS00227-UNIT | SPS PRESSURE RELEASE VALVE ASSY (182678) | 1 | |
| 6 | NPS00228-UNIT | SPS BRASS WAND 24” (183294) | 1 | |
| 7 | NPS00229-UNIT | SPS NUT BRASS CAP (183296) | 1 | |
| 8 | NPS00230-UNIT | SPS TEEJET BRASS 0.5 GPM 95 DEG (182577) | 1 | |
| 9 | NPS00231-UNIT | SPS HOSE ASSY (183381) | 1 |
Parchem Construction Supplies Pty Ltd 1956 Dandenong Road, Clayton VIC 3168, Australia Phone: 1300 353 986
flextool.com.au
