anko 43126316 HDMI Switch LOGO

anko 43126316 HDMI Switch

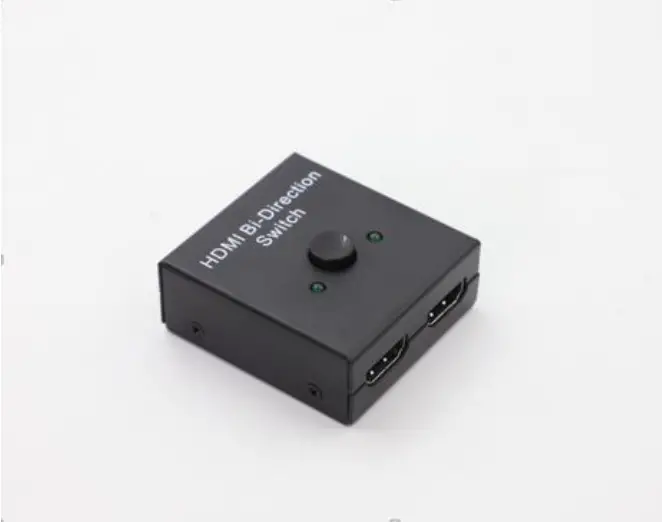

anko 43126316 HDMI Switch FIG 1

Please read all the information carefully before you use the device to avoid accidents and keep it for future reference.

Product Introduction

  • Support connect two HDMI sources to one HDMI display
  • Support connect one HDMI source to select two displays separately.
  • (two screens CANNOT display simultaneously)
  • Plug And Play, No external power supply needed

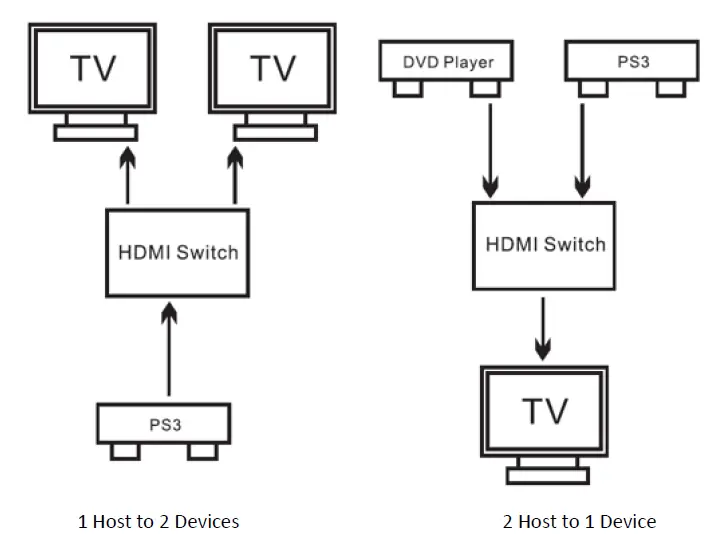

HDMI BE DIRECTION SWITCH  anko 43126316 HDMI Switch FIG 2

Features &Specification

  • 2 HDMI-Host (DVD Player, PS3 or others) to 1 Monitor Or TV 1HDMI-Host (DVD Player, PS3 or others) to 2 Monitor Or TV MAX operation current: 15ma
  • Support HDMI V1.0, V 1.2,V 1.3,V1.4,V2.0
  • Easy install & operation
  • Support HDMI Plug &Play
  • Support up to 4K 30Hz

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
