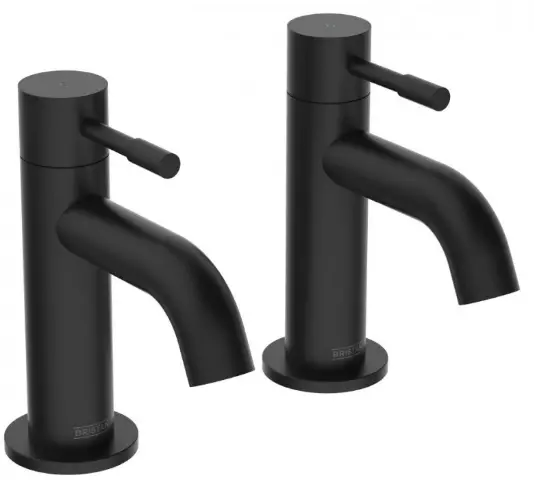

BRISTAN BSM BLK D3 Bathroom Taps

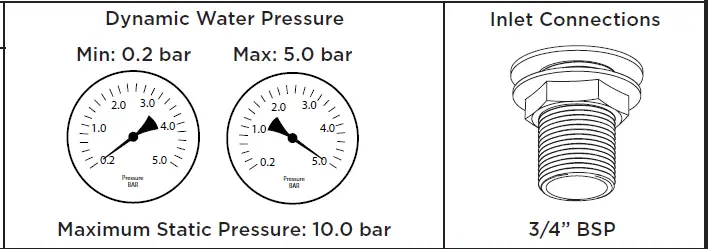

Specifications
Inlet Water Temperature
Maximum: 60°C
Product Code: MI BSM BLK (D3)

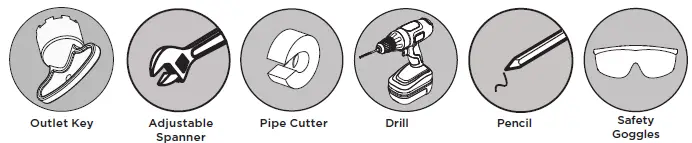

Tools You’ll Need
Prior to Installation
All products manufactured and supplied by Bristan are safe to use provided that they are installed, operated and receive regular maintenance in accordance with these instructions.
This product needs to be installed in accordance with, and meet the requirements of the Water Supply (Water Fittings)
Regulations 1999 and current by-laws. For full Installation
Requirements & Notes (IRN) please visit wras.co.uk/directory.
Isolation valves must be fitted to the inlet water supplies to ensure ease of future maintenance.
Before installing this product the water supply must be thoroughly flushed in order to remove any swarf, solder etc.
Full access must be made available for future maintenance/servicing purposes.
If power tools are used do not forget to:
- Wear eye protection
- Unplug equipment after use
This product must not be modified in any way as this will invalidate the guarantee.
If in doubt, contact a registered plumber, your Local Water
Authority or the Secretary of the Institute of Plumbing,address as follows:-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex,
RM12 6NB, Tel: 01708 472791

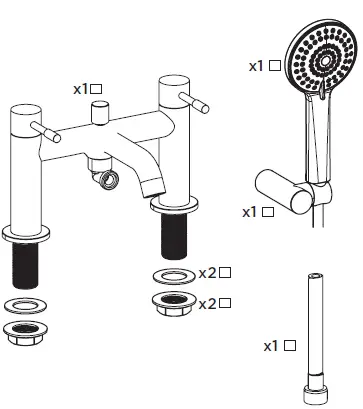

Pack Contents
Spare Parts
To replace any spare parts for your tap, why not scan the QR Code or visit www.bristan.com and search for your product.
Installation

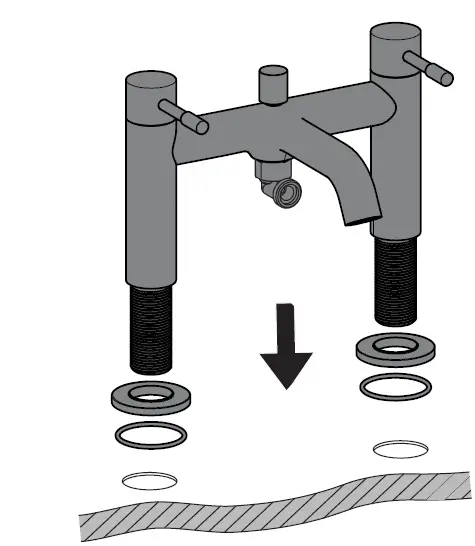

- Fit the tap body to the bath, ensuring the plinths are in place.

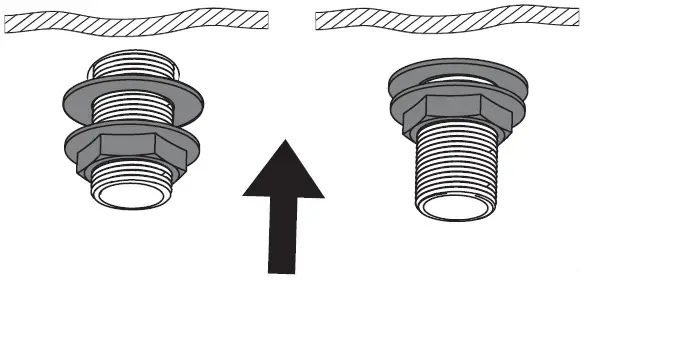

- Secure the taps to the bath by using the washer and metal backnut below the bath.

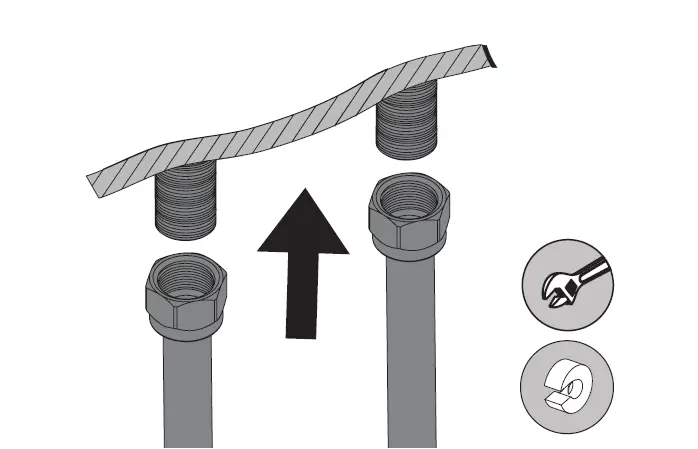

- Connect the hot and cold water supplies to the threaded tails.
REMEMBER Hot on the left, cold on the right!

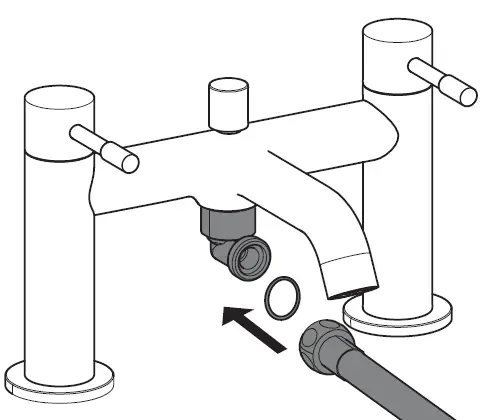

- Secure nut end of the hose to the elbow ensuring the washer is in place.

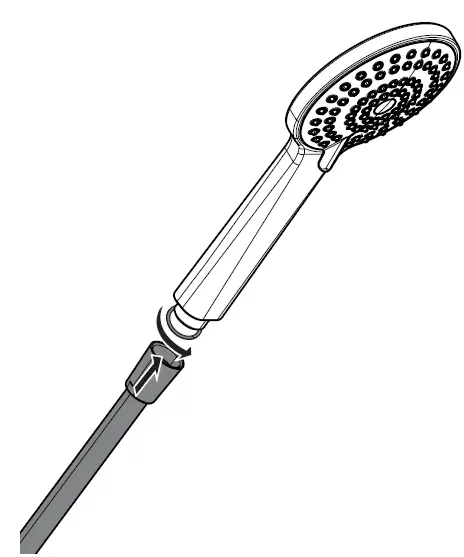

- Secure the cone end of the hose onto the threaded inlet connection of the handset, ensuring the washer is in place.
IMPORTANT
Turn on water supply for a few minutes and check all joints and connections for any leaks

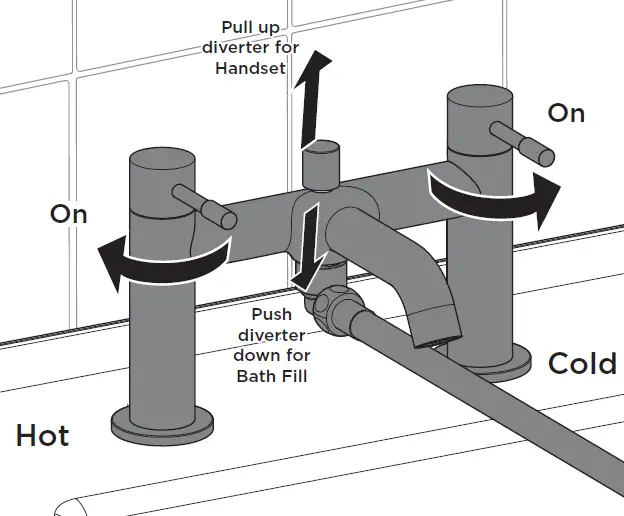

Operation

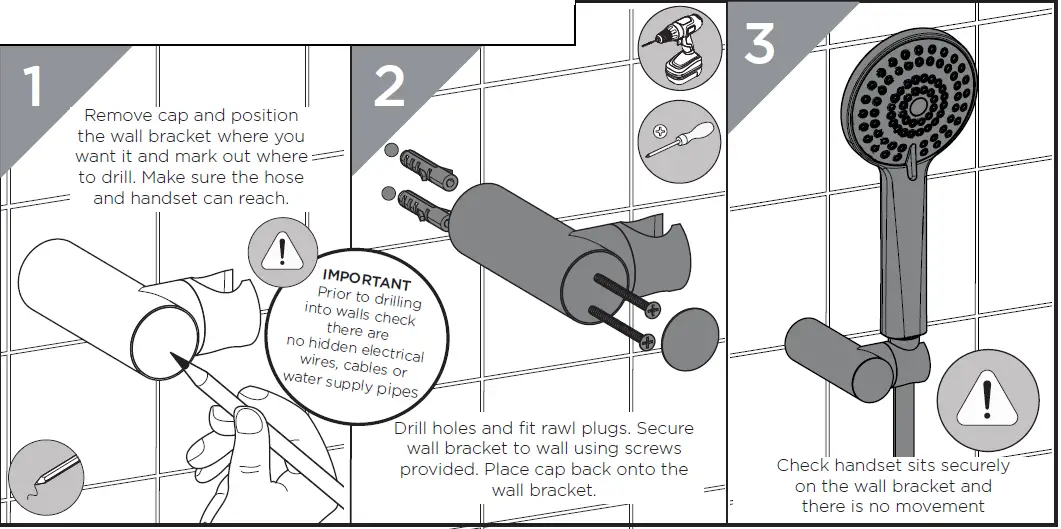

Installation – Wall Bracket

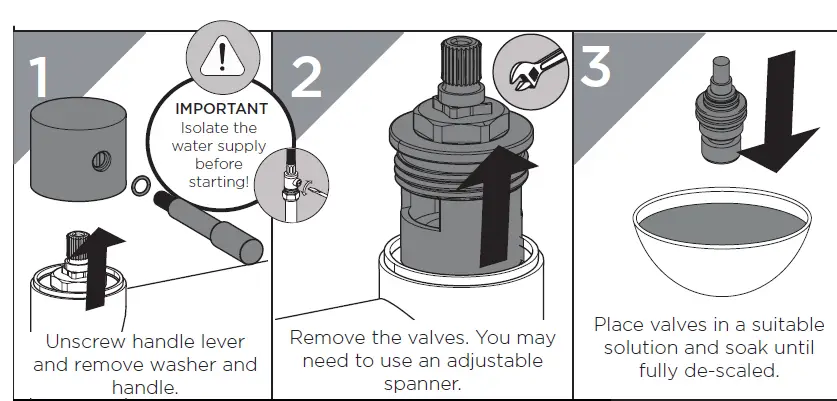

Maintenance – Cleaning/Replacing Valves
Reverse the maintenance steps to replace the handles.
Maintenance – Outlet Cleaning
Love Your Chrome
Bristan offers an effective chrome-friendly cleaning kit for use with your taps and showers.
Scan the QR Code or search for ‘CLEAN KIT01’ on www.bristan.com.
General Cleaning
Bristan products are made from premium materials, with hand polishing and electroplated finishes.
Your taps or shower should be regularly cleaned with warm water, a mild pH-neutral liquid soap, and polished with a soft cloth. Any residues from soap, toothpaste, shampoos and shower gels can cause blemishes if not rinsed off straight after use.
Household bleaches and cleaners contain harsh chemicals and may damage the surface finish.
Avoid using abrasive cloths, scouring pads, scrub sponges, steel wool or anything similar.
Some surfaces such as nickel and pewter may be affected by the dye found in some cloths, so it is also important to avoid hanging cloths on spouts.
Troubleshooting
| Troubleshooting | |||
| Symptom | Cause | Remedy | |
|
No flow or low flow rate | Partially closed isolation valve. | Open isolation valve. | |
| Instantaneous water heater cycles on and off as flow rate or pressure is too low. | Increase water flow rate or pressure through system. | ||
| Head of water is below the minimum distance required. | Refer to specification for minimum distance required. | ||
| Hot or cold water being drawn off elsewhere causing pressure changes or instantaneous boiler temperature changes. | Do not use other water outlets when using the taps. | ||
| Airlock or partial blockage in the supply pipework. | Flush through pipework to ensure removal of debris and any airlocks. | ||
| Water dripping from taps | This is normal for a short time after us- ing the taps. | This is caused by residual water tension, the build up of water in the tap body. | |
| If water continues to drip, possibly due to the ceramic disc valves | Remove valves and clean, refer to ‘Maintenance’ section before starting any maintenance. | ||
| Taps do not turn on | Closed isolation valve. | Open isolation valve. | |
| Mains water supply turned off. | Turn on mains water supply. | ||
Our Guarantee
At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind.
To start your free guarantee simply scan the QR code and register your product.
Alternatively, visit www.bristan.com/register.
For any other queries, please call our Customer Service on 0330 026 6273 where our expert team of advisors will be able to offer you any help and advice.
For full guarantee terms and conditions visit www.bristan.com/service-centre/guarantees.
Bristan Group Ltd.
UK: Bristan Group, B78 1SG.
EU: Masco Europe S.à.r.l.
14 Rue Strachen
6933 Mensdorf
Luxembourg
Customer Service: +44330 026 6273
Web: www.bristan.com
Email: [email protected]
A Masco Company
