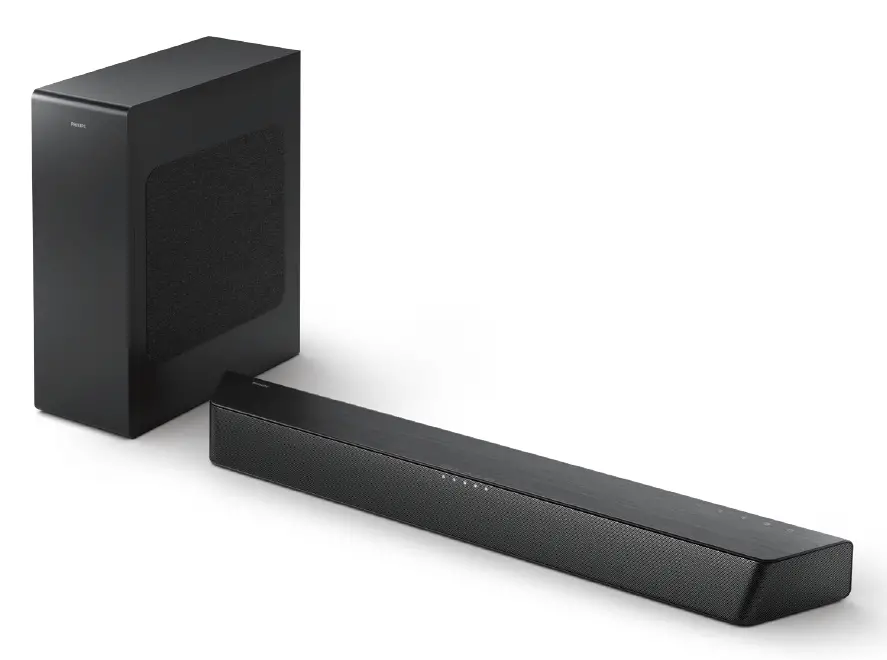

Philips TAB7305/98 7000 Series Soundbar Speaker
Before using your Product, read all accompanying safety information

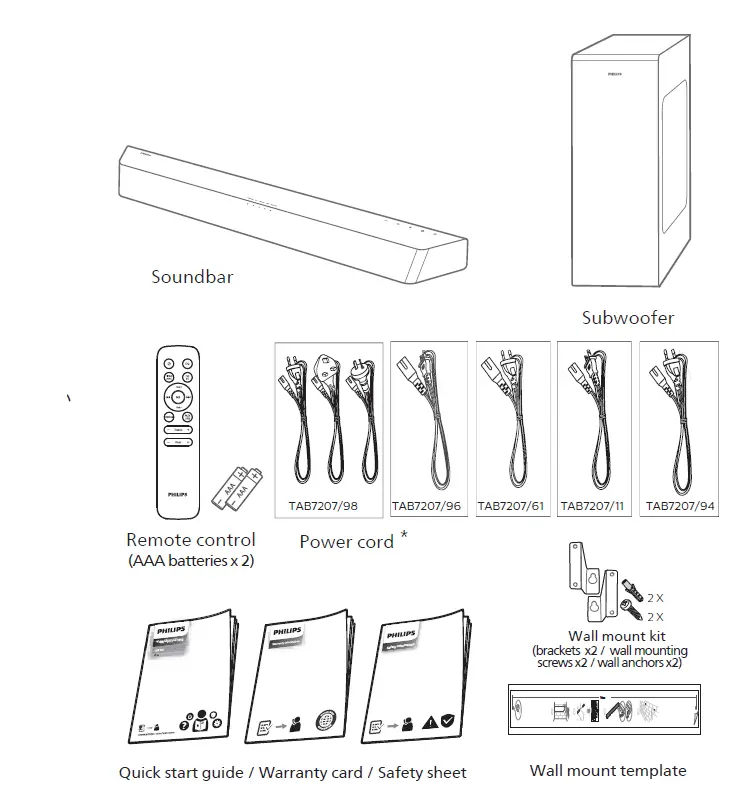

WHAT’S IN THE BOX
- The attached items and images may vary by regions.
- Power cord quantities and plug types vary by regions.

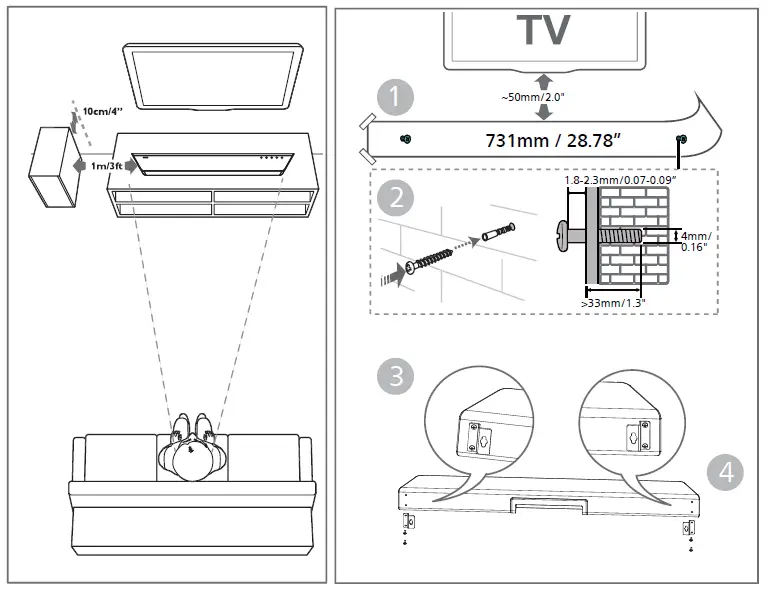

Position the SoundBar / Wall mount the SoundBar (optional)
Suggested wall mounting height
You are suggested to install the TV first before wall mounting the soundbar.
With a TV preinstalled, wall mount the soundbar 50mm/2.0″ in distance from the bottom of the TV.
If you wall mount the soundbar first, drill 2 parallel holes (0 3-8 mm each according to wall type) in the wall.
The distance between the holes should be 731mm / 28.78″

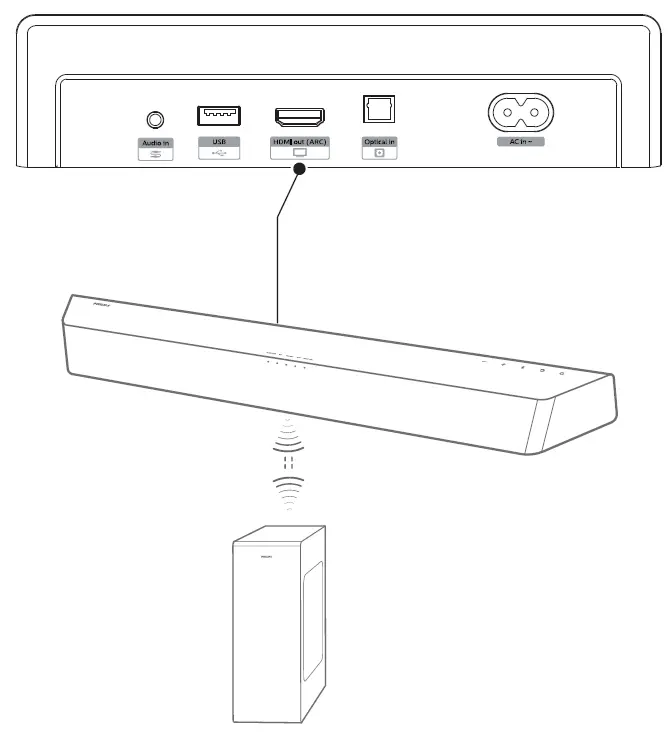

Connect the SoundBar

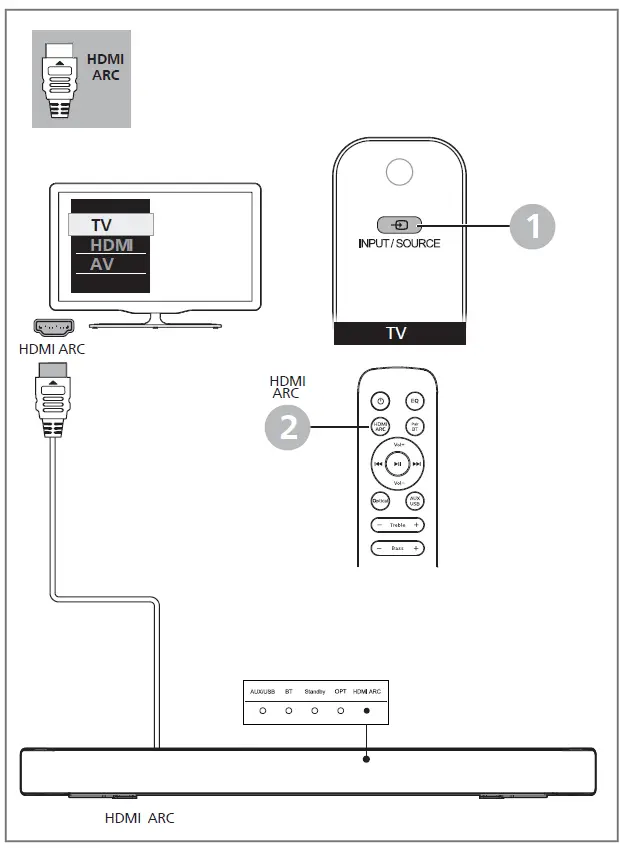

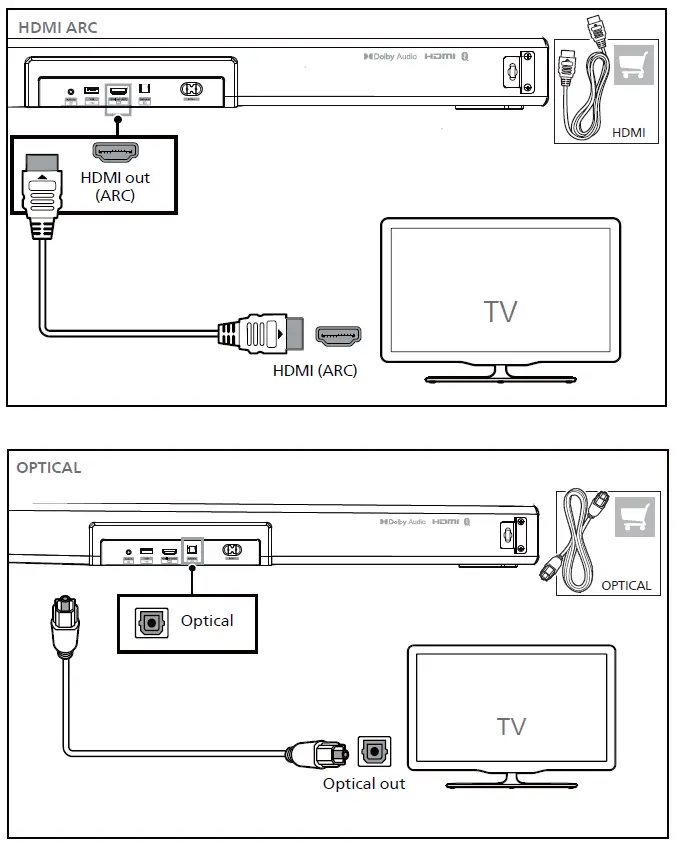

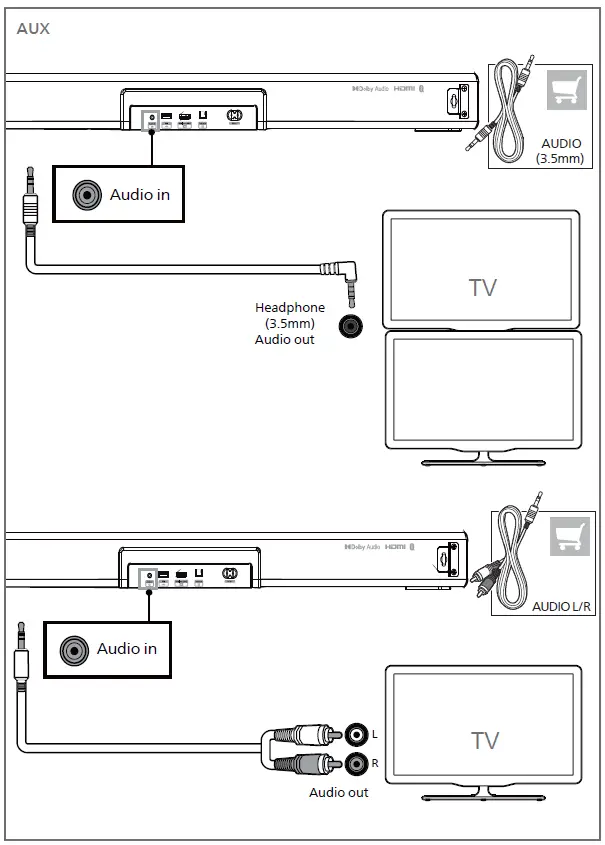

Hear audio from TV in one of the following ways

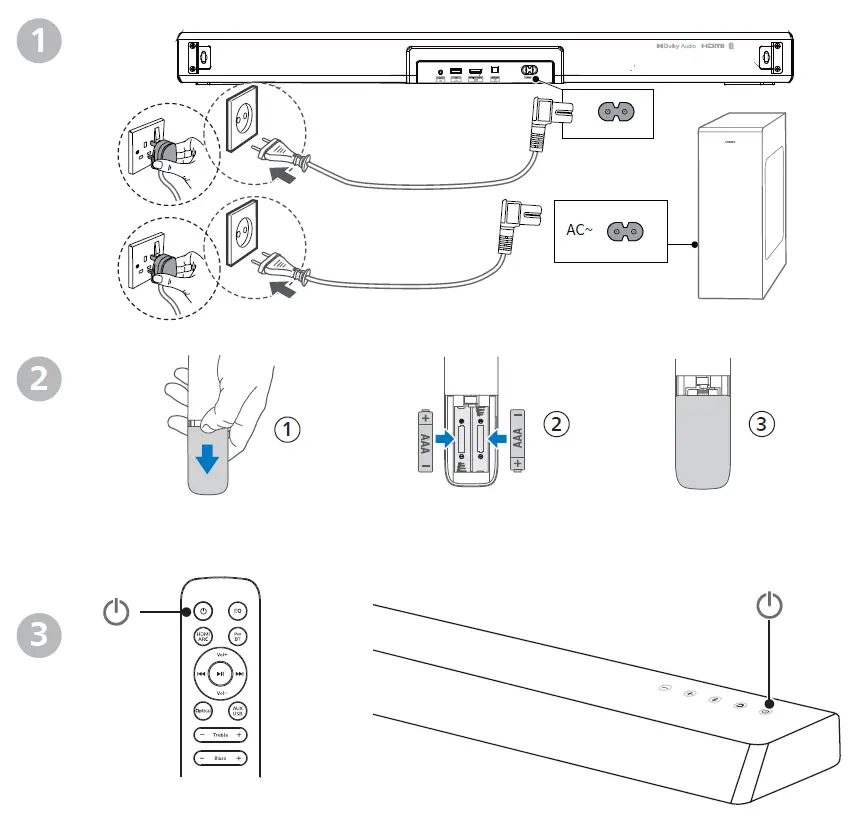

Switch on the SoundBar
Select the correct audio source

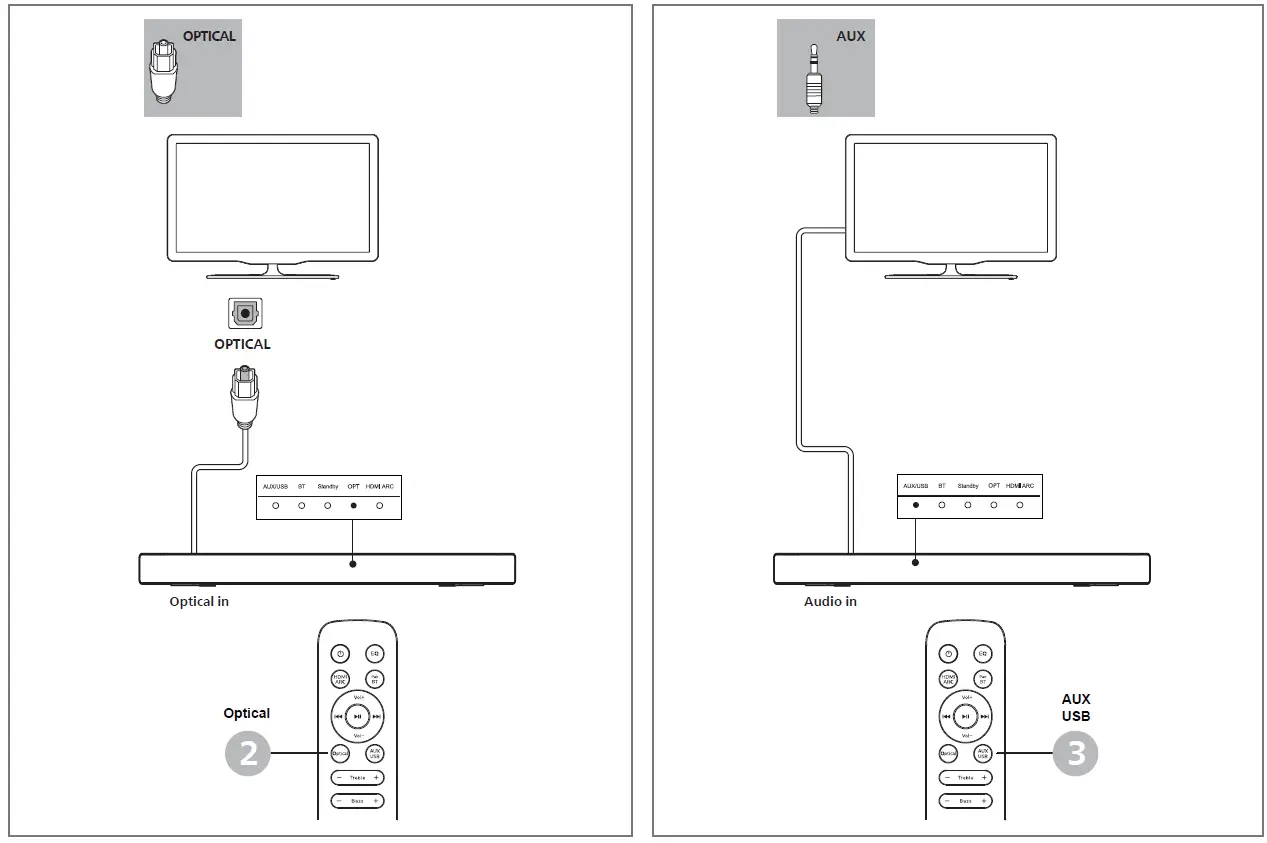

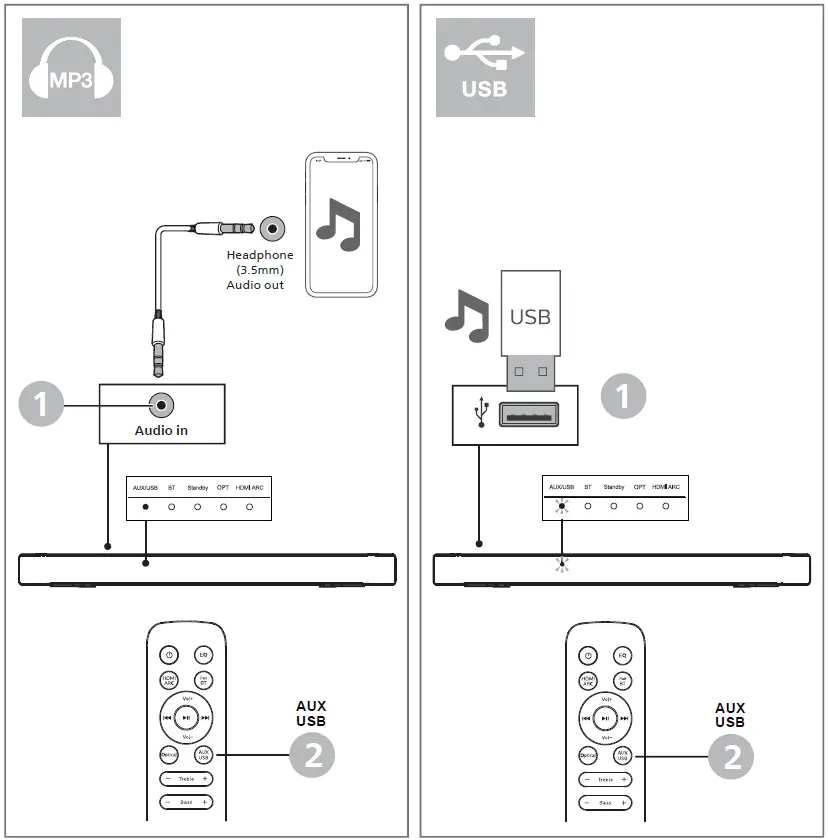

Play other devices

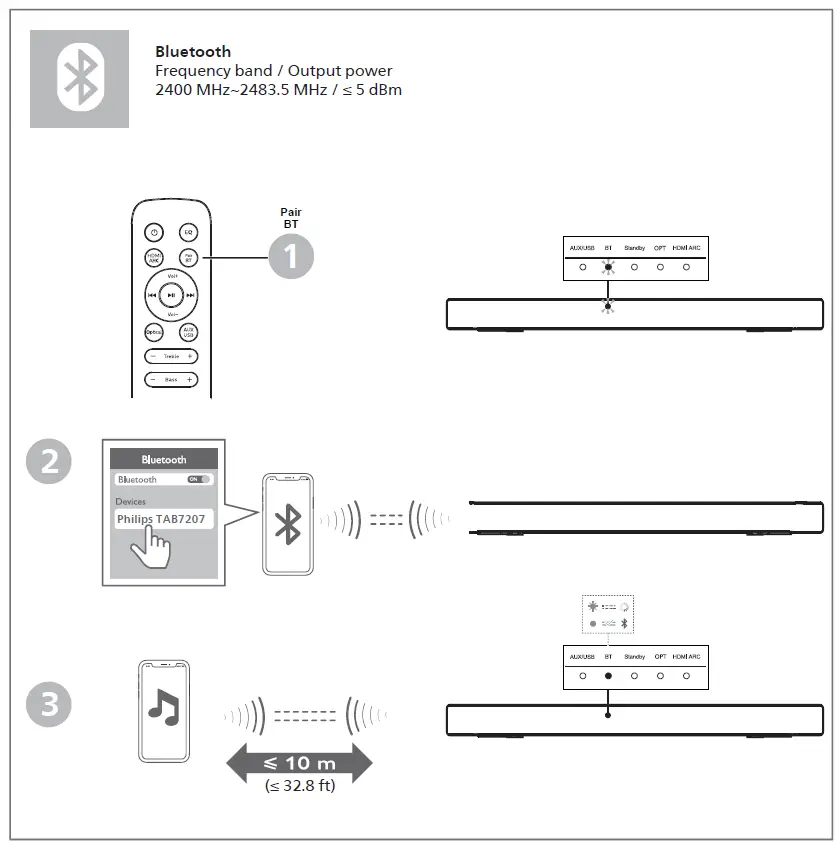

Play audio through Bluetooth
For more information about using this product, visit www.philips.com/support
Specifications are subject to change without notice. Please visit www.Philips.com/support for the latest updates and documents.
