Beyond T812-3wd-180-65k Signstorm Led Sign Tube Owner's Manual

SIGN STORM™

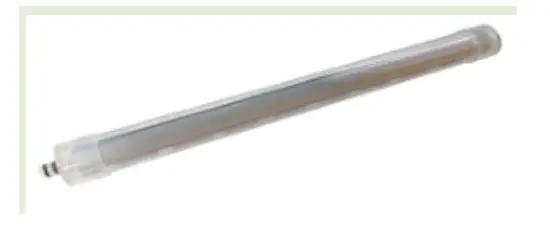

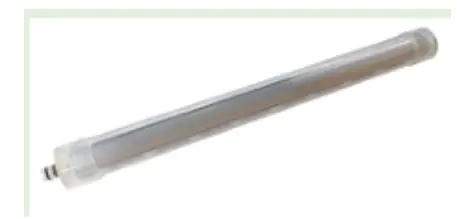

LED Sign Tube

Hanging Installation

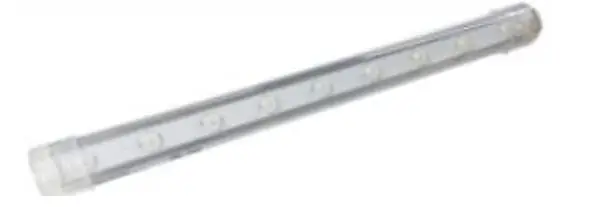

The SignStorm Sign tube from Beyond LED Technology is one of the most energy efficient product of 2021 which offers a very long lifespan, as they are designed primarily  to substitute the fluorescent lamps.
SignStorm lamps are available with a Type B ballast bypass design that offers easy installation and operation. In addition, these sign tube can be used with hard-wiring  tombstone lamp-holders that can be connected directly to incoming AC power leads. Dual-ended bypass lamps eliminate the need to replace shunted tombstone lamp- holders in existing fluorescent luminaires, while maintaining a high Lumen output and up to 125 lumens per watt efficacy. AC power code is also provided for new  installation.

Specifications

Product Features

• Operating temperature: -20°C to 45°C
• High energy efficiency, long lifespan, 50,000 hour lifetime
• Lockable and Rotatable R17d end cap ensures easy installation and consistent light distribution
• Integral LED driver (non-isolated), eliminates the need for an external driver or ballast
• Up to 125 lumens per watt
• ETL listed
• High Quality and Efficacy Hongli 2835 chips
• This product is IP44 rated, therefore, it is touchproof and resistant to dust
• Universal operation at 120-277Vac 50-60Hz
• Environment friendly with no mercury
• Type B, ballast bypass design offers easy installation and operation
• Direct replacement for fluorescent lamps
• Reduced maintenance and replacement costs
• Available in four different sizes
• Option of making virtually any size by combining two parts of the product in one tube
• Non flicker, optical lens covers eliminate hot spots and ensure consistent light distribution
• Aluminium + PC lamp housing ensures less breakage and good heat dissipation

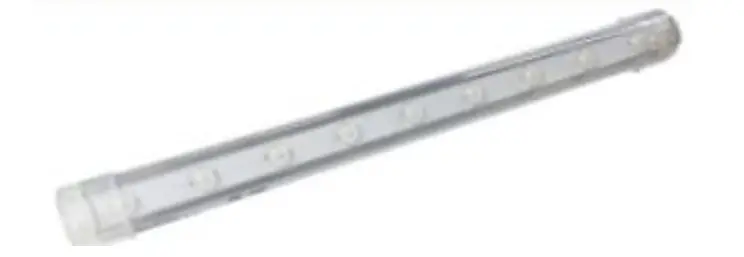

Components

Component Name	SKU Number	Specification	Image

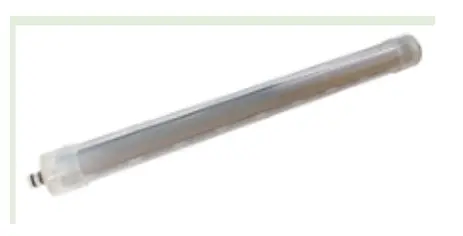

End Cap R17d for Sign Tube (Needed when Use as Tube)	152736	End Cap R17d for Sign Tube (Needed when Use as Tube)
Transparent Butt Joint	152735	Transparent Butt Joint
Waterproof	153458	Needed when use as fixture. Length: 39.37″
Power Cord with plug

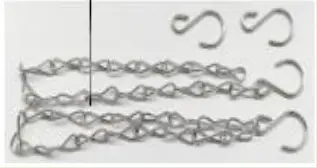

Hanging Chain	152737	12″, With “S” hook

SKU No. 152727 Specifications

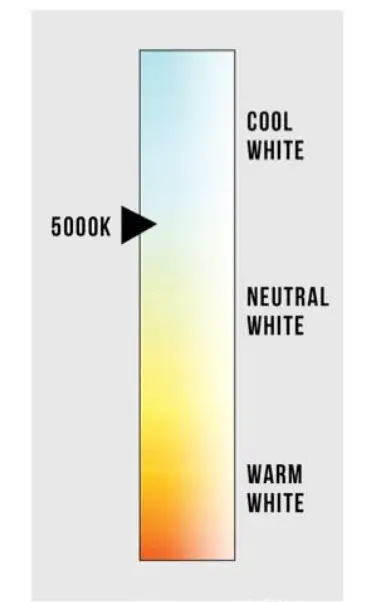

Correlated Color Temperature (CCT)

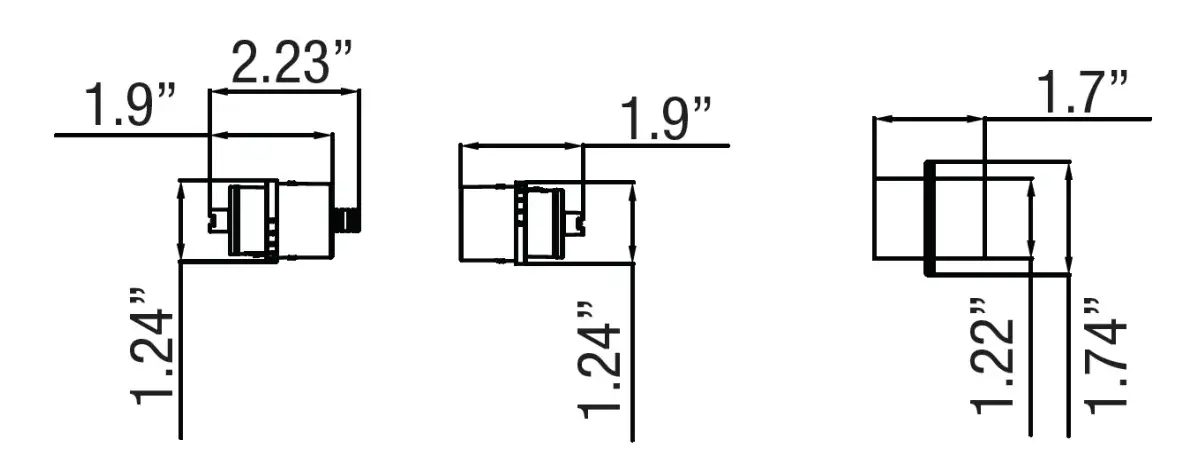

Dimensions

The units covered by this report were intended to retrofit surface mount with diffuser for these models,Type IC or non-IC recessed mount listed fluorescent luminaires that use maximum two tubular lamps, the minimum lamp compartment dimensions are tabulated below:

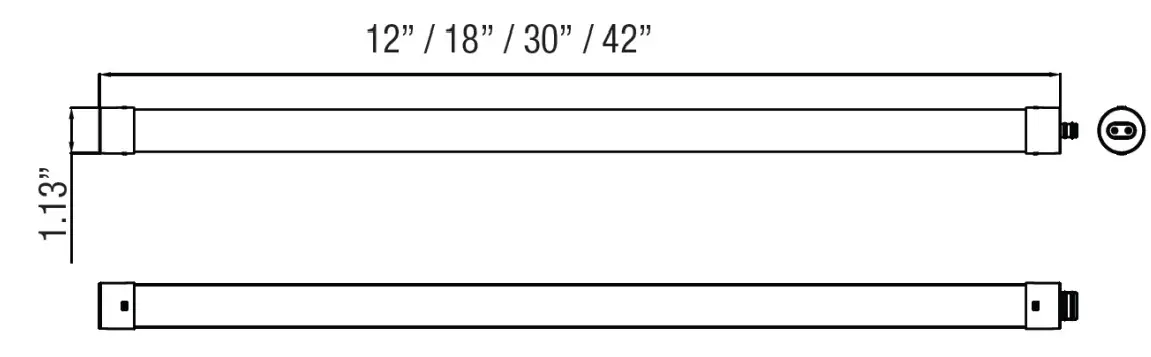

Single Sided

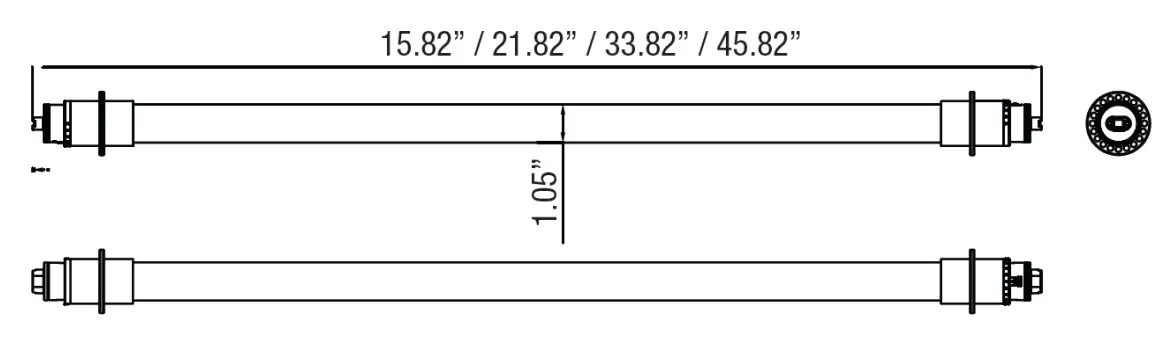

Double Sided

SKU number 152727 Light Distribution Testing Parameters

Luminaire Data

Photometric Results

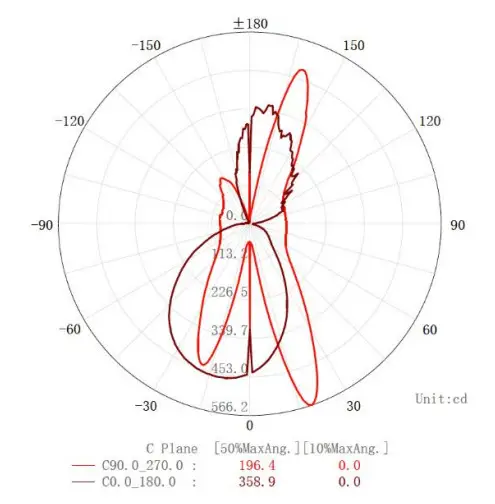

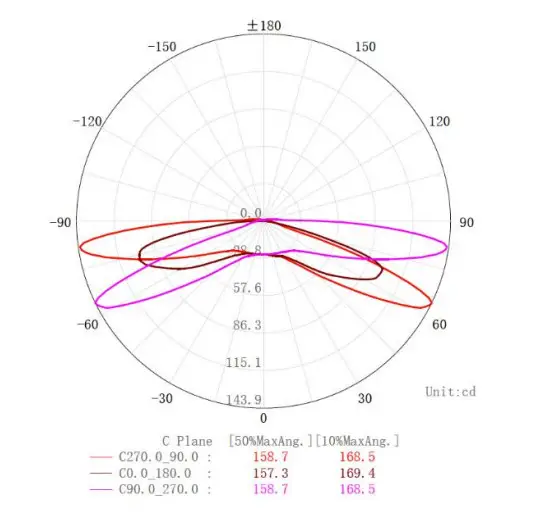

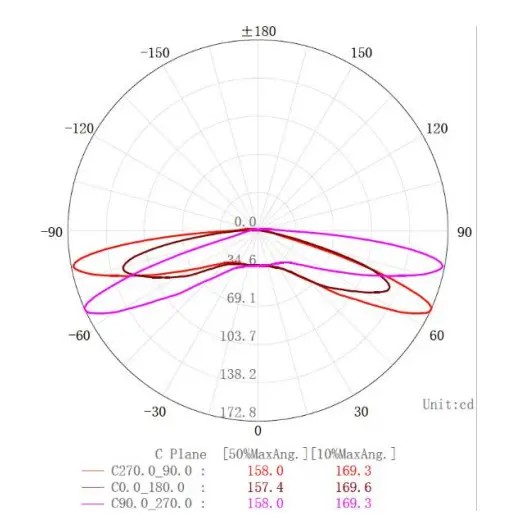

Distribution Diagram

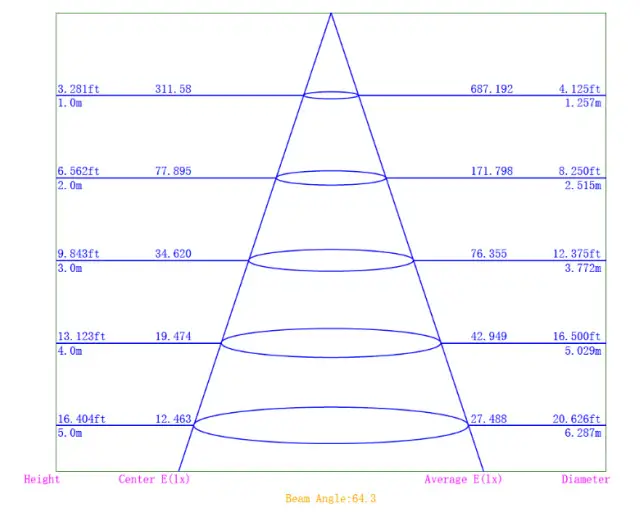

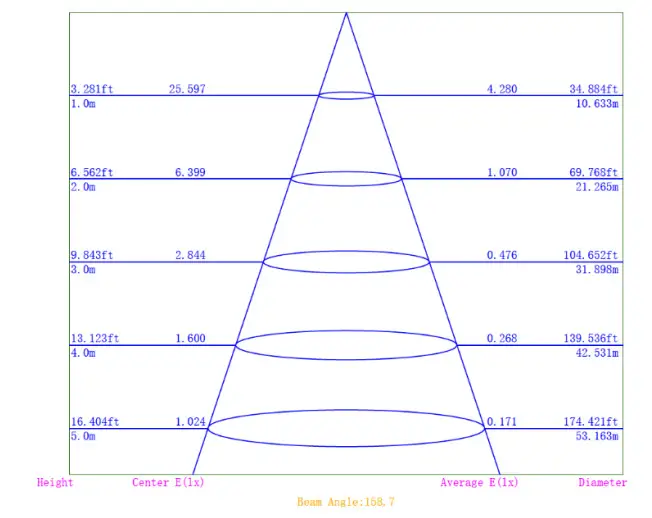

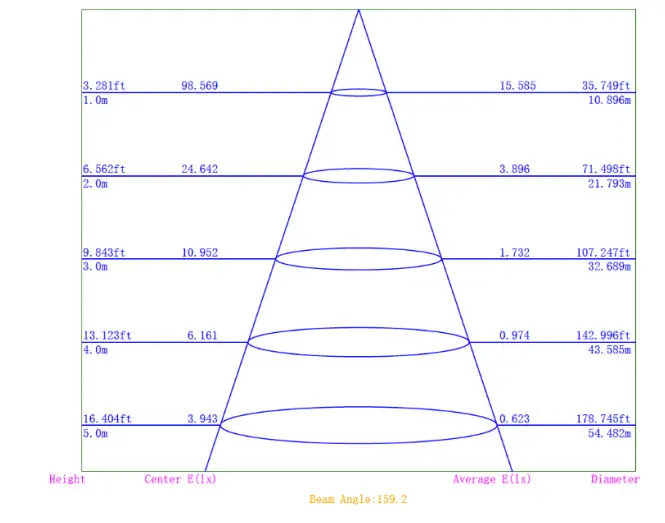

The Average Illuminance Effective Figure

Luminaire Data

Distribution Diagram
The Average Illuminance Effective Figure

Luminaire Data

Distribution Diagram

The Average Illuminance Effective Figure

Notes Before Installation

1. Be careful to open the carton, contact us if any damage.
2. This product must be installed in accordance with the applicable installation, code by a person familiar with the construction and operation of the product and the hazards involved.
3. “caution – risk of shock” and “disconnect power before servicing” when photoelectric switch provided.
4. Please check whether the voltage marked on the luminaire is consistent with the input voltage to be connected, so as not to damage the LED luminaire.
5. To ensure the lifetime of the product, please do not use it in a place with strong acid mist.
6. Make sure the installation position can withstand 10 times the weight of the luminaire before installation and install it at a flat place without vibration, no swing, no fire hazard.

Caution

1. Do not use an electric generator to test the LED fixture.
2. Please abide by related country, regional and local law and regulations when install this fixture;
3. Do not install the fixture in raining days to avoid electrical shock or damage.

Installation Instructions

Please keep this Quick Installation Guide for future reference.
Modifications to the product void the Warranty.
Suitable to replace fluorescent lamps as specified on the product label.

WARNING

1. INSTALLATION OR ASSEMBLY INSTRUCTIONS
   a. Wiring instructions that specify the proper method of connecting the grounding means and maintaining polarity shall be included with the luminaire in a manner that will require the installer to handle the instructions during installation.
   b. Specification of mounting hardware shall be included in the instruction sheet.
   c. Other warnings that will not lead to misuse.
2. THIS DEVICE IS NOT INTENDED FOR USE WITH EMERGENCY EXITS
3. WARNING — Risk of fire or electric shock. LED Retrofit Kit installation requires knowledge of sign electrical systems. If not qualified, do not attempt installation. Contact a qualified electrician.
4. WARNING — Risk of fire or electric shock. Install this kit only in host signs that have been identified in the installation instructions and where the input rating of the retrofit kit does not exceed the input rating of the sign.
5. WARNING — Risk of fire or electric shock. Installation of this LED retrofit kit may involve drilling or punching of holes into the structure of the sign. Check for enclosed wiring and components to avoid damage to wiring and electrical parts.
6. Installer should examine all parts that are not intended to be replaced by the retrofit kit for damage and replace any damaged parts prior to installation of the retrofit kit.
7. Installers should not disconnect existing wires from lamp holder terminals to make new connections at lamp holder terminals. Instead installers should cut existing lamp holder leads away from the lamp holder and make new electrical connections to lamp holder lead wires by employing applicable connectors.
8. Repair and seal any unused openings in the electrical enclosure. Openings greater than 0.5 inches diameter require a metal patch secured by screws or rivets and caulked with non-hardening caulk. Smaller openings may be sealed with non-hardening caulk.
9. WARNING: To avoid potential fire or shock hazard, do not use this retrofit kit with existing shunted bi­pin lamp holders in the host sign. Note: Shunted lamp holders are found only in fluorescent signs with Instant-Start ballasts. Instant-start ballasts can be identified by the words “Instant Start” or “I.S.” marked on the ballast. This designation may be in the form of a statement pertaining to the ballast itself, or may be combined with the marking for the lamps with which the ballast is intended to be used.

INSTALLATION GUIDE

1. DISCONNECT POWER OF LUMINAIRE
   Disconnect power to luminaire or circuit (if possible). Ensure all power is off by using a voltmeter or other method to confirm.

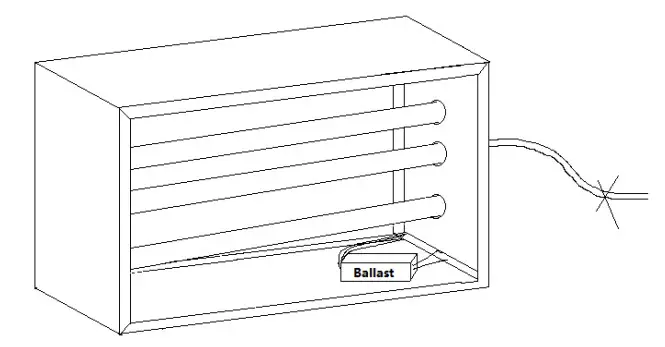

2. REMOVE EXISTING FLUORESCENT TUBE LAMP(S) AND BALLAST
   a. Remove fixture lens, if present.
   b. Remove existing fluorescent lamp(s).

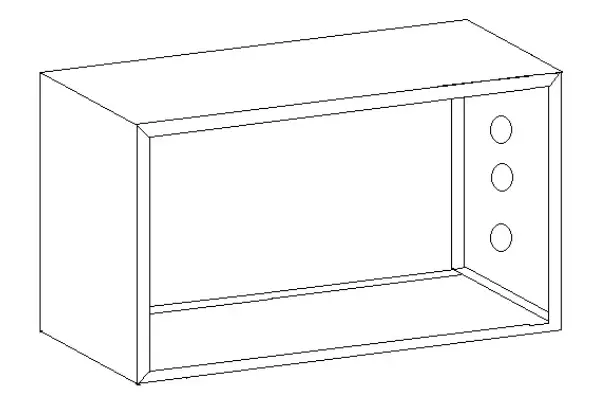

   c. Expose the sign raceway to access the wiring. Then cut input and output wires from the ballast, and remove the ballast.

3. FIXTURE REWIRING
   a. R17d lamp holder installation, please rewiring the fixture according to the below diagram.

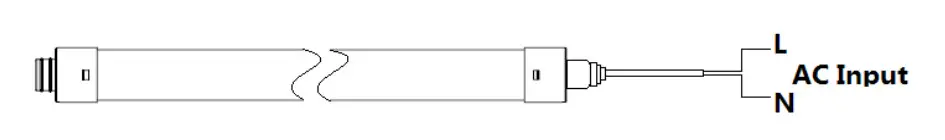

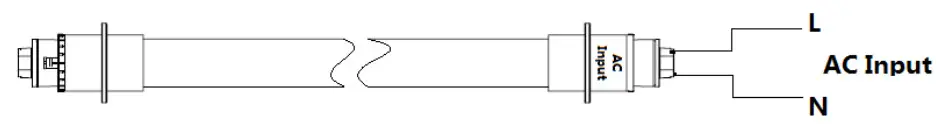

   b. Power cord installation, please rewiring the fixture according to the below diagram.

4. SIGN TUBE LIGHT ASSEMBLE
   a. Please check the length of the original fluorescent tube, and then select the right components accordingly.

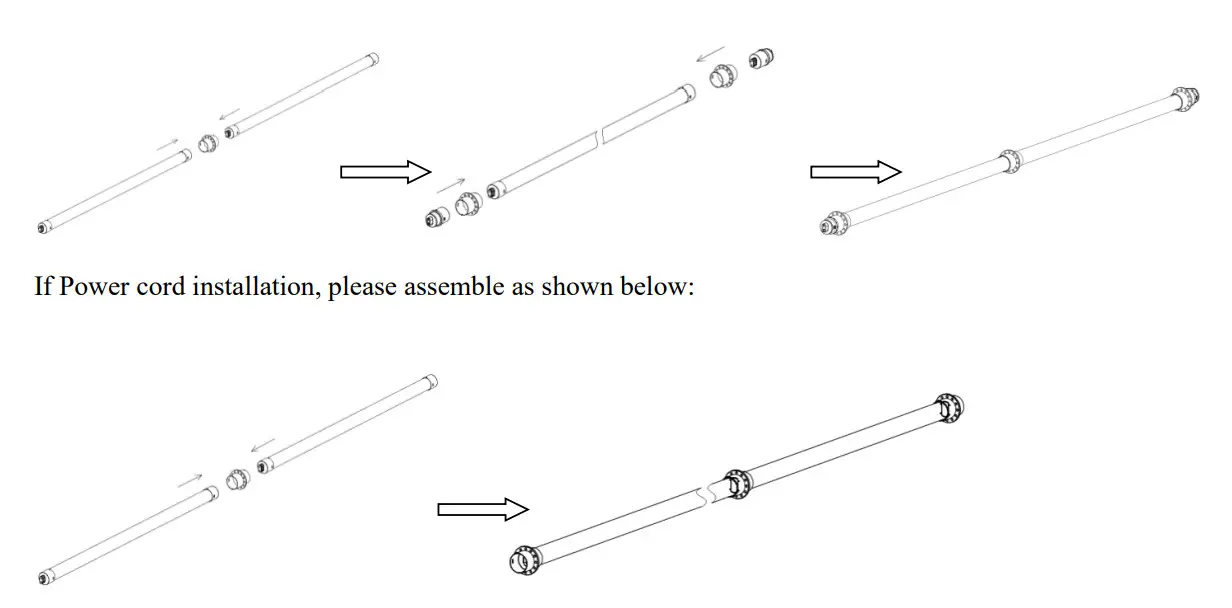

   b. LED Sign tube light assemble
   If R17d lamp holder installation, please assemble as shown below:

5. INSERT LED SIGN TUBE LIGHTS
   5.1 R17d lamp holder installation
   a. Read label on the lamp to ensure the power end of LED is aligned with powered tube socket, then insert LED lamp in the normal way by sliding pins into sockets and  rotating a quarter turn until LED tube locks in place.
   b. Repeat above step for all LED tube lamps.

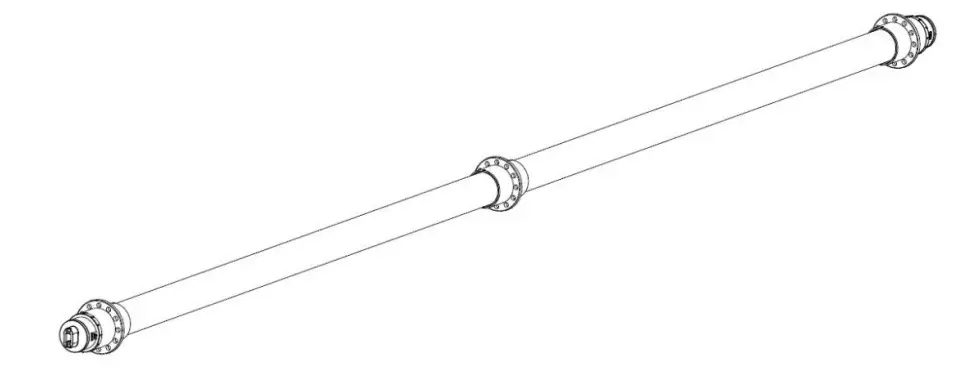

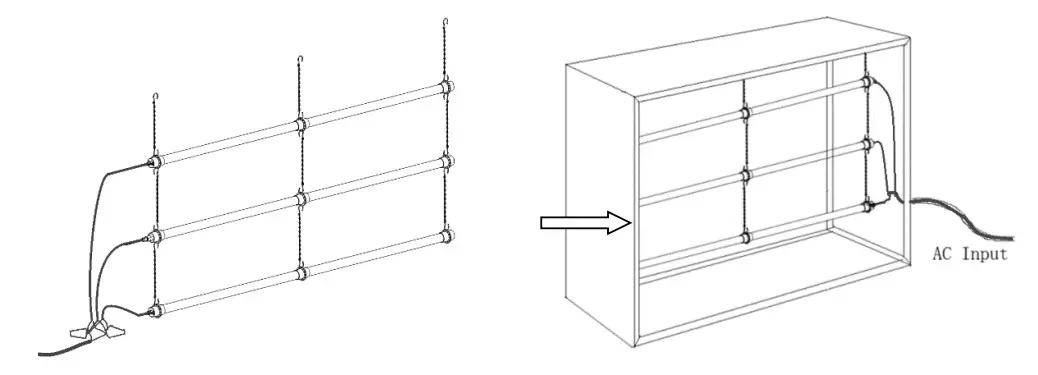

   c. Fix the hanging chain to hanging connector on the splicing part of the lamp, and hang up with chains one to one between connectors, as shown below.
   d. LED lamps are now fully installed.
   e. Replace troffer lens, if present.
   f. After modification completed. Attach the Replacement Marking and cautionary Label to a visible place on the luminaire and keep it visible after installation.

6. RESTORE THE POWER OF LUMINAIRE
   Restore power to circuit/luminaire and test light. If necessary, adjust position of LED tube, and enjoy your new LED tube light!

Trouble Shooting

Packaging

Application

Widely used in supermarket, warehouse, garage, home, office, hotel, hospital, school etc.

Safety Precautions

To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions, and other hazards read all warnings and instructions  included with and on the fixture box and all fixture labels.
Before installing, servicing, or performing routine maintenance upon this equipment, follow these general precautions.
Commercial installation, service and maintenance of luminaires should be performed by a qualified licensed electrician.
For the installation: If you are unsure about the installation or maintenance of the luminaires, consult a qualified licensed electrician and check your local electrical code.
To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects. Do not make or alter any open holes in an enclosure of wiring or  electrical components during kit installation.

WARNING: RISK OF FIRE OR ELECTRICAL SHOCK
Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
Turn off the power when you perform any maintenance.
Verify that supply voltage is correct by comparing it with the luminaire label information.
Make all electrical and grounded connections in accordance with the National Electrical Code and any applicable local code requirements. All wiring connections should be  capped with UL approved wire connectors.

CAUTION: RISK OF INJURY
Avoid direct eye exposure to the light source while it is on.
Account for small parts and destroy packing material, as these may be hazardous to children.

Warranty

5 Years Warranty

(866) 786-1117  www.BeyondLEDTechnology.com
Due to continuous product improvement, information in this document is subject to change.
