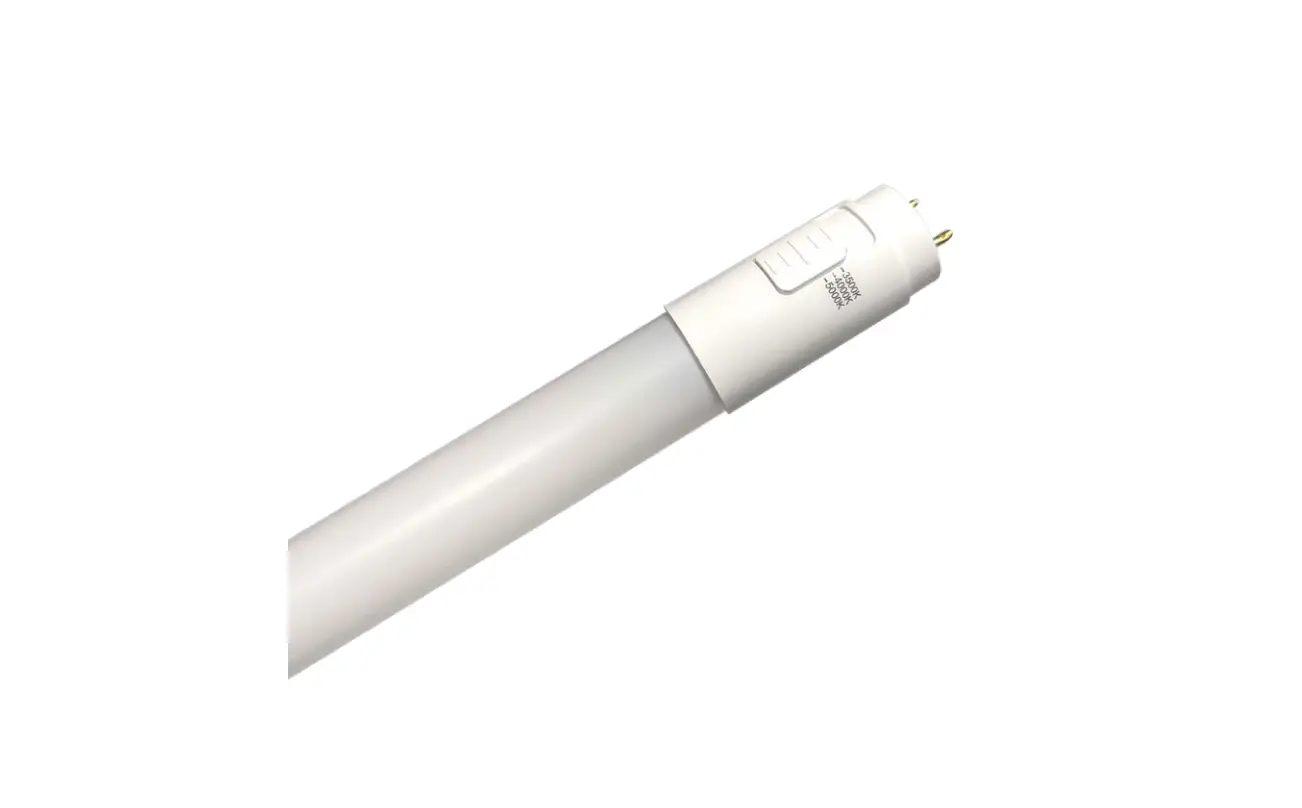

SUPER BRIGHT LEDS T8U4-40K18-PFN Single/Dual Side Type A/B T8 LED Tube
Important: Read all instructions prior to installation.
Safety and Notes
- Product should be installed in accordance with all applicable national, state, and local building and electrical codes.
- To reduce the risk of electric shock, ensure that the main power source and circuit breakers are switched off before performing any installation or wiring procedures.
- Avoid looking directly into the lamp when illuminated.
Specifications
| Specifications | T8U4-xK15-AFN | T8U4-xK18-AFN / T8U4-xK18-PFN |
| Operating Voltage | 120–277 VAC | |
| Wattage | 15 W [type B], 17.5 W [type A] | 18 W [type B], 20.5 W [type A] |
| Operating Temperature | -4°–113° F(-20°–45° C) | |
| IP Rating | IP20 | |
| Dimmable | No | |
| Connection Type | G13 bi-pin, single- or dual-ended | |
Installation Instructions
B
- Remove power from fixture before replacing lamps or modifying ballast.
- Bypass ballast and use wire nuts to cover any exposed wire ends.
Note: Tubes can be powered using single- or dual-sided installation. - Install tubes into fixture, and install retrofit label in a visible location on the fixture.
A
- Refer to ballast compatibility chart to ensure bulbs will work with existing ballast.
- Remove power from fixture before replacing lamps.
- Install tubes into fixture.
Modification Label
A label needs to be placed onto the fixture in a location that is visible during retrofit that has the following caution.
Caution Risk of Injury or Damage:
This luminaire has been modified to operate LED lamps. Do not attempt to install or operate fluorescent lamps in this luminaire.
Ballast Compatibility
| Accupro | |
| 1 | AP-432IP-UNV |
| 2 | AP-332IP-UNV-M |
| Advance | |
| 1 | IOPA-4P32-LW-N |
| Espen | |
| 1 | VE232MVHIPLE |
| 2 | VE232MVHIPE |
| 3 | VE432MVHIPE |
| 4 | VE432MVHIPLE |
| 5 | VE432120HIP |
| GE | |
| 1 | GE232MAX-L/Ultra |
| 2 | GE332MAX-N/Ultra |
| 3 | GE232MAX347-N |
| 4 | GE432MAX347-N |
| 5 | GE232-MVPS-N |
| 6 | GE332-MVPS-N |
| 7 | GE432-MVPS-N |
| 8 | GE432-120RESDIYB |
| 9 | GE-240-RS-MV-N |
| 10 | GE232-N-347 |
| 11 | GE132MAX-H/ULTRA |
| Halco | |
| 1 | EP232IS/L/MV/HE |
| Howard Industries | |
| 1 | EP3/32IS/MV/MC/HE |
| Keystone | |
| 1 | KTEB-232RIS-1-TP-SL |
| 2 | KTEB-232RIS-1-TP-SL/Ga |
| Osram | |
| 1 | QHE 2x32T8/UNV ISN-SC |
| 2 | QHE 3x32T8/UNV ISN-SC |
| 3 | QHE 3x32T8/UNV PSN-SC |
| Philips | |
| 1 | ICN-2P32-N |
| 2 | ICN-3P32-N |
| 3 | ICN-2S40-N |
| 4 | IOP-4P32-LW-N |
| 5 | IOPA-1P32-N |
| 6 | IOPA-4P32-N |
| 7 | IOPA-2P32-LW-N |
| 8 | IOP-3P32-N |
| Sylvania | |
| 1 | QHE 1x32T8/UNV ISN-SC |
| 2 | QHE 3x32T8/UNV ISL-SC |
| 3 | QTP 2x32T8/UNV ISL-SC |
| 4 | QT 4X32/120 LP |
| 5 | QT 2×32 T8/347 ISL-SC |
| 6 | QHE 4x32T8/347 ISN-SC |
| 7 | QHE 4x32T8/347 ISL-SC |
| Triad | |
| 1 | B232IUNVHP-N |
| 2 | B332IUNVHP-A |
| 3 | B432IUNVHP-A |
| 4 | B232IUNVHP-B |
| Universal | |
| 1 | B332IUNVHE-A |
| 2 | B432IUNVHE-A |
| 3 | B232IUNVEL-N |
| 4 | B332IUNVEL-A |
| 5 | B232IUNVHEH-A |
| 6 | B332PUNVHE-A |
| 7 | B4321UNVEL-A |
| Work Horse | |
| 1 | WH3-120-C |
| 2 | WH3-120-L |
| Pacific Fluorescent | |
| 1 | EB-232IS-120-RES |
