RAIN HARVESTING RHLC21 Leaf Catcha Slimfit

PRODUCT DETAILS

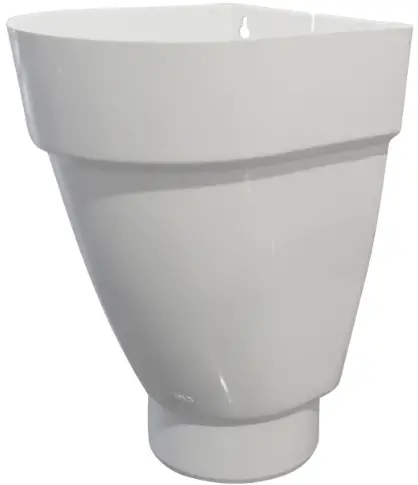

The Slimfit is the most compact of the Leaf Catcha range and can squeeze into the tightest spots. It looks great mounted on posts too.
It’s straightforward, bucket design ensures you catch every drop of water while filtering out leaves and debris. Though smaller than other rain heads, it still handles massive flow rates so you catch every drop. Install it in a location where you can periodically clean it, and you’ll be rewarded with huge amounts of great quality rainwater.

WHAT’S IN THE BOX?

• Leaf Catcha Slimfit body
• Leaf Catcha Slimfit screen
• Adaptors (RHLC221, RHLC121, RHLC321, RHLC521, RHLC621 versions)

TOOLS/MATERIALS YOU MAY REQUIRE

• Tape measure
• Marker pen
• Saw
• Pipe brackets
• Screws
• Screwdriver or drill

INSTALLATION

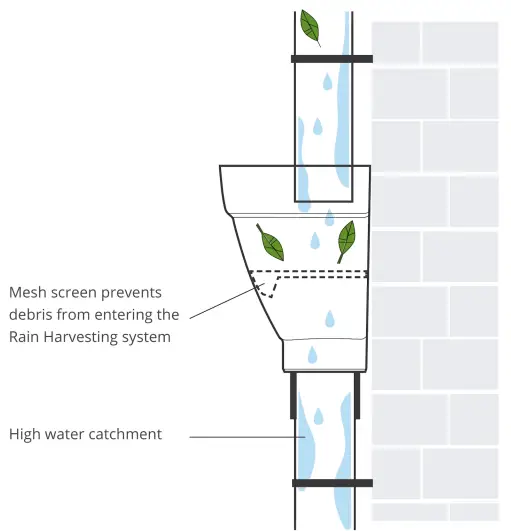

HOW IT WORKS

LEAF CATCHA SLIMFIT

1. Select the location point for your Leaf Catcha Slimfit rain head – it can be midway down your downpipe or directly under the eaves. Either way, ensure it is a minimum of 500mm above your tank inlet and tank overflow pipe.
2. Remove a 170mm section of pipe at your desired installation point. Ensure all cut edges are clean and smooth.
3. Ensure the pipe is secure against the wall with pipe brackets/ clips.
4. Place the mesh screen in your Leaf Catcha Slimfit, making sure that the lip of the screen clicks under the retaining bumps.
5. Angle your Leaf Catcha Slimfit slightly to slip it under the upper section of downpipe, then slide it into line and push the unit down so that the outlet sits on the lower section of downpipe. Do not glue in place.
6. You can use the rear screw holes to secure your Leaf Catcha Slimfit to the wall if required.

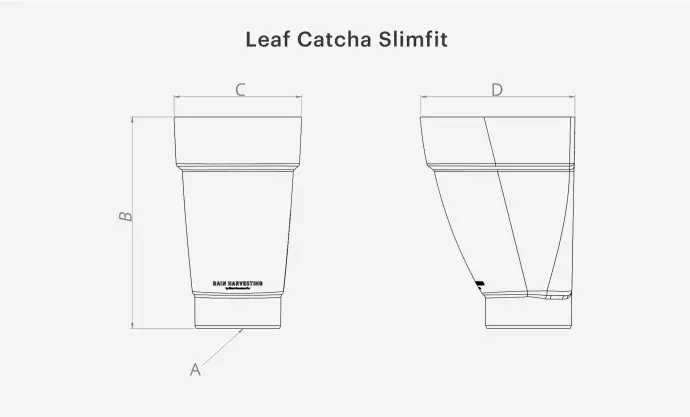

Product Specifications

Fitting guide:

• F = Female/ Socket Fitting
• M = Male/ Spigot Fitting (Pipe size)
• IP= In-Pipe Fitting

Maintenance

• For best performance, check and empty your Leaf Catcha Slimfit rain head on a regular basis.
• To clean, simply pull the screen out of the Leaf Catcha rain head (or remove the entire rain head if it’s easier) and brush off any debris.
• Once you have cleaned the screen, re-install all parts, making sure that the screen clicks into place in the rain head.

Supported by RAIN HARVESTING

A common misconception about collecting rainwater is that all you need is a roof, a tank and some rain. This ‘tanking’ approach cannot always be relied on to deliver the volume – or quality – of water that you require. That is where we can help.

With some thought, your rain harvesting system can provide you with cleaner water and lots of it. Whether you’re completely reliant on tank water or wanting to keep the garden green, our simple steps will help you achieve your goal.

The Rain Harvesting approach to rainwater collection involves using tested and proven products to make quality rainwater available for use in and around your property. You don’t need much to get started and you will be surprised how easy it is to get the most out of your rainwater system.

How can we helpyou?

DISCLAIMER: This product specification is not a complete guide to product usage. Further information is available from Rain Harvesting Pty Ltd and from the Installation and Operating Instructions. This specification sheet must be read in conjunction with the Installation and Operating Instructions and all applicable statutory requirement. Product specifications may change without notice. © Rain Harvesting Pty Ltd
