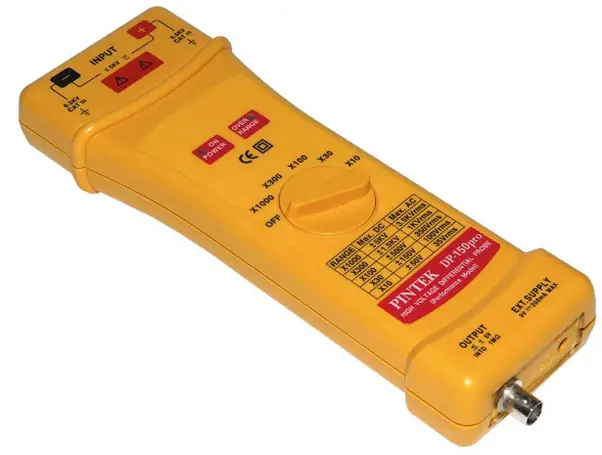

Pintek Dp-40k High Voltage Differential Probe User Guide

DP-40K High Voltage Differential Probe
User Guide

DP-40K High Voltage Differential Probe

DP-40K HIGH VOLTAGE DIFFERENTIAL PROBE

SPECIFICATIONS

1. Bandwidth:
   DC – 75 MHz (-3 dB) for x 500
   DC – 20 MHz (-3 dB) for x 5000
2. Attenuation: x 500, x 5000
3. Accuracy: ± 2%
4. Voltage Input Ranges (DC + AC peak to peak)
   ≤ 40 KV for x 5000, (i.e about 14 KV RMS or ± 20 VK DC)
   ≤ 4 KV for x 500, (i.e about 1.4 KV RMS or ± 2 KV DC)
5. Permitted Max Input Voltage
   Max differential voltage: ≤ 40 KV (DC + AC peak to peak)
   Max voltage between each input terminal and ground: 10 KV RMS
6. Input Impedance: Differential: 108.8 MΩ // 1 pF Between terminals and ground: 54.4 M // 2 pF
7. Output: ± 4.0 V
8. Output Impedance: 50
9. Rise Time: 4.7 ns for x 500 17.5 ns for x 5000
10. Rejection Rate on Common Mode: 60 Hz:> 80 dB, >100 Hz: >60 dB, 1 MHz:> 50 dB
11. Power Supply: External 9 V DC power supply.
12. Consumption: 120 mA max (1.1 WATT)
