Electrolux Mq927gne Built-in Oven User Manual

Electrolux MQ927GNE Built-in Oven

WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux.

Visit our website for:

• Get usage advice, brochures, trouble shooter, and service information:
  www.electrolux.com
• Register your product for better service:
  www.electrolux.com/productregistration
• Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop.

CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts. When contacting Service, ensure that you have the following data available. The information can be found on the rating plate. Model, PNC, Serial Number.

• Warning/Caution-Safety information
• General information and tips
• Environmental information

Subject to change without notice.

SAFETY INFORMATION

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. This appliance is not intended for use at altitudes above 2000m.

• IMPORTANT! IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
• WARNING!
  If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
• WARNING!
  It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• WARNING!
  Liquids and other foods must not be heated in sealed containers since they are liable to explode.

This appliance is intended to be used in households and similar applications such as: staff kitchen areas in shops, offices and other working environments; farmhouses; by clients in hotels, motels and other residential environments; bed and breakfast-type environments.

Only use microwave-safe containers and utensils. Metallic containers for food and beverages are not allowed during microwave cooking. Do not leave the oven unattended when using disposable plastic, paper or other combustible food containers. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

If the food being heated begins to smoke, DO NOT OPEN THE DOOR. Turn off and unplug the oven and wait until the food has stopped smoking. Opening the door while food is smoking may cause a fire. Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Do not cook eggs in their shells and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended.

Care and cleaning

Door:
To remove all traces of dirt, regularly clean both sides of the door, the door seals, and sealing surfaces with a soft, damp cloth. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in the shattering of the glass.

Oven interior:
For cleaning, wipe any splatters or spills with a soft damp cloth or sponge after each use while the oven is still warm. For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed. Do not remove the waveguide cover. Make sure that mild soap or water does not penetrate the small vents in the walls which may cause damage to the oven. Do not use spray-type cleaners on the oven interior. Heat up your oven regularly by using the grill. Remaining food or fat splashed can cause smoke or a bad smell. Clean the waveguide cover, the oven cavity, the turntable, and the turntable support after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire.

Oven exterior:
The outside of your oven can be cleaned easily with mild soap and water. Make sure the soap is wiped off with a moist cloth, and dry the exterior with a soft towel.

Control panel:
Open the door before cleaning to deactivate the control panel. Care should be taken when cleaning the control panel. Using a cloth dampened with water only, gently wipe the panel until it becomes clean. Avoid using excessive amounts of water. Do not use any sort of chemical or abrasive cleaner.

Turntable and turntable support:
Remove the turntable and turntable support from the oven. Wash the turntable and turntable support in mild soapy water. Dry with a soft cloth. Both the turntable and the turntable support are dishwasher safe.

Racks:
This should be washed in a mild washing-up liquid solution and dried. The racks are dishwasher safe.

IMPORTANT!
Clean the oven at regular intervals and remove any food deposits. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Care should be taken not to displace the turntable when removing containers from the appliance.

IMPORTANT!
A steam cleaner should not be used. The microwave oven is intended to be used built-in. The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

• WARNING!
  Keep children away from the door and accessible parts that may become hot when the grill is in use. Children should be kept away to prevent them from burning themselves.
• IMPORTANT!
  Do not use commercial oven cleaners, steam cleaners, abrasive, harsh cleaners, any that contain sodium hydroxide or scouring pads on any part of your microwave oven.

INSTALLATION

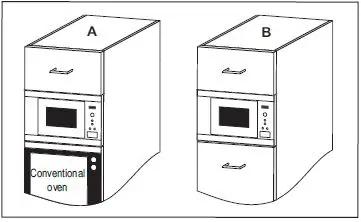

The microwave can be fitted in position A or B:

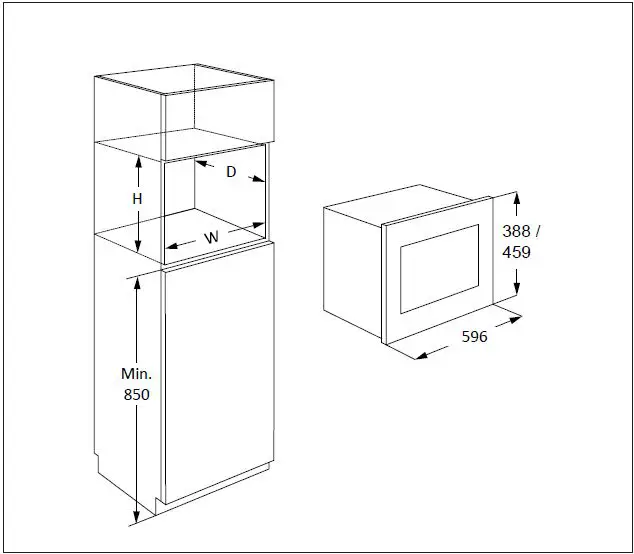

Measurements in (mm)

Installing the appliance

1. Remove all packaging and check carefully for any signs of damage.

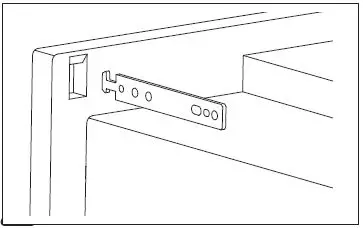

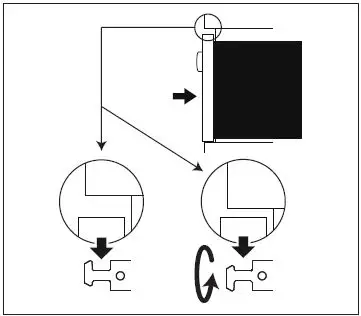

2. Fit the fixing hooks to the kitchen cupboard using the instruction sheet and template supplied.

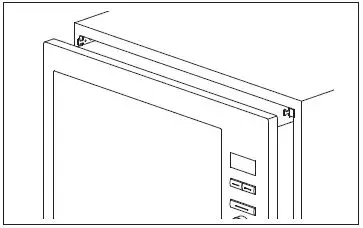

3. Fit the appliance into the kitchen cupboard slowly and without force. The appliance should be lifted onto the fixing hooks and then lowered into place. In the case of interference during fitting, this hook is reversible. The front frame of the oven should seal against the front opening of the cupboard.
4. Ensure the appliance is stable and not leaning. Ensure that a 4 mm gap is kept between the cupboard door above and the top of the frame (see diagram).

Connecting the appliance to the power supply

• The electrical outlet should be readily accessible so that the unit can be unplugged easily in an emergency. Or it should be possible to isolate the oven from the supply by incorporating a switch in the fixed wiring in accordance with the wiring rules.
• The power supply cord may only be replaced by an electrician.
• If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The socket should not be positioned behind the cupboard.

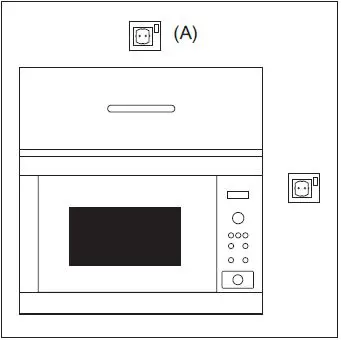

• The best position is above the cupboard, see (A).
• Connect the appliance to a single phase 220-240 V/50 Hz alternating current via a correctly installed earth socket. The socket must be fused with a 16 A fuse.
• Before installing, tie a piece of string to the power supply cord to facilitate connection to point (A) when the appliance is being installed.
• When inserting the appliance into the high-sided cupboard, DO NOT crush the power supply cord.
• Do not immerse the power supply cord or plug in water or any other liquid.
• Do not allow the power supply cord to run over any hot or sharp surfaces, such as the hot air vent area at the top rear of the oven.

Additional advice
Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire. To make popcorn, only use special microwave popcorn makers.

Individuals with PACEMAKERS should check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens.
Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately and call an authorised ELECTROLUX service agent. Never modify the oven in any way. Only use the turntable and the turntable support designed for this oven. Do not operate the oven without the turntable.

To prevent the turntable from breaking:

• Before cleaning the turntable with water, leave the turntable to cool.
• Do not put hot foods or hot utensils on a cold turntable.
• Do not put cold foods or cold utensils on a hot turntable.

Do not use plastic containers for microwaving if the oven is still hot from using the GRILL mode and DUAL GRILL mode because they may melt. Plastic containers must not be used during the above modes unless the container manufacturer says they are suitable. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure. Water vapor or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or malfunction.

Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, and humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

PRODUCT DESCRIPTION

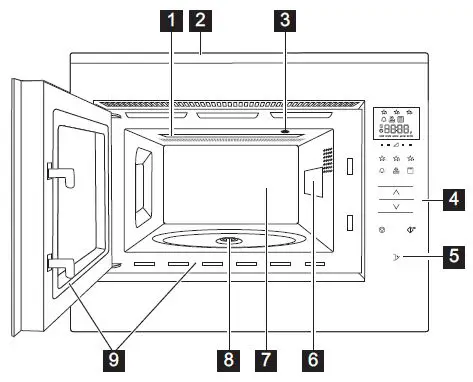

Microwave oven

1. Grill heating element
2. Front trim
3. Oven light
4. Control panel
5. Door open key
6. Waveguide cover
7. Oven cavity
8. Seal packing
9. Door seals and sealing surfaces

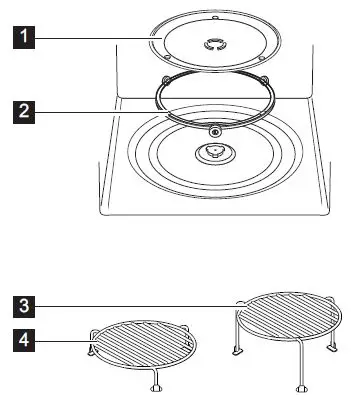

Accessories

Check to make sure the following accessories are provided:

1. Turntable
2. Turntable support
3. High rack
4. Low rack

• Place the turntable support on the floor of the cavity.
• Then place the turntable on the turntable support.
• To avoid turntable damage, ensure dishes or containers are lifted clear of the turntable rim when removing them from the oven.

When you order accessories, please mention two items: part name and model name to your dealer or an authorised ELECTROLUX service agent.

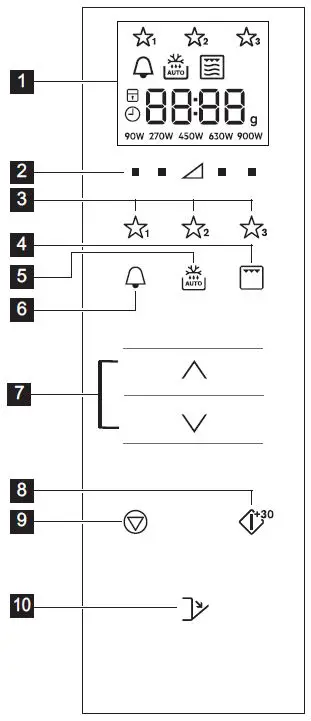

Control panel

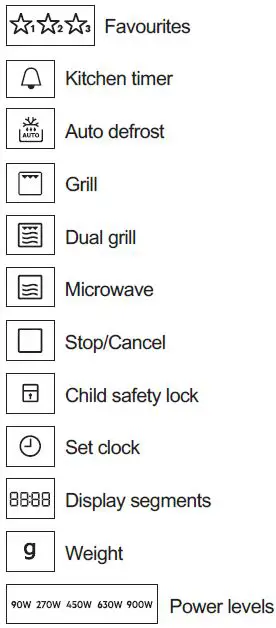

1. Digital display indicators:
2. Power level keys
3. Favourites keys
4. Grill key
5. Auto defrost key
6. Kitchen timer key
7. More/Less keys
8. Start/Confirm/Quick start key
9. Stop key
10. Door open key

BEFORE FIRST USE

Plugin
When the oven is plugged in for the first time you have the option of setting the clock. The oven has a 24hr clock.

1. The oven will beep and all of the display icons will be switched on for half a second. Press the MORE/LESS keys until ‘on’ or ‘oFF’ is displayed.
2. 1. To turn the clock off, press the MORE/LESS keys until ‘oFF’ is displayed then press the START key. The oven is ready to use.
      If you have turned the clock off and want to turn it back on, press the KITCHEN TIMER key twice and follow 2b.
   2. To turn the clock on, press the MORE/LESS keys until ‘on’ is displayed then press the START key.
      Example: To set the clock to 18:45.
      1. Press the MORE/LESS keys to adjust the hour.
3. Press the START key to confirm.
4. Press the MORE/LESS keys to adjust the minutes.
5. Press the START key to confirm.

When the clock is set, the time of day will not be shown in the display.

Standby (Economy mode)
The oven will automatically enter standby mode if it is not used within a 5 min period.

Example:
If the clock has not been set: The display will switch off.

Open the door or press any key to exit standby mode.

Example:
If the clock has been set: After the 5-minute period, the time will be displayed.

Adjusting the clock when set
You can adjust the clock after the time has been set.

Example:
To change from 18.45 to 19.50.

1. Press the KITCHEN TIMER key twice.
2. Press the START key.
3. Press the MORE/LESS keys until ‘19’ is displayed.
4. Press the START key.
5. Press the MORE/LESS keys until ‘50’ is displayed.
6. Press the START key.

OPERATION

Microwave cooking
Example: To heat soup for 2 minutes and 30 seconds on 630 W microwave power.

1. Press the POWER LEVEL key to the right of the triangle until ‘630 W’ is displayed.
2. Press the MORE/LESS keys to enter the time.
3. Press the START key.

In microwave cooking mode, you can adjust the power level of the oven by pressing the key directly below the required setting. You can set the power level when the oven is running by pressing and holding the required POWER LEVEL key until the new power setting is highlighted on the display. Power levels that are too high or cooking times that are too long may overheat foods resulting in a fire.

If 900 W is selected then the maximum microwave time that can be input is 15 minutes. If the oven runs in any mode for 3 minutes or longer, the fan will stay on for 2 minutes after the cooking ends. Open the door and it will stop, close the door it will start again until 2 minutes is finished (including door open time). If the oven runs for less than 3 minutes the fan will not come on. After cooking the turntable will continue to rotate until the cooking vessel returns to its initial start position. The cavity light will remain on until the completion of the rotation, or for 5 seconds (whichever is greater). The oven will beep when complete. If the door is opened during this process, the rotation will stop.

Power levels

W = WATT

Reduced power level

Adjusting the cooking time during cooking
You can adjust the cooking time during cooking.

Example: To add 2 minutes (120 seconds) using the START key.

1. Press the START key four times.
2. The cooking time will increase by 120 seconds.

Using the stop key

• Press the STOP key once to enter Pause mode.
• Press the STOP key again to cancel the cooking time.

Kitchen timer
To set the kitchen timer.

1. Press the KITCHEN TIMER key.
2. Press the MORE/LESS keys to enter the time.
3. Press the START key. The timer will automatically start.

The time can be extended when the timer is running by pressing the START key. The timer function can only be used when the oven is not running.

Quick start
You can directly start cooking on 900 W/HIGH for 30 seconds by pressing the START key.

To add more time press the START key.

Mute
To turn the sound off.

1. Press the KITCHEN TIMER key 3 times until ‘Soun’ is displayed.
2. Press the MORE/LESS keys until ‘oFF’ is displayed.
3. Press the START key.

To turn the sound on.

1. Press the KITCHEN TIMER key 3 times until ‘Soun’ is displayed.
2. Press the MORE/LESS keys until ‘on’ is displayed.
3. Press the START key.

Pause
To pause whilst the microwave is running.

1. Press the STOP key or open the door.
2. The oven will pause for up to 5 minutes.
3. Press START to continue cooking.

Grill and dual grill
This microwave oven has two grill cooking modes:

Grill only
Dual grill (grill with microwave)

IMPORTANT!
The high or low rack is recommended for grilling. You may detect smoke or a burning smell when using the grill for the first time, this is normal and does not indicate a fault with the oven. To avoid this problem, when using the grill for the first time, operate the grill without food for 20 minutes.

1. Press the MORE/LESS keys to enter the time.
2. Press the GRILL key once for Dual Grill mode (Grill + Microwave) and press the START key.
3. Press the GRILL key again to select Grill only mode.
4. Press the START key.

In Dual Grill mode the 90 W and 900 W microwave power levels are not available. To exit Dual Grill or Grill mode press the GRILL key until the microwave-only symbol is illuminated on the display.

Favorites
The oven has 3 Favourite recipes.

• Soften Butter
• Melt Chocolate
• Mug Cake

Example: To soften butter.

1. Press the FAVOURITE 1 key once.
2. Press the MORE/LESS keys to select the weight.
3. Press the START key.

If display segments exhibit a rotating pattern this indicates that the food needs to be stirred or turned over. To continue cooking, press the START key. At the end of the auto defrost time, the program will automatically stop. The power levels for the pre-set Favourite recipes cannot be adjusted. 1-4 Mug cakes can be cooked.

WARNING!
Chocolate may become very hot! If the chocolate needs longer cooking time then add 10 seconds. Take care with chocolate as it may overheat and burn.

To overwrite Favourites for your own recipes.

• Press the POWER level key to select the power.
• Press the MORE/LESS keys to enter the time.
• Press and hold the FAVOURITE key you want to set until you hear a single beep and the favourite star is visible.

To reset Favourites to the factory settings.

1. Press the STOP key.
2. Press and hold POWER LEVEL 450 W for 3 seconds.

The oven will reset Favourites to the factory settings.

Auto defrost
Auto defrost automatically works out the correct cooking mode and cooking time based on the weight of the food.

You can choose from 2 auto-defrost menus.

1. Auto Defrost: Meat/Fish/Poultry
2. Auto Defrost: Bread

Example: To defrost 0.2 kg steak.

1. Select the auto-to-defrost menu by pressing the AUTO DEFROST key once.
2. Press the MORE/LESS keys to select the weight.
3. Press the START key.

If display segments exhibit a rotating pattern this indicates that the food needs to be stirred or turned over.
To continue cooking, press the START key. At the end of the auto defrost time, the program will automatically stop. Time/Power adjustment is not available in auto to defrost.

COOKING CHARTS

Favorites

Favourites	Weight                    Key                                    Procedure
Soften Butter	0.05-0.25 kg                             •  Place the butter into a pyrex dish. Stir well after cooking.
Melt Chocolate	0.1-0.2 kg                                • Break up the chocolate into small pieces. Place the chocolate into a pyrex dish. Stir when audible bell sounds. Stir well after cooking. WARNING: Chocolate may become very hot! If the chocolate needs longer then add 10 seconds cooking time. Take care with chocolate as it may overheat and burn.
Mug Cake	1-4 mugs                                 • Make the cake as the recipe. Place the mug towards the edge of the turntable. Stand for 30 seconds after cooking.

Mug cake recipes

Method:

1. Put all of the dry ingredients into a mug, and mix well with a fork.
2. Add the vegetable oil, vanilla extract, and egg, and mix well.
3. Place the mug off-center on the turntable.
4. Cook using. The cake will rise out of the mug during cooking.

After cooking, stand for 30 seconds.

Decorate with a swirl of chocolate buttercream.

Tip:
To make Chocolate Orange Mug Cake replace the vanilla extract with ½ tsp orange extract.

Method:

1. Put all of the dry ingredients into a mug, and mix well with a fork.
2. Add the vegetable oil, vanilla extract, and egg, and mix well.
3. Fold in the jam using a spoon so that it streaks the mixture.
4. Place the mug off-center on the turntable.
5. Cook using. The cake will rise out of the mug during cooking.

After cooking, stand for 30 seconds. Decorate with a swirl of vanilla buttercream.

Method:

1. Put all of the dry ingredients (except for the biscuit) into a mug, and mix well with a fork.
2. Add the vegetable oil and egg, and mix well.
3. Gently fold in the apple sauce using a spoon so that it streaks the mixture.
4. Top with the crushed digestive biscuit.
5. Place the mug off-center on the turntable.
6. Cook using. The cake will rise out of the mug during cooking.

After cooking, stand for 30 seconds. Top with a scoop of vanilla ice cream.

WARNING! The apple sauce will be hot.

Method:

1. Put all of the dry ingredients into a mug, and mix well with a fork.
2. Add the vegetable oil, vanilla extract, peanut butter, and egg and mix well.
3. Place the mug off-center on the turntable.
4. Cook using. The cake will rise out of the mug during cooking.

After cooking, stand for 30 seconds. Top with chocolate spread.

Tip: Use crunchy peanut butter if you prefer.

Method:

1. Put all of the dry ingredients into a mug, and mix well with a fork.
2. Add the vegetable oil, lemon zest, and egg, and mix well.
3. Place the mug off-center on the turntable.
4. Cook using. The cake will rise out of the mug during cooking.
5. Make the drizzle topping by mixing the lemon juice with the castor sugar.
6. After cooking, loosen the cake, pierce the top all over with a skewer, then drizzle the topping over the cake, and stand for 30 seconds.

Method:

1. Put all of the dry ingredients into a mug, and mix well with a fork.
2. Add the sunflower oil, orange zest, grated carrot, and egg, and mix well.
3. Place the mug off-center on the turntable.
4. Cook using. The cake will rise out of the mug during cooking.
5. Make the topping by mixing the butter, icing sugar, cream cheese and orange juice together.

After cooking, stand for 30 seconds. Allow the cake to cool, then add the topping.

Auto defrost

Auto defrost	Weight	Key		Procedure
Meat/fish/poultry	0.2-1.0 kg			•    Place the food in a flan dish in the centre of the turntable. •    When the audible bell sounds, turn the food over, rearrange and separate. Shield thin parts and warm spots with aluminum foil. •    After defrosting, wrap in aluminum foil for 15-45 min, until thoroughly defrosted. •    Minced meat: When the audible bell sounds, turn the food over. Remove the defrosted parts if possible.
(Whole fish, fish steaks, fish fillets, chicken legs, chicken breast, minced meat, steak, chops, burgers, sausages)
				Not suitable for whole poultry.
Bread	0.1-1.0 kg			•    Distribute in a flan dish in the center of the turntable. For 1.0 kg, distribute directly on the turntable. •    When the audible bell sounds, turn over, rearrange and remove defrosted slices. •    After defrosting cover in aluminum foil and stand for 5-15 min until thoroughly defrosted.

Enter the weight of the food only. Do not include the weight of the container. For food weighing more or less than the weights/quantities given in the chart, use manual operation. The final temperature will vary according to the initial temperature. Steaks and chops should be frozen in one layer. Minced meat should be frozen in a thin shape.

Heating food and drink

1. from chilled

Defrosting

Cooking from frozen

Cooking and grilling

If the oven runs in any mode for 3 minutes or longer, the fan will stay on for 2 minutes after the cooking ends. Open the door and it will stop, close the door it will start again until 2 minutes is finished (including door open time). If the oven runs for less than 3 minutes the fan will not come on.

HINTS AND TIPS

Microwave safe cookware

Microwave cooking advice

Use pot holders or oven gloves when removing food from the oven to prevent burns. Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid steam burns. Always stand back from the oven door when opening to avoid burns from escaping steam and heat. Slice stuffed baked foods after heating to release steam and avoid burns.

TROUBLESHOOTING

TECHNICAL INFORMATION

1. This Product fulfills the requirement of the European standard EN55011. In conformity with this standard, this product is classified as group 2 class B equipment. Group 2 means that the equipment intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food. Class B equipment means that the equipment is suitable to be used in domestic establishments.
2. Internal capacity is calculated by measuring maximum width, depth, and height. The actual capacity for holding food is less.

ENVIRONMENT CONCERNS

Recycle materials with the symbol. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and recycle waste electrical and electronic appliances.

• Do not dispose of appliances marked with the symbol household waste. Return the product to your local recycling facility or contact your municipal office.

Contact Information

www.electrolux.com.

shop
electrolux.com/shop.

References

• Electrolux
• Electrolux
• Electrolux
• Electrolux
