Bernstein E700w Electrical Heating Element For Bathroom Towel Rail Radiator Instruction Manual

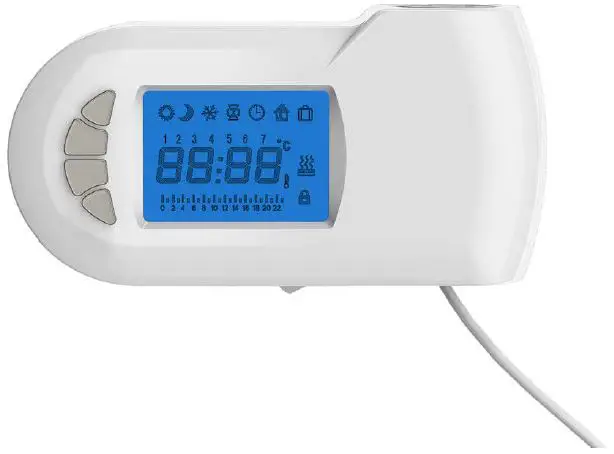

BERNSTEIN E700W Electrical Heating Element for Bathroom Towel Rail Radiator

LCD screen descriptions

Basic Technical Characteristics:

• Power supply: AC230V ± 10% / 50HZ
• Max heating element: 2000W
• Insulation class: Class II
• Water protection class: IPX4
• Regulation: ON/OF
• Temperature range:
• Analogic with knob 0°C ~ 55°C
• Temperature setting range: 7°C ~ 30°C
• Time model: 24 hours
• Week model: number display 1 ~ 7
• Timer model: multi-step setting,1 hour up
• Program mode: comfortable, comfortable-1, comfortable-2, economic model, Thaw model, shutdown mode

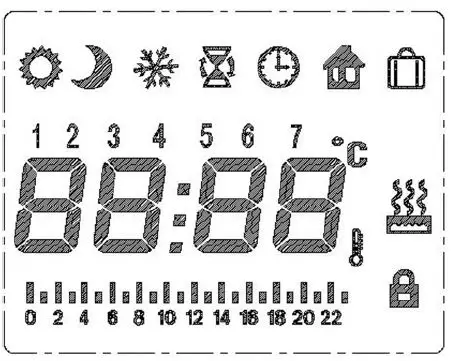

Panel display picture

Icon Display instructions

• Comfortable model: To set the daytime temperature separately, temperature setting range 7°C ~ 30°C.|
• Economic model: To set the night temperature separately, temperature setting range 7°C ~ 30°C. The maximum temperature can not exceed the comfortable temperature in comfort mode.
• Thaw model: The temperature is set to 7°C, the temperature can not be changed.
• BOOST model: continuously heating up, the time span can be up to 2 hours.
• Timer model: Timer function.
• Wire control model: 6 models

1. comfortable model,
2. comfortable model-1,
3. comfortable model-2,
4. Economic model,
5. Thaw model,
6. Shutdown mode

• Travel model: You can set the days and the temperature for your absence.
• Wireless connection: A wireless connection is not possible with this model.
• Time and temperature display
• Heating function: when in heating status is displayed
• Children lock function: No operation can be performed in this state.(Except for power off and on)

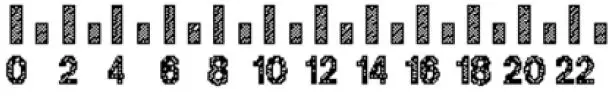

• Timeline: Setting time, setting range from 0 ~ 23 o‘clock

STATEMENT

This instruction should only be considered as a standard manual. Modifications applied to updated version of the pro-duct might not be mentioned inside this document. In this case, please just use the manual as a reference. The company reserves modification rights.
