Newtech Cl120h430 Evoke And Quadro Heated Towel Rail Instruction Manual

new tech CL120H430 Evoke and Quadro Heated Towel Rail

Thank you for purchasing a Newtech Heated Towel Rail.

• This heated towel rail has been crafted using high quality durable stainless steel and will have a long lasting and productive life provided it is used in accordance with manufacturers general conditions.
• This towel rail must be installed by a registered electrician.
• This product is designed to be used at a stabilised temperature of 60˚C under towelling, depending on towel dryness and ambient temperature.
• This product comes with a ten year warranty. If you feel you have a complaint or issue with this towel rail, in the first instance contact the retailer from whom you
• purchased this product. Newtech will endeavour to provide a satisfactory outcome for your complaint. If the retailer or installer needs to discuss any installation issues, then please use the following contact details:

Phone 0800 728 662 Fax 06 344 2597 Email [email protected]

CARE OF YOUR TOWEL RAIL

To clean, use mild cleaning detergents. Any harsh scrubbing or scratching of the product surface is strictly prohibited, same to the use of any cleaning products which contain acid or any corrosive agents. If you are loving your Newtech Towel warmer tell others; if you are not tell US!
WARNING
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
WARNING: In order to avoid a hazard for very young children, this appliance should be installed so that the lowest heated rail is at least 600mm above the floor.
The installation of the towel rail must be performed by a registered electrician and installation is to comply with AS/NZS 60335.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. All pole disconnection in the fixed wiring shall be provided.

ELECTRICAL INSTALLATION

Please ensure your towel warmer is installed by a registered electrician and ensure the electrical supply, plug and switch location, and product location will comply with your local regulations. New Zealand electrical wiring requirements stipulate that this must be adhered to. This appliance must be fitted with an air gap phase isolation switch which isolates the “Phase” and “neutral” in accordance with local wiring regulations. This product must be used in conjunction with a hard wired switch.

WARRANTY

The Evoke & Quadro Heated Towel Rails offer a 10 Year Warranty in materials and workmanship. Colour finishes Matte Black, Brushed Brass, Gunmetal & Brushed Copper offer a 5 Year Warranty.

To use the warranty repair and service, the customer must provide the purchase invoice/receipt, and any other relevant documents. If the product has problems or develops faults within the warranty period due to normal wear and tear, Newtech at it’s discretion will recognise whether it is a faulty product or not. If it is impossible or not economic for the manufacturer to repair the product, the manufacturer will replace the faulty product with a new unit of the same model or; if there is no stock available for the same model, the manufacturer will replace the faulty product with a new unit of a similar size. The repair service offered within the warranty period only covers the faults and problems developed by the manufacturers errors. Any damage caused by improper use or carelessness is not covered by the warranty. Newtech is not responsible for any monetary loss or injuries caused by improper use of the product.

SPECIFICATIONS

Evoke Ladders

Quadro Ladders

INSTALLATION OPTIONS

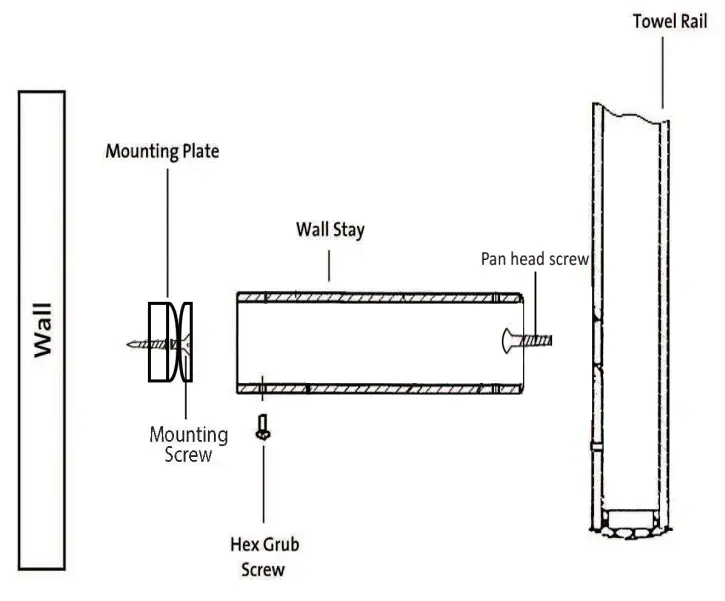

Exposed Wiring Kit Installation

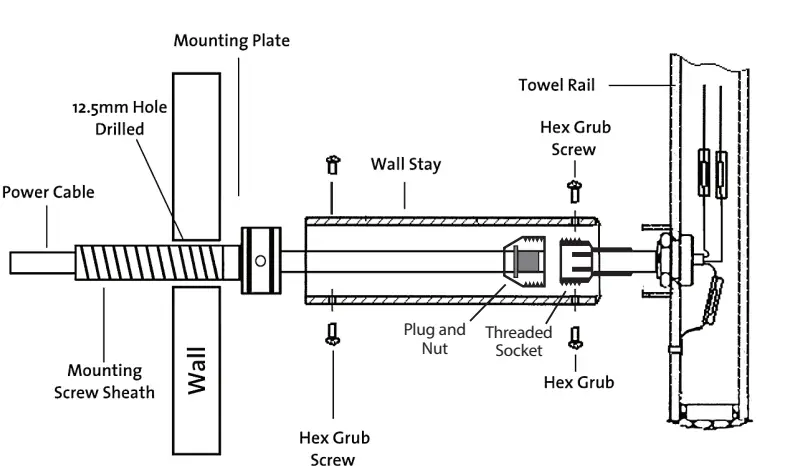

Concealed Wiring Kit Installation

• Top Leg Installation
• 281 Heads Road, PO Box 2050, Wanganui, New Zealand Phone: 06 349 0194 or 0800 728 662
• Email: [email protected]
• www.newtech.co.nz
