CX15
PROUDLY DEVELOPED AND
MANUFACTURED IN PORTUGAL
Presentation:
The SOUL stage monitor series delivers a complete sound reinforcement solution to fulfil the highest demands of audio professionals for both fixed installation and rental production markets.
This SOUL CX15 monitor is equipped with an European transducer having the LF element a 4in voice coil combined with the HF 2.9in voice coil matching the curvilinear profile LF cone that provides smooth response within its intended frequency range and the integrated HF compression driver that has been designed to give smooth coherent wave front in the horn entrance in all working frequency range for a surprising performance.
To make it portable and flexible, there is a pole mount in one side and for the passive versions a speakon connector attached to link another monitor.
The SOUL series is the perfect solution for sound reinforcement applications such as front of house, floor monitor and distributed systems.
Features:
- Professional coaxial stage monitor
- 2-way passive version
- 15″ LF (4in VC) + 2.9″ HF voice coil European transducers
- Faithful dynamic response and great range
- Connector plate on the bottom with 2x Speakon NL4
- Integrated Ø35mm pole mount
- Rugged and durable 15mm birch plywood construction
- Powder coated custom perforated steel grille
- Elegant looking professional enclosure
Technical specifications:
Acoustical
| Type | 2-way passive coaxial stage monitor |
| Enclosure design | Wedged cabinet – bass reflex |
| Power rating (RMS/Peak) | 400W / 80W (AES), 1600W (Peak) |
| Frequency range | 80 – 20kHz (10dB) |
| Nominal impedance | 8 ohm |
| Transducer type | 15″ coaxial EU transducer LF 4in VC + HF 2.9in VC |
| Dispersion | 80° Axisymmetrical (conical) |
| Crossover frequency | 1500Hz |
| SPL (1W/1kHz) | 130dB @ 1m |
| Connector | 2x NL4® in parallel |
Mechanical
| Enclosure | 15mm birch plywood, rugged polyurea coating |
| Grille | Custom perforated metal grilles w/ acoustic foam |
| Color | Black or white textured |
| Hardware | 2 metal handles, 4 rubber feet Wallmount bracket (optional) |

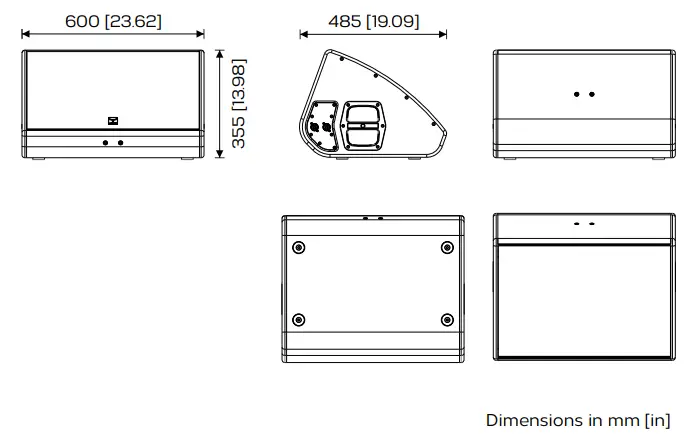

| Dimensions | 600x485x355mm | 23.62×19.09×13.98in |
| Weight | 28Kg | 61.73lb |
MOOSE is a brand or PROFACTOR S.A.
Zona Industrial de Campo, Rua Nova da Costa 55-71, 4440-049 Valongo, PORTUGAL,
Telf.: +351 224 119 160, [email protected]
