Motorized Core Holder XL
User Manual
Motorized Core Holder XL
Please keep the original packaging in case you need to return the unit.
If we receive the system in non-original packaging, the warranty may be void.

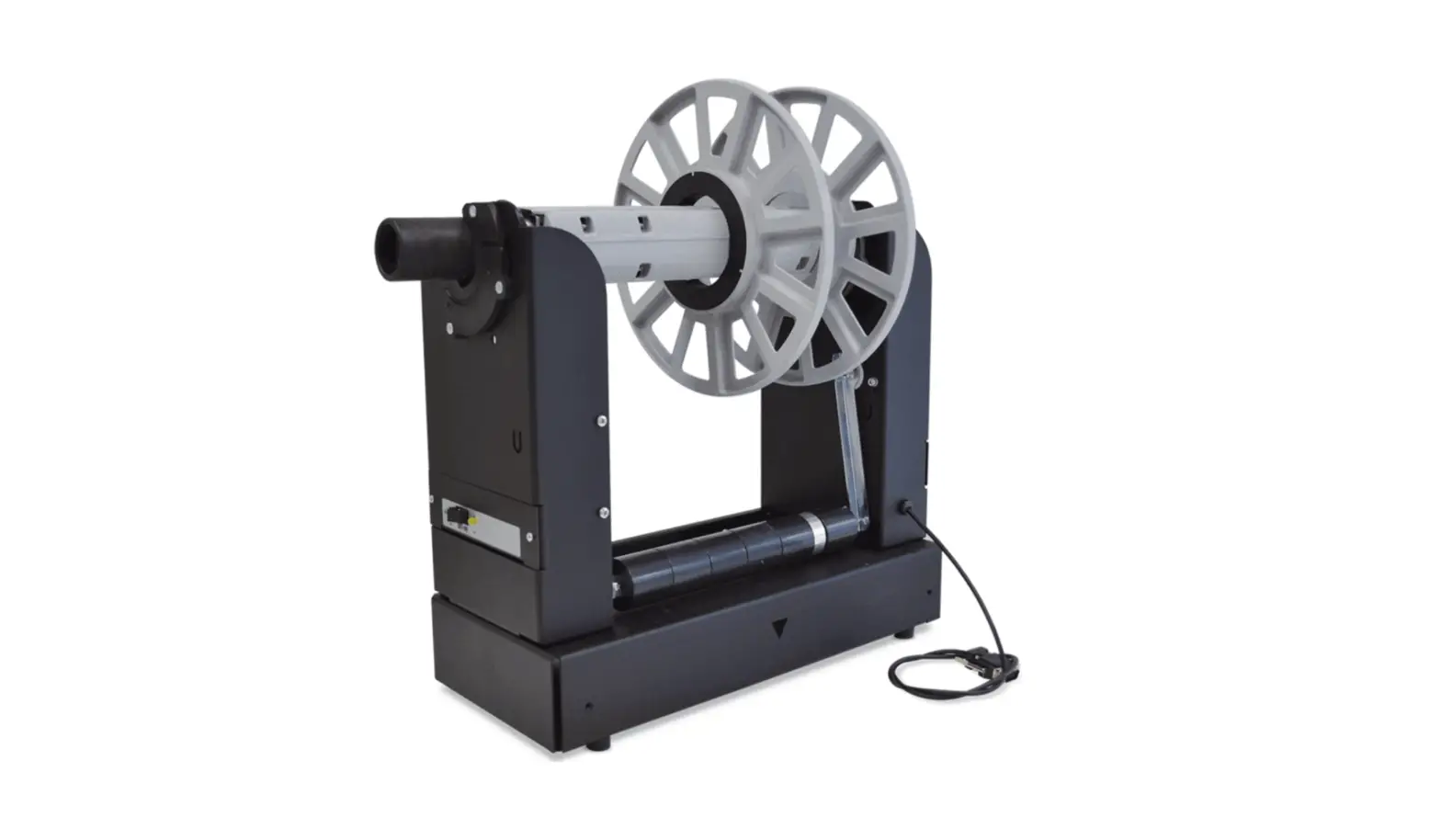

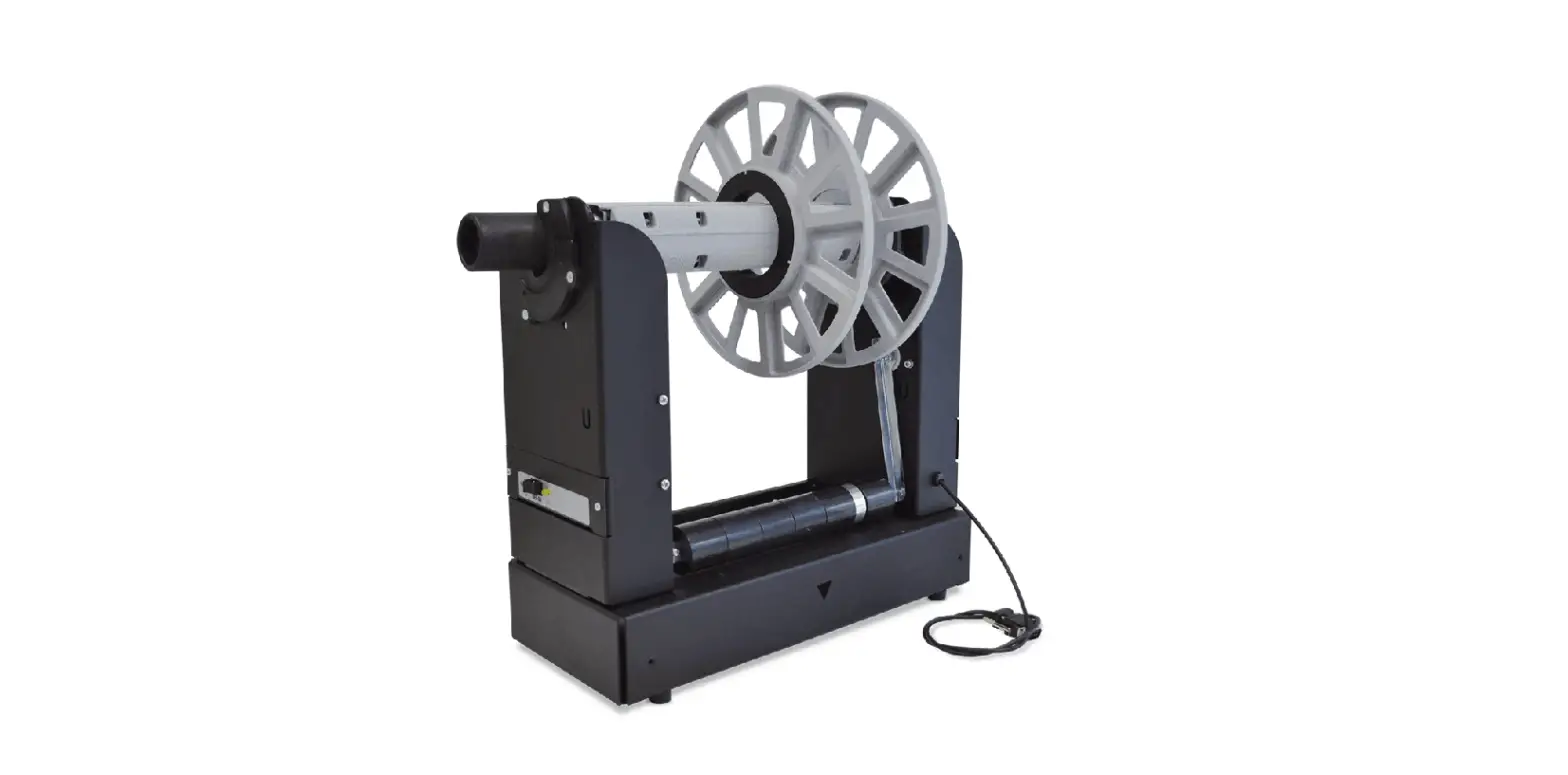

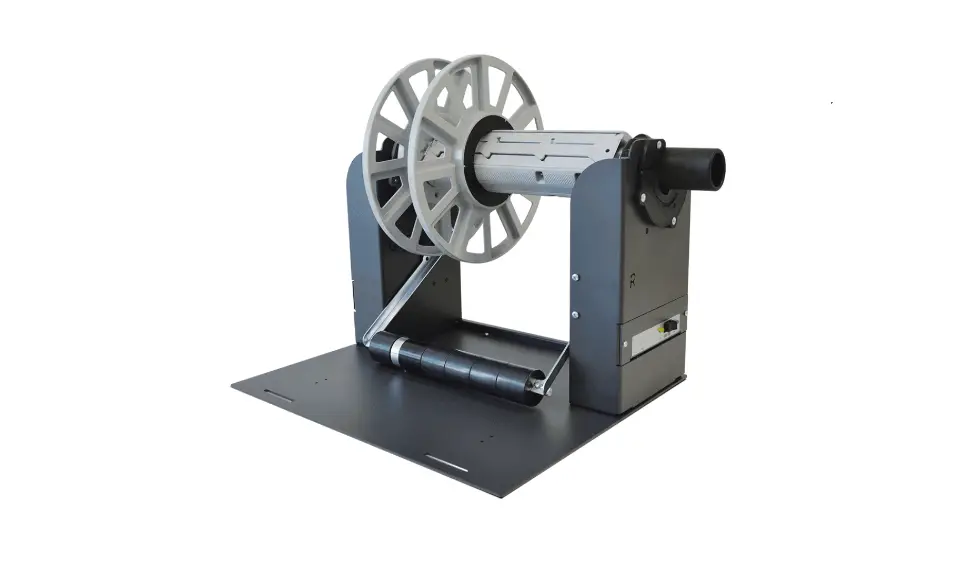

The XL unwinder is used to unwind the labels on a roll having a fixed 3” internal diameter. The maximum external roll diameter allowed is up to 250 mm (10”) while the maximum label width is up to 240 mm (9.45”).
An external power supply 100/240VAC – 2.5A at 24V allows an electronic circuit to provide, through the tension arm, the speed and sense of rotation auto adjustment.
INSTALLATION
STEP 1

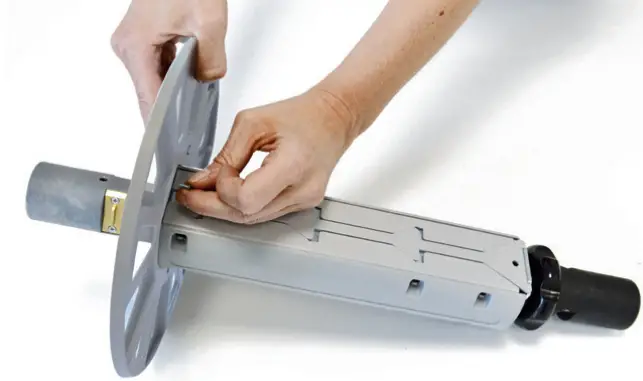

Using the screws, install the outer disc on the unwinder core holder.
STEP 2

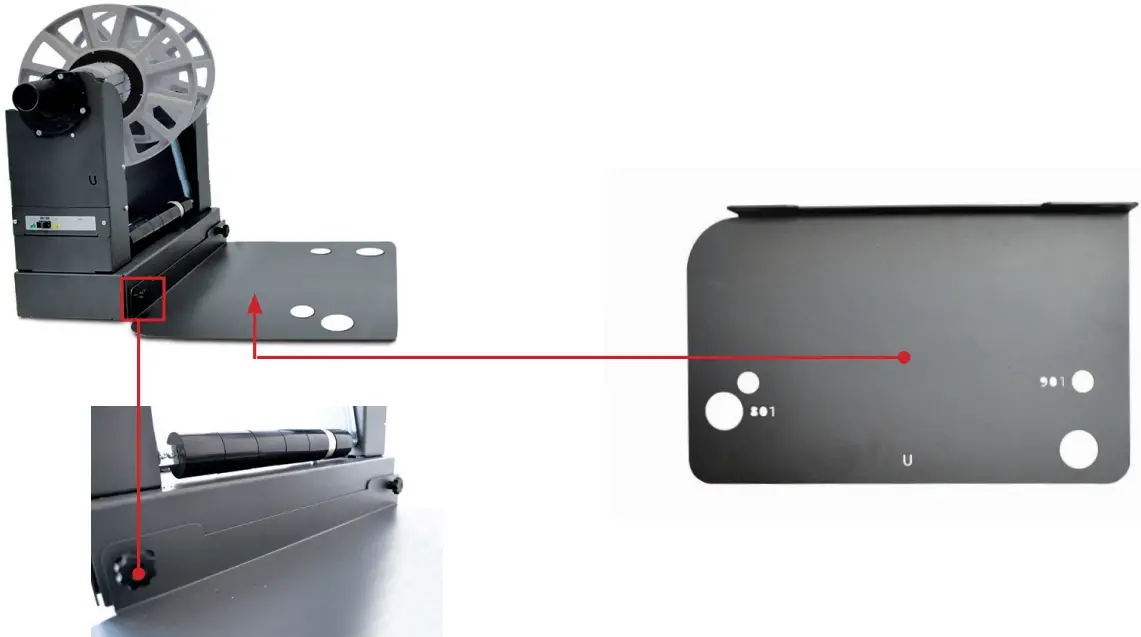

Attach the printer plate to the unwinder. Do not fasten the knobs for the moment.
STEP 3
Place the printer on the plate using the guide rails.
STEP 4

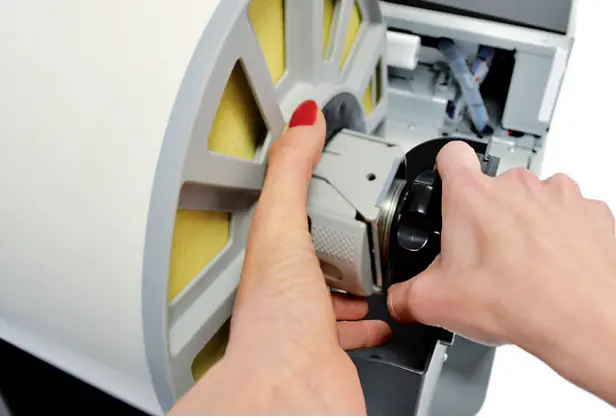

Load the media roll and outside disk then tighten the knob.
STEP 5

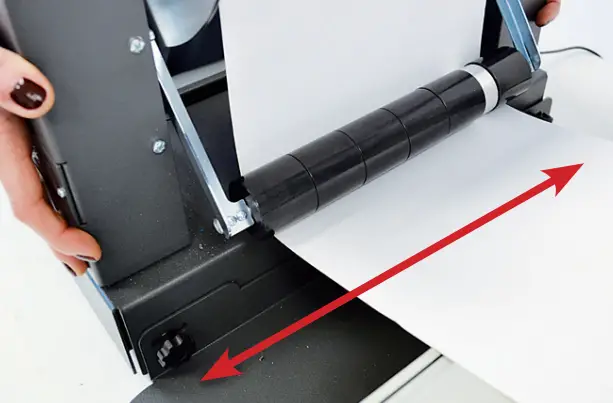

Push the media under the tension arm and then feed it into the printer (look at the printer’s manual on how to load media).
STEP 6
Make sure to align the unwinder with the printer and turn it on.
The system is ready to work.
