pearller HYC1215KIT Amplifier Player Wall Speakers

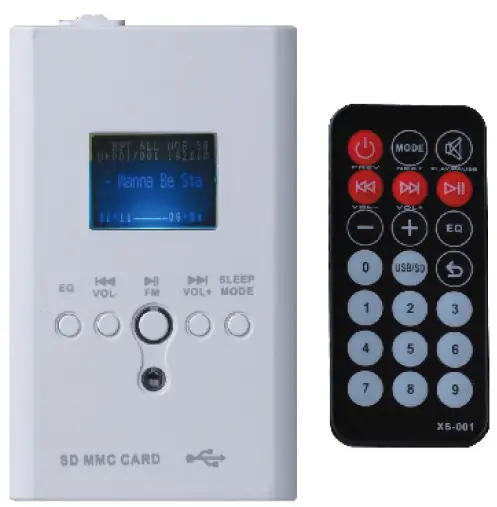

pearller-HYC1215KIT-Amplifier-Player-Wall-Speakers-product

Description

Small amplifier for background music system,output power reach 15W max@8 ohms low impedance output. has a 34x37mm display screen it is suitable for offices, restaurants,shop. etc.

Features

  1. USB, SD can play mp3 music files.
  2. FM radio, support frequency from 88MHz to 108MHz.
  3. Bluetooth, support smartphone/computer.
  4. 3.5mm audio jack,support analog audio input.
  5. IR remote control to control all operations.

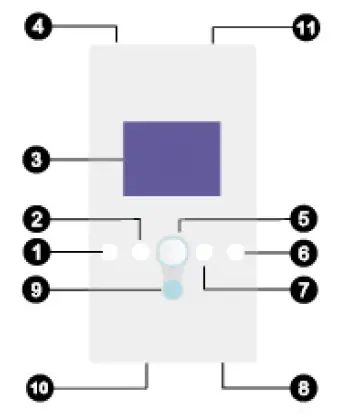

Panel Instruction

pearller-HYC1215KIT-Amplifier-Player-Wall-Speakers-fig-1 (1)

  1. EQ select
  2. Short press: PRE song Long press: VOL-
  3. Screen
  4. Power switch
  5. 3.5mm AUX input
  6. Short press: Play/Pause Long press:FM search
  7. Model switch: USB-SD-FM-AUX-Bluetooth Long press:sleep mode
  8. Short press: Next song Long press: VOL+
  9. USB port
  10. SD card port
  11. IR receiver
Soecification\ModelHYC1215
Output Power15W Stereo

_SB, SD, FM.Bluetooth, AUX

ln ut Functions
Frequency RP<mone20-20KHz
Output Interface8-0hms,8O,Stereo(len and right)
Power Supply Dimensions: WxHxDAC110/220V(built-in transformer), or 9-1 SVDC (use a DC Acta          _
73X116X60

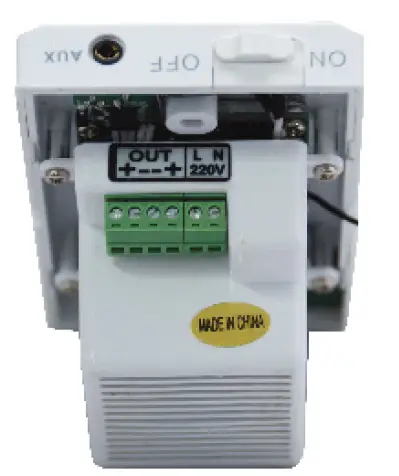

pearller-HYC1215KIT-Amplifier-Player-Wall-Speakers-fig-1 (2)

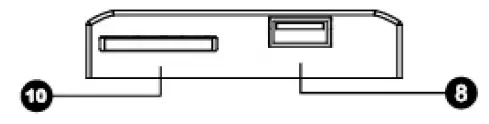

USB/SD position pearller-HYC1215KIT-Amplifier-Player-Wall-Speakers-fig-1 (3)

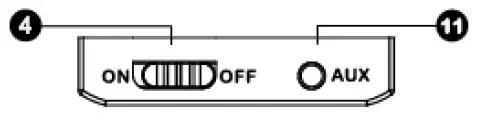

Power switch/AUX jack position pearller-HYC1215KIT-Amplifier-Player-Wall-Speakers-fig-1 (4)

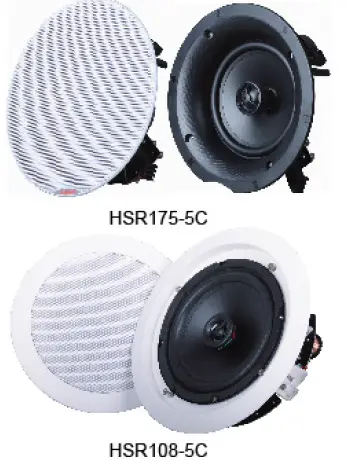

Optional Speaker

Coaxial Ceiling Speakerpearller-HYC1215KIT-Amplifier-Player-Wall-Speakers-fig-1 (5)
